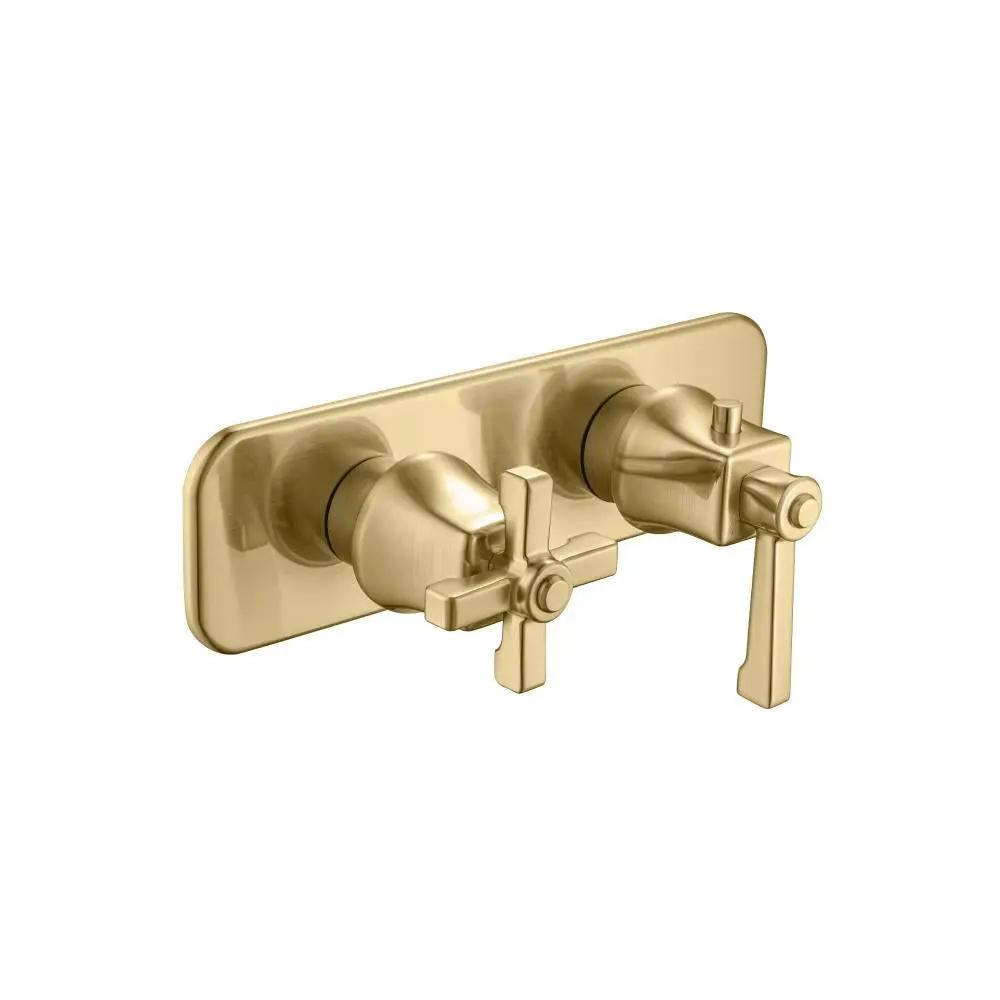

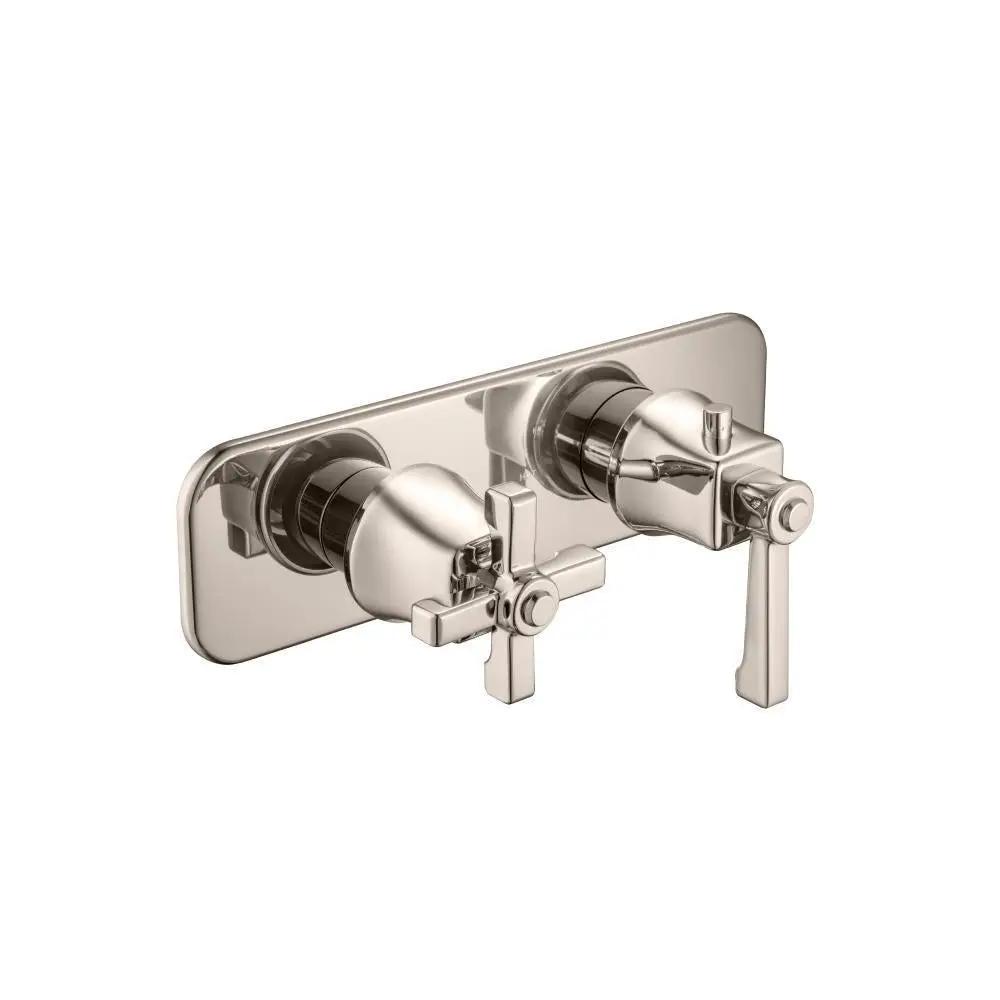

Flusso Serie 270 3/4" Horizontal Thermostatic Shower Valve and Trim - 2 Output

Focal Point Hardware is an authorized [Brand] retailer!

Discover the Flusso Serie 270 3/4" Horizontal Thermostatic Shower Valve and Trim - 2 Output from Flusso, available through Focal Point Hardware. This premium thermostatic valve delivers precise temperature control, two independently operable outputs, CAL-Green compliance, and flexible horizontal or vertical installation for modern showers. Elevate your bathroom with durable brass construction and reliable performance from Flusso Serie 270.

Flusso is renowned for precision-engineered, durable shower valves and trim that blend clean lines with reliable thermostatic performance. As a leading bath-system manufacturer, Flusso delivers CAL-Green compliant components, solid brass construction, and innovative safety features like anti-scald rings, ensuring consistent water temperature and long-lasting reliability in luxury showers.

Features and Specifications

• TVH.2717F thermostatic valve features 3/4" NPT connections and has 2 water outputs [ports] which are operable one at a time without shared port operation.
• This product meets CAL-Green compliance criteria.
• The right handle sets the temperature. The left handle controls water diversion between the 2 water output ports. Each port has full volume control capability.
• HORIZONTAL OR VERTICAL INSTALLATION – The TVH.2717F can be installed horizontally or vertically.
• SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
• HANDLE OPERATION – The right handle is used to control the temperature of water flowing through the outlet ports. The left handle is used to divert the water between each output port and is= capable of controlling the volume of water from full flow to a trickle.
• ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
• VALVE INSTALLATION -As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77? and 3.44? inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
• CUT OUT DIMENSIONS – The cut out in wall should be 7.89? x 1.89? Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
• TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
• CARTRIDGE – The TVH.2717F valve can be used with two cartridges. The default cartridge that the valve comes with is the Model # 15109 cartridge which is a 2 output non-shared [CAL-Green Compliant] cartridge. A shared port operation cartridge [Model # 15103] can also be used to activate 2 ports at the same time.
• Solid Brass Construction Includes Thermostatic Valve - TVH.2717F With Integral Service Stops Two Output Ports Exte

With Flusso’s renowned quality and reliability, the Flusso Serie 270 offers precise thermostatic control, dual outputs, and durable brass construction—delivering a luxurious, maintenance-friendly shower experience.
