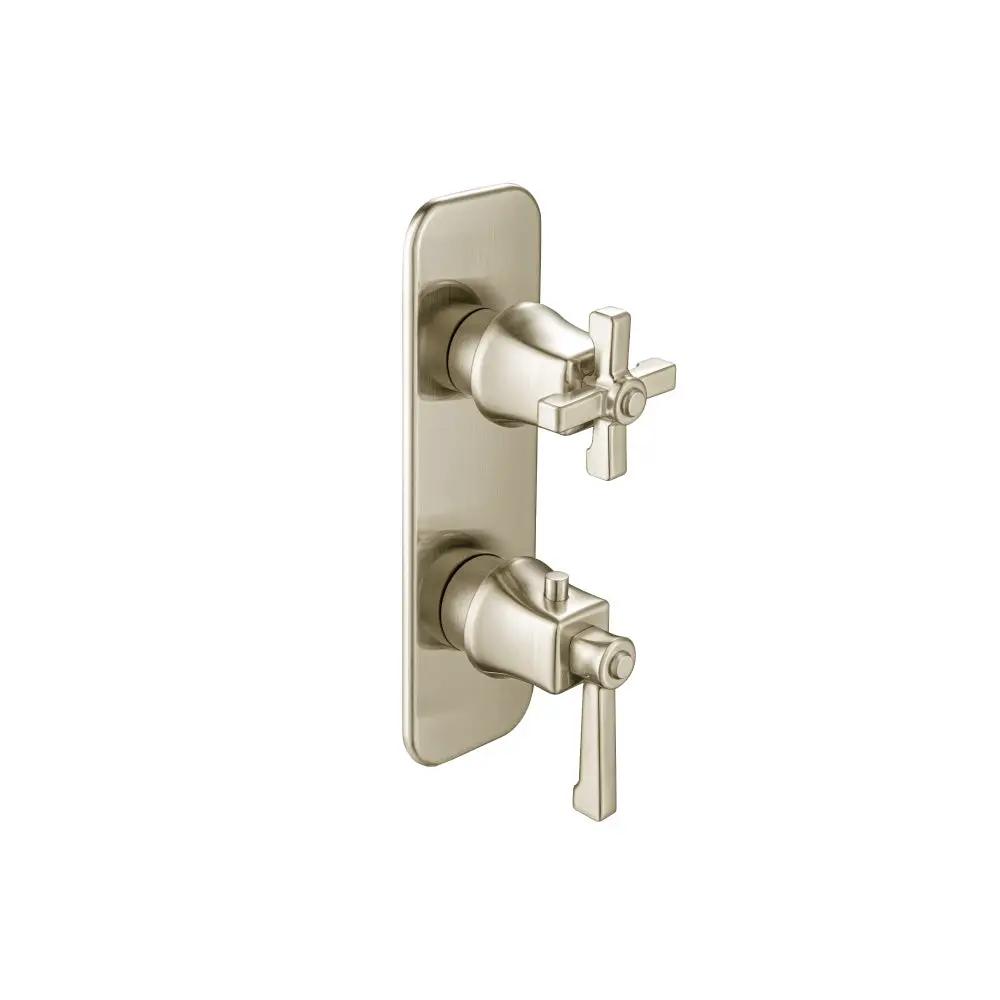

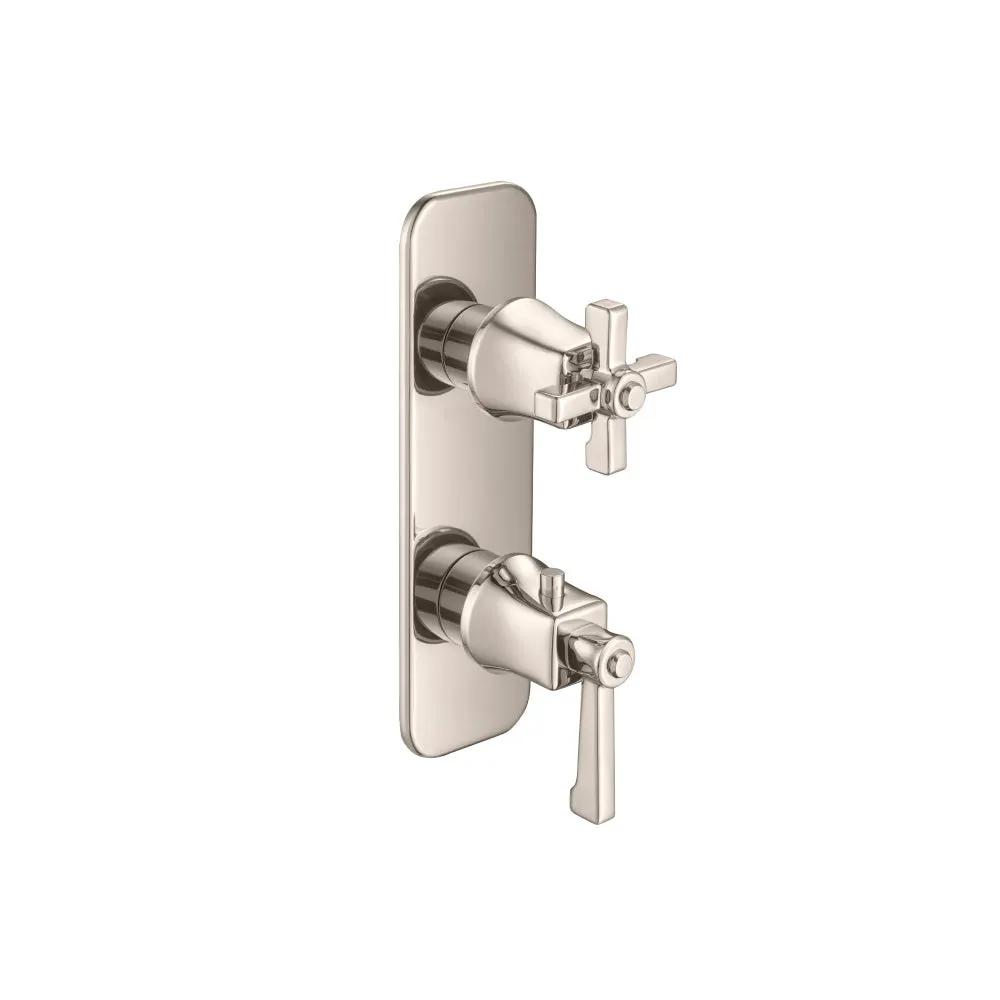

Discover the Flusso Serie 270 3/4" Thermostatic Shower Valve and Trim - 1- Output, a precision-engineered solution from Flusso that delivers reliable temperature control, durable brass construction, and a clean, contemporary look. The 2720 series uses the TVH.2693 thermostatic valve with 3/4" NPT connections and a single output for streamlined installation.
Flusso is renowned for precision-engineered, luxury shower systems that fuse reliability with contemporary design. Known for solid brass construction, durable finishes, and innovative thermostatic technology, Flusso products like the Serie 270 deliver consistent temperatures, smooth volume control, and long-lasting performance, backed by a reputation for quality, safety, and design-forward engineering.
Features and Specifications
- 3/4" NPT connections
- One water output
- Right handle sets the temperature
- Left handle controls water volume
- Horizontal or vertical installation
- Two safety stops at each water inlet
- Anti-scald temperature stop ring around the control knob
- Push-button on the side of the handle knob to adjust temperature
- Anti-scald mechanism requires a tight fit of the stop ring
- Valve installation distance from back of valve to finished tile: 2.77" to 3.44" (Rough In Spec)
- Valve must be installed straight and not at an angle or upside down
- Extension kits available for deeper wall installations
- Cut-out dimensions in wall: 7.89" x 1.89"
- Trims include a well-finished cover plate and handle knobs
- Trim plate covers the wall
- Trims vary in shape and size, from square to circular shower handles
- Solid Brass Construction
- Includes Thermostatic Valve - TVH.2693
- With Integral Service Stops
- Single Output Port
- Extensions Available - TVH.4101E**
Elevate your shower experience with Flusso Serie 270, a trusted, luxury-grade fixture that combines precise thermostatic control with timeless brass construction, backed by Flusso’s reputation for quality and reliable performance.
