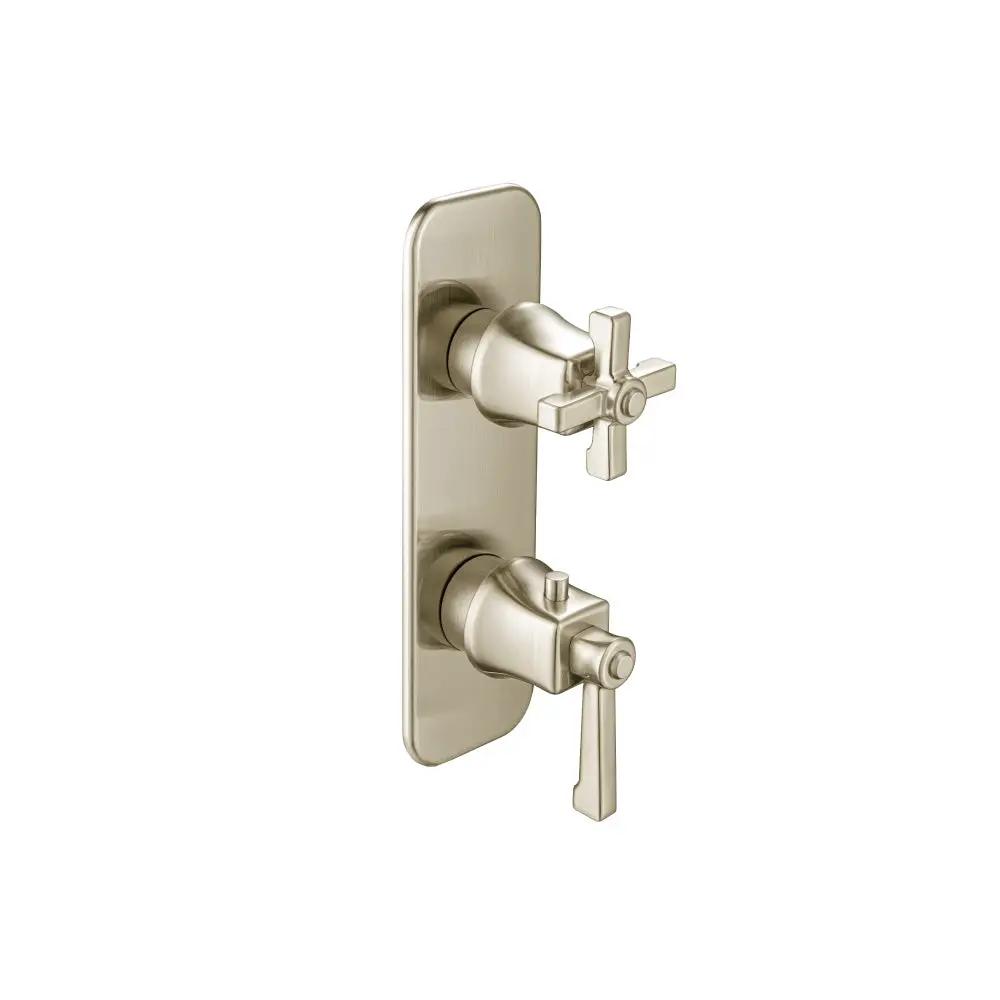

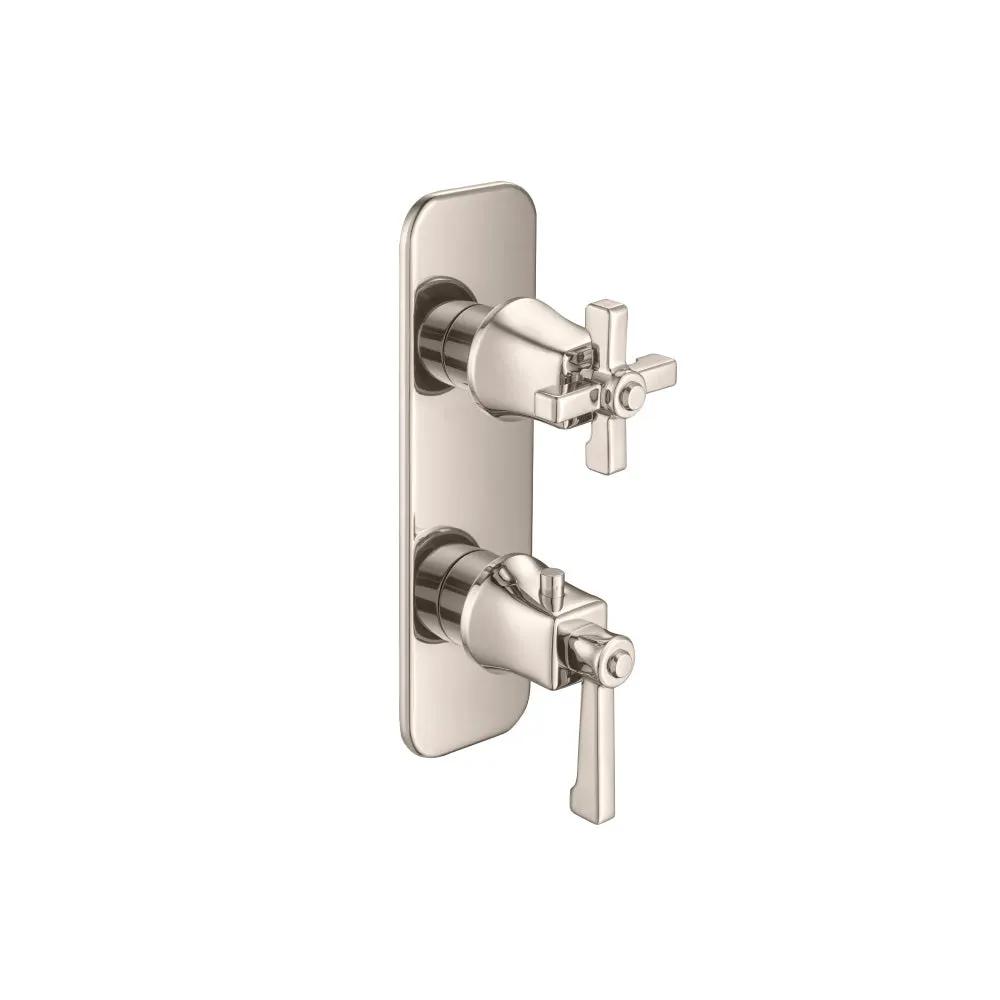

Flusso Serie 270 3/4" Thermostatic Shower Valve and Trim - 3-Output offers precise temperature control, independent port flow, and flexible installation for a luxury bathroom upgrade. Built by Flusso, this system combines reliable thermostatic performance with CAL-Green compliance, a durable brass valve, and elegant trim to deliver spa-like showers with customizable volume and seamless style.
Flusso, renowned for precision-engineered shower systems and luxury bathroom hardware, brings lasting performance to the Serie 270. Flusso products are built with solid brass construction, strict quality controls, CAL-Green compliance, and thoughtful engineering that ensures quiet operation, reliable thermostatic control, and enduring finishes that elevate any shower space and lasting value.
Features and Specifications
- 2780 Series from Flusso uses the TVH.2705F Thermostatic valve which features 3/4? NPT connections and has 3 water outputs [ports] which are operable one at a time without shared port operation.
- 3 water outputs [ports] which are operable one at a time without shared port operation
- CAL-Green compliant
- Bottom handle sets the temperature. The top handle controls water diversion between the 3 water output ports. Each port has full volume control capability.
- HORIZONTAL OR VERTICAL INSTALLATION – The TVH.2705F can be installed horizontally or vertically.
- SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
- HANDLE OPERATION – The right handle is used to control the temperature of water flowing through the outlet ports. The left handle is used to divert the water between each output port and is= capable of controlling the volume of water from full flow to a trickle.
- ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. Covering this ring is the handle knob which has a push-button on the side. To adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position – as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
- VALVE INSTALLATION -As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77? and 3.44? inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
- CUT OUT DIMENSIONS – The cut out in wall should be 7.89? x 1.89? Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
- TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- CARTRIDGE – The TVH.2705F valve can be used with two cartridges. The default cartridge that the valve comes with is the Model # 15100 cartridge which is a 3 output non-shared [CAL-Green Compliant] cartridge. A shared port operation cartridge [Model # 15200] can also be used to activate 2 out of 3 ports at the same time.
- Solid Brass Construction Includes Thermostatic Valve - TVH.2705F
Experience reliable luxury with Flusso Serie 270, a brass-built thermostatic valve set that promises precise control, safe operation, and enduring style. Flusso's commitment to quality ensures long-lasting performance and sophisticated bath design.
