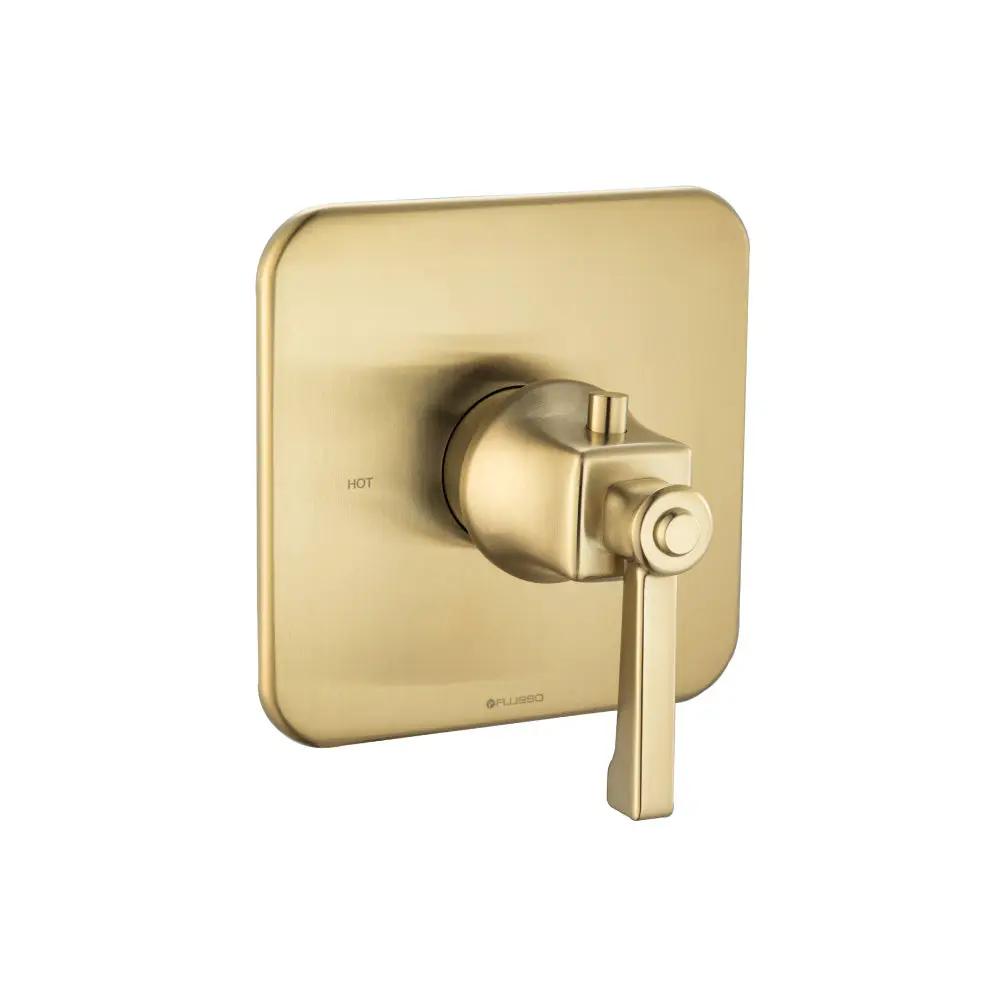

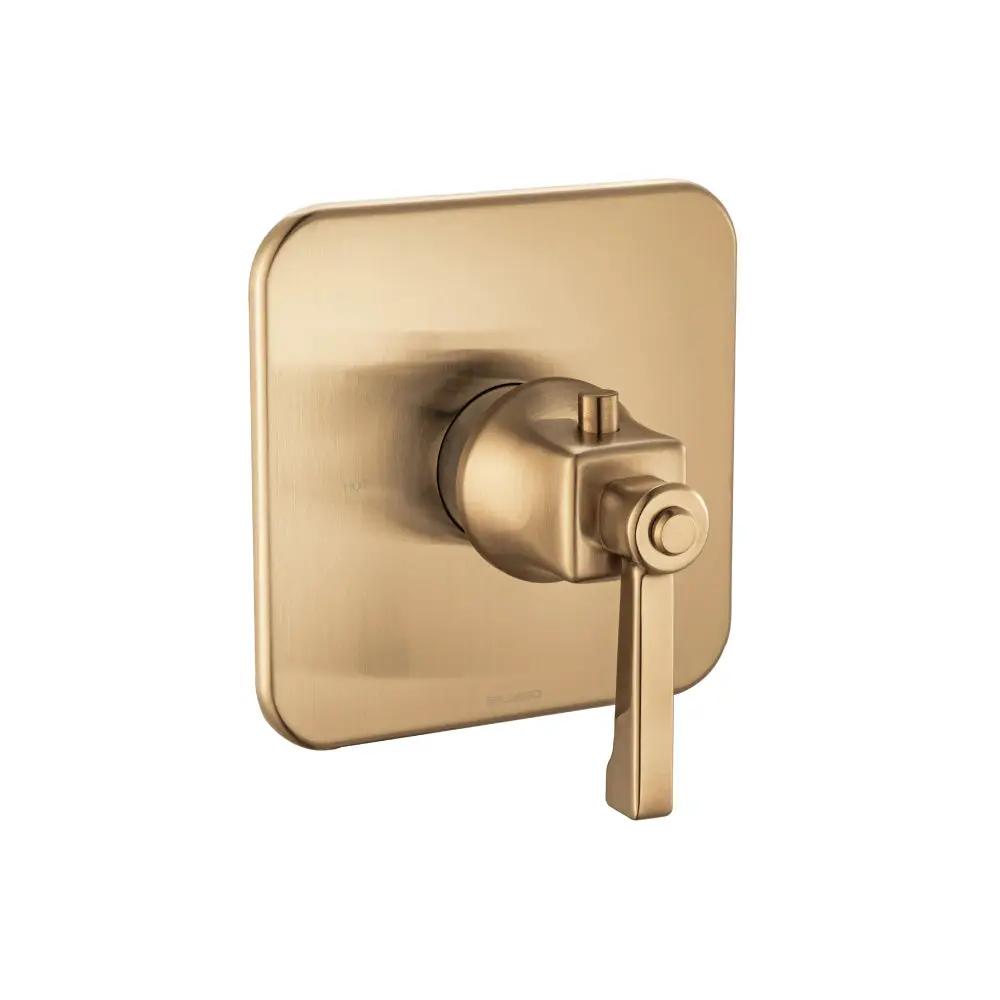

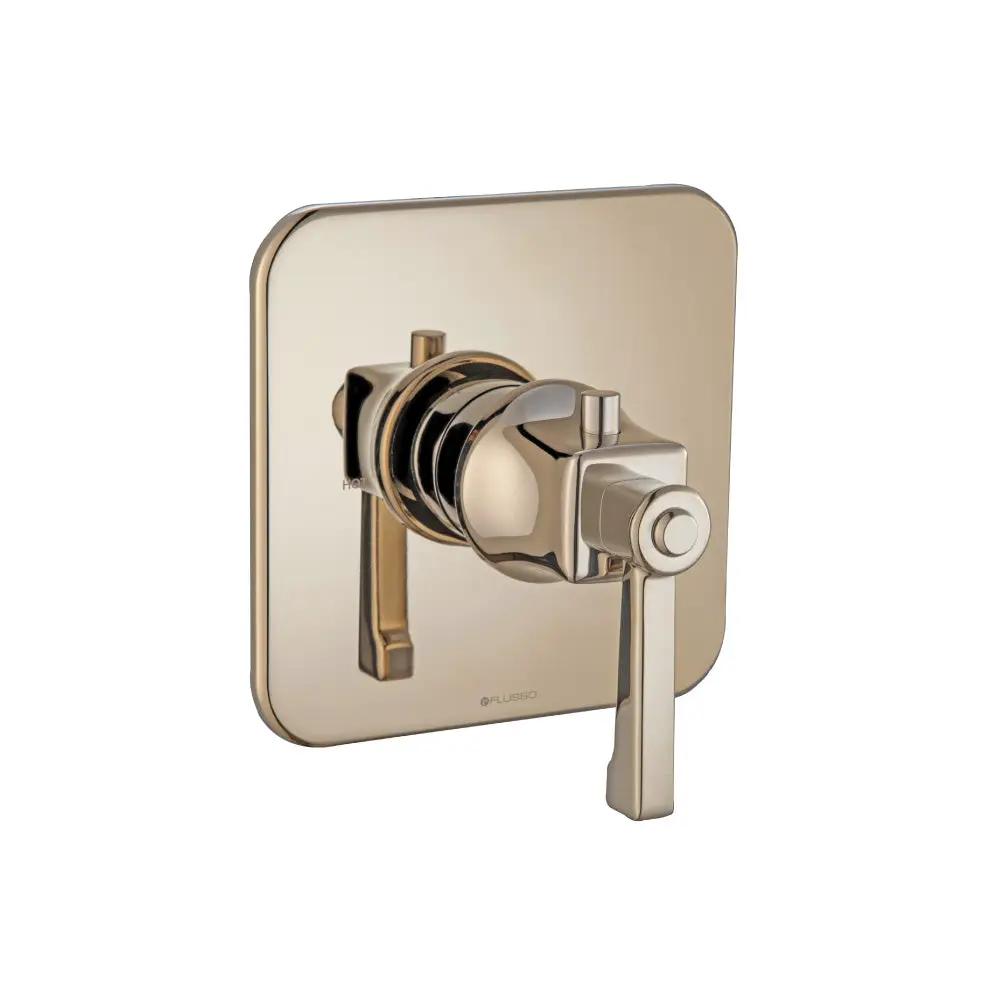

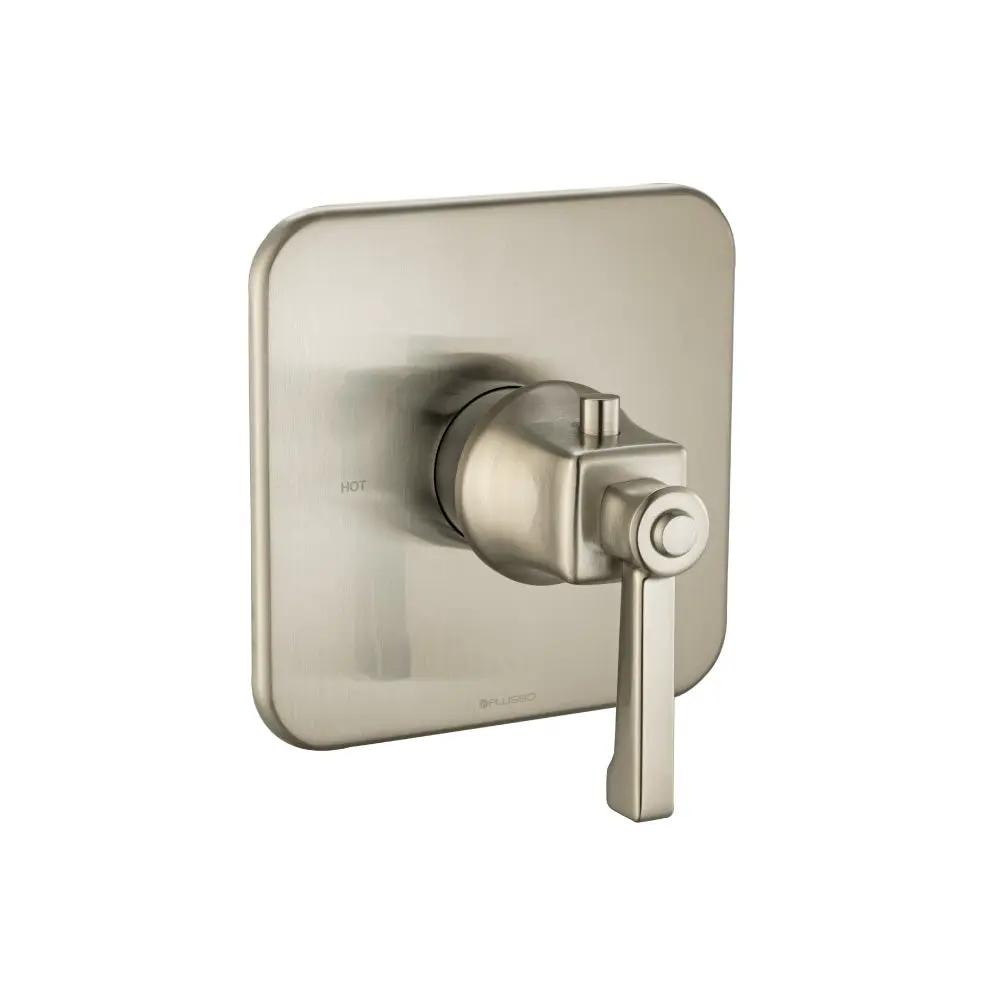

Experience precise temperature control with the Flusso Serie 270 3/4" Thermostatic Valve with Trim TVH.4201. This ¾" valve uses NPT female connections, features two inlets with integral stop kits and a single output, and delivers 13.0 GPM @ 60 PSI. Note: it has no water shutoff—use a volume control or diverter valve. Includes vertical installation, trim, and anti-scald mechanisms.
Flusso is renowned for durable brass thermostatic valves and elegant trim systems built to endure daily use. The brand emphasizes precise temperature control, robust construction, and seamless compatibility with premium finishes. Flusso's engineering excellence translates to reliable performance, smooth operation, and long-lasting luxury in modern showers and baths. Engineered for lasting beauty and reliable service.
Features and Specifications
- TVH.4201 is a ¾” Thermostatic valve with NPT female connections
- Two inlets with integral stop kits
- Single output
- Flow rate: 13.0 GPM @ 60 PSI
- Does not have water turn off capability; must be used with a volume control or diverter valve
- Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs
- Handle Operation - The handle is used to control temperature of water flowing through the outlet. This handle does not control the volume of water flowing through the valve
- Distance to finished tile: 2.77” to 3.44” from back of valve to surface of finished tile
- Installation must be vertical and not at an angle
- Extensions Available - The length of extensions for TVH.4201 valve is 1.40” (TVH.E185)
- Extension kits comprise thermostatic handle extension, which can be ordered separately in chrome, brushed nickel, or other special finishes
- Cut Out Dimensions - The cut out in wall should be 2.67” X 4.44” which is properly covered by the trim plate
- Trims - Trim plate covers the wall and has markings for HOT/COLD; anti-scald temperature stop ring sits above the temperature control knob
- Anti-scald stop ring must be fitted tightly over the valve
- To adjust water temperature, press the side push button and move the handle to hot or cold; without pressing, the handle cannot rotate fully HOT
- Trims can vary in shape and size, from square to circular, depending on the shower model
- Solid Brass Valve & Trim Includes TVH.4201 3/4" NPT Female Connections
- Extensions Available - TVH.E185**
The Flusso Serie 270 3/4" Thermostatic Valve with Trim TVH.4201 delivers reliable luxury performance, backed by Flusso’s reputation for durable craftsmanship and meticulous engineering for upscale showers.
