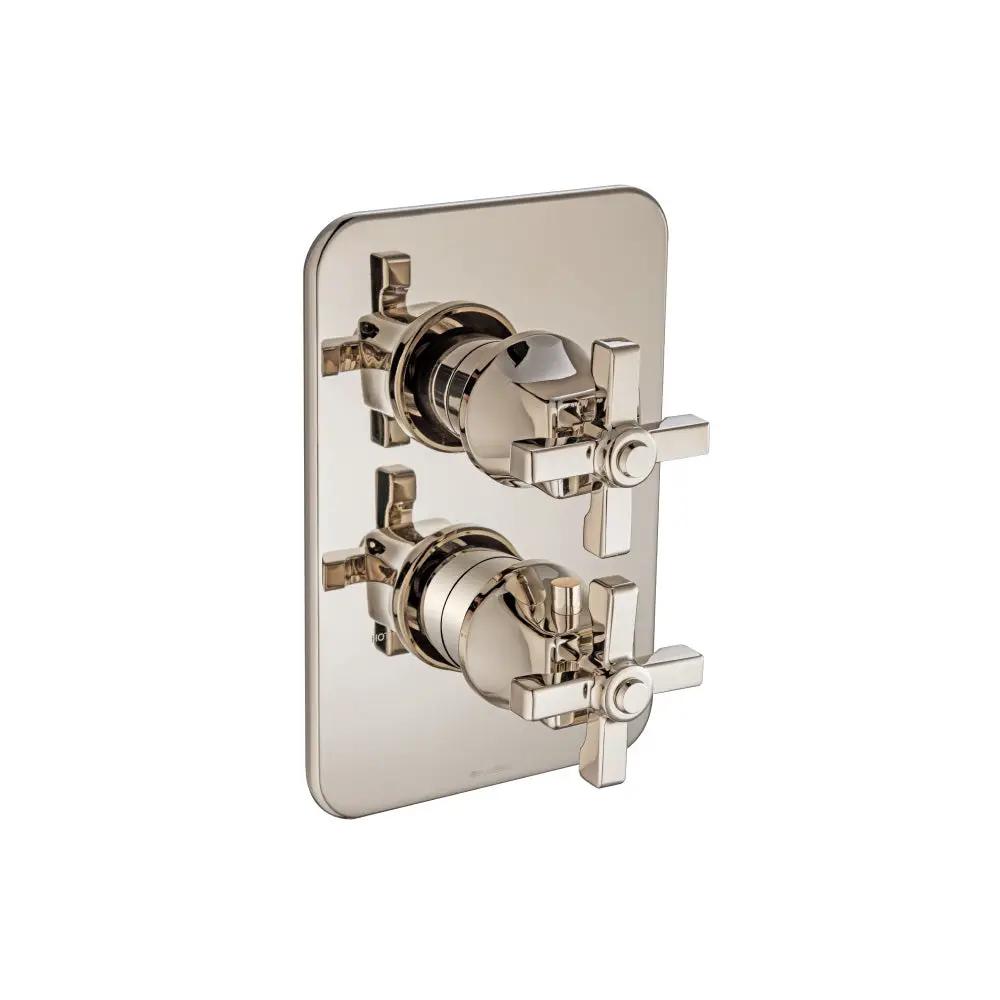

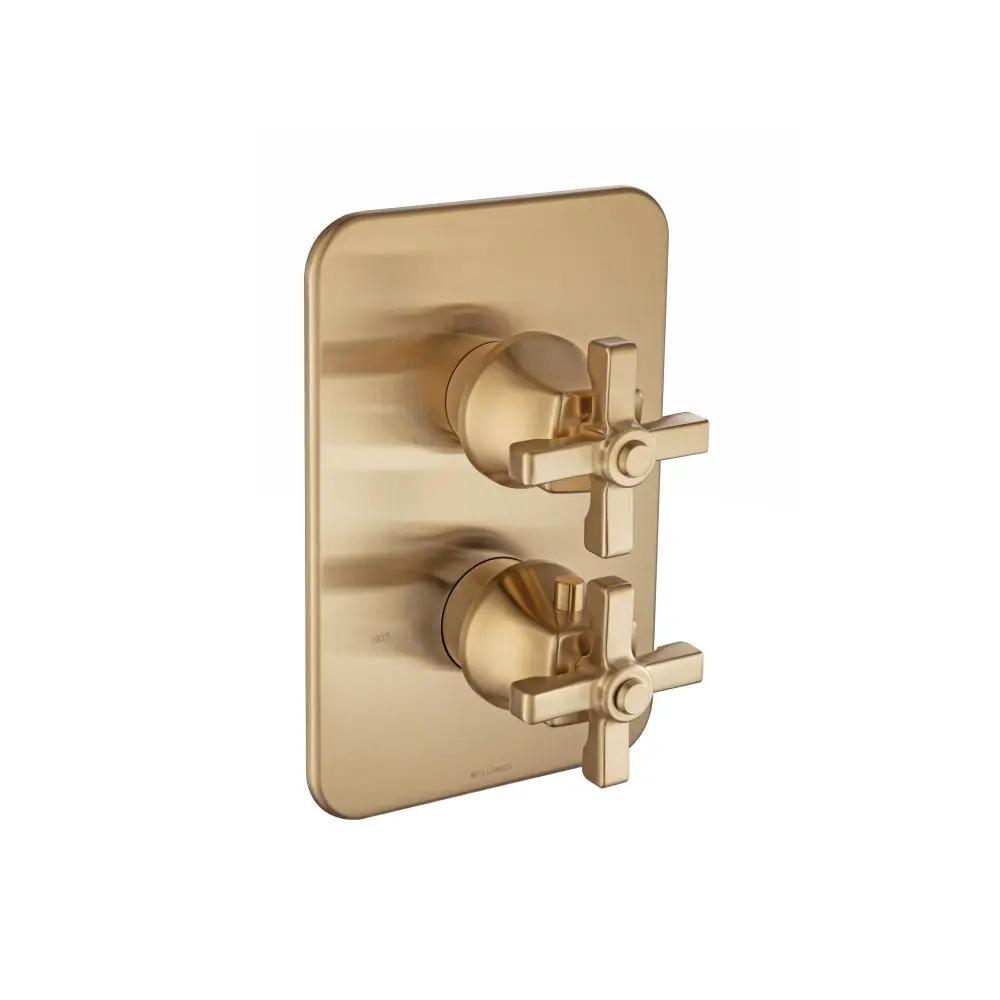

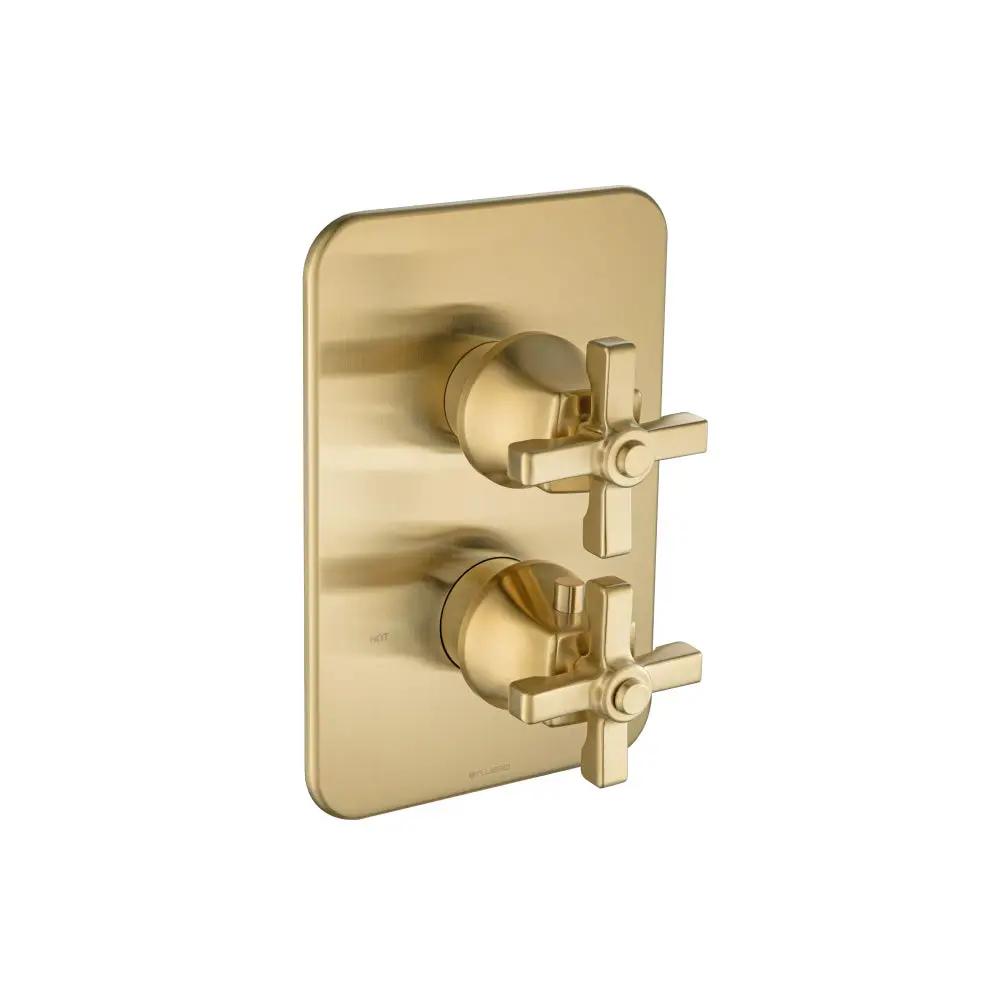

Flusso Serie 270 3/4" Thermostatic Valve and Trim - 3 Way Diverter - 3 Outputs

Focal Point Hardware is an authorized Flusso retailer!

Flusso Serie 270 3/4" Thermostatic Valve and Trim - 3 Way Diverter - 3 Outputs from Flusso delivers precise, CAL-Green compliant control with a 3/4" female NPT valve and three dedicated output ports. Flusso's renowned craftsmanship and elegant trims blend reliability with luxury, offering anti-scald protection and adjustable flow for a superior shower experience.

Features and Specifications

• 3/4" female NPT connections
• 3 water output ports
• CAL-Green compliant
• TVH.4301F thermostatic valve with integral service stops
• Three output ports
• Two safety stops at each water inlet
• Bottom handle controls temperature; top handle controls volume from full flow to a trickle
• Anti-scald temperature stop ring with push-button on the handle
• Ring must be fitted tightly over the valve for proper functionality
• Rough-In Spec: Back distance from the finished tile to the back of the valve should be between 2.77" and 3.44" inches
• Cut-out in wall should be 6.49 X 4.44 Inches
• Trims include cover plate and handle knobs
• Cartridge options: Model #15100 (default, 3-output non-shared)
• Cartridge options: Model #15200 (shared port operation to activate 2 out of 3 ports)
• Extensions available: TVH.4101E**
• Solid brass construction

Flusso Serie 270 Thermostatic Valve and Trim delivers precise temperature control, 3-output versatility, and solid brass reliability for a premium shower experience. Flusso's commitment to luxury, accuracy, and CAL-Green compliant performance reinforces its trusted reputation for quality.
