Product details
Focal Point Hardware is an authorized Flusso retailer!

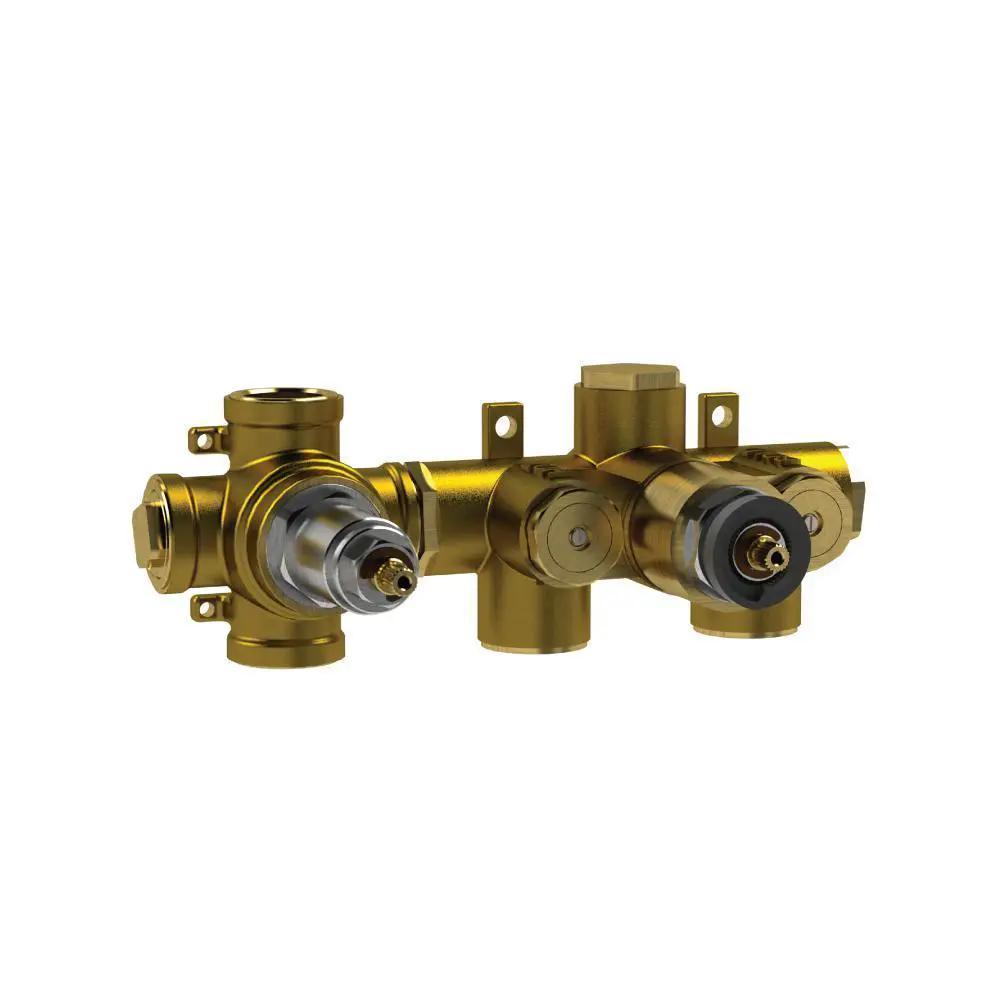

Discover the Flusso 3/4" Thermostatic Valve - 2 Outputs, a precision shower and tub valve engineered for reliable temperature control and flexible water routing. Flusso's two-outlet system delivers independent flow to two fixtures with a single valve, while CAL-Green compliant components optimize water efficiency. This model pairs durable brass construction with precise, intuitive temperature adjustment for daily luxury.
Flusso is renowned for precision-grade thermostatic valves that combine dependable performance with sleek, contemporary design. Known for robust brass construction, CAL-Green compliance, and repeatable temperature control, Flusso delivers reliable comfort, long-lasting durability, easy installation, and luxury aesthetics for modern showers and baths, backed by a commitment to quality and customer support.
Features and Specifications
- TVH.2717F thermostatic valve features 3/4? NPT connections and has 2 water outputs [ports] which are operable one at a time without shared port operation
- 2 water outputs [ports] operable one at a time without shared port operation
- Right handle sets the temperature
- Left handle controls water diversion between the 2 water output ports
- Each port has full volume control capability
- Horizontal or vertical installation
- SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs
- HANDLE OPERATION – The right handle is used to control the temperature of water flowing through the outlet ports
- The left handle is used to divert the water between each output port and is= capable of controlling the volume of water from full flow to a trickle
- ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value
- With the help of this ring, the temperature of the water is regulated
- Covering this ring is the handle knob which has a push-button on the side
- In order to adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction
- Without pressing it, the user will not be able to rotate the handle to the full HOT position – as an anti-scald prevention mechanism
- The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly
- VALVE INSTALLATION -As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77? and 3.44? inches [Rough In Spec]
- Also, the value must be installed straight and not at an angle or upside down
- In case, the tile is thicker or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve
- CUT OUT DIMENSIONS – The cut out in wall should be 7.89? x 1.89? Inches which is properly covered by the trim plate
- This will ensure that the trim plate will cover the cut out hole in the wall
- TRIMS – The trims comprise of a well-finished cover plate and handle knobs
- The trim plate is used to cover the wall
- Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles
- CARTRIDGE – The TVH.2717F valve can be used with two cartridges
- The default cartridge that the valve comes with is the Model # 15109 cartridge which is a 2 output non-shared [CAL-Green Compliant] cartridge
- A shared port operation cartridge [Model # 15103] can also be used to activate 2 ports at the same time
- Solid Brass Construction
- 2 Output Ports
- Sets water temperature within 2° Celsius
- Use For Shower or Tub Application
- Extension Available - Part # TVH.41
Experience premium shower control with Flusso’s TVH.2717F, a reliable, luxurious valve engineered for precise temperature management and versatile water routing, backed by Flusso's reputation for quality and enduring performance.
