Product details
Focal Point Hardware is an authorized Flusso retailer!

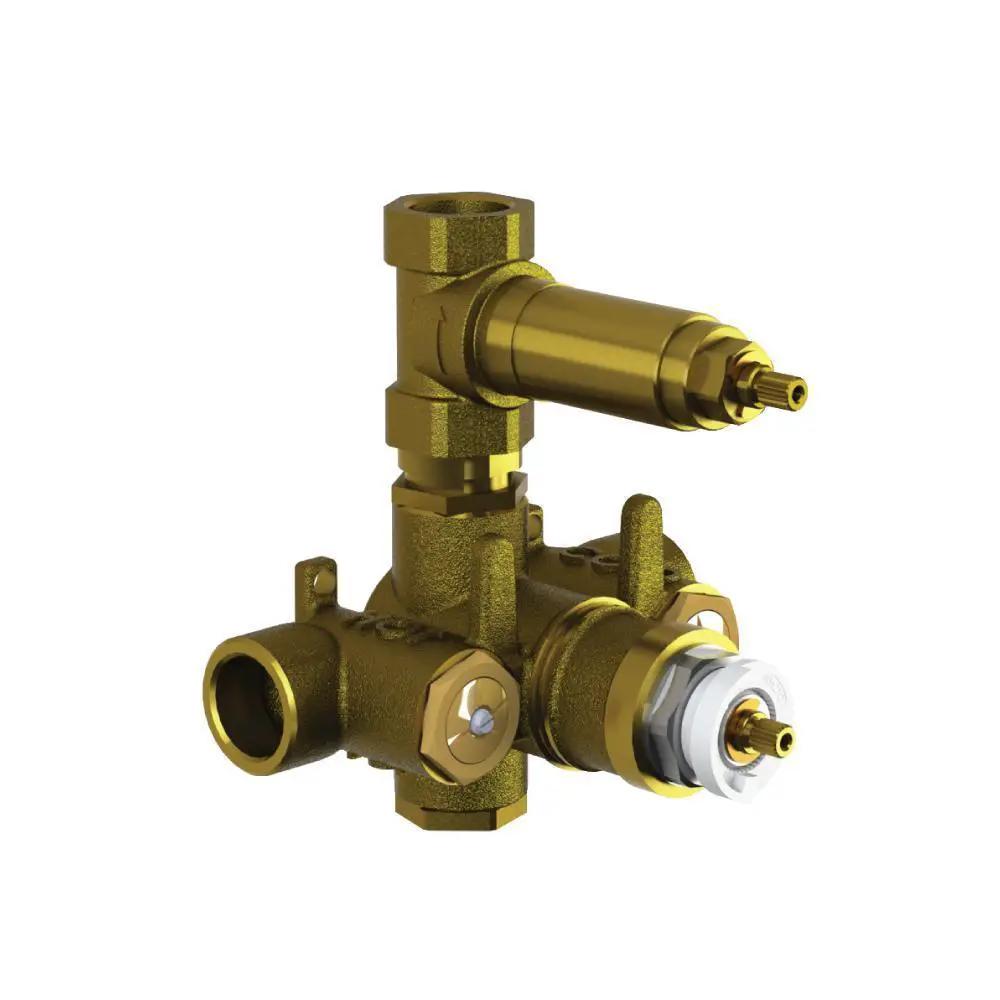

Experience precise temperature control with the Flusso 3/4" Thermostatic Valve - 1 Output, a premium fixture that delivers consistent water flow and safer showers. This solid brass valve features 3/4" NPT connections, separate temperature and volume adjustment, anti-scald protection, and robust safety stops, with extension options (TVH.4101E**) for dedicated luxury installations.
Flusso is known for reliable thermostatic valves that deliver precise temperature control and long-lasting durability. With solid brass construction and careful engineering, Flusso fixtures offer smooth operation, consistent water flow, and elegant finishes designed to elevate modern showers while prioritizing safety and ease of installation. The brand's commitment to quality and support inspires trust in Flusso.
Features and Specifications
- Solid Brass Construction
- 3/4" NPT connections
- 1 output port
- Bottom handle sets water temperature
- Top handle controls water volume
- SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
- HANDLE OPERATION – The bottom handle is used to control the temperature of water flowing through the outlet.
- The top handle can control the volume of water from full flow to a trickle.
- ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value.
- With the help of this ring, the temperature of the water is regulated.
- The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
- VALVE INSTALLATION - As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77 and 3.44 inches [Rough In Spec].
- Also, the value must be installed straight and not at an angle or upside down.
- In case, the tile is thicker, or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
- CUT OUT DIMENSIONS – The cut out in wall should be 6.49 x 4.44 Inches which are properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
- TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- Extension Available - Part # TVH.4101E**
Experience precise temperature control and reliable flow with the Flusso 3/4" Thermostatic Valve - 1 Output, a luxury-grade fixture backed by Flusso's commitment to quality, durability, and effortless safety.
