Product details
Focal Point Hardware is an authorized Flusso retailer!

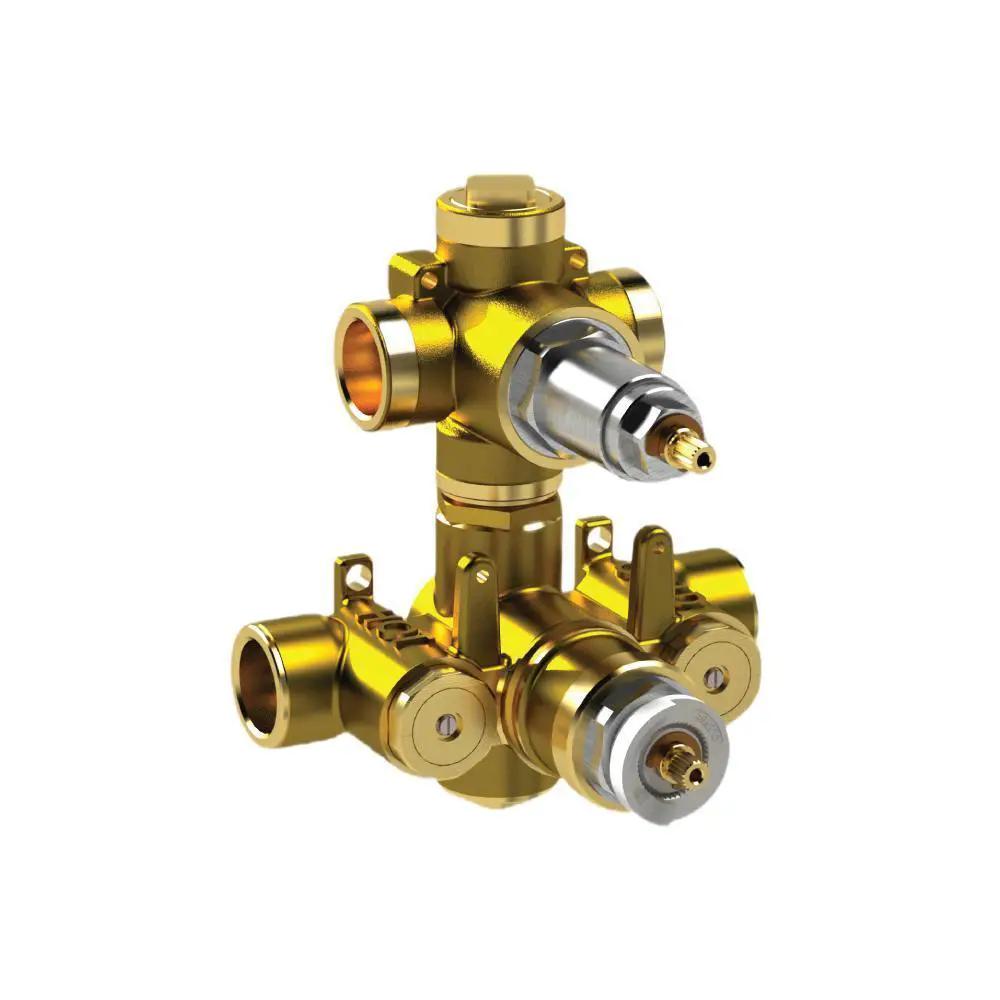

Discover the Flusso 3/4" Thermostatic Valve - 2 Outputs, a precision-engineered valve that delivers reliable heat control and dual-output versatility for upscale showers. Built with solid brass, CAL-Green compliance, and anti-scald features, this valve provides smooth temperature regulation and effortless flow distribution, completing any luxury bathroom with dependable performance and refined style.
Flusso is renowned for meticulous engineering and premium bathroom fixtures. The brand combines durable solid brass construction, precise thermostatic technology, and elegant trims to deliver reliable comfort and timeless aesthetics. Flusso products emphasize safety, CAL-Green diligence, and straightforward installation, earning trust among designers and homeowners seeking lasting quality and luxury in the bath.
Features and Specifications
- 3/4" female NPT connections
- 2 water output ports
- CAL-Green Compliant
- The bottom handle sets the temperature
- The top handle diverts water flow between the two output ports; can adjust volume from full flow to a trickle as the handle is turned from OFF to ON
- There are two safety stops at each water inlet to stop water flow in case of installation and repairs
- As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the finished tile which should be between 2.77” and 3.44” inches [Rough In Spec]
- The value must be installed straight and not at an angle or upside down
- Extension kits are available and can be used for elongating both handles of the valve (Part # TVH.4101E)
- Cut Out Dimensions - 6.49 X 4.44 Inches and no more
- Trims comprise a well finished cover plate and handle knobs
- Over the temperature control knob is an anti-scald temperature stop ring which regulates water temperature
- To adjust the water temperature, press the push button on the side of the handle knob and move the handle to hot or cold direction
- Without pressing the button, the handle cannot be rotated to the full HOT position – an anti-scald prevention mechanism
- The anti-scald temperature stop ring should be fitted tightly over the valve
- Cartridge – The TVH.4420F valve can be used with two cartridges
- The default cartridge is Model # 15109 (2 output non-shared CAL-Green compliant)
- A shared port operation cartridge is available as Model # 15103 to activate 2 ports at the same time
- Solid Brass Construction
- 2 Output Ports
- Extension Available - Part # TVH.4101E
With Flusso engineering and the trusted reliability of Focal Point Hardware behind it, this thermostatic valve delivers precise temperature control and luxurious performance for discerning homeowners seeking lasting value.
