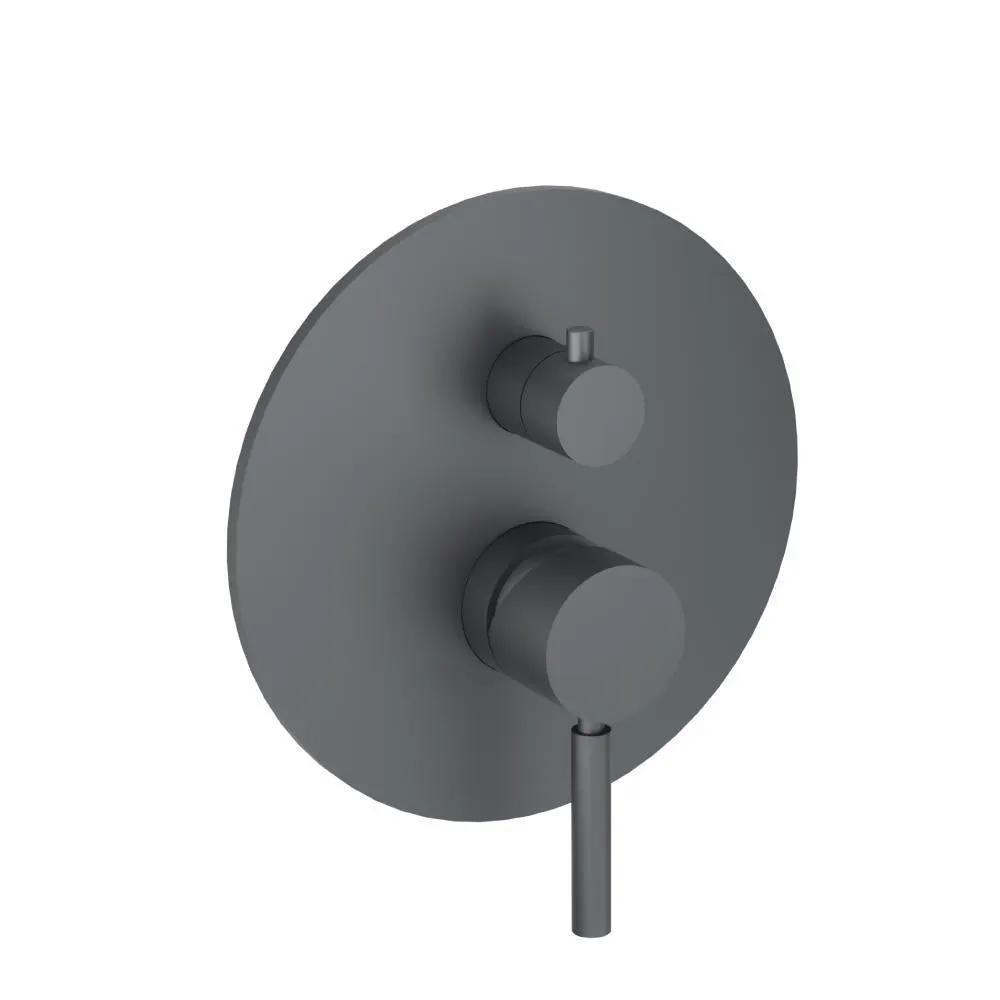

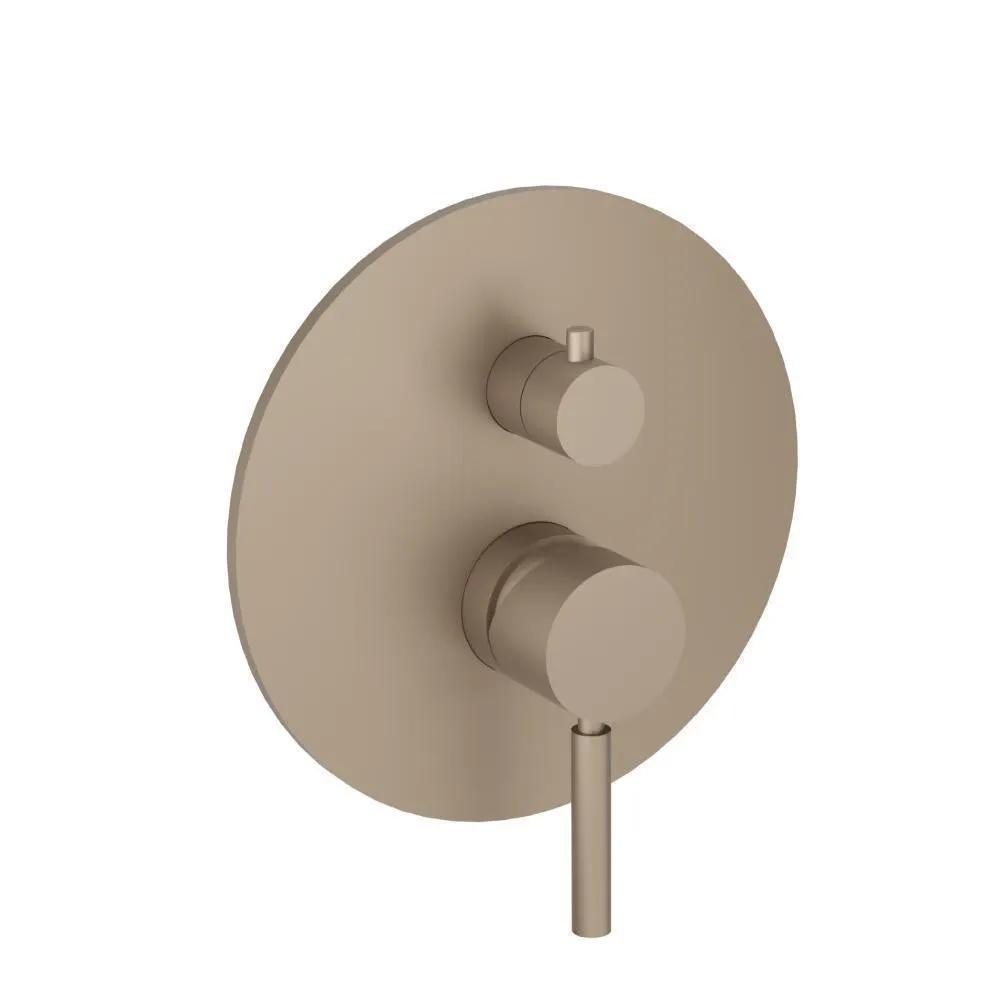

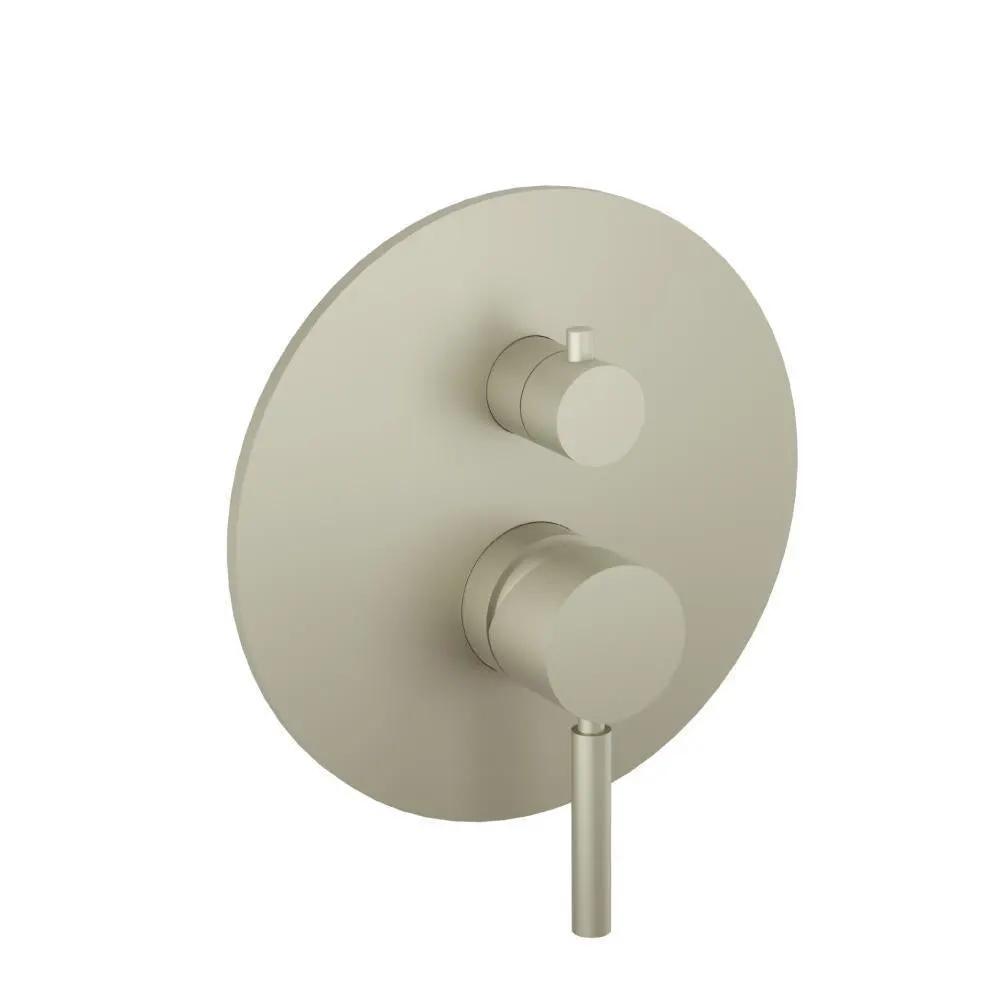

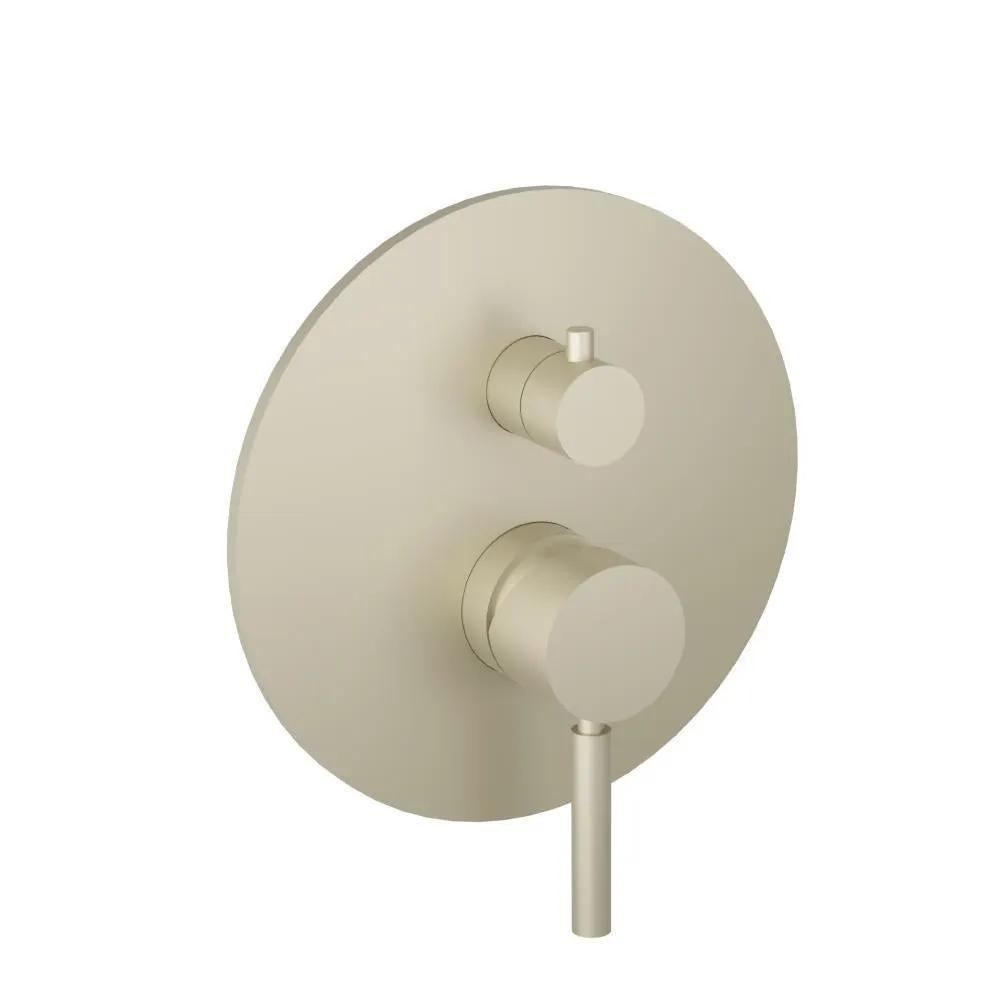

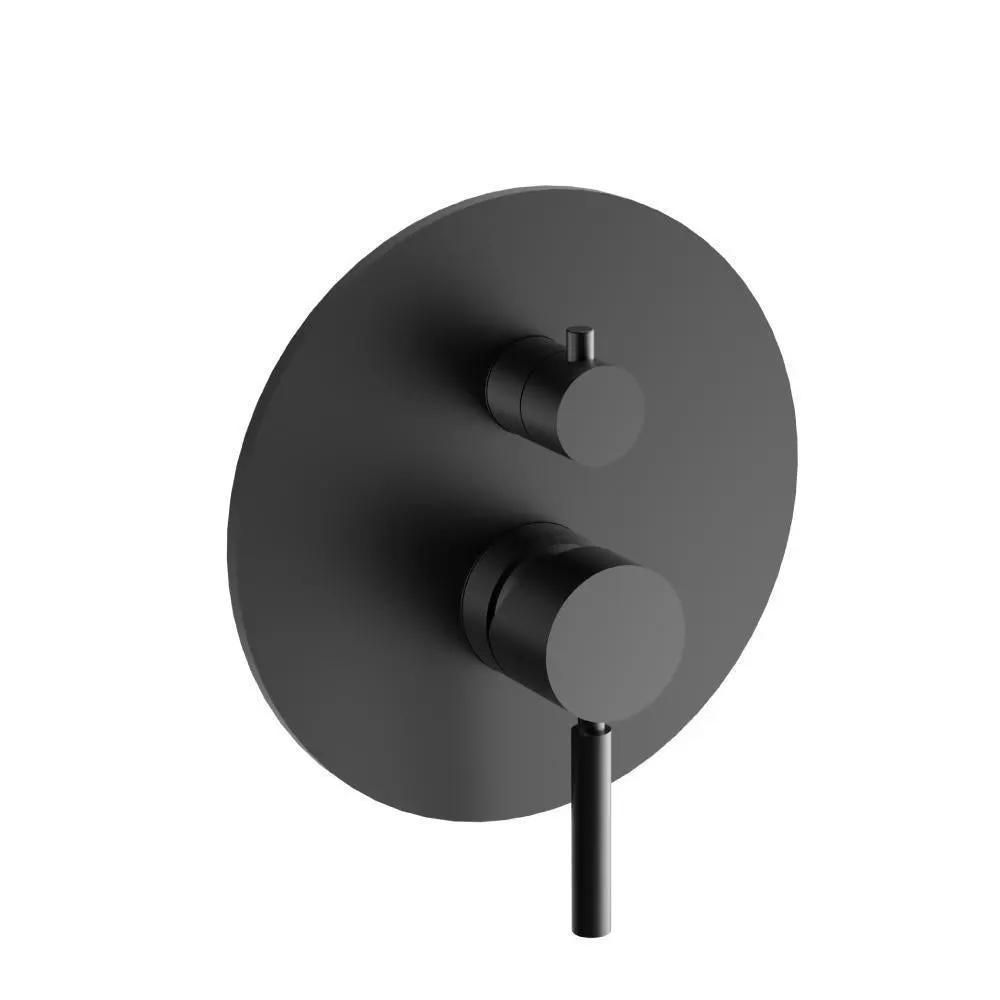

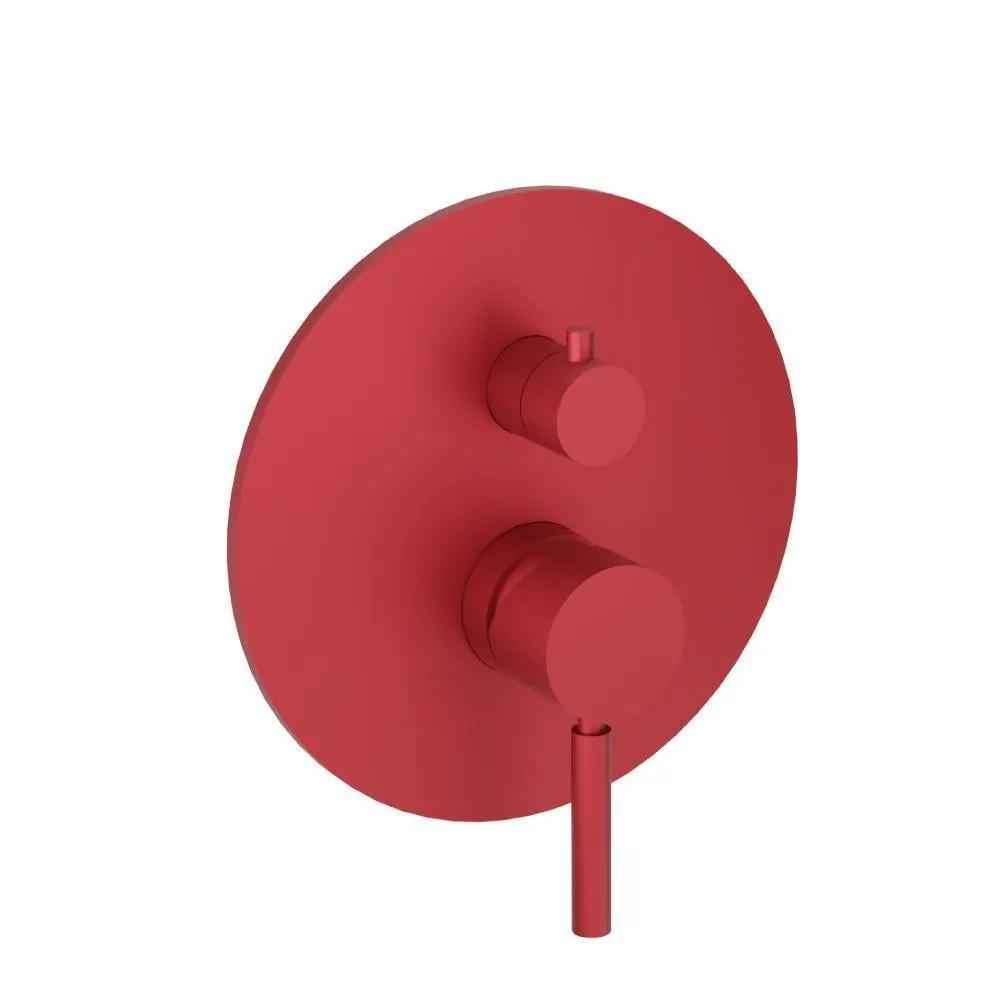

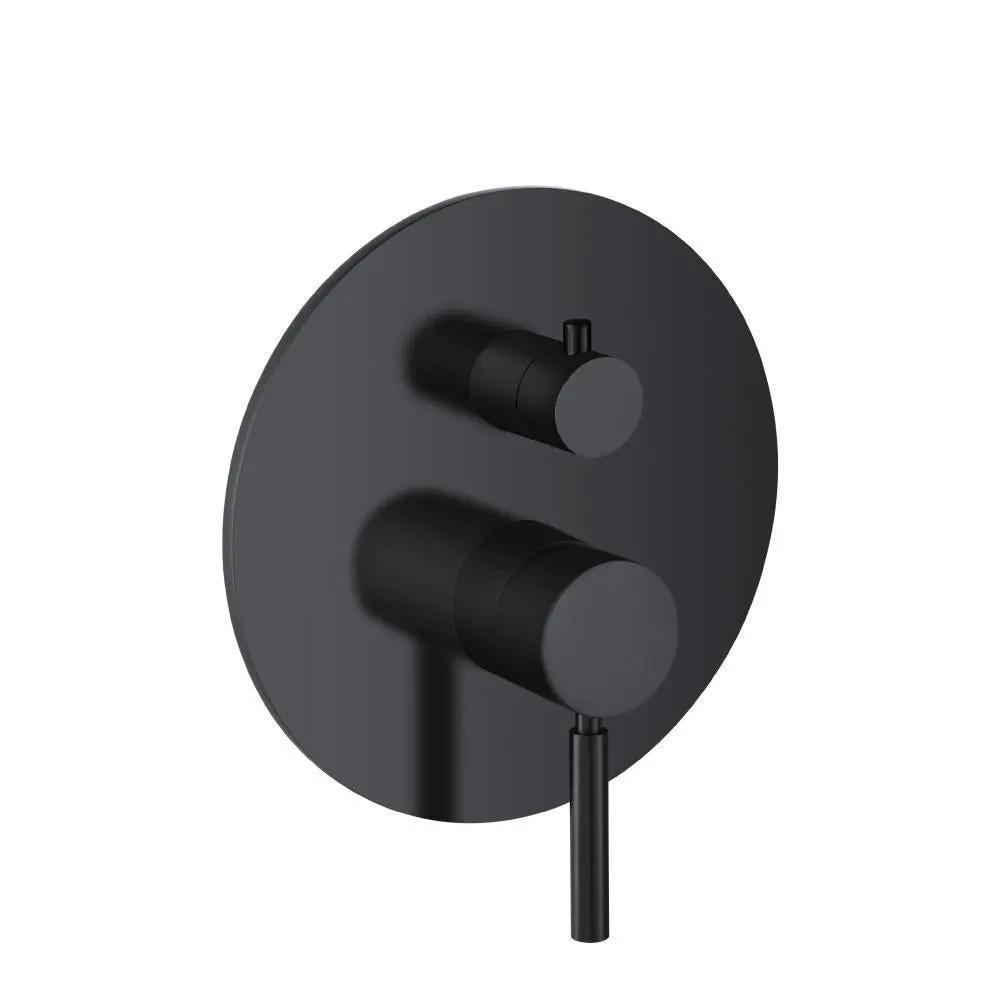

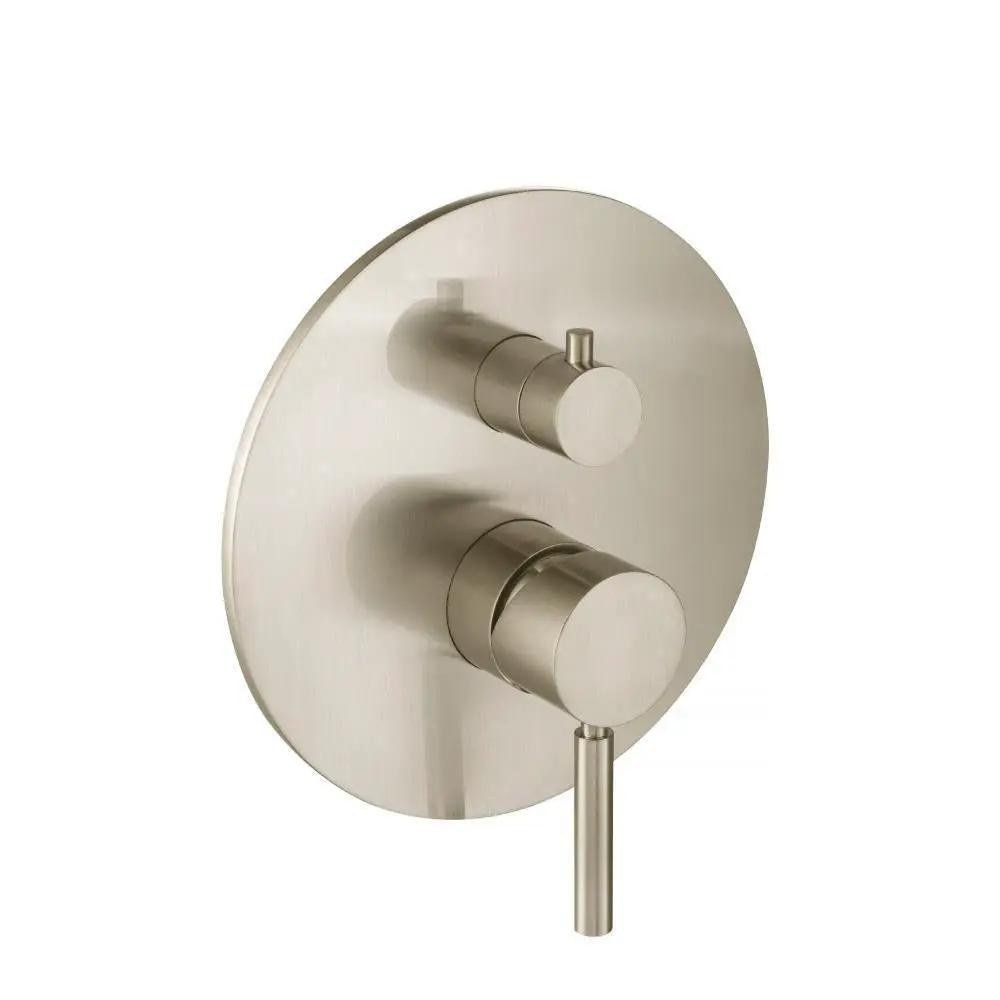

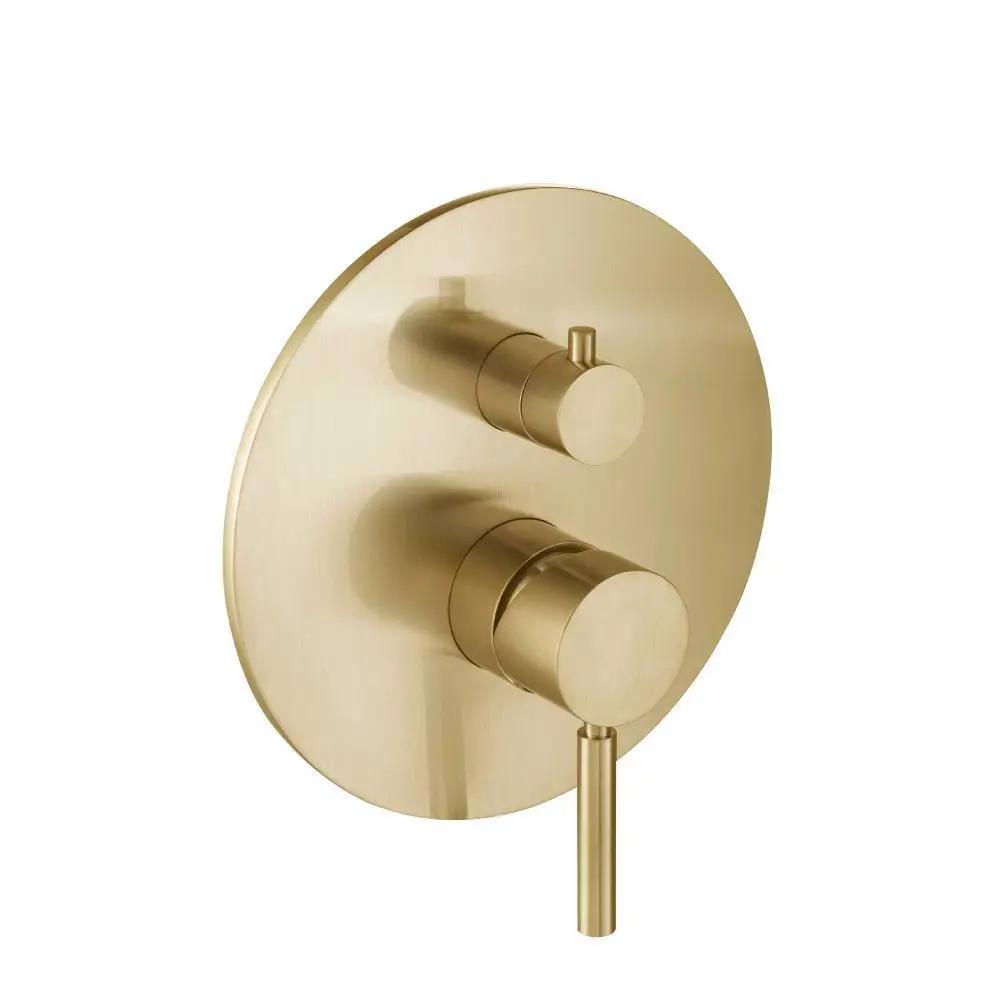

Flusso Serie 100 Tub / Shower Trim with Pressure Balance Valve - 2-Output

Focal Point Hardware is an authorized Flusso retailer!

Discover the Flusso Serie 100 Tub / Shower Trim with Pressure Balance Valve - 2-Output, a premium bath solution that delivers precise temperature control and reliable diverter performance. The PBV1005A valve balances hot and cold inputs across two outputs for smooth, consistent showers and tubs, while solid brass construction and spill-safe service stops ensure long-lasting luxury.

Flusso is renowned for high-precision, durable bath components that blend engineering excellence with elegant design. The Serie 100 line emphasizes balanced water delivery, minimal maintenance, and reliable performance in demanding showers and soaking tubs, backed by solid brass construction and thoughtful service features that deliver lasting value for discerning homeowners and contractors alike.

Features and Specifications

• PBV1005A – Pressure Balance valve with integrated 2-output diverter has a ½” NPT male connection with two inputs for hot/cold water and two output ports.
• The valve has a flow rate of 5.5 GPM @ 60 PSI.
• Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
• Handle Operation - The volume and temperature of water is controlled by the lower handle. Lift the lower handle to control the volume and as the handle is moved between left and right, the temperature changes. Move it right for cold and left for hot water. The diverter handle on the top helps in directing the flow from the two outputs of the valve. When diverter handle points left, the water flows through the lower output. When the diverter handle points right, the top output is activated for water flow.
• Cut Out Dimensions - The cut out in wall should be 5.43” x 4.76” Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
• Trims - The trim set for PBV1005A consists of a trim plate and handle knobs for both top and bottom cartridge. The trim plate has markings for hot/cold.
• Extension kits for both handles can be ordered separately in case the handles need to be extended for proper fit.
• Any *2100 or *2101 series trim can be used with this valve.
• Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
• Solid Brass Construction
• Includes Pressure Balance Valve w/ Service Stops
• Extension Available - PBV.2100E**

For a refined bathroom upgrade, the Flusso Serie 100 Tub / Shower Trim with Pressure Balance Valve - 2-Output delivers precise control, durable brass construction, and versatile two-output flow, backed by Flusso’s commitment to quality and luxury.
