Lacava Wall Mount Touch Free Faucet
Choose a rough valve or part
An additional plumbing item is needed to complete the set or installation of this item.
An additional plumbing item is needed to complete the set or installation of this item.
+ $180.00
Lacava Mechanical Mixing Valve
More info+ $180.00
Lacava Mechanical Mixing Valve
Model Number: EX20A
$180.00
Focal Point is an authorized Lacava Retailer!
About the Lacava Mechanical Mixing Valve
About the Lacava Mechanical Mixing Valve
- Installation: flexible
- Exterior Dimensions: W: 2 1/8" D: 3/4“ H: 2 1/2"
- Material: solid brass construction
- Connection IN: 2 x M 3/8" G
- Connection OUT: F 1/2" G
- Mechanical mixing valve
- Includes built-in filters and check valves
- Includes 2 X F 3/8" compression stainless steel water lines
+ $360.00
Lacava Integrated Thermostatic Mixing Valve
More info+ $360.00
Lacava Integrated Thermostatic Mixing Valve
Model Number: EX25A
$360.00
Focal Point is an authorized Lacava Retailer!
About the Lacava Integrated Thermostatic Mixing Valve
About the Lacava Integrated Thermostatic Mixing Valve
- Installation: flexible wall mount
- Exterior Dimensions: W: 2 1/8" H: 6 5/8"
- Material: solid brass construction
- Connection IN: 2 x M 1/2" G
- Connection OUT: F 1/2" G
- Integrated themostatic valve
- Includes built-in filters and check valves
- Water flow rate : 6 GPM at 43.5 PSI
- Standard water temperature range 68-118?F
- Meets and exceeds applicable national
- Codes and standards including ASSE 1070.
Select additional items to complete the set
Chose a variety of different products and accessories to complete your purchase!
Chose a variety of different products and accessories to complete your purchase!

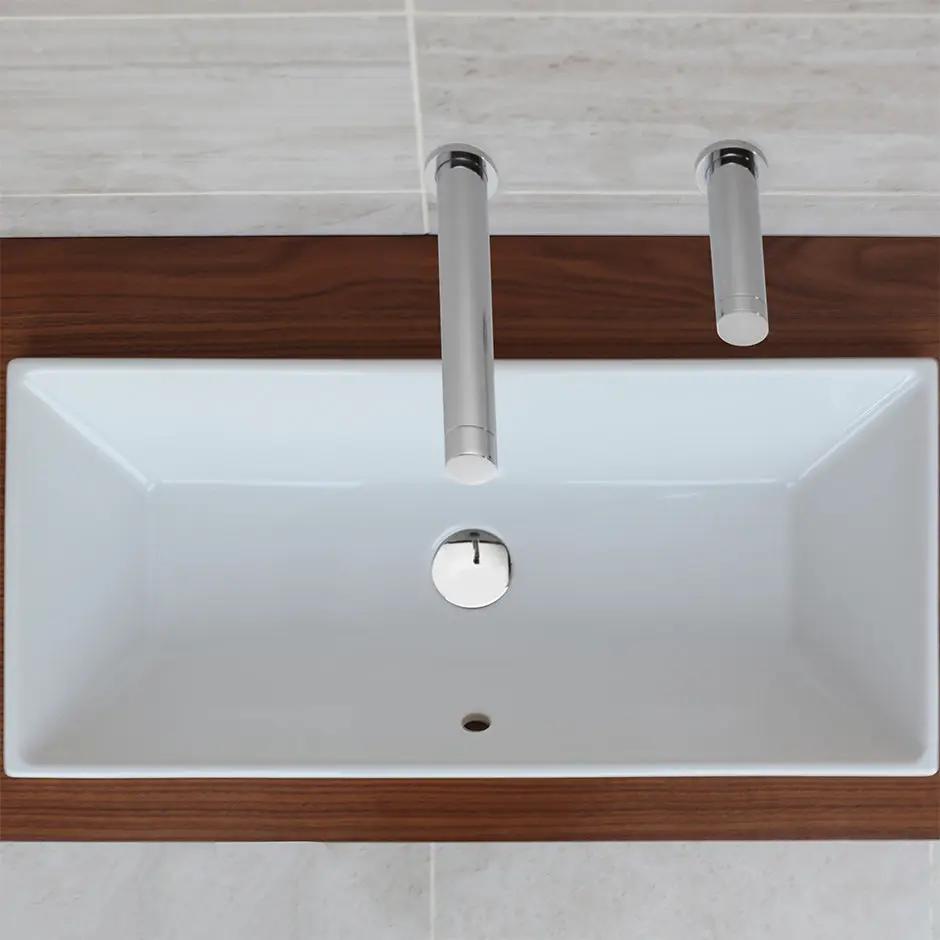

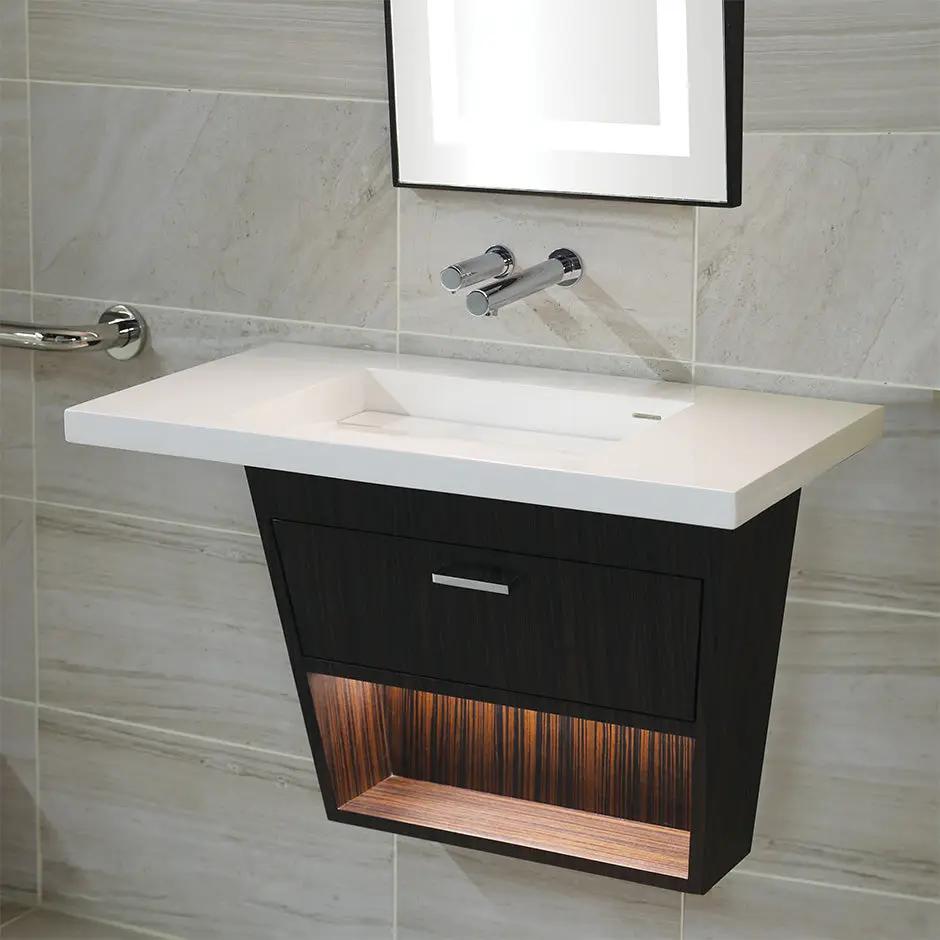

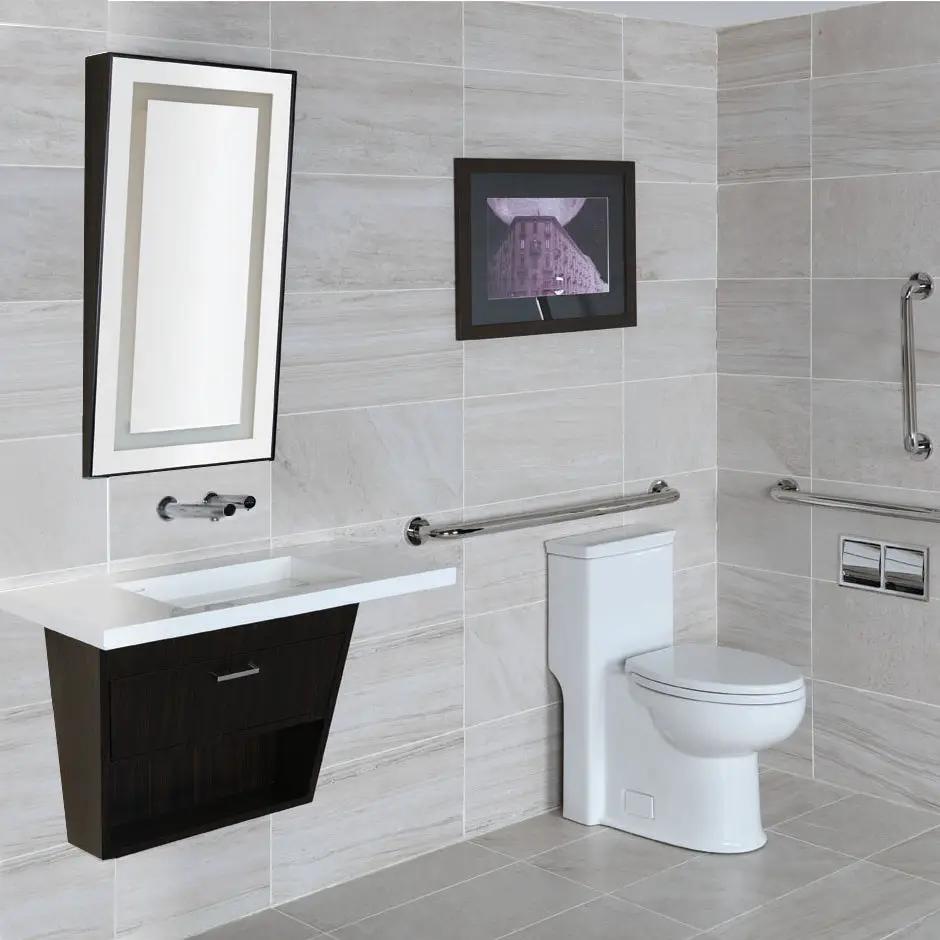

Lacava Wall Mount Touch Free Soap Dispenser - Polished Chrome
More info+ $775.00
Lacava Wall Mount Touch Free Soap Dispenser - Polished Chrome
Model Number: EX01A-CR
$775.00
Focal Point is an authorized Lacava Retailer!
About the Lacava Wall Mount Touchfree Soap Dispenser
About the Lacava Wall Mount Touchfree Soap Dispenser
- Installation: wall-mount 1-hole, touch-free
- Exterior Dimensions: H: 1 3/4" SPOUT: 5"
- Material: solid brass construction spout
- Soap volume discharge: 0.07 oz (2mL)/level (4 levels)
- Power supply: AC/DC
- Cutout Size: Ø 1 3/8"
- Accessories included: 25" pvc pipes with elbows power adapter, large soap bottle #EXBTL, all supply lines and battery box
- Power supply options: AC - transformer with a plug to electricity and/or DC - battery pack for 4 x D alkaline batteries (batteries not included) - on average lasts for 75,000 use cycles
- Touch- free safety from spreading undesirable pathogens
- Commercial grade automated fixture
- Plastic refillable bottle with 0.5 gal (1.9 L) capacity
- Optional small bottle .21 gal (.8 L) supplied upon request – specify code EXBTS at the time of order
- Liquid soap viscosity: 1000-3500 cps (mpA-s). Not for use with foam soap
- Minimum distance between sensor and surface 10"
- Complements the Zoom Collection
- No reflective surfaces (mirrors, polished metal finishes, etc) to be placed in th range of the sensor

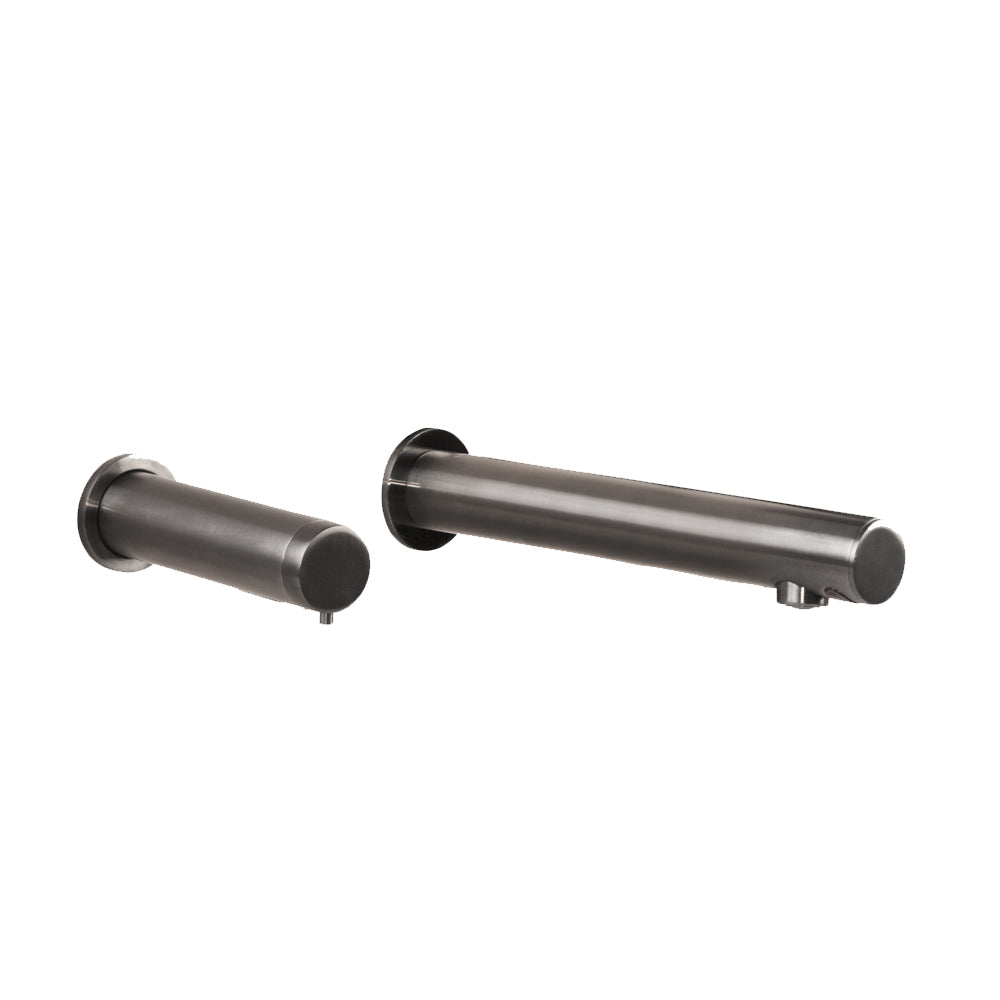

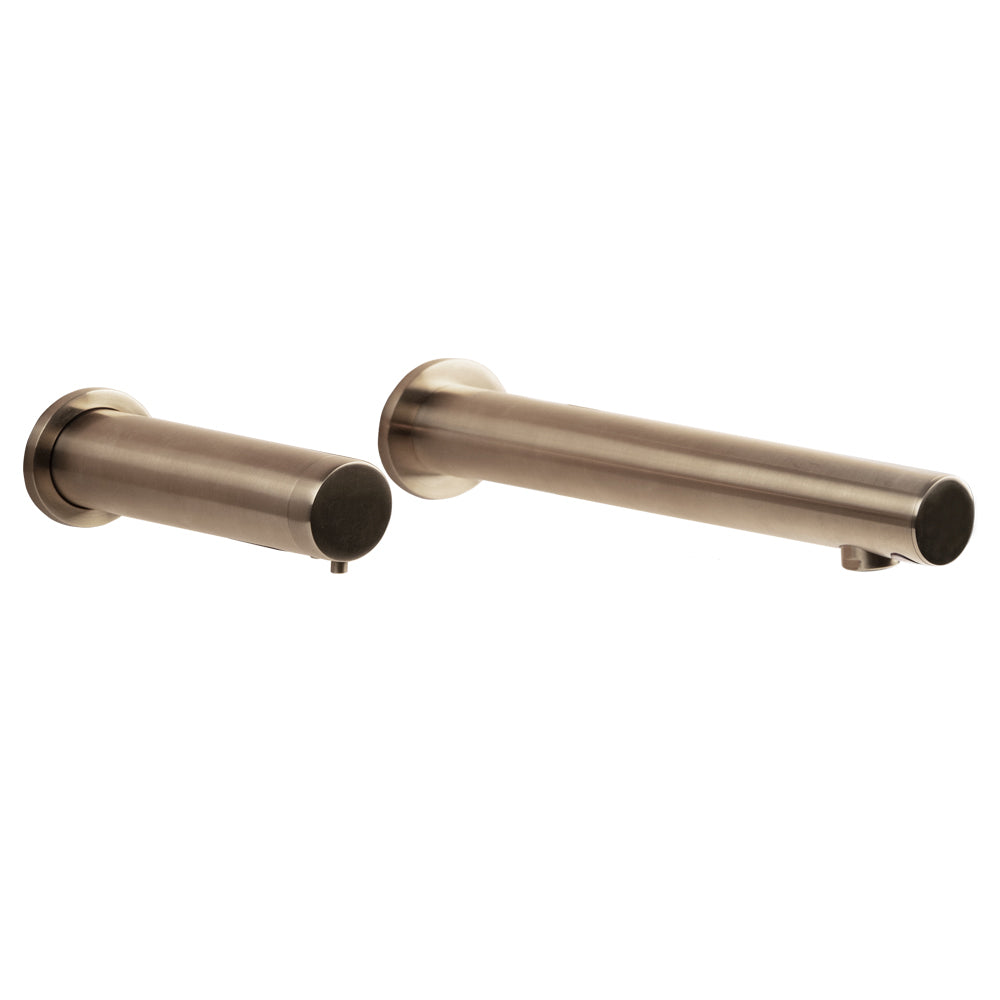

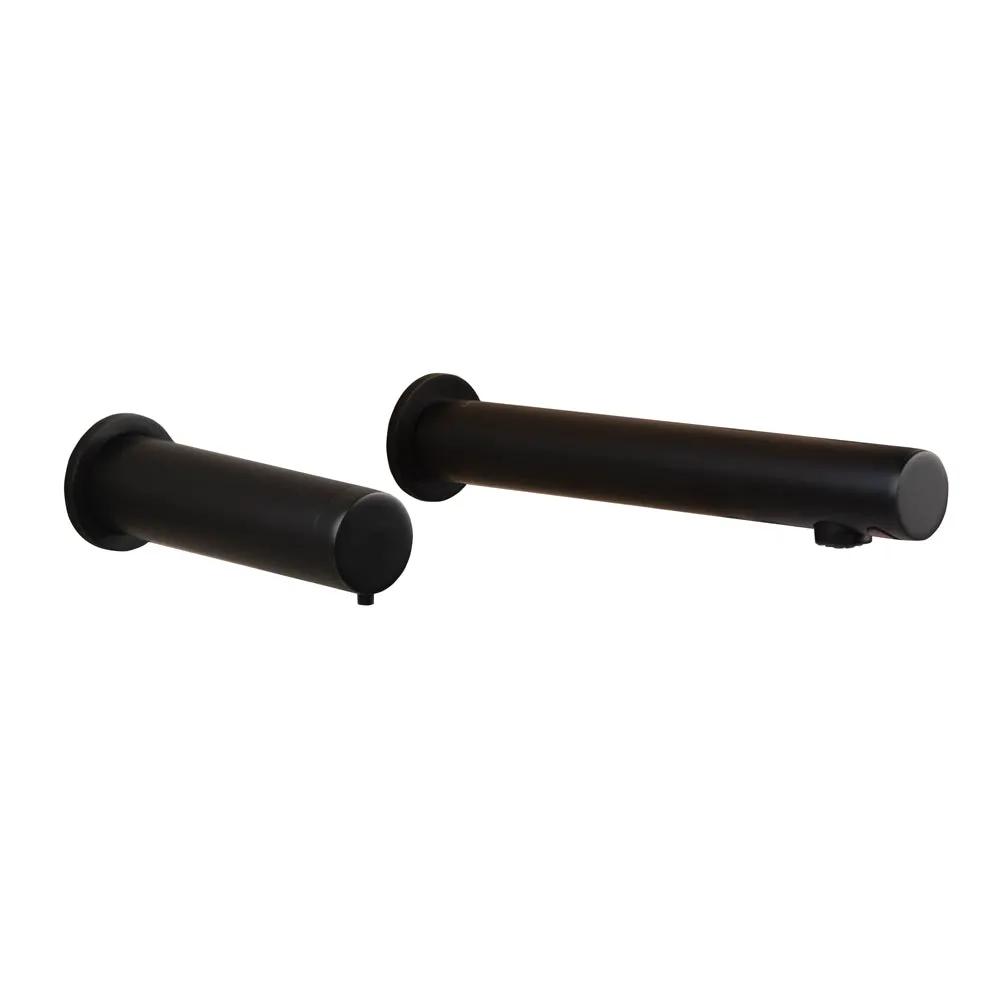

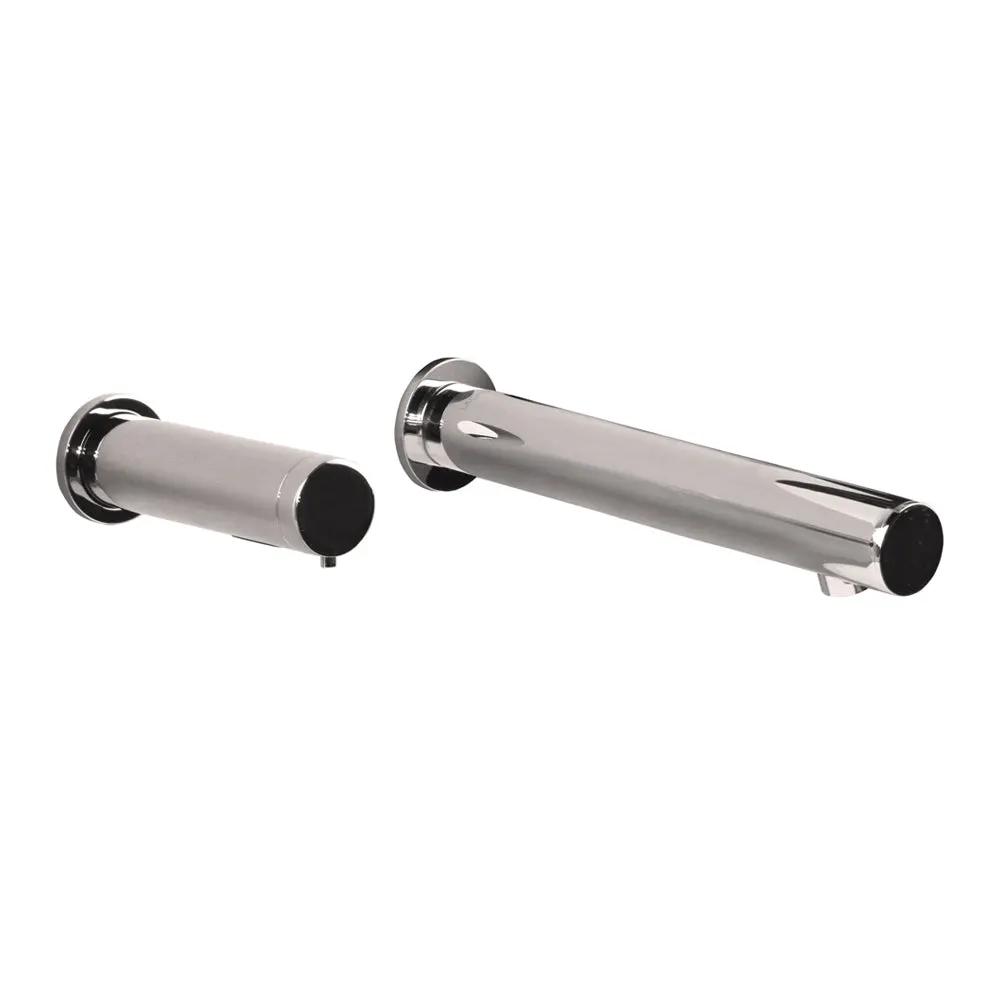

Lacava Wall Mount Touch Free Faucet
Sale price$710.00
Regular price$710.00 (/)
Product details
Focal Point is an authorized Lacava Retailer!
About the Lacava Wall Mount Touchfree Faucet
About the Lacava Wall Mount Touchfree Faucet
- Installation: wall- mount 1-hole, touch-free
- Exterior Dimensions: H: 2" SPOUT: 9 1/8"
- Material: solid brass construction
- Water use: 1 GPM (EX03A), 0.5 GPM (EX03A.5), 0.35 GPM (EX03A.35)
- Power supply: AC/DC
- Cutout Size: Ø 1"
- Accessories included: 25" pvc pipes with elbows power adapter, flexible supply line F 1/2" and battery box
- Power supply options: AC - transformer with a plug to electricity and/or DC - battery pack for 4 x AA alkaline batteries (batteries not included) - on average lasts for 108,000 use cycles
- For cold or premixed water (mixer sold separately)
- 10 seconds metering cycles
- Minimum distance sensor and surface 10"
- Water pressure: 15-90 PSI, recommended 43.5 PSI
- Water temperature: 34-120o Fahrenheit (1-50o Celsius)
- No Reflective surfaces (mirrors, polished metal finishes, etc) to be placed in the range of the sensor.
- Meets and exceeds applicable national codes and standards
- 1 GPM Watersence certified (EX03A)
- 0.5 GPM CAL-Green compliant (EX03A.5)
- 0.35 GPM LEED Credit (EX03A.35)
