Newport Brass Aylesbury 1/2" Round Thermostatic Trim Plate with Handle
Add to cart for final price!
Choose a rough valve or part
An additional plumbing item is needed to complete the set or installation of this item.
An additional plumbing item is needed to complete the set or installation of this item.
+ $396.20
Newport Brass Universal Items Luxtherm 1/2" Thermostatic Rough-In (1 Port)
More info+ $396.20
Newport Brass Universal Items Luxtherm 1/2" Thermostatic Rough-In (1 Port)
Model Number: 1-741
$396.20
Focal Point is an Authorized Newport Brass Retailer!
About The Newport Brass Universal Items Luxtherm 1/2" Thermostatic Rough-In (1 Port)
About The Newport Brass Universal Items Luxtherm 1/2" Thermostatic Rough-In (1 Port)
- No finish
- Solid brass construction
- Provides anti-scald protection and temperature regulation
- Integrated volume control function
- High-temperature safety stop ensures water temperature maximum is 100° F (37.7 C)°
- Built in check valves with service stops
- 1/2" NPT female thread (inlet and outlet) valve body
- Single outlet configuration
- Requires Newport Brass LuxTherm® Trim (many options available, sold-separately)
- Flow rate of 10.25 gallons per minute at 60 psi
- ASME: A112.18.1
- CSA Certified: B125.1
+ $474.60
Newport Brass Universal Items Luxtherm 1/2" Thermostatic Rough-In (2 Port)
More info+ $474.60
Newport Brass Universal Items Luxtherm 1/2" Thermostatic Rough-In (2 Port)
Model Number: 1-742
$474.60
Focal Point is an Authorized Newport Brass Retailer!
About The Newport Brass Universal Items Luxtherm 1/2" Thermostatic Rough-In (2 Port)
About The Newport Brass Universal Items Luxtherm 1/2" Thermostatic Rough-In (2 Port)
- No finish
- Solid brass construction
- Provides anti-scald protection and temperature regulation
- Integrated transfer valve.
- High-temperature safety stop ensures water temperature maximum is 100° F (37.7 C)°
- Built in check valves with service stops
- 1/2" NPT female thread (inlet and outlet) valve body
- 2 way diverter configuration
- Requires Newport Brass LuxTherm® Trim (many options available, sold-separately)
- Flow rate of 10.25 gallons per minute at 60 psi
- ASME: A112.18.1
- CSA Certified: B125.1
+ $518.70
Newport Brass Universal Items Luxtherm 1/2" Thermostatic Rough-In (3 Port Shared)
More info+ $518.70
Newport Brass Universal Items Luxtherm 1/2" Thermostatic Rough-In (3 Port Shared)
Model Number: 1-743
$518.70
Focal Point is an Authorized Newport Brass Retailer!
About The Newport Brass Universal Items Luxtherm 1/2" Thermostatic Rough-In (3 Port Shared)
About The Newport Brass Universal Items Luxtherm 1/2" Thermostatic Rough-In (3 Port Shared)
- No finish
- Solid brass construction
- Provides anti-scald protection and temperature regulation
- Integrated transfer valve allowing shared functions on ports 1 & 2
- High-temperature safety stop ensures water temperature maximum is 100° F (37.7 C)°
- Built in check valves with service stops
- 1/2" NPT female thread (inlet and outlet) valve body
- 3 way diverter configuration
- Requires Newport Brass LuxTherm® Trim (many options available, sold-separately)
- Flow rate of 8.0 gallons per minute at 60 psi
- ASME: A112.18.1
- CSA Certified: B125.1
+ $518.70
Newport Brass Universal Items Luxtherm 1/2" Thermostatic Rough-In (3 Port)
More info+ $518.70
Newport Brass Universal Items Luxtherm 1/2" Thermostatic Rough-In (3 Port)
Model Number: 1-744
$518.70
Focal Point is an Authorized Newport Brass Retailer!
About The Newport Brass Universal Items Luxtherm 1/2" Thermostatic Rough-In (3 Port)
About The Newport Brass Universal Items Luxtherm 1/2" Thermostatic Rough-In (3 Port)
- No finish
- Solid brass construction
- 3 way diverter configuration
- Single port flow function with complete shut-off between unused ports
- Provides anti-scald protection and temperature regulation
- High-temperature safety stop ensures water temperature maximum is 100° F (37.7 C)°
- Built in check valves with service stops
- 1/2" NPT female thread (inlet and outlet) valve body
- Requires Newport Brass LuxTherm® Trim (many options available, sold-separately)
- Flow rate of 6.75 gallons per minute at 60 psi
- ASME: A112.18.1
- CSA Certified: B125.1

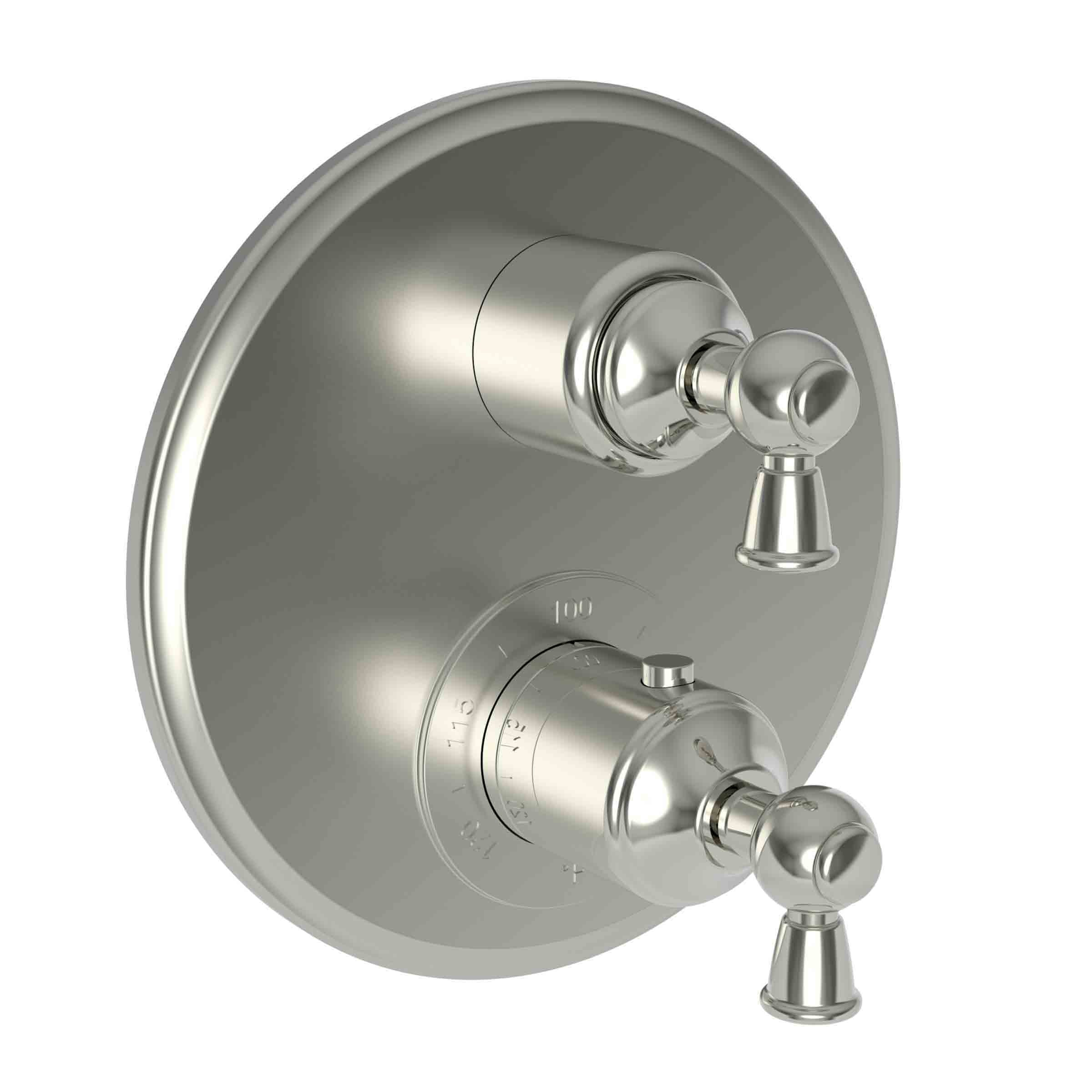

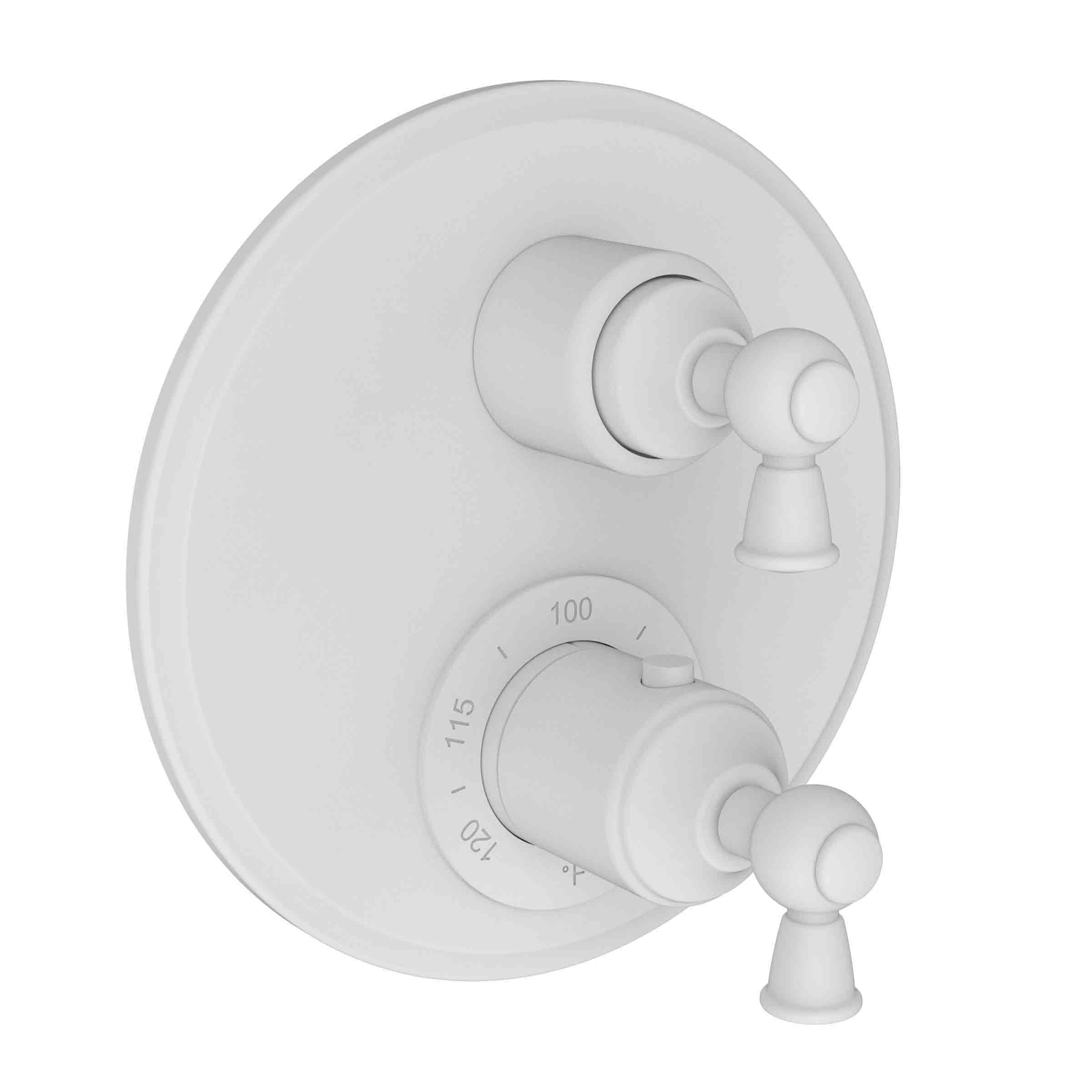

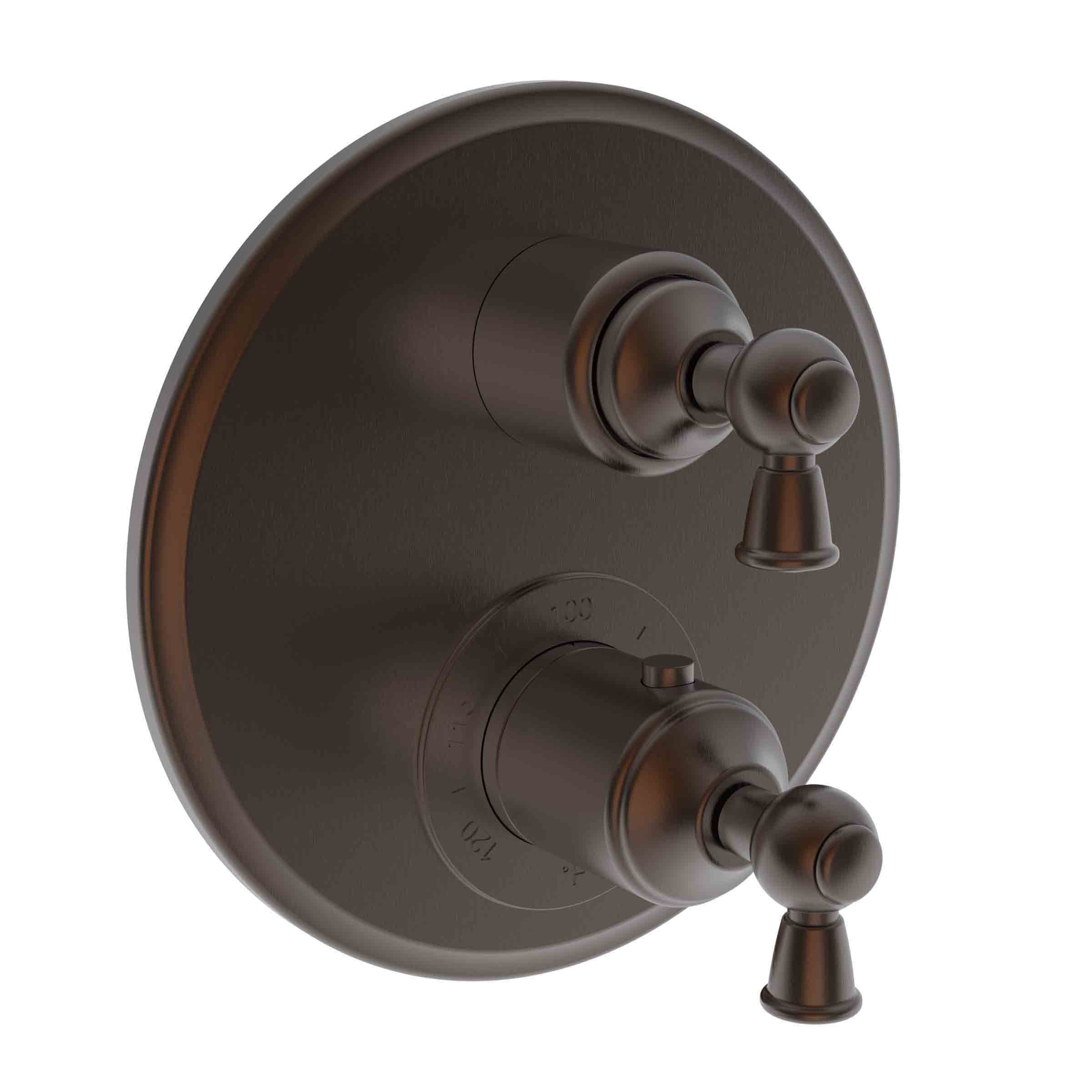

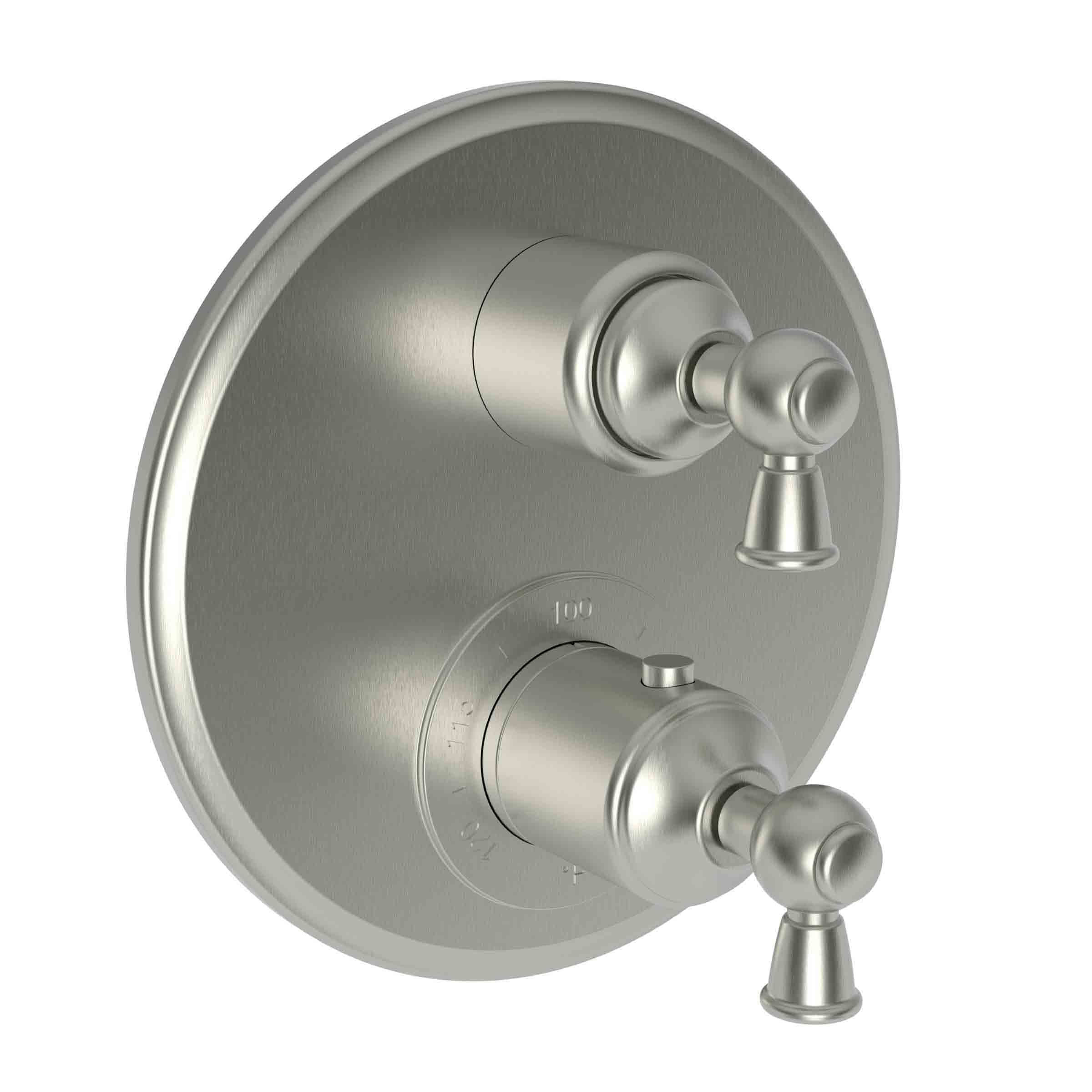

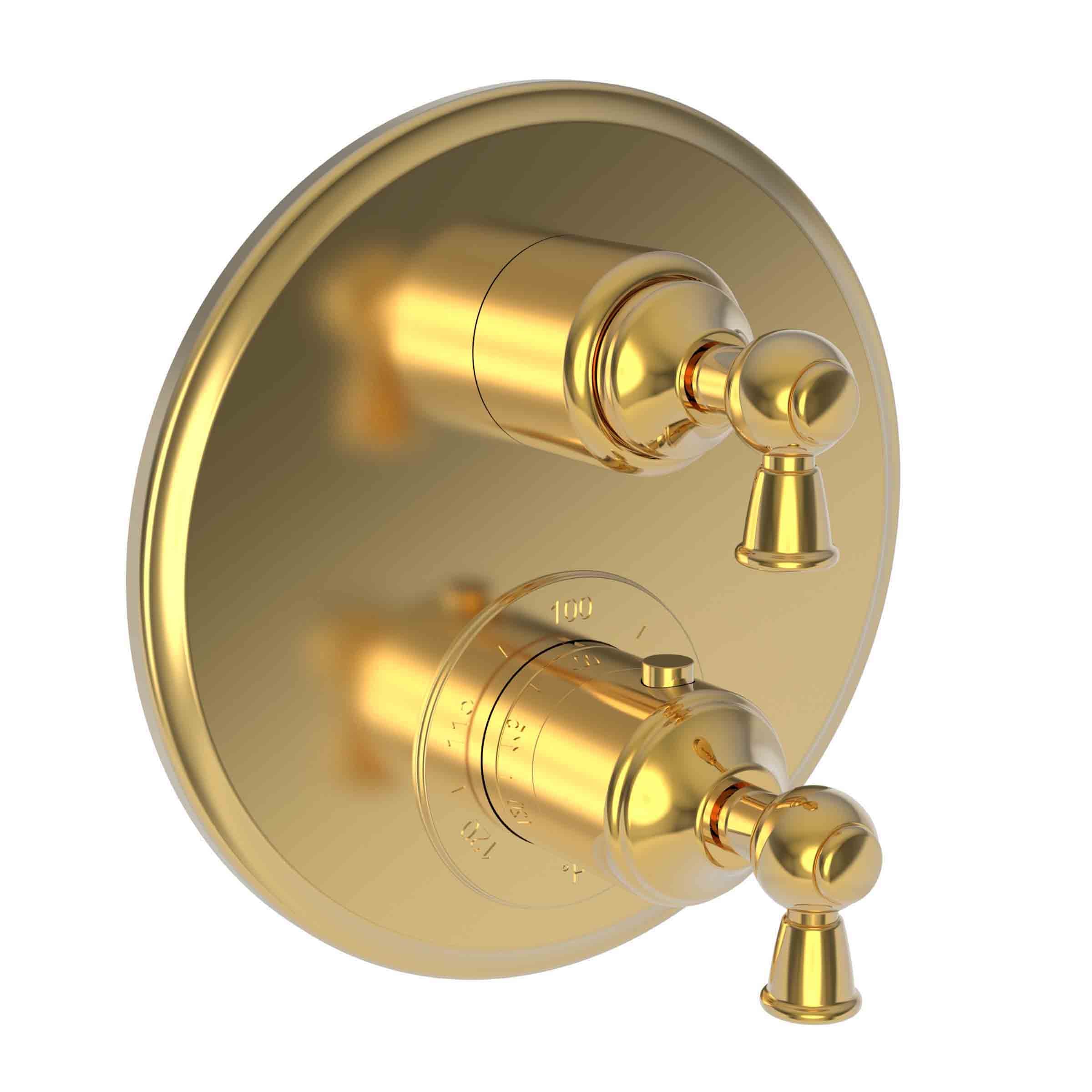

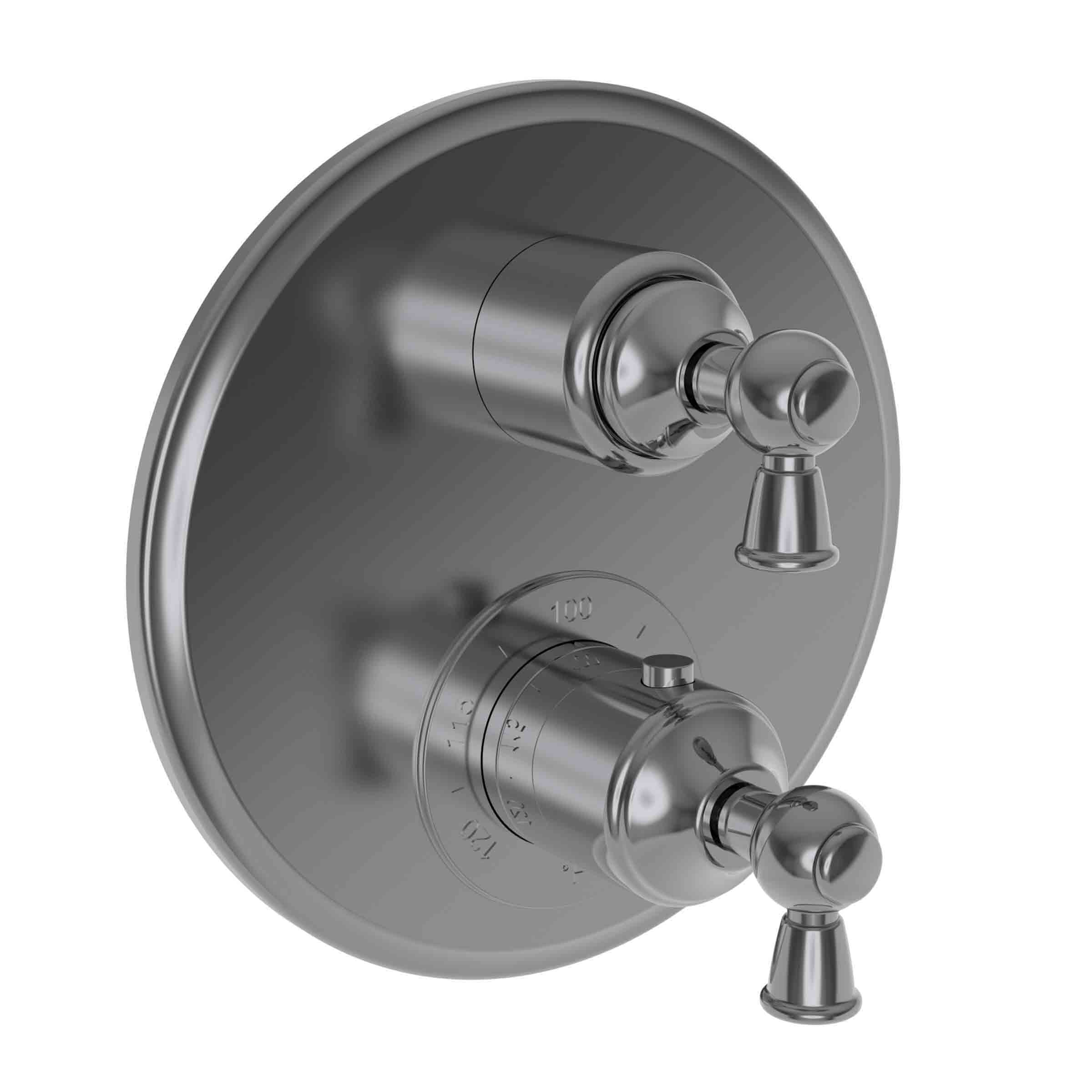

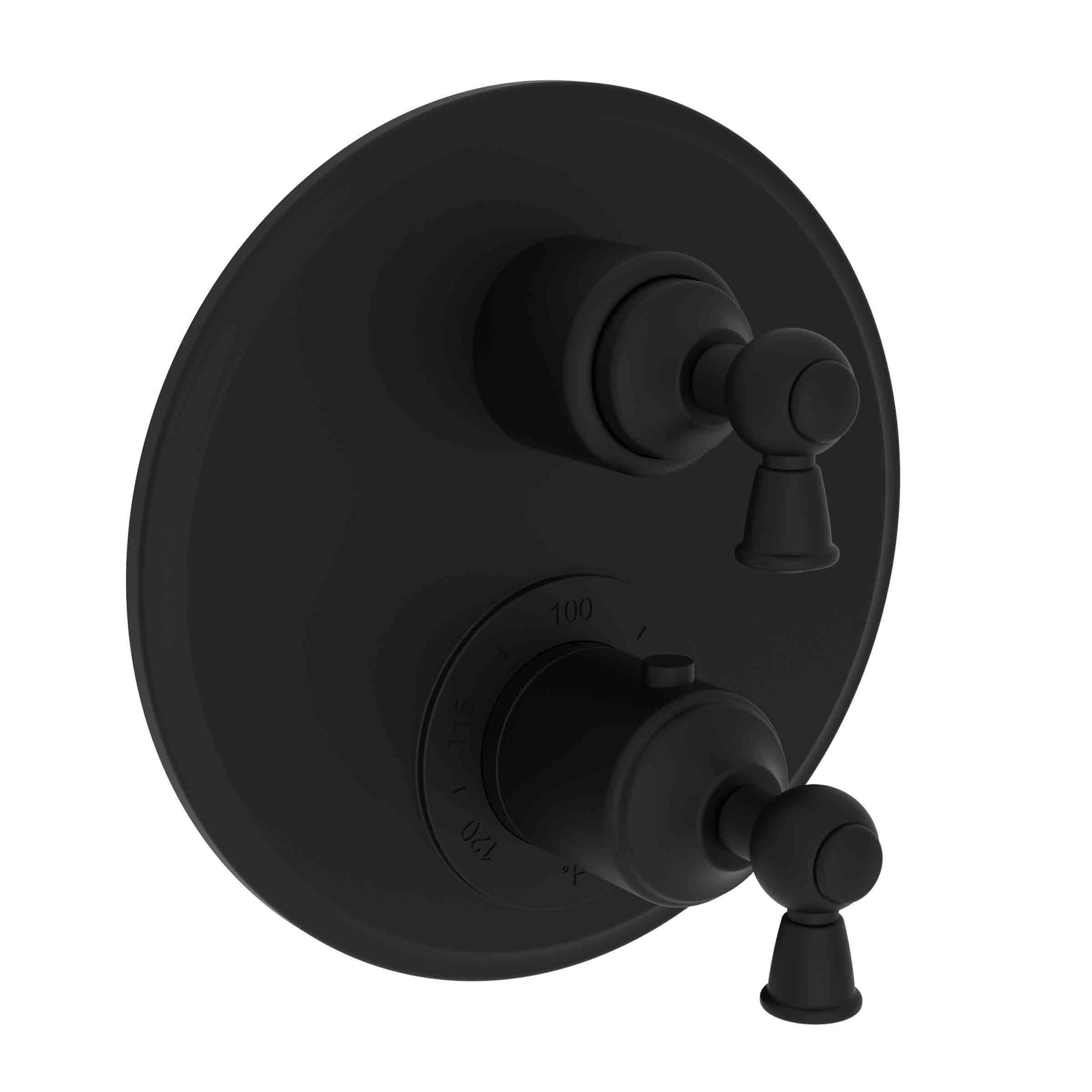

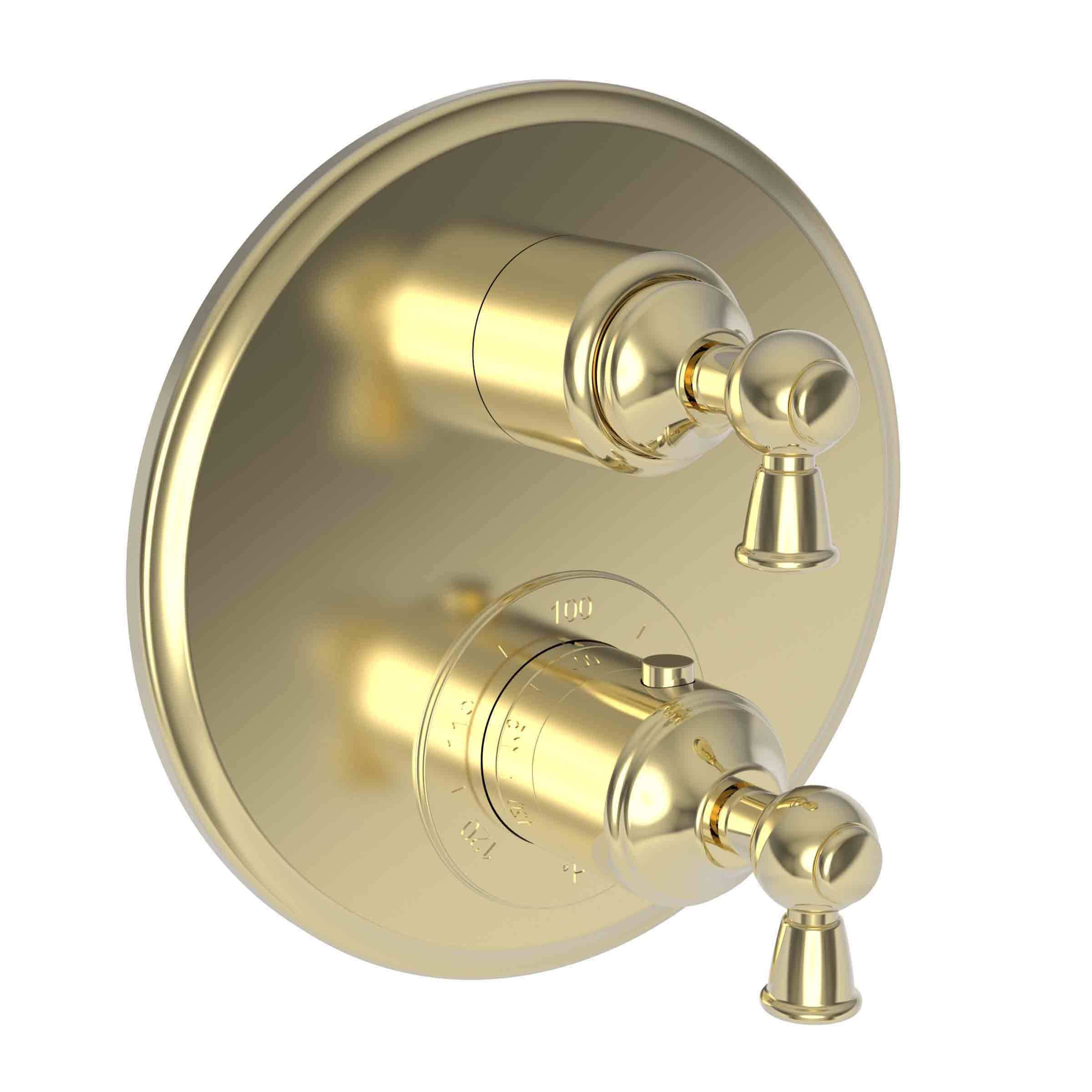

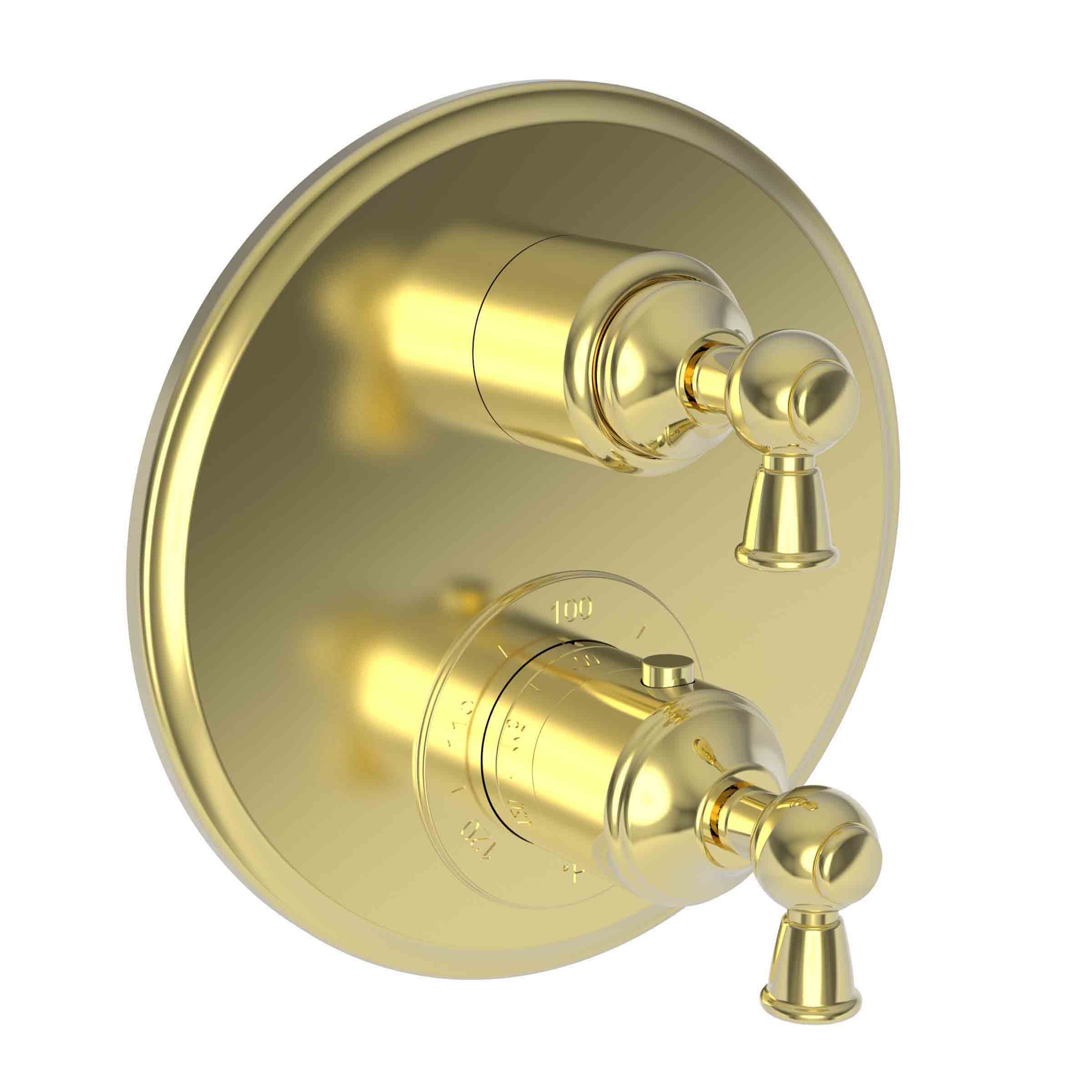

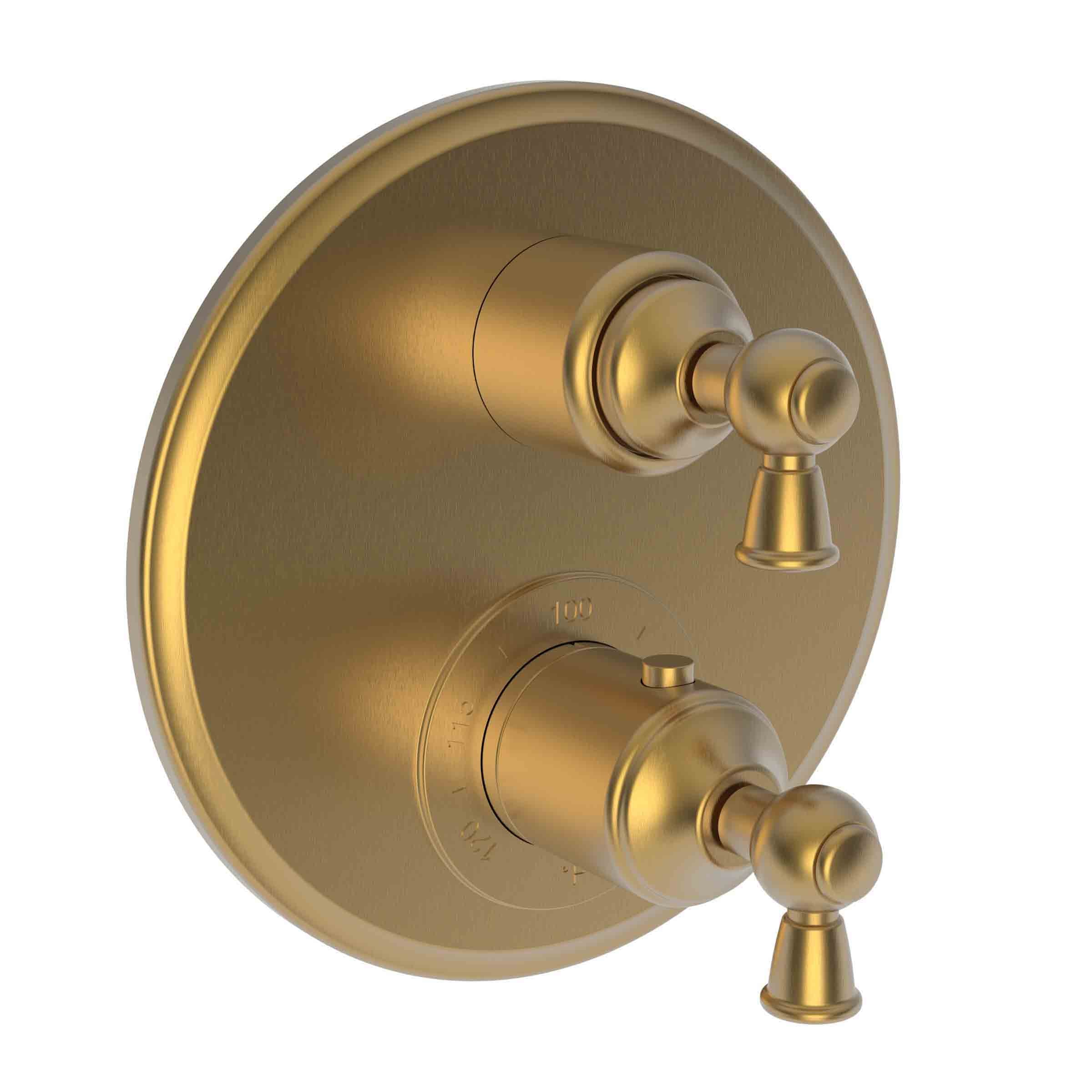

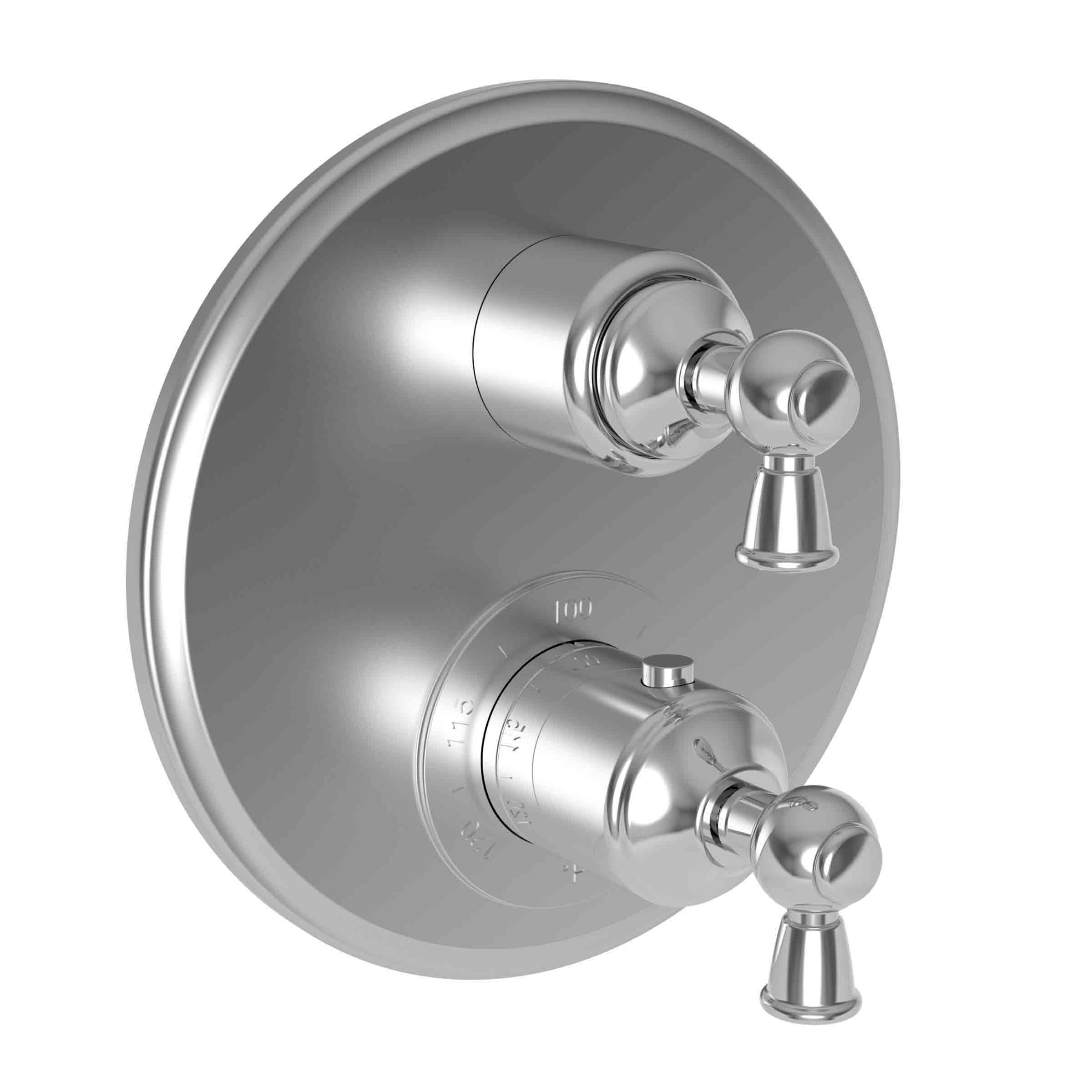

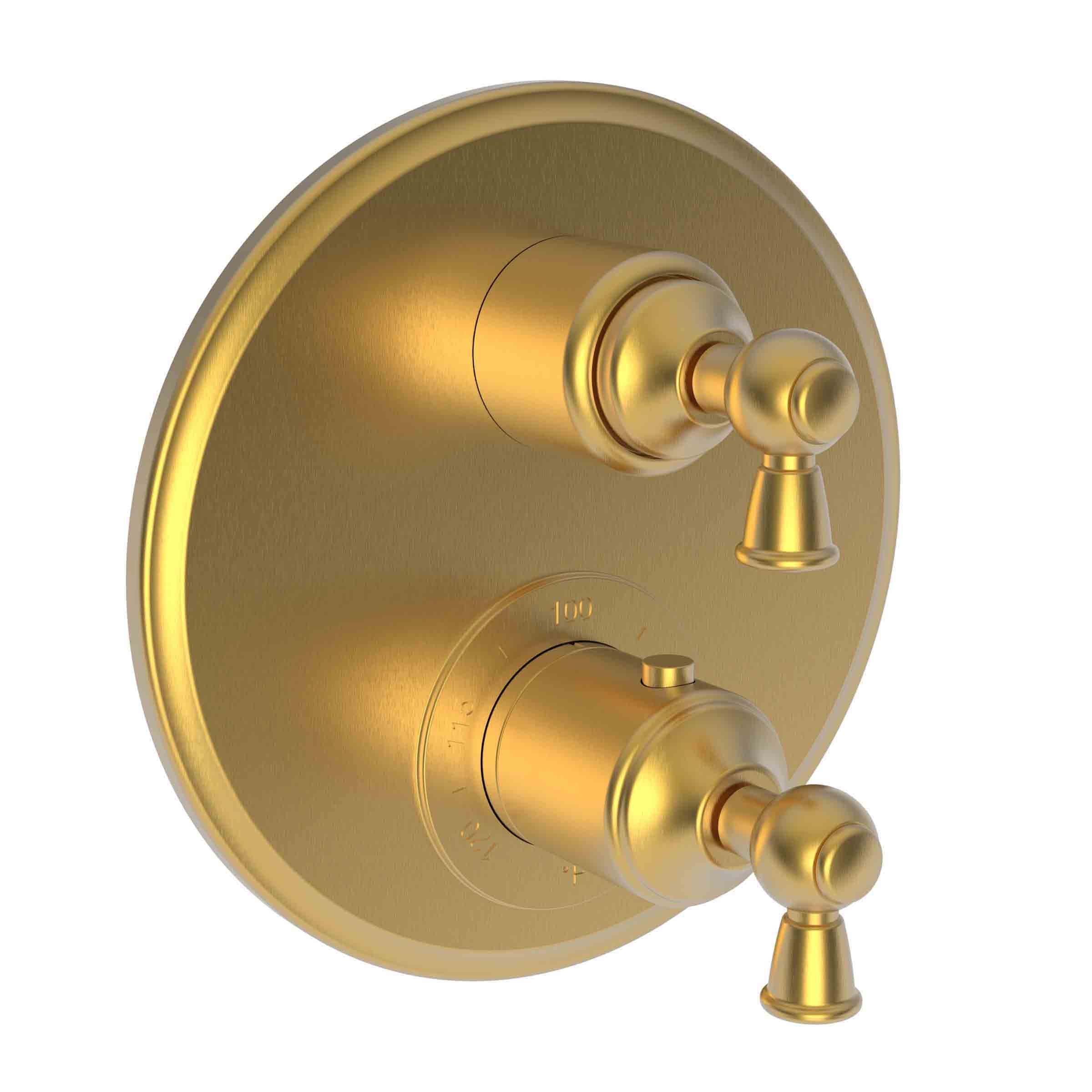

Newport Brass Aylesbury 1/2" Round Thermostatic Trim Plate with Handle
Sale price$712.60
Regular price$1,018.00 (/)
Product details
Focal Point is an Authorized Newport Brass Retailer!
About The Newport Brass Aylesbury 1/2" Round Thermostatic Trim Plate with Handle
About The Newport Brass Aylesbury 1/2" Round Thermostatic Trim Plate with Handle
- Available in more than 20 decorative finishes
- Solid Brass Construction
- Temperature-adjust handle for thermostatic valve
- Handle assembly for control valve
- Integrated volume control diverter for directed,variable water flow
- Maximum temperature override button
- Intended for use with Newport Brass Luxtherm® rough 1/2" valve item 1-741 (1-port), 1-742 (2-Port), 1-743 (3-port shared) or 1-744 (3-port) as specified (Required Accessory)
- ADA compliant cross handle assembly for control valve
- ANSI: A117.1
- ASME: A112.18.1
- CSA Certified: B125.1
Product Specifications
Specifications Sheet
