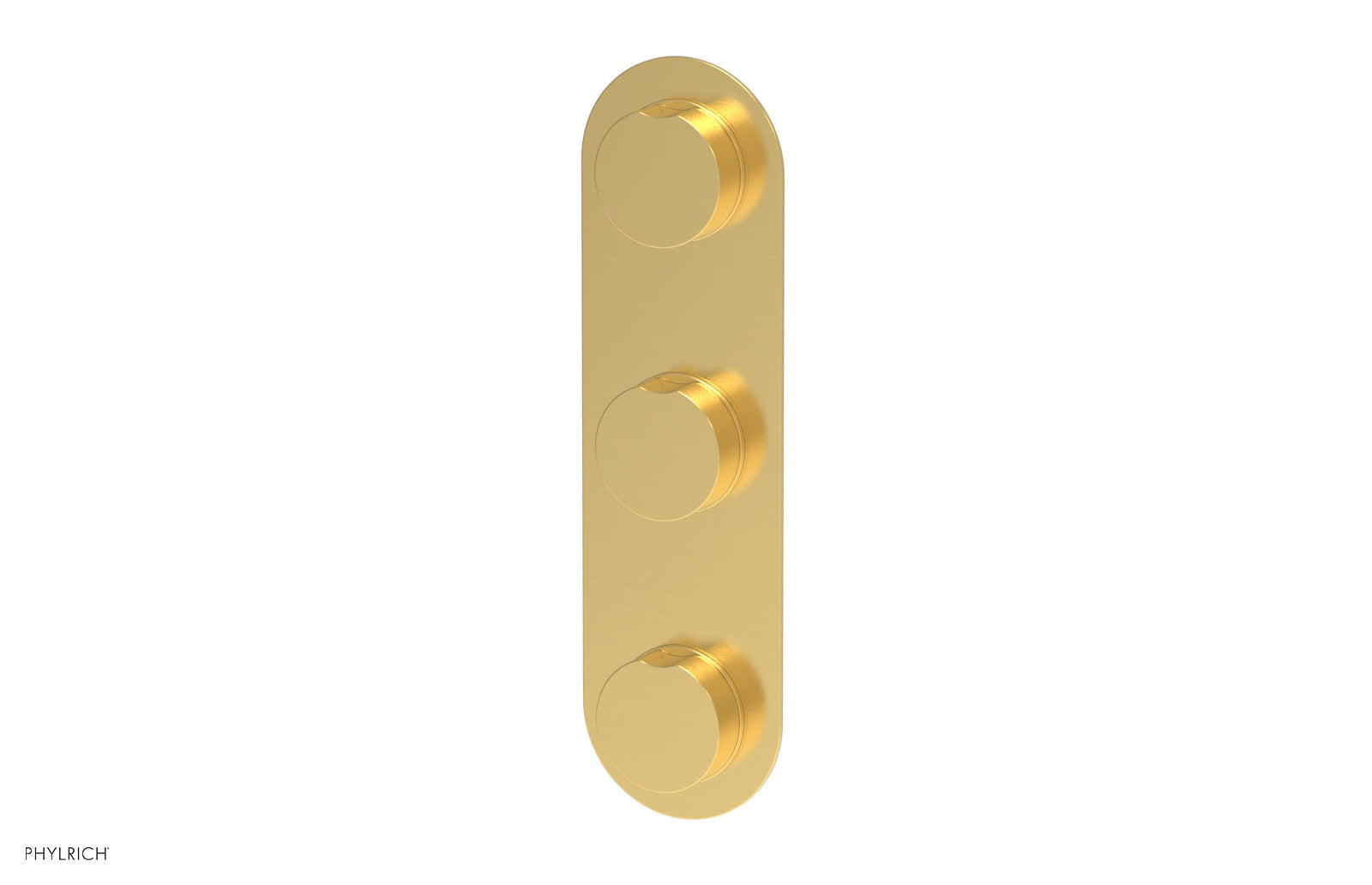

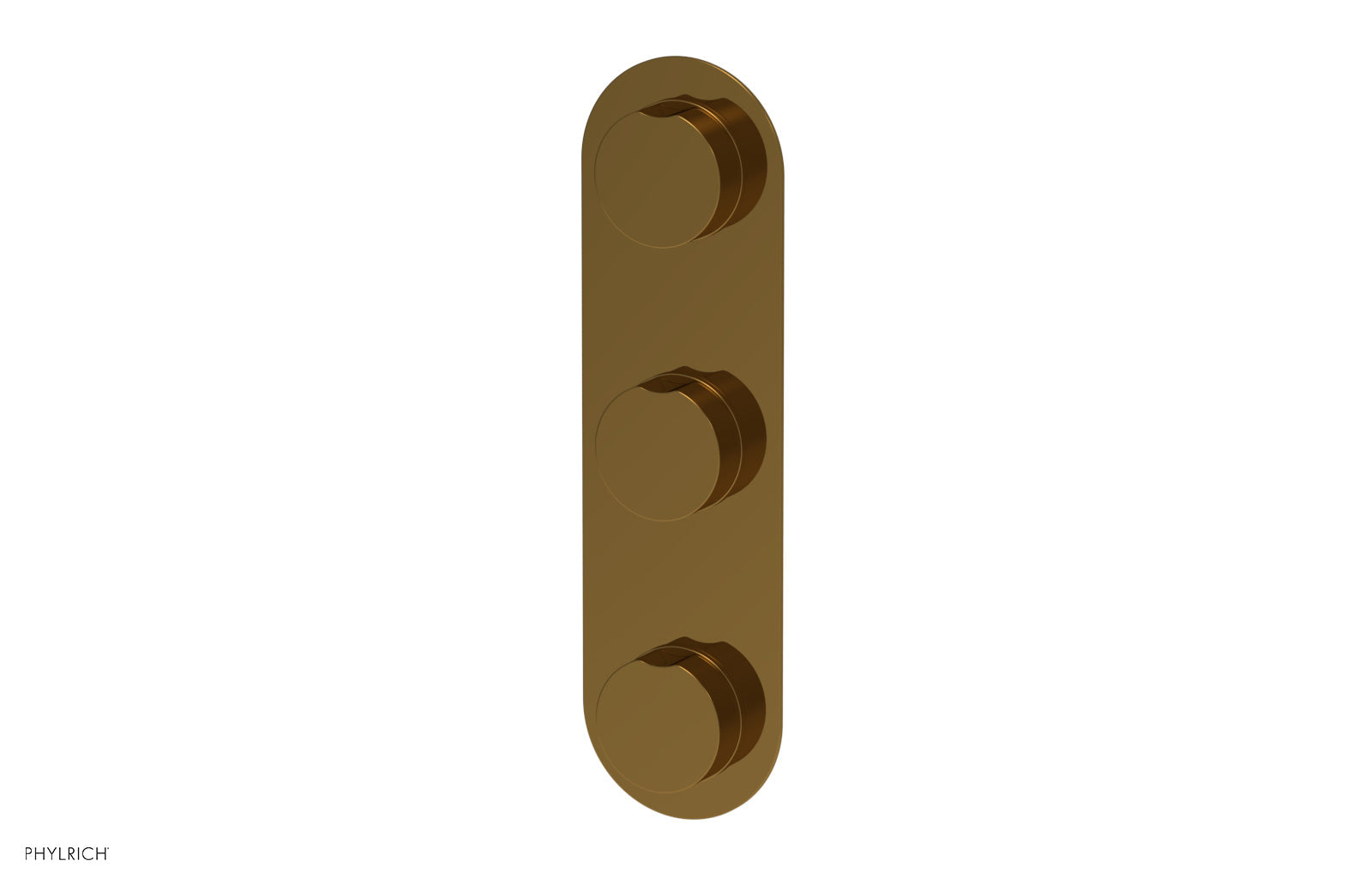

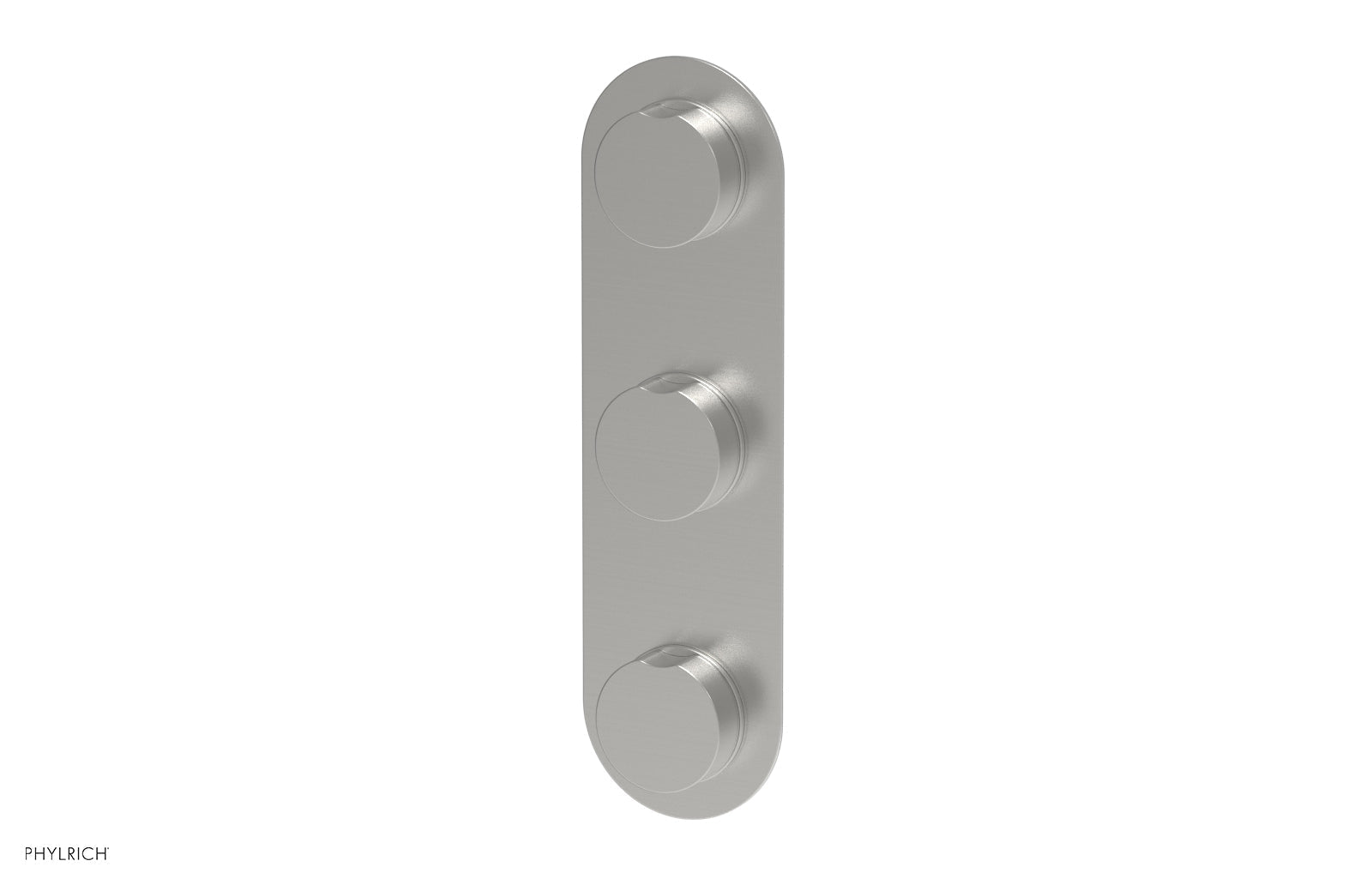

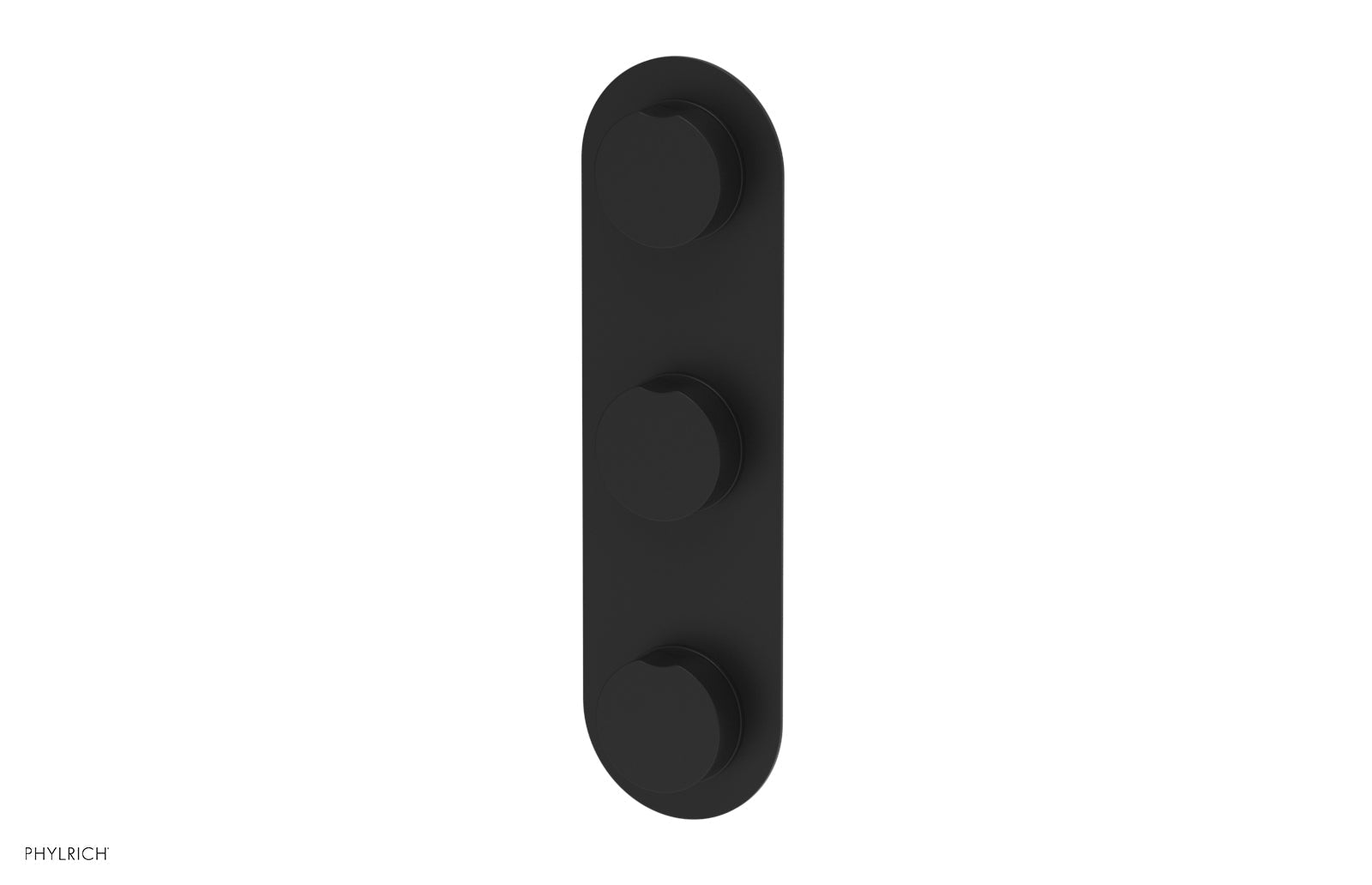

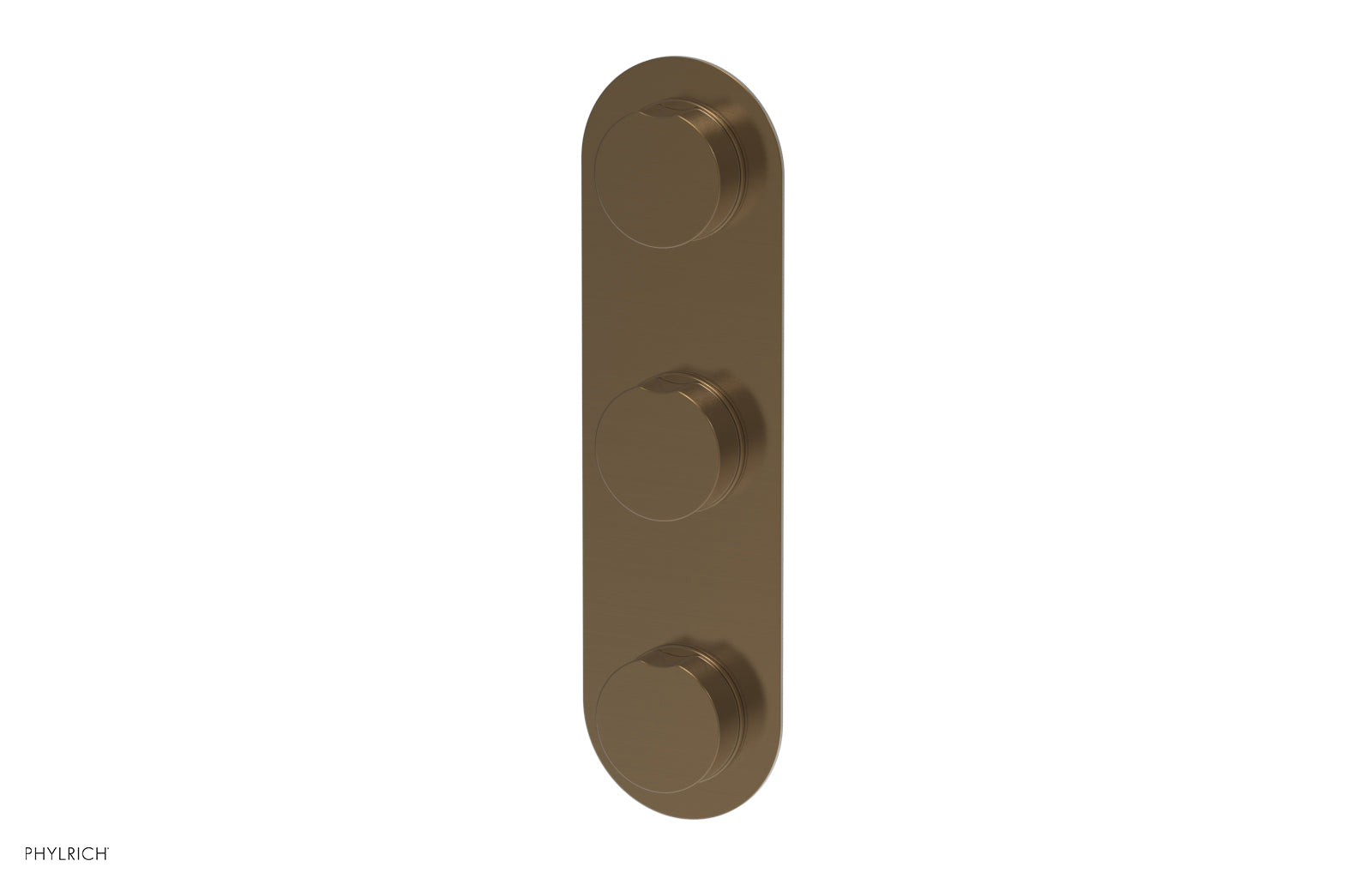

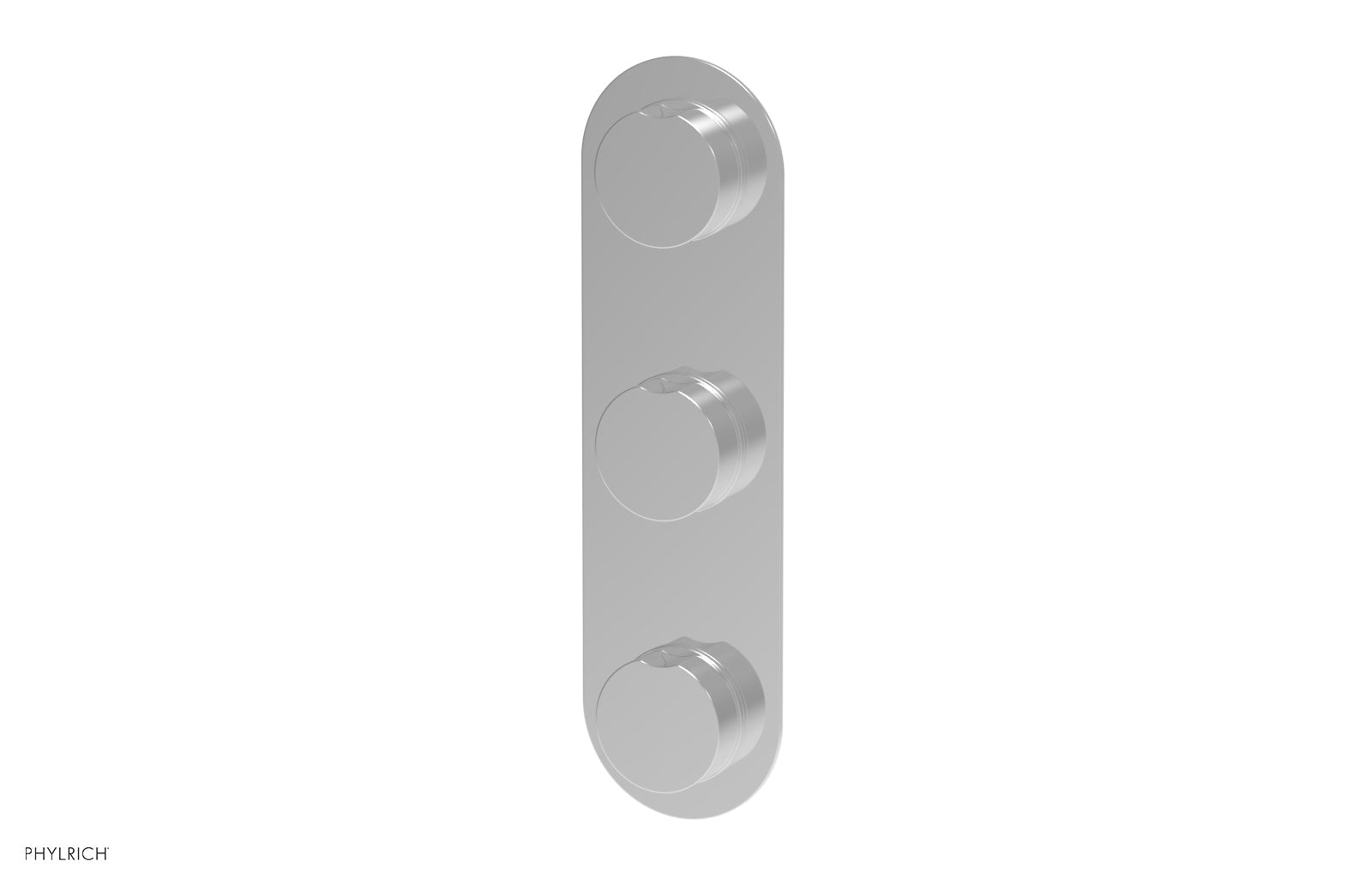

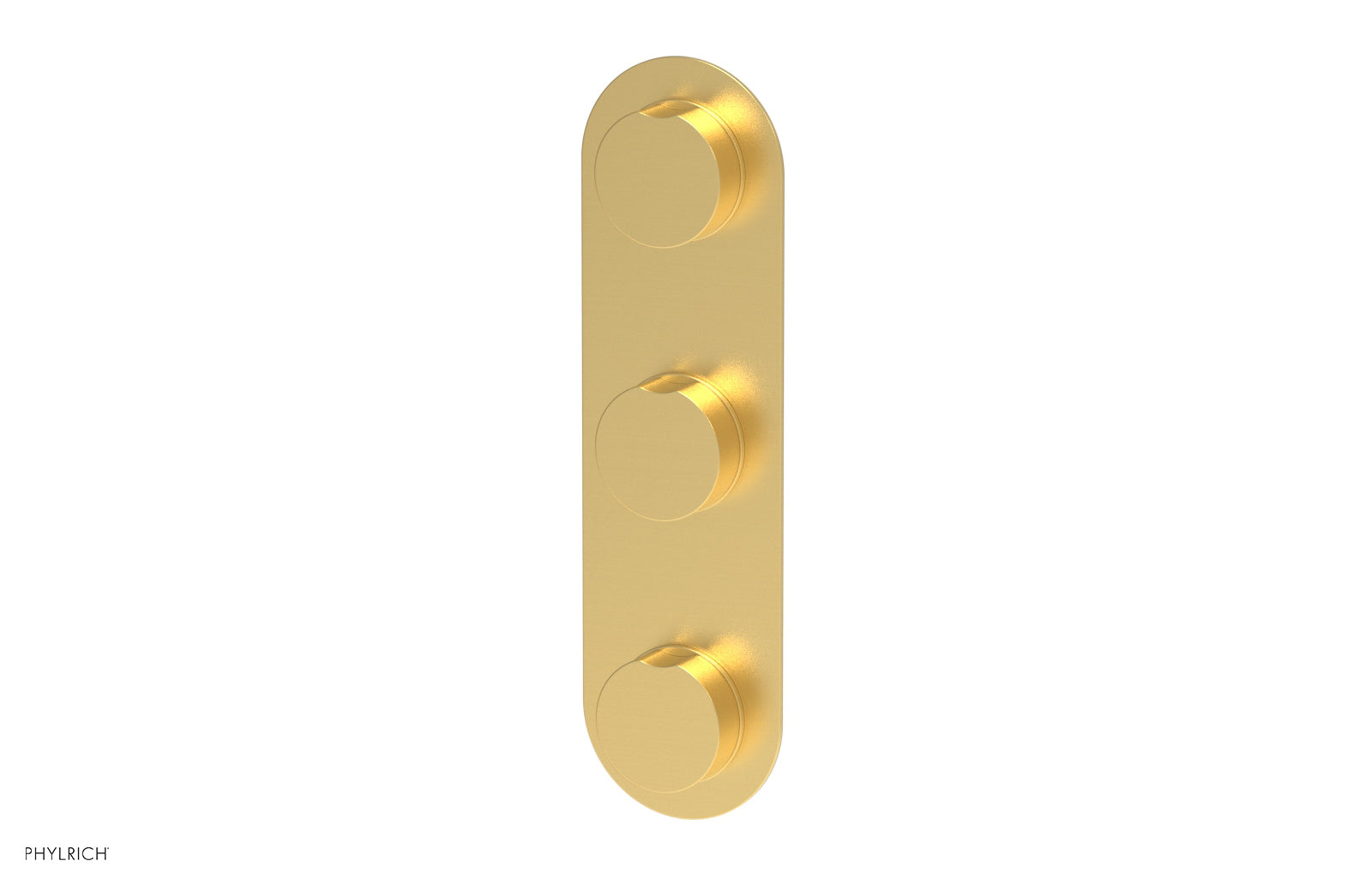

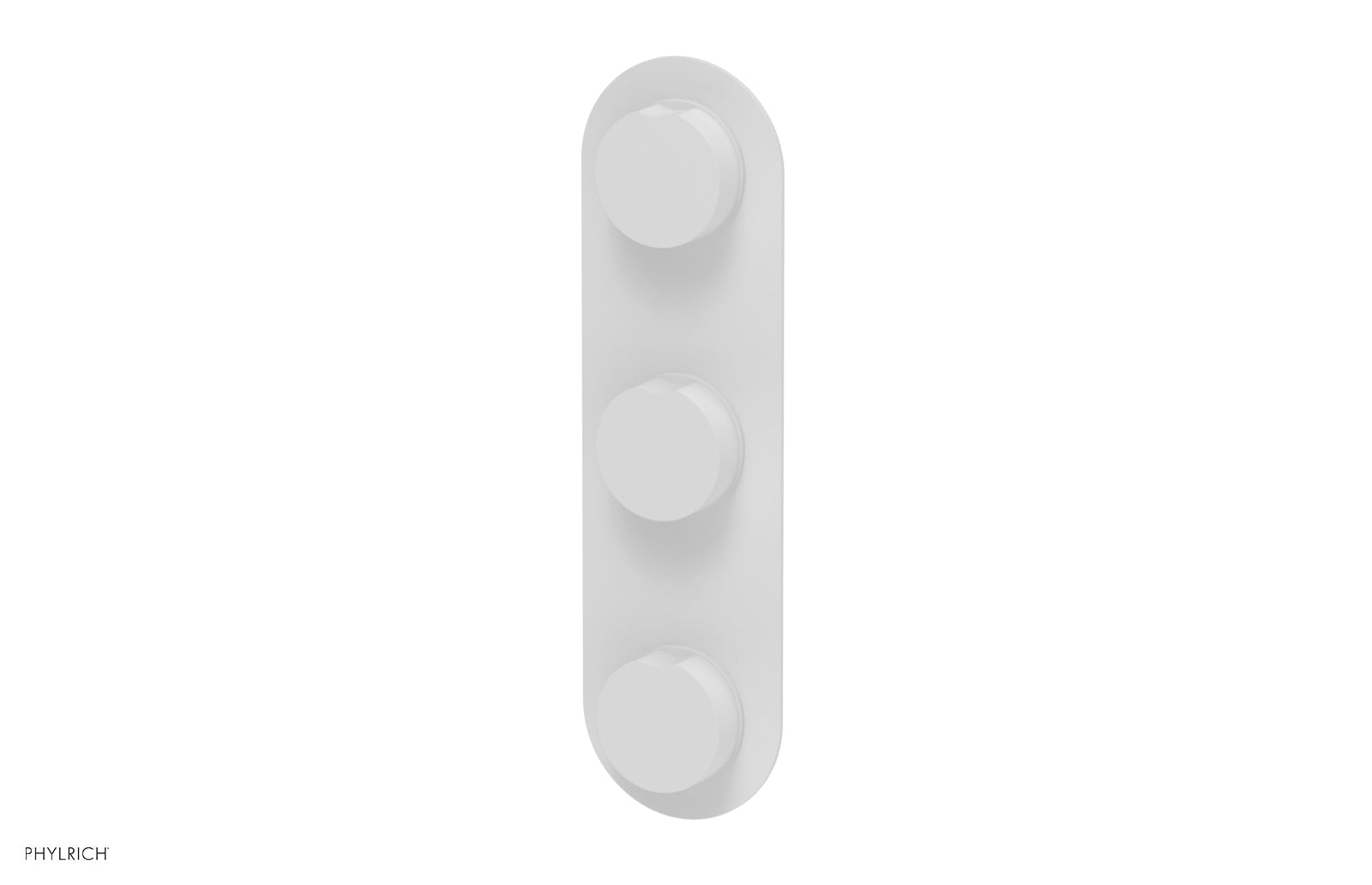

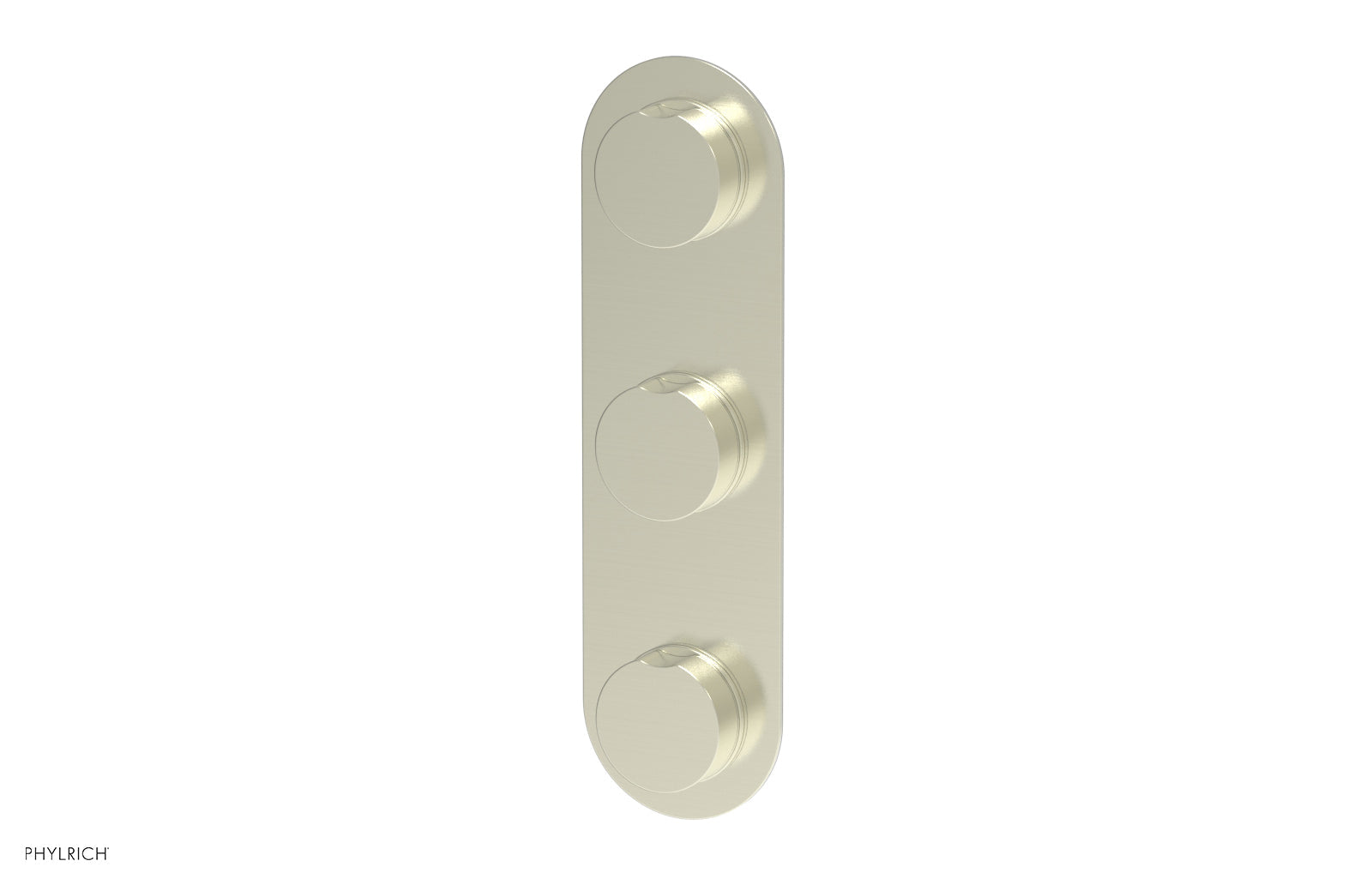

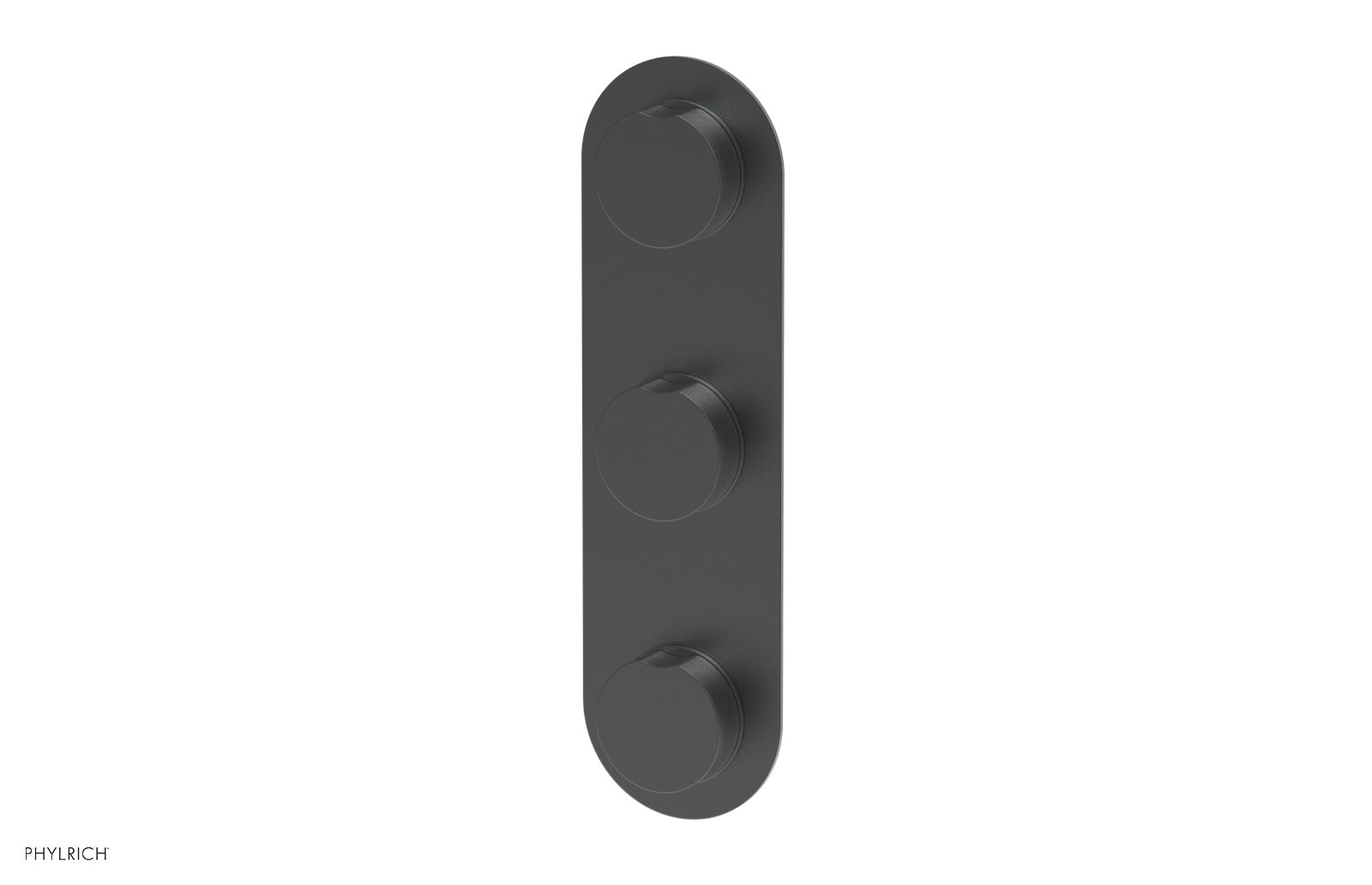

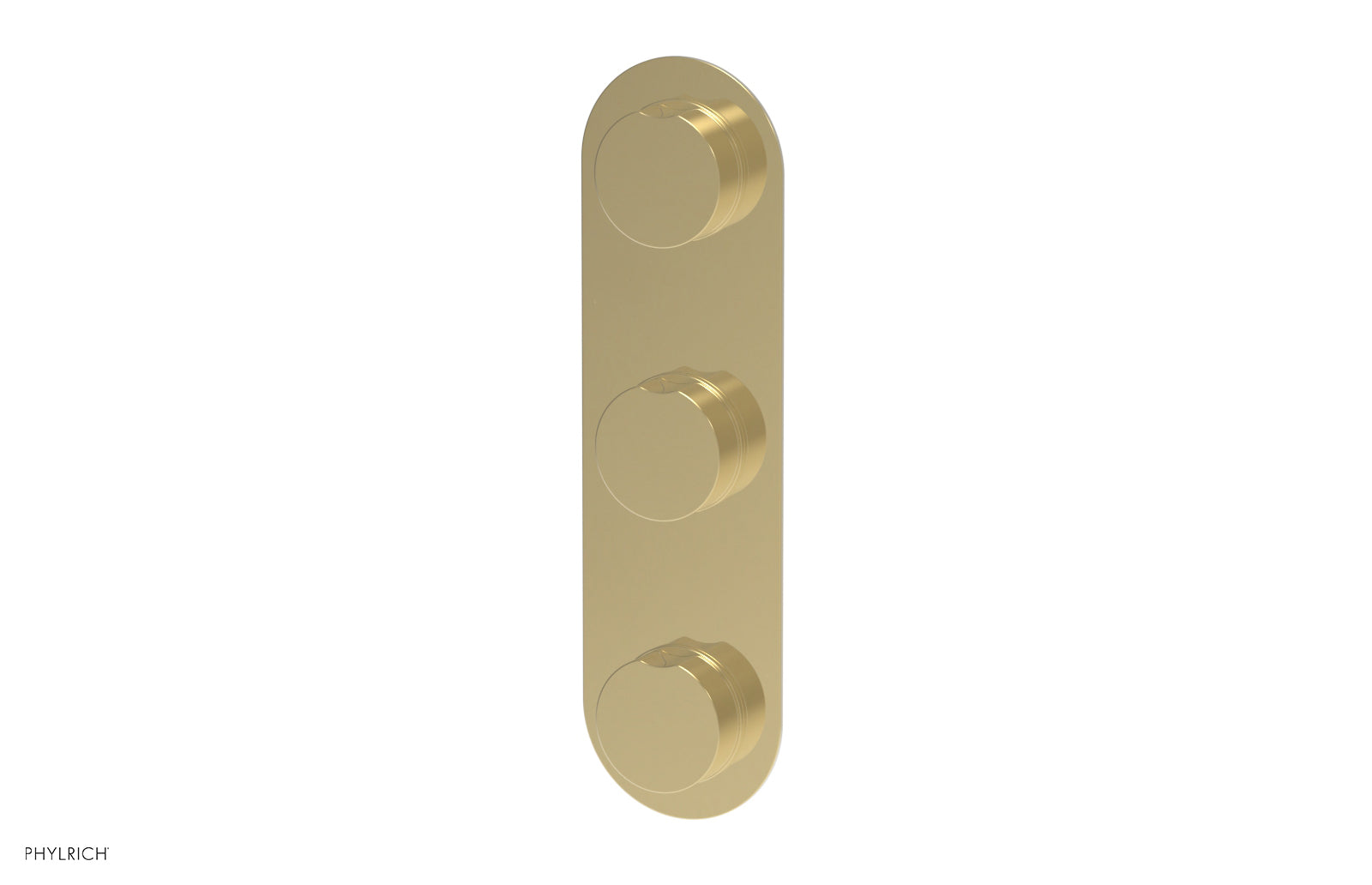

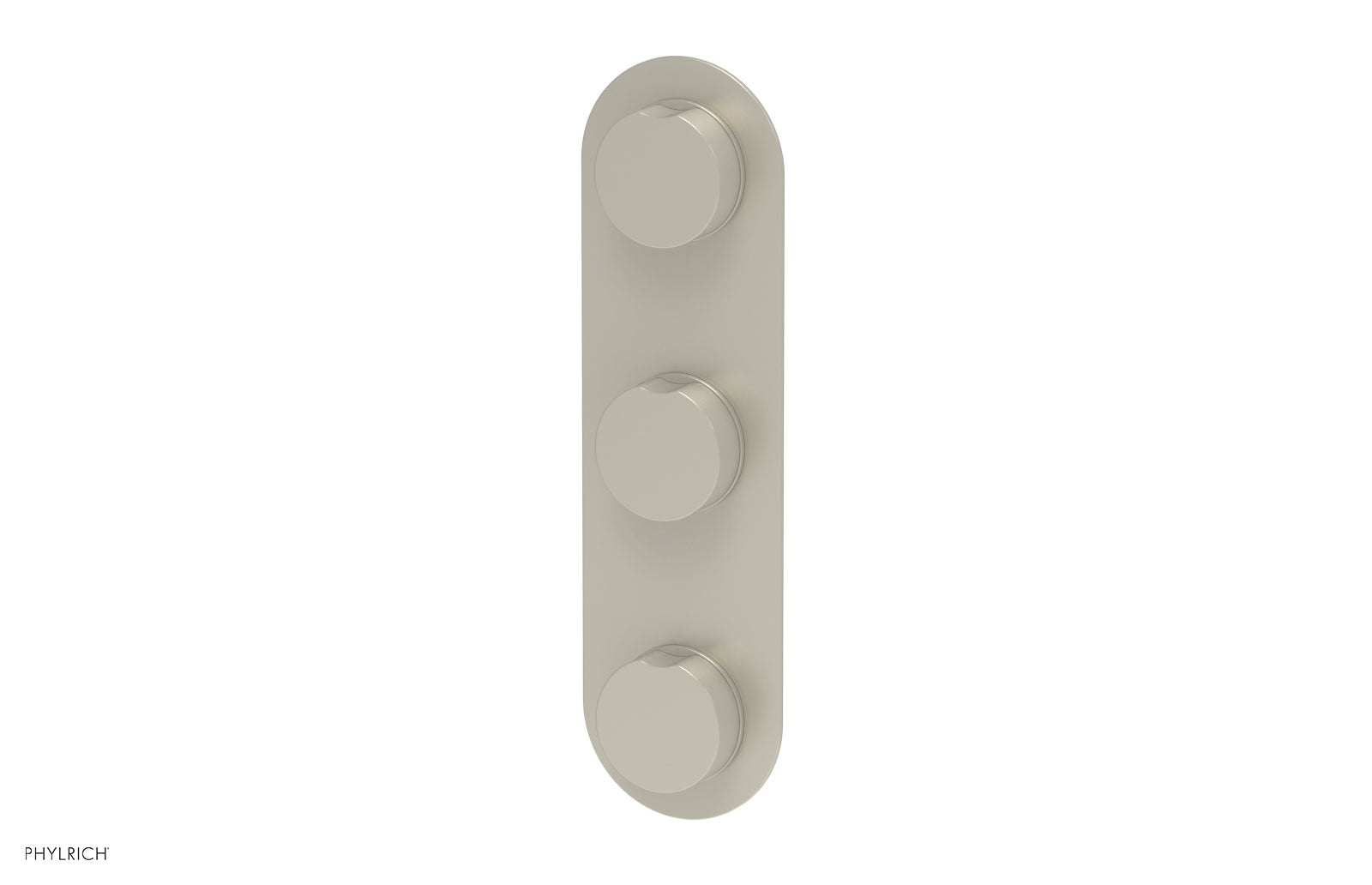

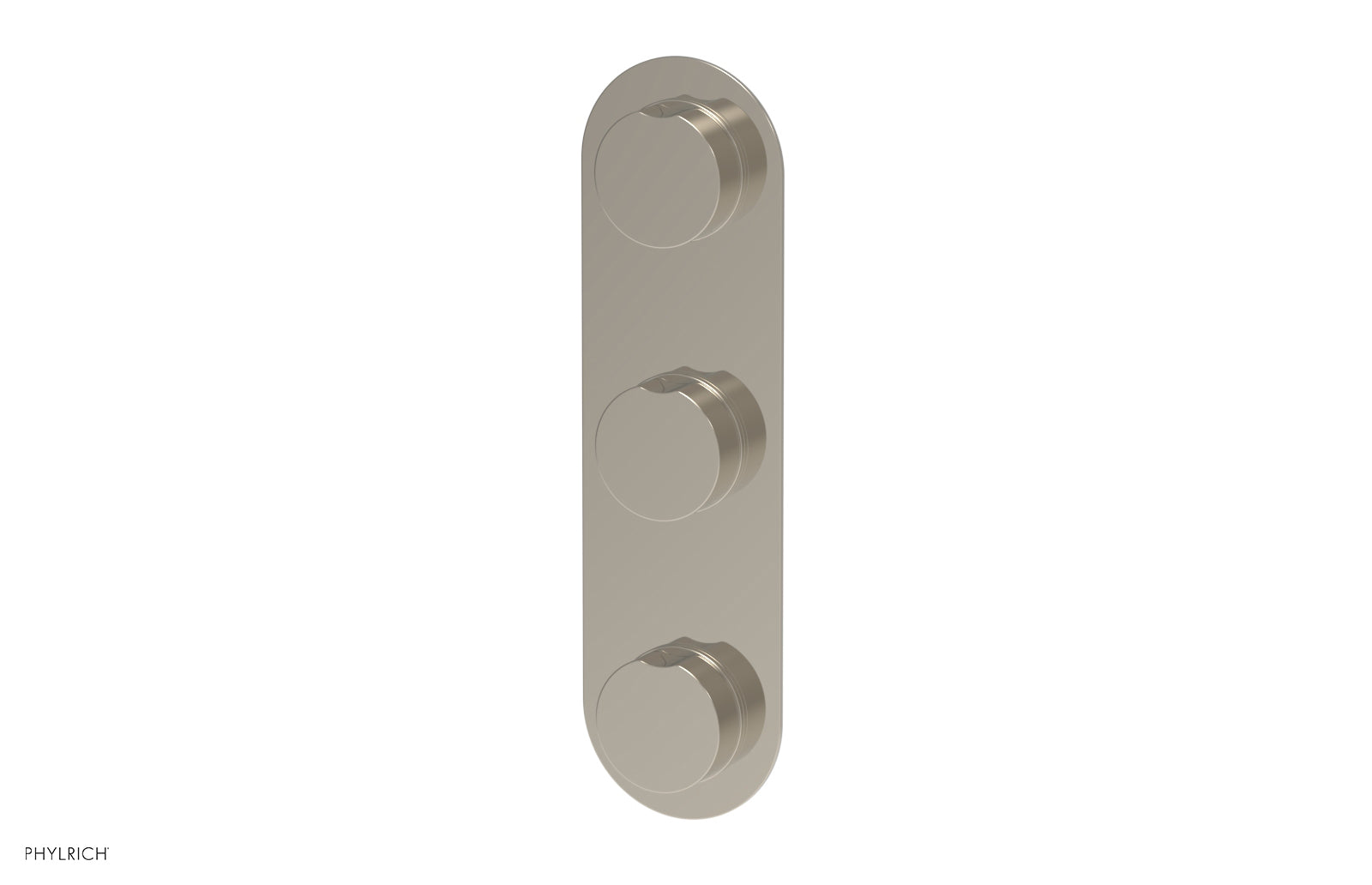

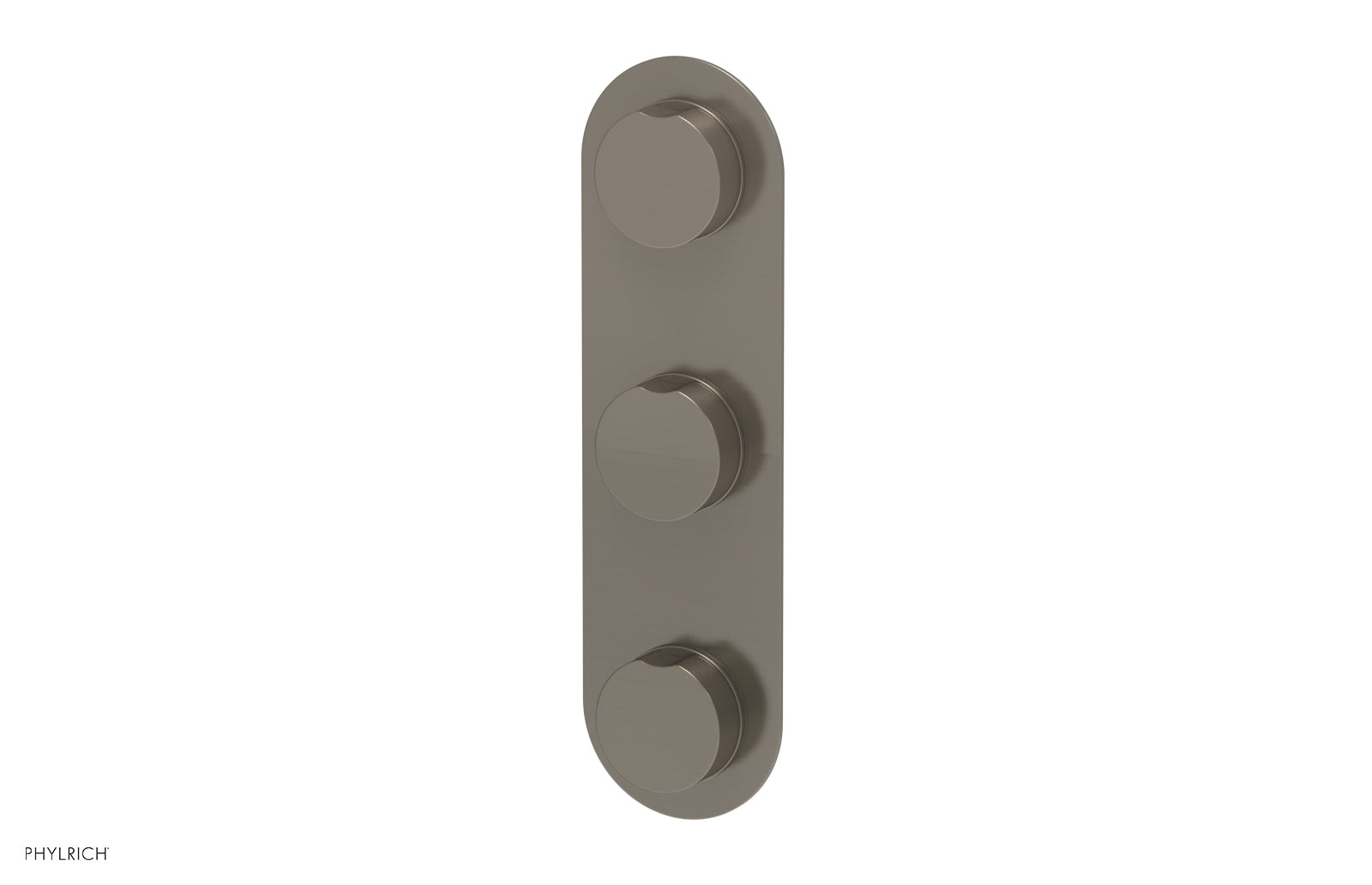

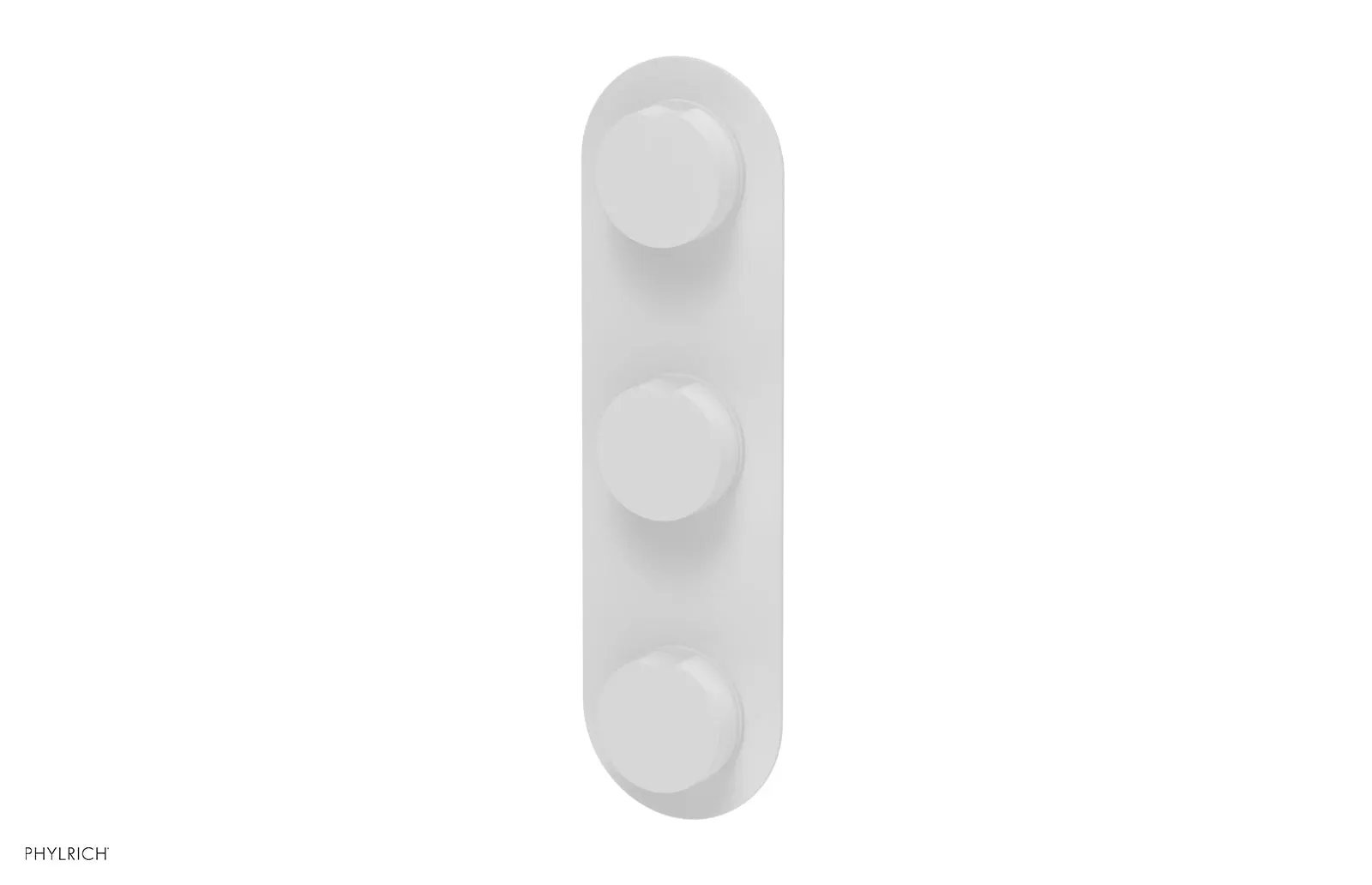

Phylrich CIRC Thermostatic Valve with Two Volume Control
Add to cart for final price!
Choose a rough valve or part
An additional plumbing item is needed to complete the set or installation of this item.
An additional plumbing item is needed to complete the set or installation of this item.
+ $409.50
Phylrich 1/2" New Thermostatic Valve with Two Volume Controls
More info+ $409.50
Phylrich 1/2" New Thermostatic Valve with Two Volume Controls
Model Number: 1-138
$409.50
Focal Point is an Authorized Phylrich Retailer!
About The Phylrich 1/2" New Thermostatic Valve with Two Volume Controls
Features
About The Phylrich 1/2" New Thermostatic Valve with Two Volume Controls
Features
- Temperature Limit Stops
- 6.5 gpm @ 45 psi
- Integral Stops and Filters
- Anti-scald
- Female 3/4 NPT inlets and outlets
- Factory temperature setting = 100°F (38°C)
- Temperature range = 52° to 118°F (11°-48°C)
- Temperature hot supply = 149° to 180°F (65°-82°C)
- Temperature cold supply = 50° to 72°F (10°-22°C)
- Temperature stability = ±32°F (0°C)
- ASME A112.181/ CSA B1251, ASME 112.18.2/ CSA B125.2, ANSI NSF, CEC,
- Watersense 61 Sect. 9, State of MA
+ $558.90
Phylrich 3/4" New 2018 Thermostatic Valve with Two 3/4" Volume Controls
More info+ $558.90
Phylrich 3/4" New 2018 Thermostatic Valve with Two 3/4" Volume Controls
Model Number: 1-148
$558.90
Focal Point is an Authorized Phylrich Retailer!
About The Phylrich 3/4" New 2018 Thermostatic Valve with Two 3/4" Volume Controls
Features
About The Phylrich 3/4" New 2018 Thermostatic Valve with Two 3/4" Volume Controls
Features
- Up to 14 GPM
- Integral stops and filters
- Anti-scalding
- All VALVES Made In-House
- Female 3/4 NPT inlets and outlets
- Factory temperature setting = 100°F (38°C)
- Temperature range = 52° to 118°F (11°-48°C)
- Temperature hot supply = 149° to 180°F (65°-82°C)
- Temperature cold supply = 50° to 72°F (10°-22°C)
- Temperature stability = ±32°F (0°C)
- ASME A112.181/ CSA B1251, ASME 112.18.2/ CSA B125.2, ANSI NSF, CEC,
- Watersense 61 Sect. 9, State of MA
Phylrich CIRC Thermostatic Valve with Two Volume Control
Sale price$585.00
Regular price$650.00 (/)
Product details
Focal Point is an Authorized Phylrich Retailer!
About The Phylrich CIRC Thermostatic Valve with Two Volume Control
Our new Circ collection is a blend of minimalist and elegant design.
Features
About The Phylrich CIRC Thermostatic Valve with Two Volume Control
Our new Circ collection is a blend of minimalist and elegant design.
Features
- Style: Transitional
- Collection: Circ
- Temperature Controlled By Thermostatic
- Round Handles
- ADA Compliance: No
- Access Hole: 3 x 13"
- Number of Handles: Three
- Handle Spread: 5"
- Top Handle Turn Angle: Quarter Turn
- Bottom Handle Turn Angle: 115-118¡
- Installation Type: Wall Mounted
- Primary Material: Brass
- Valve Material: Ceramic
- Flow Rate: 6.5 GPM
- Flow Restriction: 1.8 GPM per function
- Water Pressure Maximum: 85 PSI
- Water Pressure Minimum: 20 PSI
- Water Pressure Recommended: 60 PSI
- ASME A112.181/ CSA B1251, ASME 112.18.2/ CSA B125.2, ANSI NSF, CEC,
- Watersense 61 Sect. 9, State of MA.
Product Specifications
Specifications Sheet
