Phylrich RIBBON & REED Deck Tub Set with Hand Shower
Choose a rough valve or part
An additional plumbing item is needed to complete the set or installation of this item.
An additional plumbing item is needed to complete the set or installation of this item.
+ $442.13
Phylrich Deck Tub Set with Hand Shower Valve
More info+ $442.13
Phylrich Deck Tub Set with Hand Shower Valve
Model Number: 80001249
$442.13
Focal Point is an Authorized Phylrich Retailer!
About The Phylrich Deck Tub Set with Hand Shower Valve
Features
About The Phylrich Deck Tub Set with Hand Shower Valve
Features
- 22 GPM
- Handshower Flow Restriction: 1.8 GPM
- With 3 Port, 2 Function Deck Diverter Valve
- 3/4" Ceramic Disc
- 3/4" Quick Connect for spout
- Integral check VALVES for backflow protection
- All VALVES Made In-House
- ASME A112.181/ CSA B1251, ASME 112.18.2/ CSA B125.2, ANSI NSF, CEC,
- Watersense 61 Sect. 9, State of MA.

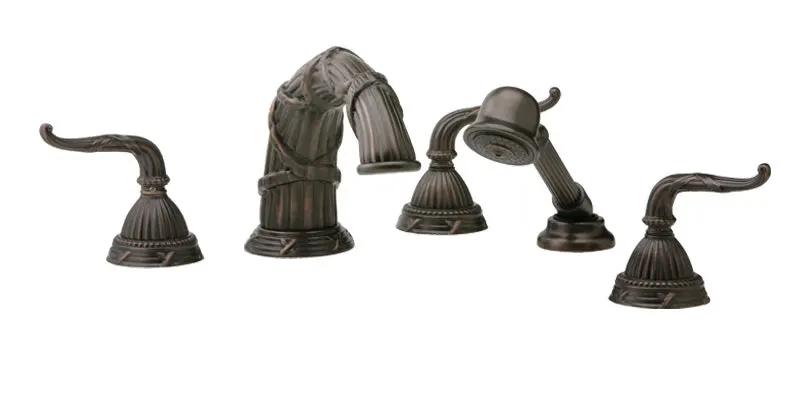

Phylrich RIBBON & REED Deck Tub Set with Hand Shower
Sale price$1,295.33
Regular price$1,919.00 (/)
Product details
Focal Point is an Authorized Phylrich Retailer!
About The Phlyrich RIBBON & REED Deck Tub Set with Hand Shower
Colonial charm with optional hand applied gold accents.
Features
About The Phlyrich RIBBON & REED Deck Tub Set with Hand Shower
Colonial charm with optional hand applied gold accents.
Features
- Style: Baroque
- Collection: Ribbon & Reed
- Temperature Controlled By Handles
- Lever Handles
- ADA Compliance: Yes
- Deck Thickness Maximum: 2"
- Deck Thickness Minimum: 1/8"
- Fitting Hole Diameter: 1 1/8"
- Number of Holes: Three Hole
- Number of Handles: Two
- Handle Spread Maximum: 12"
- Handle Spread Minimum: 8"
- Handle Turn Angle: Quarter Turn
- Spout Reach: 10"
- Spout Height: 7 1/2"
- Inlet Connection Type: Male 3/4" NPT
- Installation Type: Deck Mounted
- Primary Material: Brass
- Valve Material: Ceramic
- Spout Flow Restriction: Full Flow
- Hand Shower Flow Restriction: 1.8 GPM
- Water Pressure Maximum: 85 PSI
- Water Pressure Minimum: 20 PSI
- Water Pressure Recommended: 60 PSI
- ASME A112.181/ CSA B1251, ASME 112.18.2/ CSA B125.2, ANSI NSF, CEC,
- Watersense 61 Sect. 9, State of MA.
