Tectus by Simonswerk

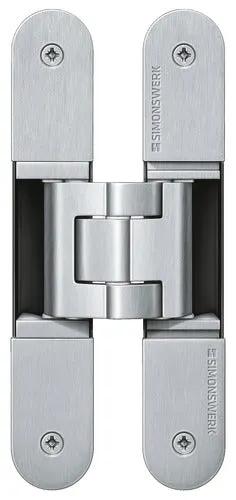

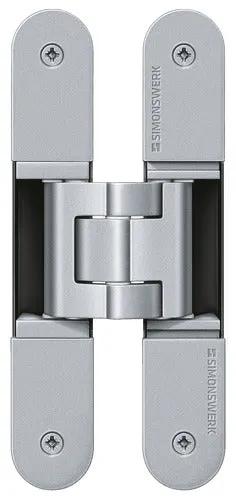

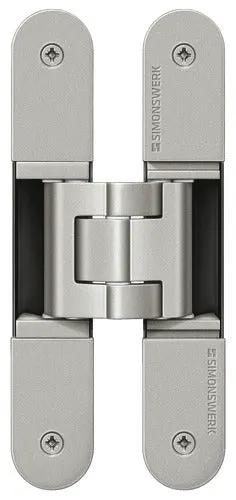

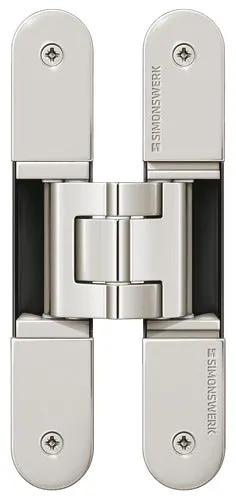

Tectus by Simonswerk TE 240 3D Concealed Residential Door Hinge

Model Number: TE 240 3D-124
Sale price$117.00
Usually Ships in 3-5 Weeks
Finish: Satin Chrome Look

You may also like

Product details

Focal Point is an Tectus Retailer!
About the Tectus by Simonswerk TE 240 3D Concealed Residential Door Hinge
  • Capacity: w/2 installed: 132 lbs [60 kg]
  • Height: 6.1" [155mm]
  • Widths: frame: 0.82"[21mm] / leaf: 0.7" [18]
  • Depth: frame: 0.94"[24mm] / leaf: 1.06"[27]
  • Min. Door Thickness: 1" [25mm]
  • Router Bit Diameter: 16mm
  • Completely Concealed Hinge System
  • For Timber, Steel Or Aluminium Frames
  • For Unrebated And Rebated Flush Residential Doors
  • Sideways Closed Hinge Body for A Homogeneous Mortise Appearance
  • 3d Adjustment (Side +/- 3,0 Mm, Height +/- 3,0 Mm, Compression +/- 1,5 Mm)
  • Maintenance-free Slide Bearings

Product Specifications

Installation Guide Specifications Sheet
