Tectus by Simonswerk

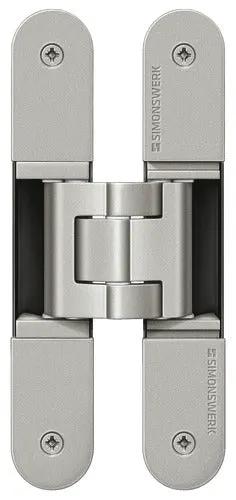

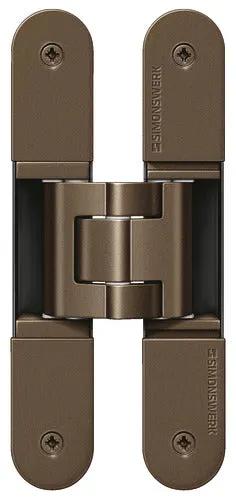

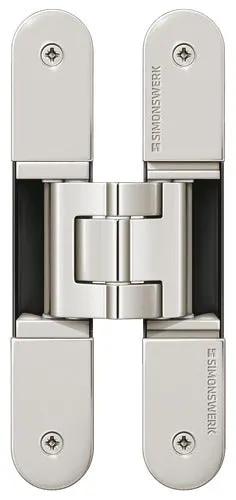

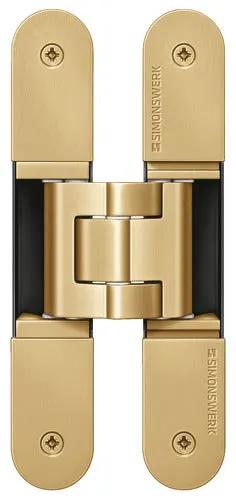

Tectus by Simonswerk TE 340 3D Concealed Residential and Commerical Door Hinge

Model Number: TE 340 3D-124
Sale price$134.00
Usually Ships in 3-5 Weeks

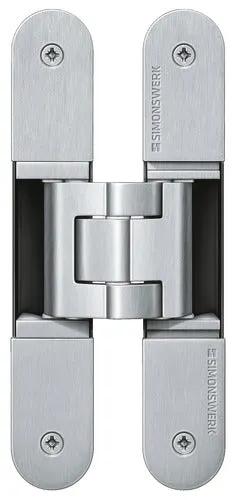

Finish: Satin Chrome Look

You may also like

Product details

Focal Point is an Tectus Retailer!
About the Tectus by Simonswerk TE 340 3D Concealed Residential and Commerical Door Hinge
  • Capacity: w/2 installed: 176 lbs [80 kg]
  • Height: 6.3" [160mm]
  • Widths: frame: 1.1"[28mm] / leaf: 1.1" [28]
  • Depth: frame: 1.22"[31mm] / leaf: 1.32"[33.5]
  • Min. Door Thickness: 1-3/8" [35mm]
  • Router Bit Diameter: 24mm
  • Completely Concealed Hinge System
  • For Timber, Steel Or Aluminium Frames
  • For Unrebated Residential and Heavy-duty Doors
  • Maintenance-free Slide Bearings
  • With Comfortable 3d Adjustment (Side +/- 3,0 Mm, Height +/- 3,0 Mm, Compression +/- 1,0 Mm)
  • Sideways Closed Hinge Body for A Homogeneous Mortise Appearance

Product Specifications

Installation Guide Specifications Sheet
