Tectus by Simonswerk

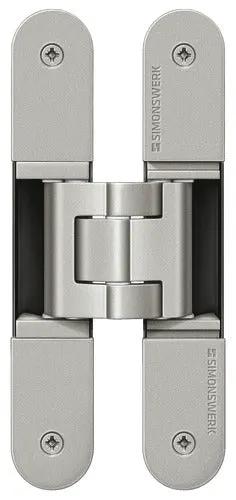

Tectus by Simonswerk TE 527 3D Concealed Commerical Door Hinge

Model Number: TE 527 3D-124
Sale price$338.00
Usually Ships in 3-5 Weeks

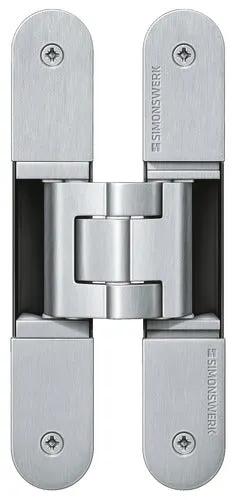

Finish: Satin Chrome Look

You may also like

Product details

Focal Point is an Tectus Retailer!
About the Tectus by Simonswerk TE 527 3D Concealed Commerical Door Hinge
  • Capacity w/2 installed: 264 lbs [120 kg]
  • Height: 6.1" [ 155mm ]
  • Widths: door & frame: ~1"/ [26mm ]
  • Depth: door: 1.38" / frame: 1.44" [36/33mm]
  • Min. Door Thickness: 1-3/8"[34mm]
  • Router Bit Diameter: 24mm
  • Solid non magnetic stainless steel (304 series) (marine grade 316 series upon request)
  • Completely concealed hinge system
  • For wood, steel or aluminum door panels and frames
  • For flush commercial doors
  • Finger protection due to a small gap between door and frame
  • Easily adjustable in three dimensions (side +/- 3.0 mm (0.118"), height +/- 3.0 mm (0.118"), compression +/- 1.0 mm (0.039"))
  • Maintenance-free slide bearings
