Tectus by Simonswerk

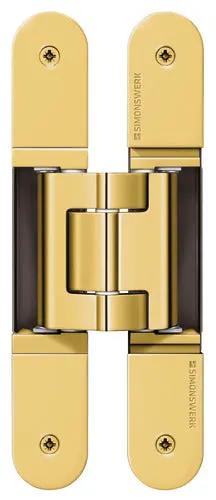

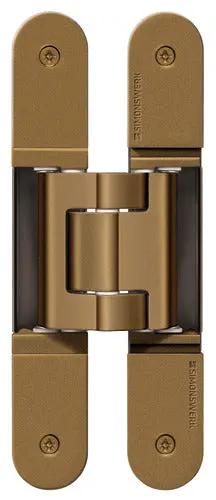

Tectus by Simonswerk TE 540 3D Concealed Commerical Door Hinge

Model Number: TE 540 3D-124
Sale price$222.00
Usually Ships in 3-5 Weeks
Finish: Satin Chrome Look

You may also like

Product details

Focal Point is an Tectus Retailer!
About the Tectus by Simonswerk TE 540 3D Concealed Commerical Door Hinge
  • Capacity: w/2 installed: 264 lbs [120 kg]
  • Height: 7.874" [200mm]
  • Widths: frame: 1.26"[32mm] / leaf: 1.26" [32]
  • Depth: frame: 1.38"[35mm] / leaf: 1.44"[36.5]
  • Min. Door Thickness: 1-5/8" [40mm]
  • Router Bit Diameter: 24mm

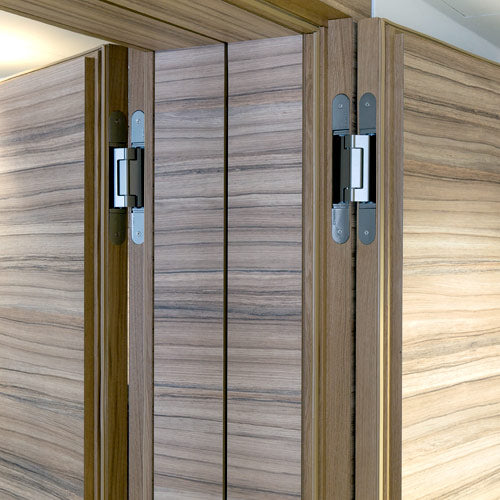

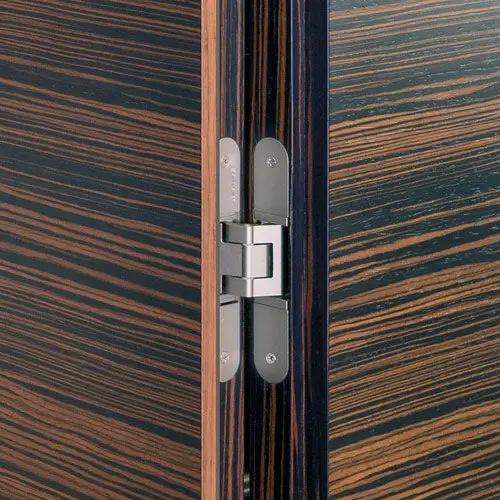

  • Completely concealed hinge system
  • For wood, steel or aluminum door panels and frames
  • For flush commercial doors
  • Finger protection due to a small gap between door and frame
  • Easily adjustable in three dimensions (side +/- 3.0 mm (0.118"), height +/- 3.0 mm (0.118"), compression +/- 1.0 mm (0.039"))
  • Maintenance-free slide bearings

Product Specifications

Installation Guide Specifications Sheet
