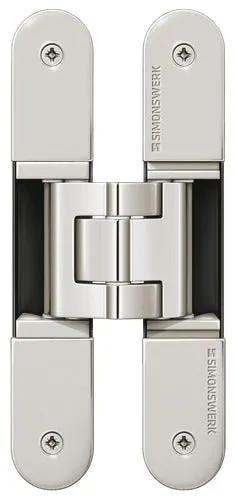

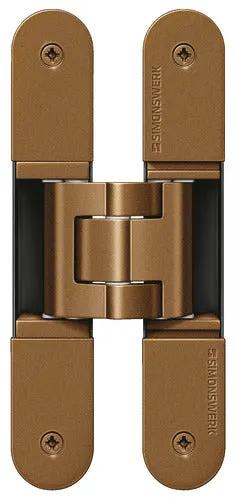

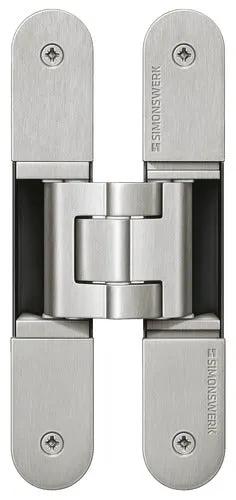

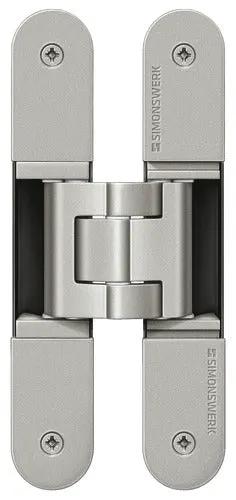

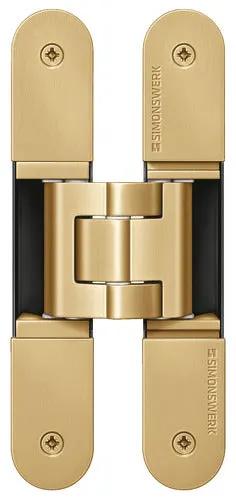

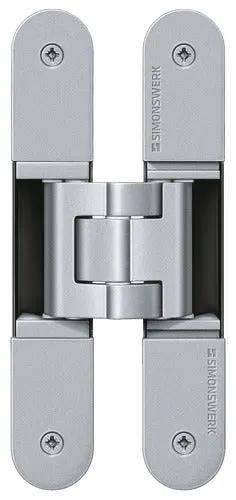

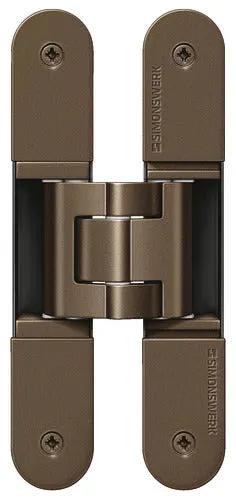

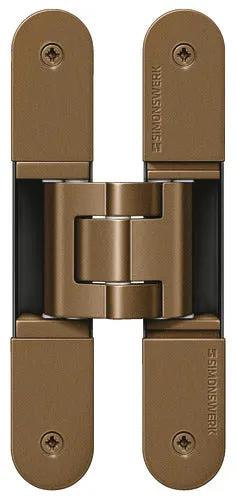

Tectus by Simonswerk TE 541 3D FVZ Concealed Residential and Commercial with Recessed Frame Door Hinge
Tectus by Simonswerk TE 541 3D FVZ Concealed Residential and Commercial with Recessed Frame Door Hinge
Sale price$269.00
Regular price$269.00 (/)
Product details
Focal Point is an Tectus Retailer!
About the Tectus by Simonswerk Concealed Residential and Commercial with Recessed Frame Door Hinge
for doors with frames recessed up to .55" (14mm) from the face of the door leaf
About the Tectus by Simonswerk Concealed Residential and Commercial with Recessed Frame Door Hinge
for doors with frames recessed up to .55" (14mm) from the face of the door leaf
- Capacity: w/2 installed: 220 lbs [ 100kg]
- Height: 7.28" [ 185mm ]
- Depth: frame: 1.18"[30mm] / leaf 1.69"[43]
- 90° Throw View more info (download dxf) (pdf)
- 180° Throw View more info
- Opening Throw from 0°-5°(download dxf) more info
- Min. Door Thickness: 1-5/8"[41mm] chart download
- FVZ = for 14.0 mm (0.551") recessed frame facings
- Completely concealed hinge system
- For wood, steel or aluminum door panels and frames
- For flush residential and commercial doors
- Finger protection due to a small gap between door and frame
- Easily adjustable in three dimensions (side +/- 3.0 mm (0.118"), height +/- 3.0 mm (0.118"), compression +/- 1.0 mm (0.039"))
- Maintenance-free slide bearings
