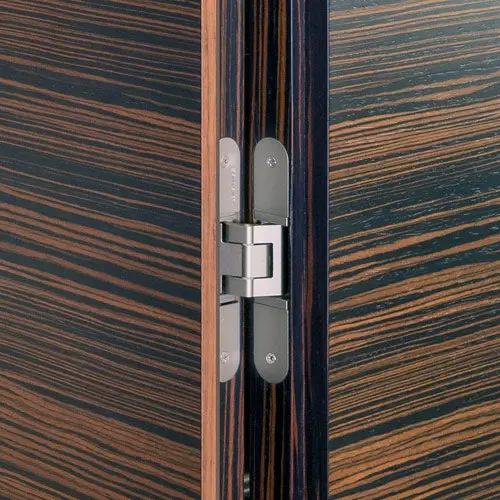

Tectus by Simonswerk TE 626 3D A8 Concealed Commerical Door Hinge
![door hinge](http://focalpointhardware.com/cdn/shop/files/TE_626_3D_A8_FrontImg.jpg?v=1705072098&width=350)
Tectus by Simonswerk TE 626 3D A8 Concealed Commerical Door Hinge
Sale price$1,359.00
Regular price$1,359.00 (/)
Product details
Focal Point is an Tectus Retailer!
About the Tectus by Simonswerk Concealed Commerical Door Hinge
About the Tectus by Simonswerk Concealed Commerical Door Hinge
- Capacity: w/2 installed: 660 lbs [ 300kg]
- Height: 9.45" [ 185mm ]
- Widths: frame/leaf: 1.26" [ 32mm ]
- Depth: frame: 1.54"[39mm] / leaf 1.69"[43]
- Min. Door Thickness: 1-3/4"[44mm]
- Solid non magnetic stainless steel (304 series)
- Completely concealed hinge system
- For wood, steel or aluminum door panels and frames
- Easily adjustable in three dimensions (side +/- 3.0 mm (0.118"), height +/- 3.0 mm (0.118"), compression +/- 1.0 mm (0.039"))
- Maintenance-free slide bearings
