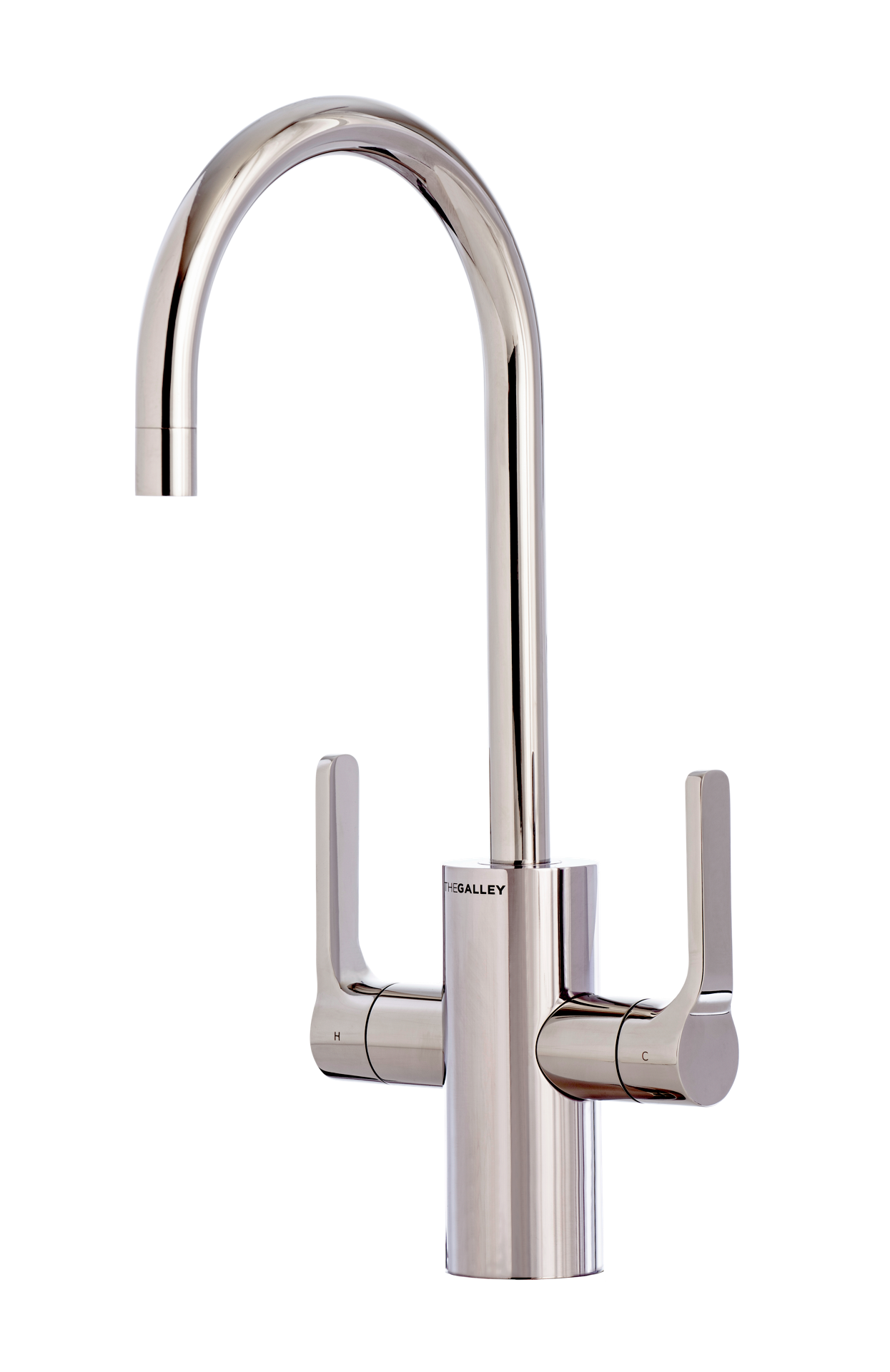

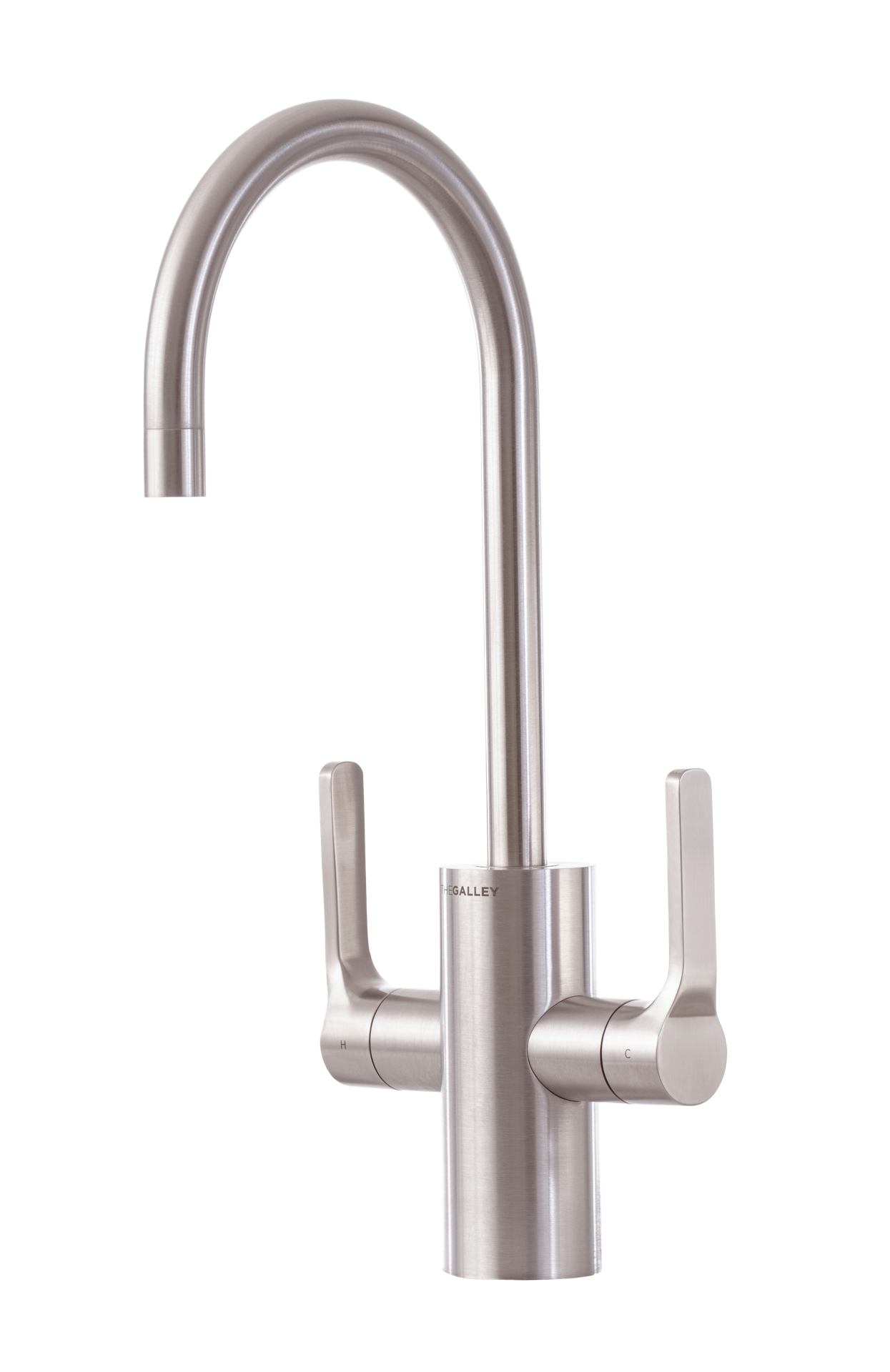

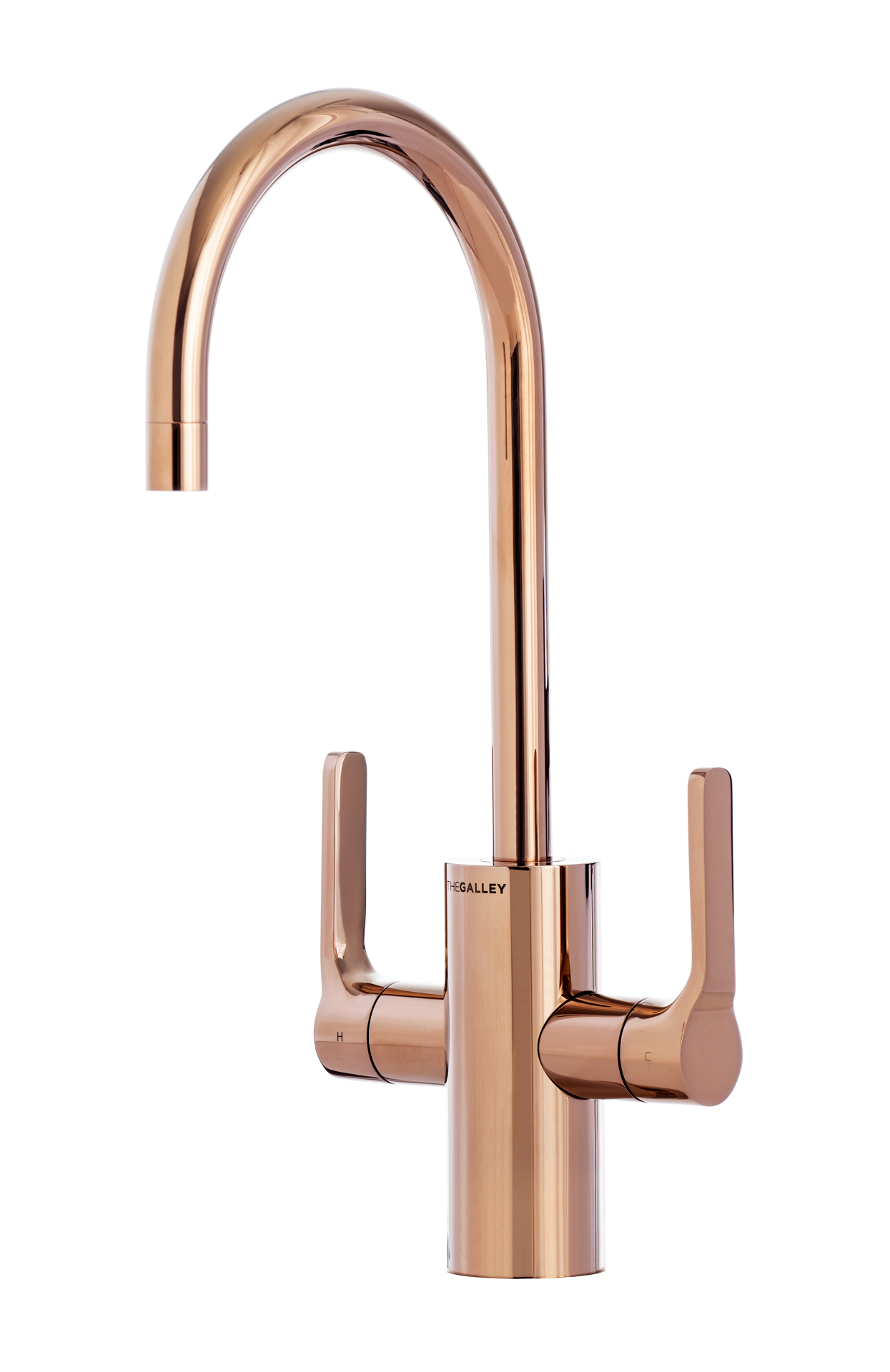

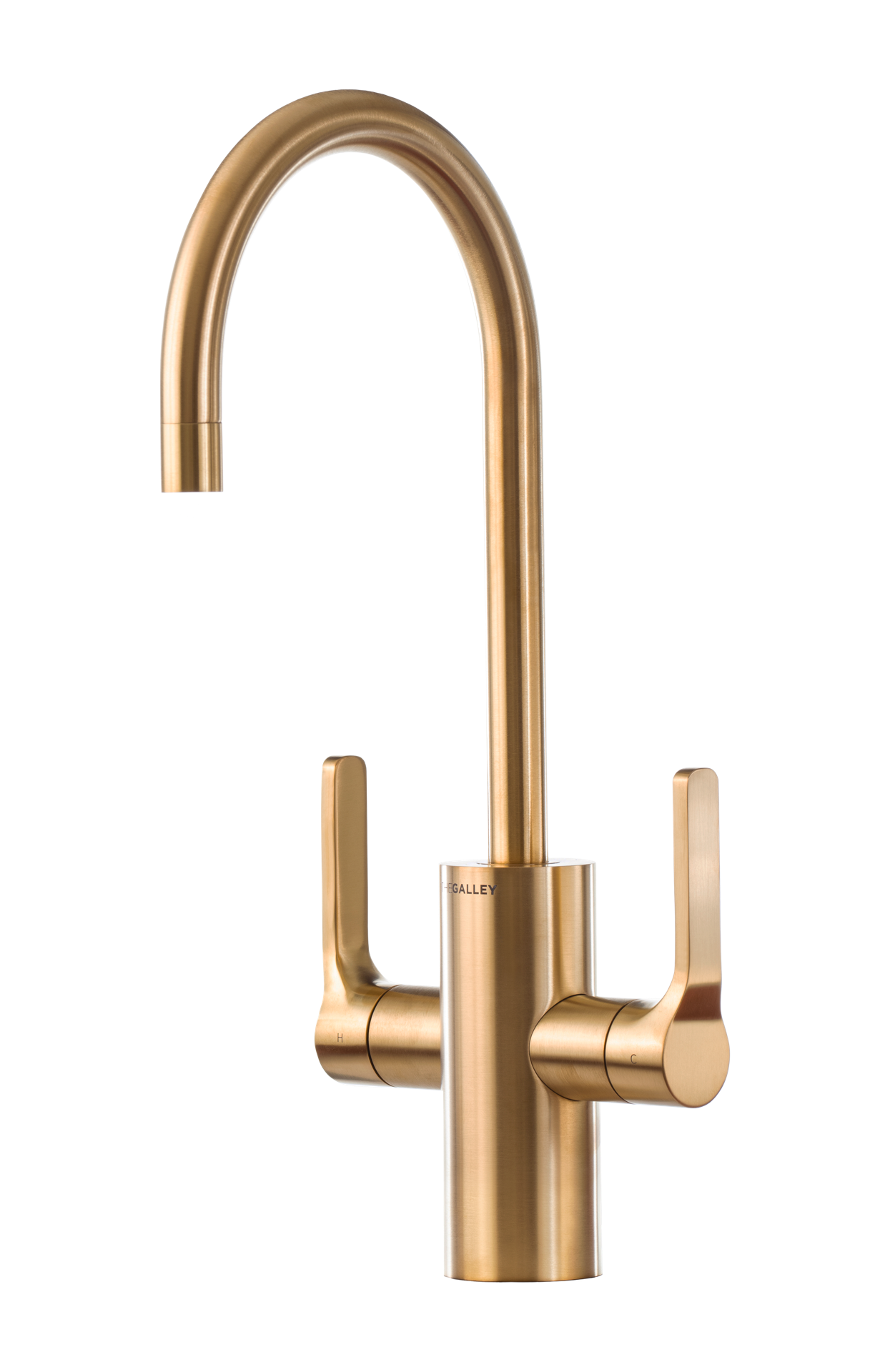

The Galley Ideal Hot and Cold Tap with Ideal Digital Hot Water Tank and Water Filtration System

Focal Point Hardware is an authorized The Galley retailer!

Introducing the Galley Ideal Hot and Cold Tap with Ideal Digital Hot Water Tank and Water Filtration System, a combination of elegance and functionality crafted to elevate your kitchen experience. With its solid 316L machined stainless steel construction, this product not only promises durability but also adds an exquisite touch to any kitchen décor. Enjoy the convenience of instant filtered hot and cold water at your fingertips, making meal prep and clean-up a breeze.

Specifications

• Solid 316L Machined Stainless Steel Construction
• Forward rotating COMFORTFEEL lever handles
• Hot side lever is spring loaded for automatic shutoff
• 1/4 turn Ceramic disk cartridges
• Spout rotates 360°
• Laminar Ideal Flow
• Thermally insulated spout
• Provides filtered (included), hot water, 208°F max temperature
• Provides filtered (included), cold water (not chilled)
• Optional base ring included
• 8 7/8" fill height from deck to spout outlet
• Total height 13 1/4"
• 0.50 GPM maximum flow rate for hot water
• 1.30 GPM maximum flow rate for cold (not chilled) water
• Maximum counter thickness 2 1/4"
• Minimum install hole diameter 1 3/8"
• Compatible with reverse osmosis filtration systems
• Limited Lifetime Mechanical and Finish Warranty
• For use with Water Filtration System (included)
• For use with Ideal Hot Water Tank (included)

Ideal Hot Water Tank Features

• Digital control touch panel
• Adjustable temperature settings = 3º increments
• Seven preset temperatures = 167º-208ºF
• Digital temperature control within 1-2º
• On/off button with vacation mode feature
• 1500 watt/120-volt ceramic encased rapid-recovery element
• 60 cups per hour capacity
• Standby reheat feature with low energy consumption 1W
• Standby reheat at 6º temperature-drop
• Built-in dry Burn and overheat sensors
• Built-in 60 psi RV with patented Baffle Fill System
• Encased element prevents limescale build-up
• Double venturi reduces faucet “dripping/spitting"
• Compatible with reverse osmosis filtration systems
• Space-saving 7 1/2" W x 7 1/2" D x 10 3/4" H
• Cabinet-side or floor-mount install options

Water Filtration System Features

• Service flow rate 2.0 gpm
• Rated capacity 7,900 gallons
• Operating pressure 10 - 125 psi
• Operating temperature 35 - 100°F
• Overall dimensions 16 7/8" x 4 1/8"
• Reduces lead, chlorine, cysts, and other contaminants
• Quick twist-lock cartridge replacement
• Replacement filter cartridge dimensions 14 1/2" x 3"
• Internal parts never exposed to human handling
• Filtration protects capital equipment from early breakdown
• Installs vertically (allow 2 1/2" clearance)
• Parts Included: Mounting bracket and screws, plastic tubing, push-fit Tee

Construction

• Solid 316L machined stainless steel construction
• Indoor & outdoor
• Made in Italy
• Ideal Hot Water Tank: 304 stainless steel tank, 0.6 USG (2.4 litres)
• Water Filtration System: Made in the USA
