Zip Water HydroTap Arc PLUS Boiling, Chilled Water Faucet
Further promotions and coupons do not apply to this item.
Select under counter unit options for your tap
Zip Water taps require an under counter unit. Any system that has a sparkling option also needs a C02 regulator and C02 canisters to be purchased.
Zip Water taps require an under counter unit. Any system that has a sparkling option also needs a C02 regulator and C02 canisters to be purchased.
+ $4,080.00
Zip Water Appliance Unit Boiling, Chilled Unit 120V (BC120V-1)
More info+ $4,080.00
Zip Water Appliance Unit Boiling, Chilled Unit 120V (BC120V-1)
Model Number: 01043465
$4,080.00
Focal Point is an Authorized Zip Water Retailer!
About The Zip Water Appliance Unit Boiling, Chilled Unit 120V (BC120V-1)
The HydroTap by Zip Water is more than just a water system, it’s cooking made easy and it’s water at its best. That’s because the HydroTap 120V BC command center provides users instant access to filtered boiling and chilled water. This command center is ideal for residential and small commercial applications and can be paired with any of our various tap styles.
About The Zip Water Appliance Unit Boiling, Chilled Unit 120V (BC120V-1)
The HydroTap by Zip Water is more than just a water system, it’s cooking made easy and it’s water at its best. That’s because the HydroTap 120V BC command center provides users instant access to filtered boiling and chilled water. This command center is ideal for residential and small commercial applications and can be paired with any of our various tap styles.
- Water Pressure: Min 37psi – Max 100psi (2.60 - 7.03kg/cm 2 ) with a minimum flow rate of 1 gpm (3.79 lpm)
- Water Connection: 1/2" BSP - isolation valve is required within 3’ (0.9m) of the installation
- Integral Water Values: All HydroTap systems are fitted with a Dual Check Valve and a 50psi (3.52kg/cm 2) PressureLimiting Valve
- Water Supply Requirements: Potable drinking water supply
- Optimal Total Dissolved Solids (TDS) Range: TDS Min 50ppm – Max 150ppm
- Integral Water Filter: 0.2 micron, 1 size - replace every 1,100 gallons / 4,163 liters or 12 months
- Power Rating: 110-120V, 50-60Hz, 15 amp power supply with a NEMA 5-15 outlet
- Dimensions (WxDxH): 13.3" x 18.2" x 13.1" / 339mm x 462mm x 333mm
- Minimum Air Gap: Minimum of 2" / 50mm clearance on left and right side and 8" / 200mm above
- Minimum Cabinet Size: 18" wide x 24" deep / 457mm wide x 610mm deep
- Maximum Hose Connection Length 3’ / 0.9m (tap to command center)
- Minimum Distance Needed for Installation 15" / 381mm (interior wall to garbage disposal)
- Dry Weight: 66lbs / 30kg
- Product Approvals: IAPMO - NSF/ANSI 372, 42, 53, CSA B483.1, ASSE 1023, ASSE 1087; cUL; CEC
- Warranty: 3 years
Select an optional Font/Drip Tray
We recommend a Zip water font/drip tray if you are NOT installing your faucet over a sink.
We recommend a Zip water font/drip tray if you are NOT installing your faucet over a sink.
Zip Water Drip Tray for HydroTap Arc and HydroTap Cube Faucet - Chrome
More info+ $482.00
Zip Water Drip Tray for HydroTap Arc and HydroTap Cube Faucet - Chrome
Model Number: 01034269
$482.00
Focal Point is an Authorized Zip Water Retailer!
About The Zip Water Drip Tray for Arc and Cube Faucet
The HydroTap Design Range Font / Drip Tray is an optional accessory that should be specified with the HydroTap Arc and Cube taps when the tap is being installed away from the sink as a standalone system. The Design Range font is available in all seven finish options to match with the HydroTap Arc and Cube taps.
About The Zip Water Drip Tray for Arc and Cube Faucet
The HydroTap Design Range Font / Drip Tray is an optional accessory that should be specified with the HydroTap Arc and Cube taps when the tap is being installed away from the sink as a standalone system. The Design Range font is available in all seven finish options to match with the HydroTap Arc and Cube taps.
- Drip Tray Design font for Arc and Cube faucet

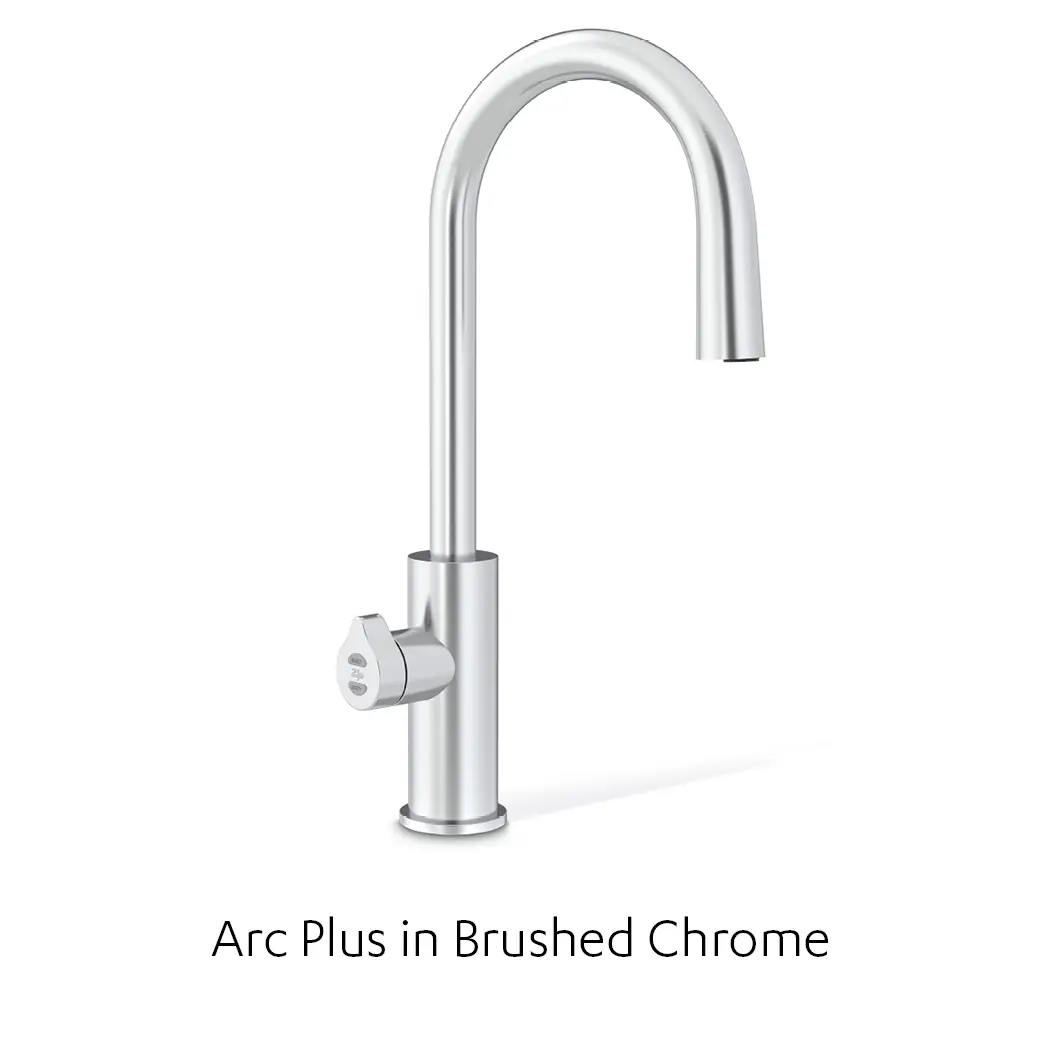

Zip Water HydroTap Arc PLUS Boiling, Chilled Water Faucet
Sale price$927.00
Regular price$974.00 (/)
Product details
Focal Point is an Authorized Zip Water Retailer!
About The Zip Water HydroTap Arc PLUS Boiling, Chilled Water Faucet
Make the perfect cup of tea or pour yourself a thirst-quenching glass of chilled water with a HydroTap Arc BC and get on demand boiling, chilled water at home. The HydroTap Arc BC will elevate your drinking water, with on demand boiling and chilled water, advanced smart technology, beautiful design and high filtration for healthier living. Unbottle the future. Choose sustainable hydration instead with HydroTap by Zip Water – the world’s most advanced drinking water system.
Tap:
- Style: HydroTap Arc BC – includes child safety lock
- Hole Size: 1 3/8"
- Installation: Over sink as a secondary tap or on optional font/drip tray (sold separately, even if pictured in product image)
- Flow Rate Max: Max 1.8 gpm / 6.81 lpm
Command Center(Sold Separately. Must Select Option to Purchase!):
- Water Pressure: Min 37psi – Max 100psi (2.60 – 7.03kg/cm2 ) with a minimum flow rate of 1 gpm (3.79lpm)
- Water Connection: 1/2" BSP – isolation valve is required within 3’ of the installation
- Integral Water Valves: HydroTaps are fitted with a Dual check valve and a 50psi Pressure Limiting Valve
- Water Supply Requirements: Potable drinking water supply
- Optimal Range of Total Dissolved Solids (TDS): TDS Min 50ppm – Max 150ppm
- Integral Water Filter: 0.2 micron, 1 size – Replace every 1,100 gallons or 12 months
- Power rating: 1 x 110-120V, 50-60Hz, 15 amp power supply with a NEMA 5-15 outlet
- Dimensions (WxDxH): 13.3" x 18.2" x 13.1" / 339mm x 462mm x 333mm
- Minimum Air Gap: Clearances are required – 2? Left side , 2? Right side , 8?above
- Dry Weight: 53lbs
- Product Approvals: IAPMO – NSF/ANSI 372, 42, 53, CSA B483.1, ASSE 1023, ASSE 1087; cUL; CEC
- Warranty: 3 years
Product Specifications
Specifications Sheet
