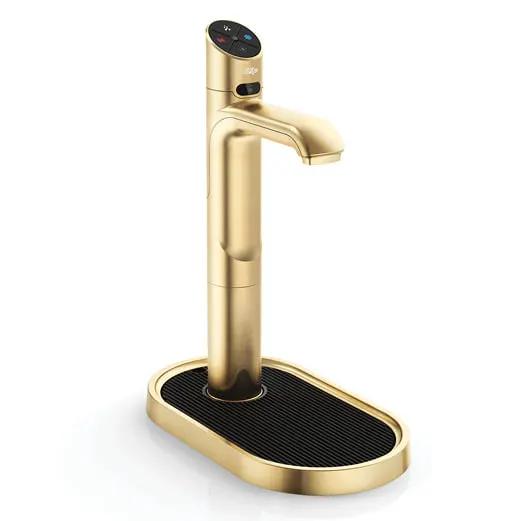

Zip Water HydroTap Classic Plus Chilled, Sparkling Water Faucet
Further promotions and coupons do not apply to this item.
Select under counter unit options for your tap
Zip Water taps require an under counter unit. Any system that has a sparkling option also needs a C02 regulator and C02 canisters to be purchased.
Zip Water taps require an under counter unit. Any system that has a sparkling option also needs a C02 regulator and C02 canisters to be purchased.
+ $3,684.00
Zip Water Appliance Unit Chilled, Sparkling Unit, 120V, w/o Regulator or Co2
More info+ $3,684.00
Zip Water Appliance Unit Chilled, Sparkling Unit, 120V, w/o Regulator or Co2
Model Number: 01043467
$3,684.00
Focal Point is an Authorized Zip Water Retailer!
About The Zip Water Appliance Unit Chilled, Sparkling Unit, 120V, w/o Regulator or Co2
The HydroTap by Zip Water is sparkling water on-demand and it’s water at its best. That’s because the HydroTap 120V CS command center provides users instant access to filtered chilled still and chilled sparkling water. This command center is ideal for residential and small commercial applications and can be paired with any of our various tap styles.
About The Zip Water Appliance Unit Chilled, Sparkling Unit, 120V, w/o Regulator or Co2
The HydroTap by Zip Water is sparkling water on-demand and it’s water at its best. That’s because the HydroTap 120V CS command center provides users instant access to filtered chilled still and chilled sparkling water. This command center is ideal for residential and small commercial applications and can be paired with any of our various tap styles.
- Water Pressure: Min 37psi – Max 100psi (2.60 - 7.03kg/cm 2 ) with a minimum flow rate of 1 gpm (3.79 lpm)
- Water Connection: 1/2" BSP - isolation valve is required within 3’ (0.9m) of the installation
- Integral Water Values: All HydroTap systems are fitted with a Dual Check Valve and a 50psi (3.52kg/cm 2) Pressure Limiting Valve
- Water Supply Requirements: Potable drinking water supply
- Optimal Total Dissolved Solids (TDS) Range: TDS Min 50ppm – Max 150ppm
- Integral Water Filter: 0.2 micron, 1 size - replace every 1,100 gallons / 4,163 liters or 12 months
- Power Rating: 110-120V, 50-60Hz, 15 amp power supply with a NEMA 5-15 outlet
- Dimensions (WxDxH): 11" x 16" x 13.1" / 280mm x 406mm x 333mm
- Minimum Air Gap: Minimum of 2" / 50mm clearance on left and right side and 8" / 200mm above
- Minimum Cabinet Size: 18" wide x 15" deep / 457mm wide x 381mm deep
- Maximum Hose Connection Length 3’ / 0.9m (tap to command center)
- Minimum Distance Needed for Installation 15" / 381mm (interior wall to garbage disposal)
- Dry Weight: 66lbs / 30kg
- Product Approvals: IAPMO - NSF/ANSI 372, 42, 53, CSA B483.1, ASSE 1087; cUL; CEC
- Warranty: 3 years
- Compatible CO2 Cylinder: Zip Water 1.5lb CO2 or 5lb CO 2 (if space allows) with CGA-320 fitting
- CO 2 Operating Pressure: Min 39psi - Max 44psi / Min 2.74 - Max 3.09kg/cm 2
+ $183.00
Zip Water Appliance Unit CO2 Regulator for Sparkling Kit
More info+ $183.00
Liquid error (snippets/upsell-product-card line 264): invalid url input
Zip Water Appliance Unit CO2 Regulator for Sparkling Kit
Model Number: 01034349
$183.00
Focal Point is an Authorized Zip Water Retailer!
About The Zip Water Appliance Unit CO2 Regulator for Sparkling Kit
About The Zip Water Appliance Unit CO2 Regulator for Sparkling Kit
- Compatible Products: Zip Water 1.5lb and 5lb CO2 cylinders
- Height: Approximately 6" / 152mm
- Width: Approximately 7" / 178mm
- Depth: Approximately 4.3" / 109mm
+ $229.00
Zip Water Appliance Unit Zip 1 x 5lb CO2 refillable/recyclable cylinder
More info+ $229.00
Zip Water Appliance Unit Zip 1 x 5lb CO2 refillable/recyclable cylinder
Model Number: 01034348
$229.00
Focal Point is an Authorized Zip Water Retailer!
About The Zip Water Appliance Unit Zip 1 x 5lb CO2 refillable/recyclable cylinder
1 x 5lb Beverage-Grade Carbon Dioxide Cylinder (regulator sold separately)
About The Zip Water Appliance Unit Zip 1 x 5lb CO2 refillable/recyclable cylinder
1 x 5lb Beverage-Grade Carbon Dioxide Cylinder (regulator sold separately)
- CO2 Capacity: Approximately 1,200 8oz cups (per canister)
- CO2 Operating Pressure: Min 39psi - Max 43psi / Min 2.74 - Max 3.02kg/cm2
- Height (without regulator): Approximately 18" / 457mm
- Height (with regulator) Approximately 19.5" / 495mm
- Cylinder Diameter: Approximately 5.5" / 140mm
- Max Width (with regulator): Approximately 10.5" / 267mm
- Valve Type: CGA-320
- Storage Temperature: CO2 should be stored out of direct sunlight.
- Max storage temperature is 120°F (48.8°C)
+ $212.00
Zip Water Appliance Unit Zip 2 x 1.5lb CO2 refillable/recyclable cylinders
More info+ $212.00
Zip Water Appliance Unit Zip 2 x 1.5lb CO2 refillable/recyclable cylinders
Model Number: 01034347
$212.00
Focal Point is an Authorized Zip Water Retailer!
About The Zip Water Appliance Unit Zip 2 x 1.5lb CO2 refillable/recyclable cylinders
2 x 1.5lb Beverage-Grade Carbon Dioxide Cylinder (regulator sold separately)
About The Zip Water Appliance Unit Zip 2 x 1.5lb CO2 refillable/recyclable cylinders
2 x 1.5lb Beverage-Grade Carbon Dioxide Cylinder (regulator sold separately)
- CO2 Capacity: Approximately 400 8oz cups (per canister)
- CO2 Operating Pressure: Min 39psi - Max 43psi / Min 2.74 - Max 3.02kg/cm2
- Height (without regulator): Approximately 12" / 305mm
- Height (with regulator) Approximately 19" / 482mm
- Cylinder Diameter: Approximately 3.2" / 81mm
- Max Width (with regulator): Approximately 6" / 152mm
- Valve Type: CGA-320
- Storage Temperature: CO2 should be stored out of direct sunlight.
- Max storage temperature is 120°F (48.8°C)
Select an optional Font/Drip Tray
We recommend a Zip water font/drip tray if you are NOT installing your faucet over a sink.
We recommend a Zip water font/drip tray if you are NOT installing your faucet over a sink.
Zip Water Drip Tray for Classic and Wave Faucet - Chrome
More info+ $538.00
Liquid error (snippets/upsell-product-card line 264): invalid url input
Zip Water Drip Tray for Classic and Wave Faucet - Chrome
Model Number: 01043502
$538.00
Focal Point is an Authorized Zip Water Retailer!
About The Zip Water Drip Tray for Classic and Wave Faucet
The HydroTap Classic Range Raised Font / Drip Tray is an optional accessory that should be specified with any of our Classic Range taps (Classic, Classic Plus, Elite Plus and Touch-Free Wave) when the tap is installed away from the sink. The Classic Range Raised Font / Drip Tray is available in six finishes to match the corresponding taps.
About The Zip Water Drip Tray for Classic and Wave Faucet
The HydroTap Classic Range Raised Font / Drip Tray is an optional accessory that should be specified with any of our Classic Range taps (Classic, Classic Plus, Elite Plus and Touch-Free Wave) when the tap is installed away from the sink. The Classic Range Raised Font / Drip Tray is available in six finishes to match the corresponding taps.
- Space Requirements: 10 1/2? long x 6? wide (268mm x 152mm)
- Hole size for bowl: 3 3/8? (86mm)
- Hole size for tap: 1 3/8? (35mm)
- Hole for M6 stud: 3/8? (10mm)
Zip Water Drip Tray for Classic Faucet - Chrome
More info+ $538.00
Zip Water Drip Tray for Classic Faucet - Chrome
Model Number: 01034266
$538.00
Focal Point is an Authorized Zip Water Retailer!
About The Zip Water Drip Tray for Classic Faucet
The HydroTap Classic Range Integrated Font / Drip Tray is an optional accessory that should be specified with the HydroTap Classic, Classic Plus, Elite Plus and Touch-Free Wave taps when the tap is being installed away from the sink as a standalone system. The Classic Range Integrated Font is available in six finish options to match the corresponding taps.
About The Zip Water Drip Tray for Classic Faucet
The HydroTap Classic Range Integrated Font / Drip Tray is an optional accessory that should be specified with the HydroTap Classic, Classic Plus, Elite Plus and Touch-Free Wave taps when the tap is being installed away from the sink as a standalone system. The Classic Range Integrated Font is available in six finish options to match the corresponding taps.
- Drip Tray Classic range for Classic Faucets
Zip Water HydroTap Classic Plus Chilled, Sparkling Water Faucet
Sale price$832.00
Regular price$874.00 (/)
Product details
Focal Point is an Authorized Zip Water Retailer!
About The Zip Water Classic Plus Chilled, Sparkling Water Faucet
Elevate your drinking water and save space in the office fridge with a HydroTap Classic Plus CS and get on demand sparkling and chilled still water at work*. The HydroTap Classic Plus CS will complement every lifestyle, with on demand sparkling water, advanced smart technology, beautiful design and high filtration for healthier living. Unbottle the future. Choose sustainable hydration instead with HydroTap by Zip Water – the world’s most advanced drinking water system. *For office (maximum office size = 60 people).
Tap:
- Style: HydroTap Classic Plus CS
- Hole Size: 1 3/8"
- Installation: Over sink as a secondary tap or on optional font/drip tray (sold separately, even if pictured in product image)
- Flow Rate Max: Max 1.8 gpm / 6.81 lpm
- Sparkling Water Flow Rate: 0.4 gpm / 1.51 lpm
Command Center(Sold Separately. Must Select Option to Purchase!):
- Water Pressure: Min 37psi – Max 100psi (2.60 – 7.03kg/cm2 ) with a minimum flow rate of 1 gpm (3.79lpm)
- Water Connection: 1 x 1/2" BSP – isolation valve is required within 3? / 0.9m of the installation
- Integral Water Valves: HydroTaps are fitted with a Dual check valve and a 50psi Pressure Limiting Valve
- Water Supply Requirements: Potable drinking water supply
- Optimal Total Dissolved Solids (TDS) Range: TDS Min 50ppm – Max 150ppm
- Integral Water Filter: 0.2 micron, 1.5 size – replace every 1,800 gallons / 6,813 liters (~6 months for a large office)
- Power Rating: 220-240V, 50-60Hz, 15 amp power supply with a NEMA 6-15 outlet
- Dimensions (WxDxH): 11" x 18.9" x 13.1" / 280mm x 480mm x 333mm
- Minimum Air Gap: Clearances are required – 2? / 50mm Left side, 2? / 50mm Right side , 8? / 200mm above
- Dry Weight: 80.5lbs / 36.5kg
- Product Approvals: IAPMO – NSF/ANSI 372, 42, 53, CSA B483.1, ASSE 1023, ASSE 1087; cUL; CEC
- Warranty: 2 years
Product Specifications
Specifications Sheet
