Zip Water HydroTap Elite Plus Boiling, Chilled Water Faucet
Further promotions and coupons do not apply to this item.
Select under counter unit options for your tap
Zip Water taps require an under counter unit. Any system that has a sparkling option also needs a C02 regulator and C02 canisters to be purchased.
Zip Water taps require an under counter unit. Any system that has a sparkling option also needs a C02 regulator and C02 canisters to be purchased.
+ $4,080.00
Zip Water Appliance Unit Boiling, Chilled Unit 120V (BC120V-1)
More info+ $4,080.00
Zip Water Appliance Unit Boiling, Chilled Unit 120V (BC120V-1)
Model Number: 01043465
$4,080.00
Focal Point is an Authorized Zip Water Retailer!
About The Zip Water Appliance Unit Boiling, Chilled Unit 120V (BC120V-1)
The HydroTap by Zip Water is more than just a water system, it’s cooking made easy and it’s water at its best. That’s because the HydroTap 120V BC command center provides users instant access to filtered boiling and chilled water. This command center is ideal for residential and small commercial applications and can be paired with any of our various tap styles.
About The Zip Water Appliance Unit Boiling, Chilled Unit 120V (BC120V-1)
The HydroTap by Zip Water is more than just a water system, it’s cooking made easy and it’s water at its best. That’s because the HydroTap 120V BC command center provides users instant access to filtered boiling and chilled water. This command center is ideal for residential and small commercial applications and can be paired with any of our various tap styles.
- Water Pressure: Min 37psi – Max 100psi (2.60 - 7.03kg/cm 2 ) with a minimum flow rate of 1 gpm (3.79 lpm)
- Water Connection: 1/2" BSP - isolation valve is required within 3’ (0.9m) of the installation
- Integral Water Values: All HydroTap systems are fitted with a Dual Check Valve and a 50psi (3.52kg/cm 2) PressureLimiting Valve
- Water Supply Requirements: Potable drinking water supply
- Optimal Total Dissolved Solids (TDS) Range: TDS Min 50ppm – Max 150ppm
- Integral Water Filter: 0.2 micron, 1 size - replace every 1,100 gallons / 4,163 liters or 12 months
- Power Rating: 110-120V, 50-60Hz, 15 amp power supply with a NEMA 5-15 outlet
- Dimensions (WxDxH): 13.3" x 18.2" x 13.1" / 339mm x 462mm x 333mm
- Minimum Air Gap: Minimum of 2" / 50mm clearance on left and right side and 8" / 200mm above
- Minimum Cabinet Size: 18" wide x 24" deep / 457mm wide x 610mm deep
- Maximum Hose Connection Length 3’ / 0.9m (tap to command center)
- Minimum Distance Needed for Installation 15" / 381mm (interior wall to garbage disposal)
- Dry Weight: 66lbs / 30kg
- Product Approvals: IAPMO - NSF/ANSI 372, 42, 53, CSA B483.1, ASSE 1023, ASSE 1087; cUL; CEC
- Warranty: 3 years

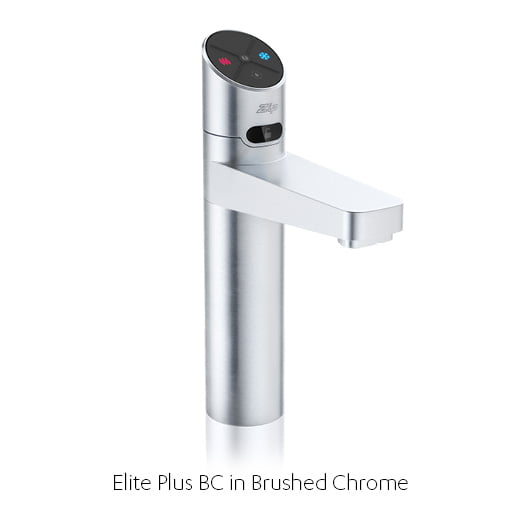

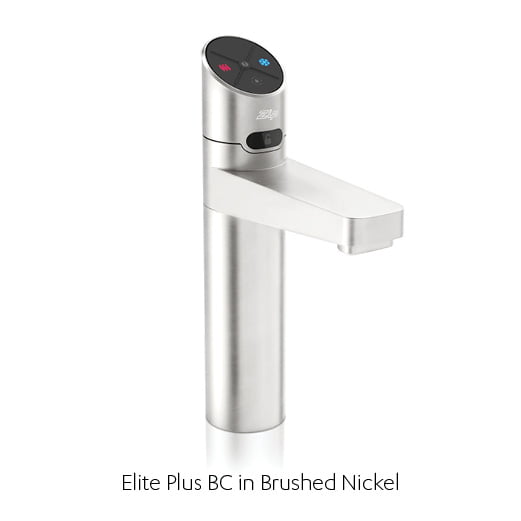

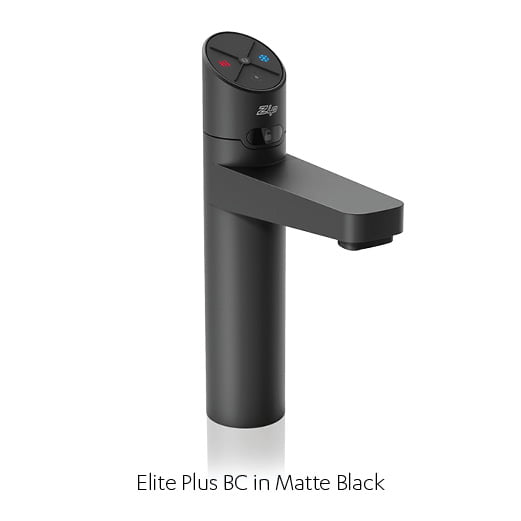

Zip Water HydroTap Elite Plus Boiling, Chilled Water Faucet
Sale price$832.00
Regular price$874.00 (/)
Product details
Focal Point is an Authorized Zip Water Retailer!
About The Zip Water Elite Plus Boiling, Chilled Water Faucet
Make the perfect cup of tea or pour yourself a thirst-quenching glass of chilled water with a HydroTap Elite Plus BC and get on demand boiling, chilled water at work*. The HydroTap Elite Plus BC will elevate your drinking water, with on demand boiling and chilled water, advanced smart technology, beautiful design and high filtration for healthier living. Unbottle the future. Choose sustainable hydration instead with HydroTap by Zip Water – the world’s most advanced drinking water system. *For office (maximum office size = 60 people).
Tap:
- Style: HydroTap Elite Plus BC – includes child safety lock
- Hole Size: 1 3/8" (35mm)
- Installation: Over sink as a secondary tap or on optional font/drip tray (sold separately, even if pictured in product image)
- Flow Rate Max: Max 1.8 gpm / 6.81 lpm
- Sparkling Water Flow Rate: 0.4 gpm / 1.51 lpm
Command Center(Sold Separately. Must Select Option to Purchase!):
- Water Pressure: Min 37psi – Max 100psi (2.60 – 7.03kg/cm2 ) with a minimum flow rate of 1 gpm (3.79lpm)
- Water Connection: 1 x 1/2" BSP – isolation valve is required within 3? / 0.9m of the installation
- Integral Water Valves: HydroTaps are fitted with a Dual Check Valve and a 50psi (3.52kg/cm2) Pressure Limiting Valve
- Water Supply Requirements: Potable drinking water supply
- Optimal Total Dissolved Solids (TDS) Range: TDS Min 50ppm – Max 150ppm
- Integral Water Filter: 0.2 micron, 1.5-Size – Replace every 1,800 gallons / 6,813 liters (~6 months for a large office)
- Power Rating: 220-240V, 50-60Hz, 15 amp power supply with a NEMA 6-15 outlet
- Dimensions (WxDxH): 15.5" x 18.3" x 13.1" / 395mm x 464mm x 333mm (excluding vent duct)
- Minimum Air Gap: Clearances are required – 2? / 50mm Left side, 2? / 50mm Right side , 8? / 200mm above
- Dry Weight: 66lbs / 30kg
- Product Approvals: IAPMO – NSF/ANSI 372, 42, 53, CSA B483.1, ASSE 1023, ASSE 1087; cUL; CEC
- Warranty: 2 years
Product Specifications
Specifications Sheet
