Zip Water HydroTap Boiling, Chilled, Sparkling Kit with Arc Plus Tap

Focal Point Hardware is an authorized Zip Water retailer!

Zip Water HydroTap Boiling, Chilled, Sparkling Kit with Arc Plus Tap transforms everyday hydration with a sleek, squared-off silhouette and softened corners that suits any modern kitchen or wet bar. The HydroTap Cube Plus for Home delivers filtered boiling, chilled, and sparkling water at the touch of a button, eliminating trips to the kettle or bottled beverages. Designed for performance, the Arc Plus 1.8 GPM dispenser provides rapid hot, cold, and sparkling output for tea, coffee, cocktails, and cooking.

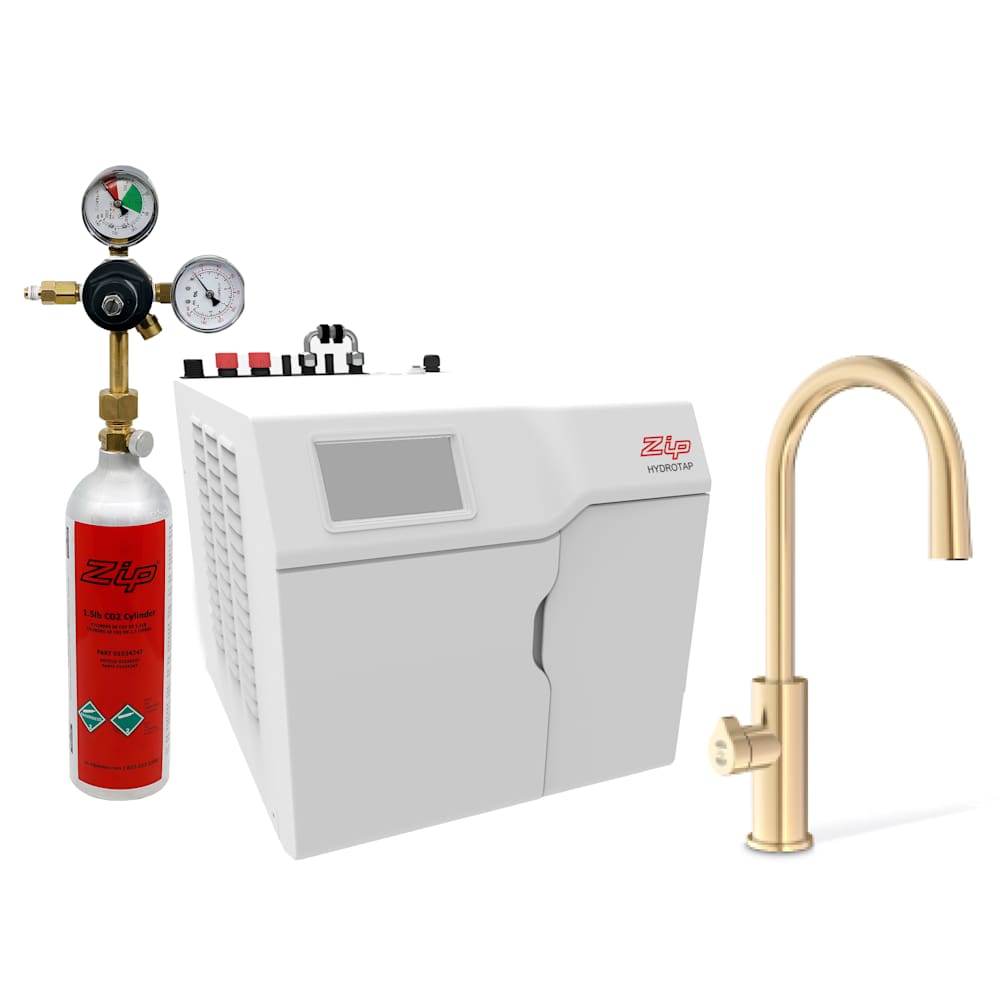

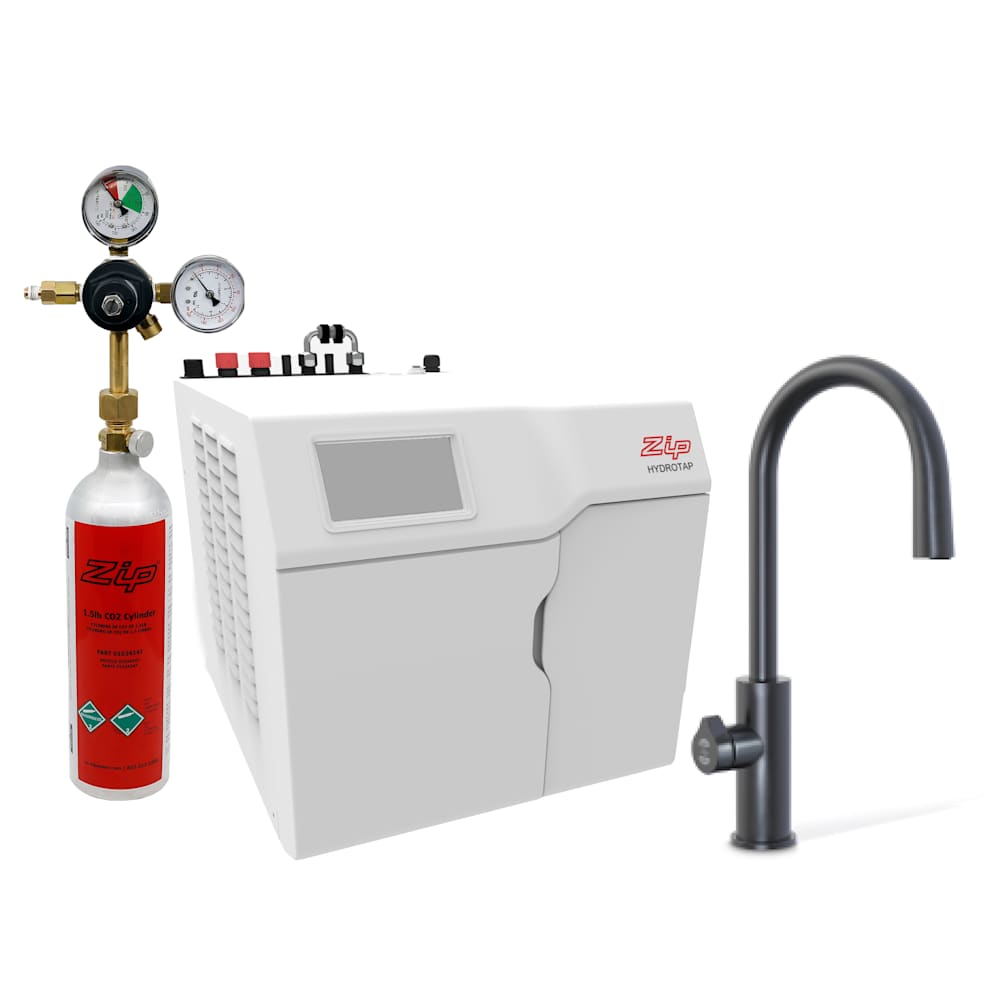

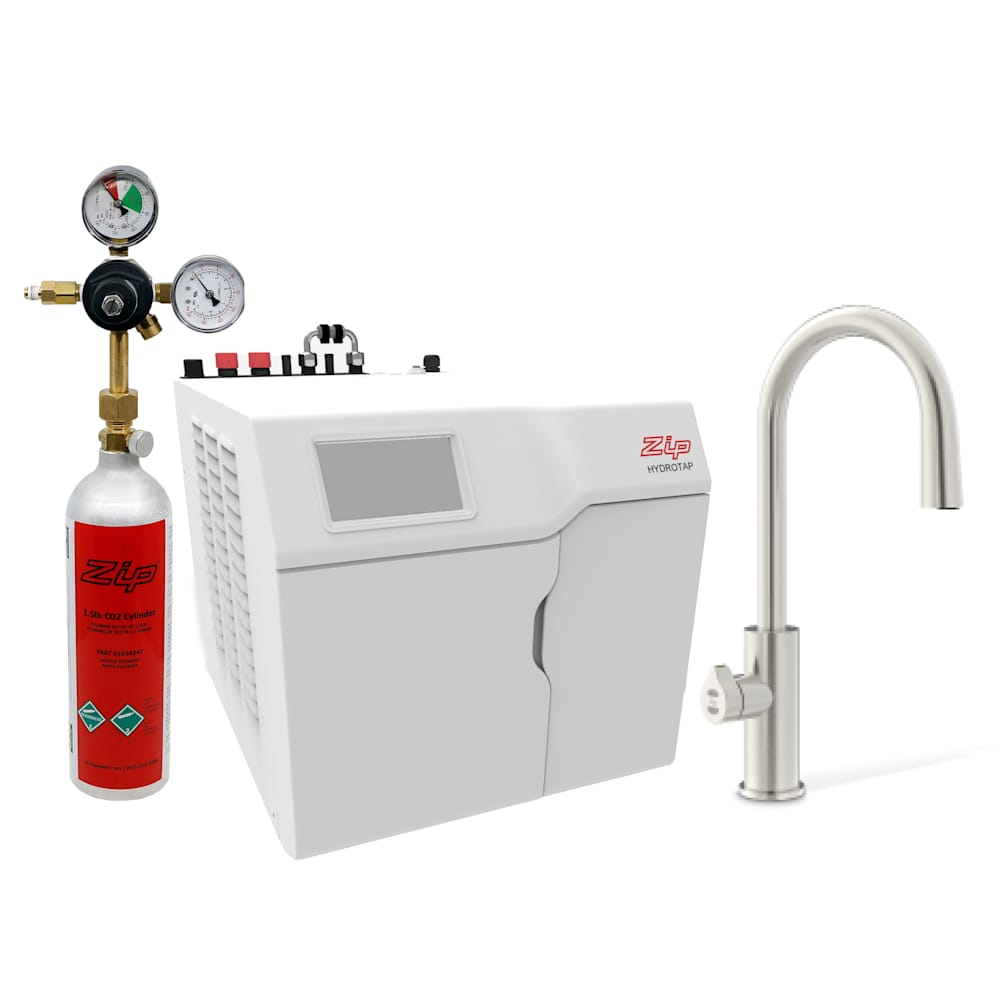

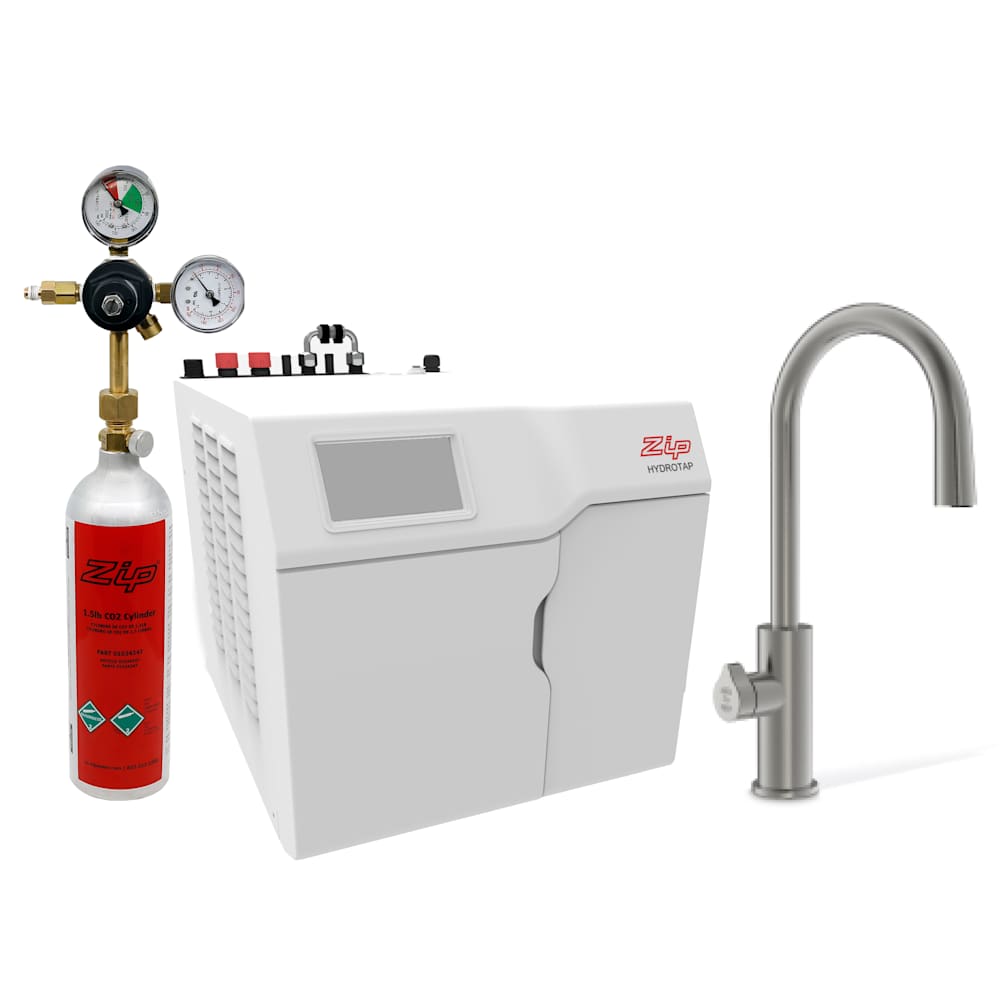

This kit includes everything you need: HydroTap 120V BSC G5 Command Center, two 1.5 lb CO2 beverage-grade cylinders, CO2 regulator, and HydroTap Arc Plus dispenser. Zip Water HydroTap Cube Plus BCS style offers a child safety lock for peace of mind, and installation can be over the sink as a secondary tap or on an optional drain font/drip tray.

Zip Water HydroTap Cube Plus Boiling/Chilled/Sparkling (BCS) 120V delivers dependable hot, cold, and sparkling water with built-in filtration and CO2 delivery. The system includes a 0.2 micron integral water filter and a Dual Check Valve with a 50 psi pressure-limiting valve for consistent performance across a wide water-pressure range (min 37 psi, max 100 psi).

It uses a ½” BSP water connection, with an isolation valve required within 3 feet. Two 1.5 lb beverage-grade CO2 cylinders provide sparkling water capacity of up to roughly 950 eight-ounce cups, and the sparkling water flow rate is 0.4 gpm. Compact at 13.3" W x 18.2" D x 13.1" H and weighing 75 lbs, this Zip Water HydroTap Cube Plus Boiling/Chilled/Sparkling (BCS) 120V setup is engineered for home installation over the sink or on a drain font with a safety-conscious design.

features and specifications

• HydroTap Cube Plus for Home
• Included Components: HydroTap 120V BSC G5 Command Center
• Two (2) 1.5lb CO2 Beverage-Grade Cylinders
• CO2 Regulator
• HydroTap Arc Plus 1.8 GPM boiled, chilled, and sparkling water dispenser
• Style: HydroTap Cube Plus BCS – includes child safety lock
• Hole Size: 1?”
• Installation: Over sink as a secondary tap or on optional drain font/drip tray
• Flow Rate Max: Max 1.8 gpm/6.81 lpm
• Sparkling Water Flow Rate: 0.4 gpm/1.51 lpm
• Water Pressure: Min 37psi – Max 100psi (2.60 – 7.03kg/cm2) with a minimum flow rate of 1 gpm (3.79lpm)
• Water Connection: ½” BSP – isolation valve is required within 3’ (0.9m) of the installation
• Integral Water Valves: All HydroTap systems are fitted with a Dual Check Valve and a 50psi (3.52kg/cm2) Pressure Limiting Valve
• Water Supply Requirements: Potable drinking water supply
• Optimal Range of Total Dissolved Solids (TDS): TDS Min 50ppm – Max 150ppm
• Integral Water Filter: 0.2 micron, 1 size – Replace every 1,100 gallons or 12 months
• Power Rating: 1 x 110-120V, 50-60Hz, 15 amp power supply with a NEMA 5-15 outlet
• Dimensions (WxDxH): 13.3” x 18.2” x 13.1”/339mm x 462mm x 333mm
• Minimum Air Gap: Clearances are required – 2” Left side, 2” Right side, 8” above
• Dry Weight: 75lbs/34kg
• Product Approvals: IAPMO – NSF/ANSI 372, 42, 53, CSA B438.1, ASSE 1023, ASSE 1087; cUL; CEC
• CO2 Cylinder: 2 x 1.5lb Beverage Grade Carbon Dioxide Cylinder
• CO2 Capacity: Approximately 950 8oz cups per 2 cylinders
• CO2 Operating Pressure: Min 39psi – Max 43psi
• HydroTap Cube Plus Boiling/Chilled/Sparkling (BCS) 120V
• Use the links below to download the HydroTap Cube Plus BCS 120V spec sheets (all finishes) or to request our full BIM Library. High level specifications can also be viewed below.

In summary, the Zip Water HydroTap Boiling, Chilled, Sparkling Kit with Arc Plus Tap brings premium hydration, streamlined beverage preparation, and stylish design to modern homes. Zip Water’s engineering delivers reliable hot, cold, and sparkling water on demand, while the Arc Plus tap adds convenience and elegance to your kitchen or wet bar. This kit is ideal for households, entertaining spaces, or small offices seeking a compact, integrated solution for everyday hydration and cooking needs.
