Product details
Focal Point Hardware is an authorized Flusso retailer!

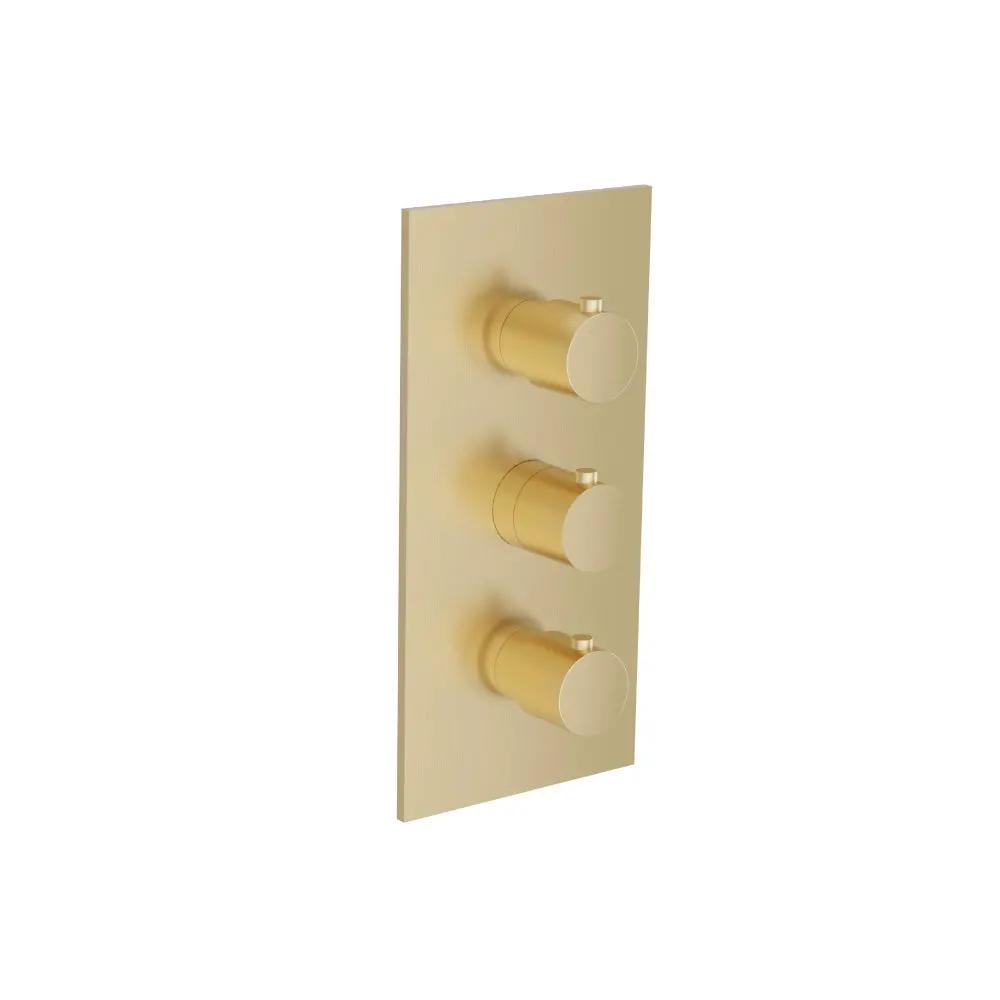

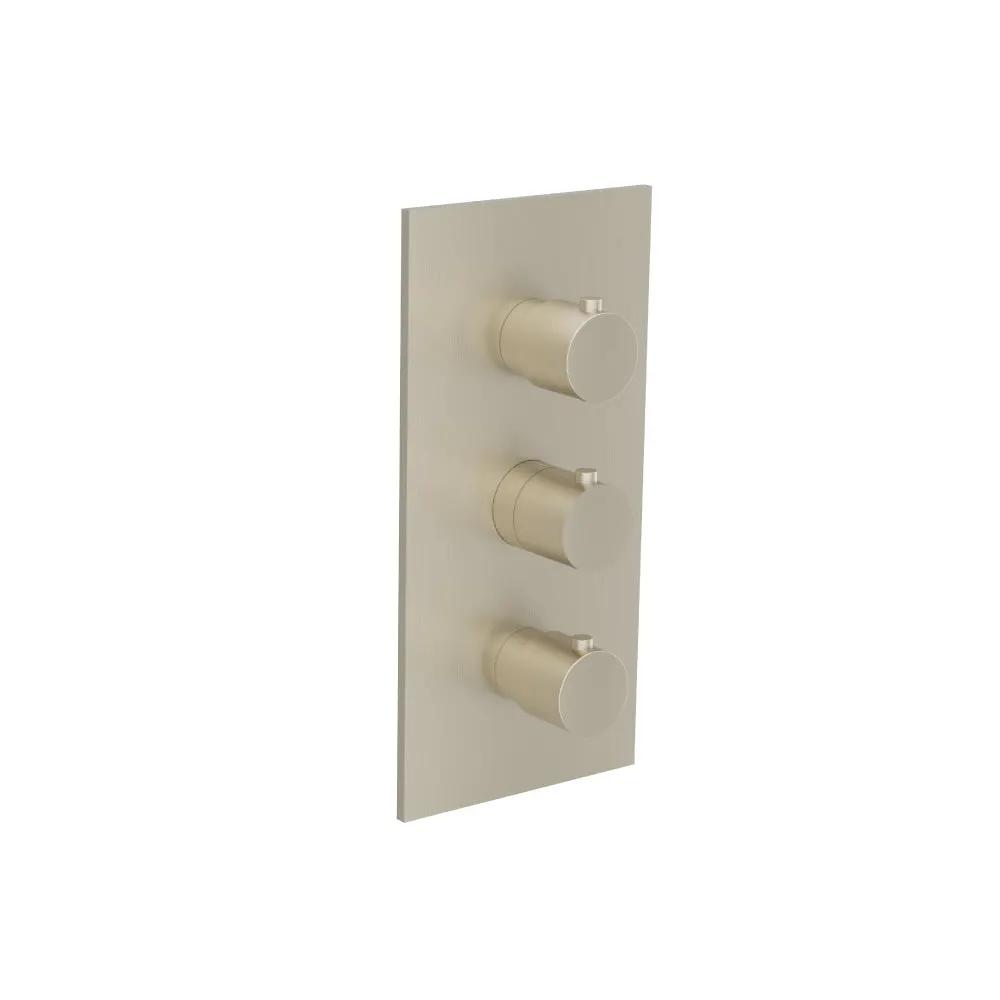

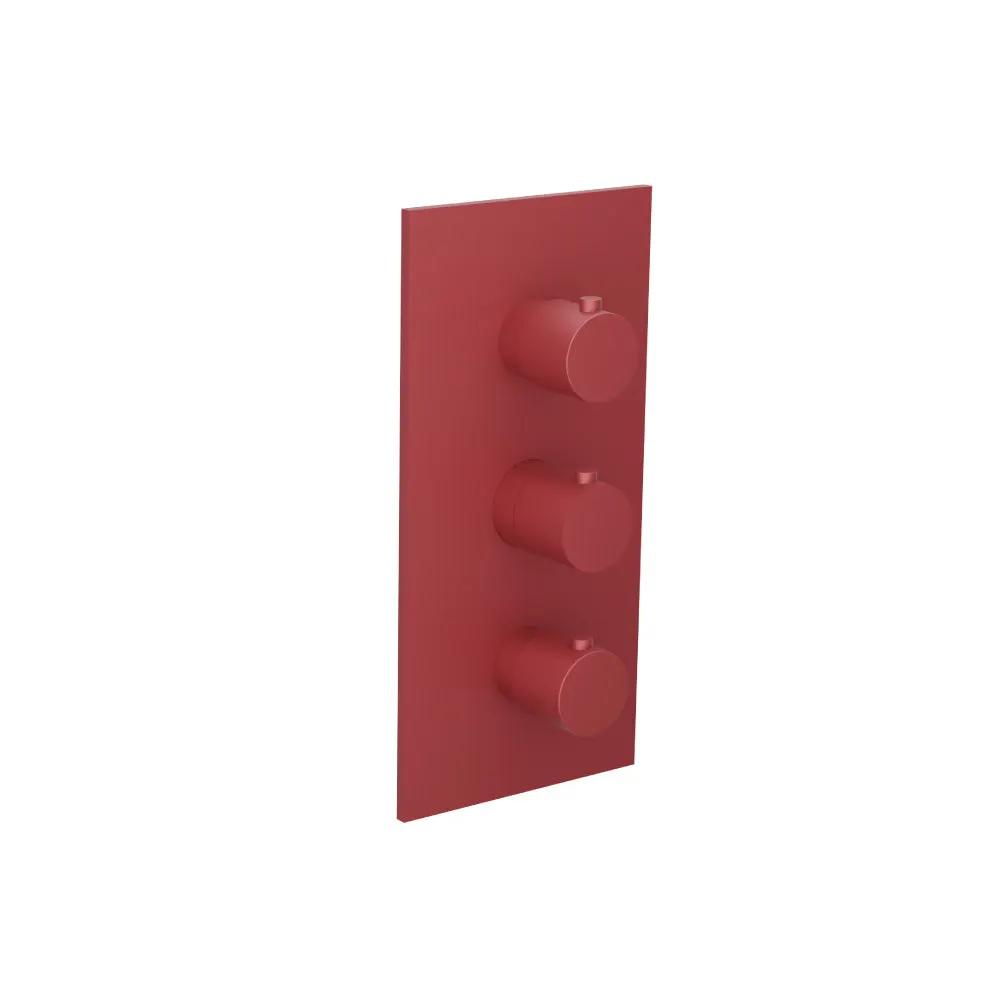

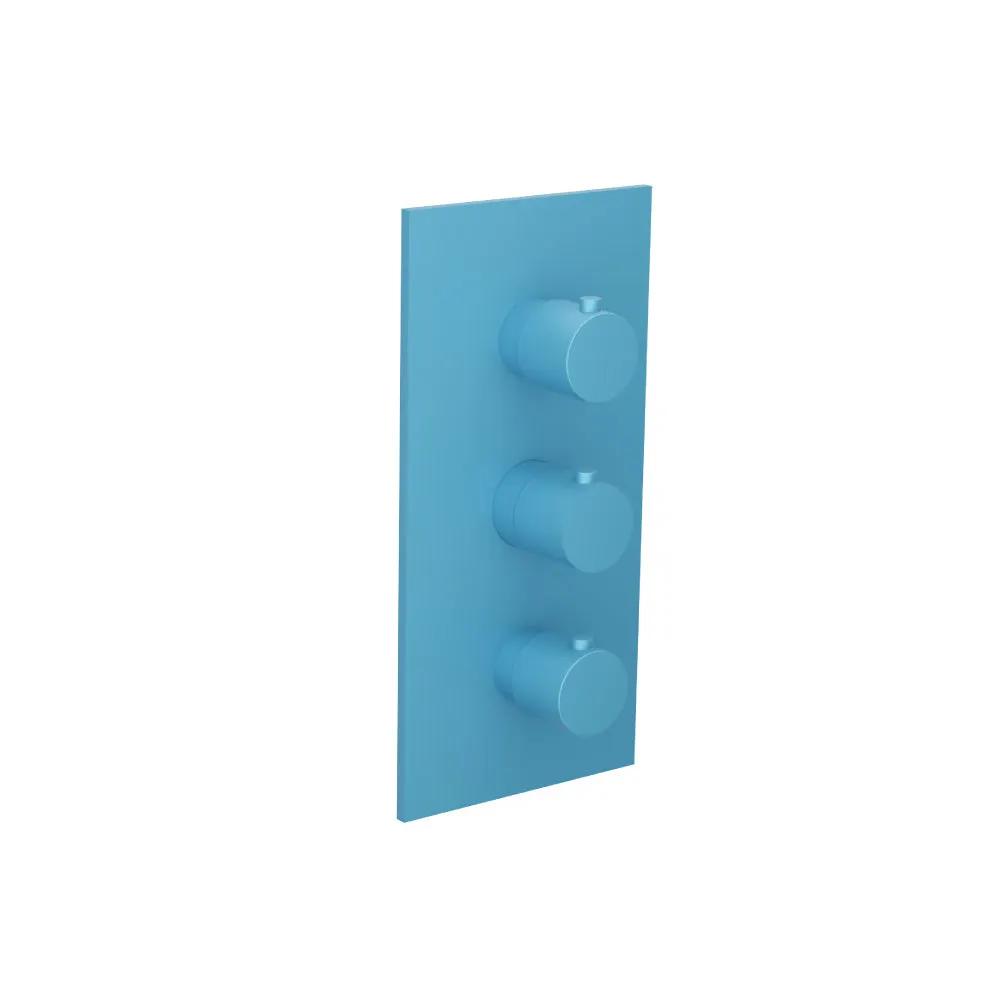

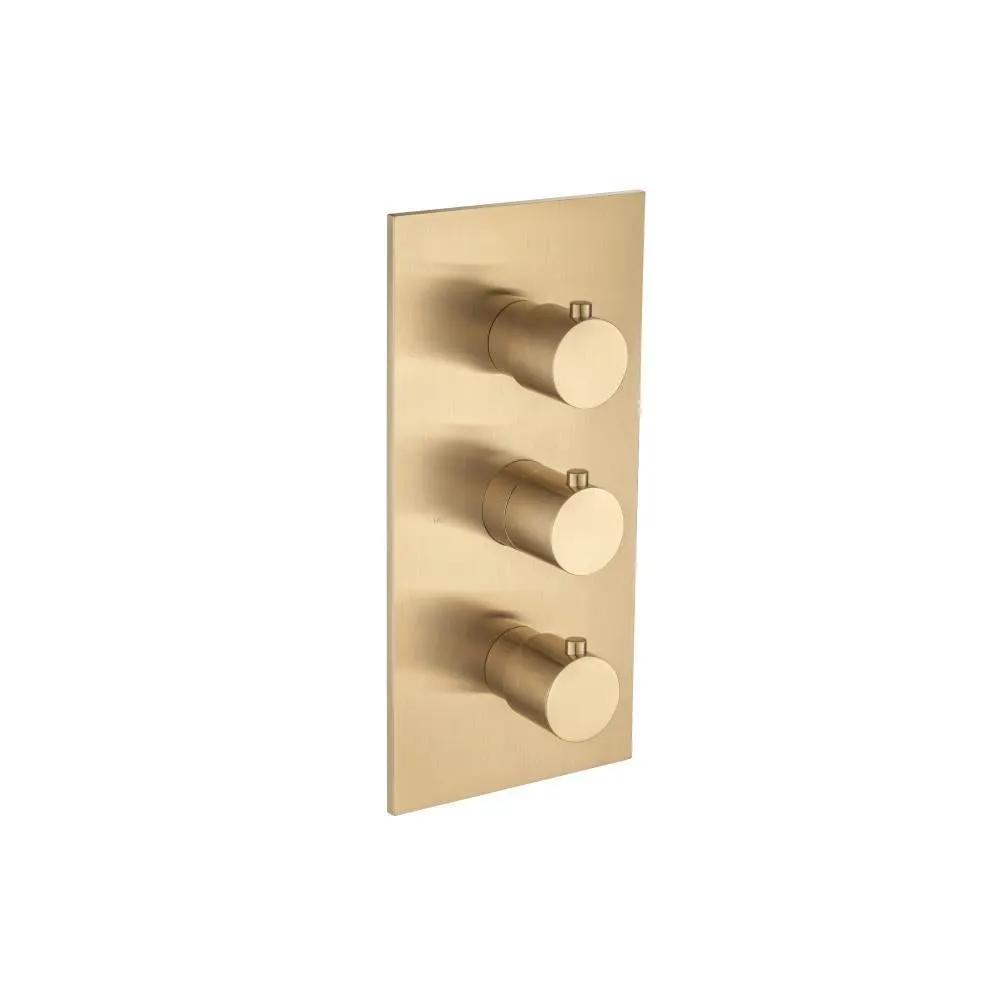

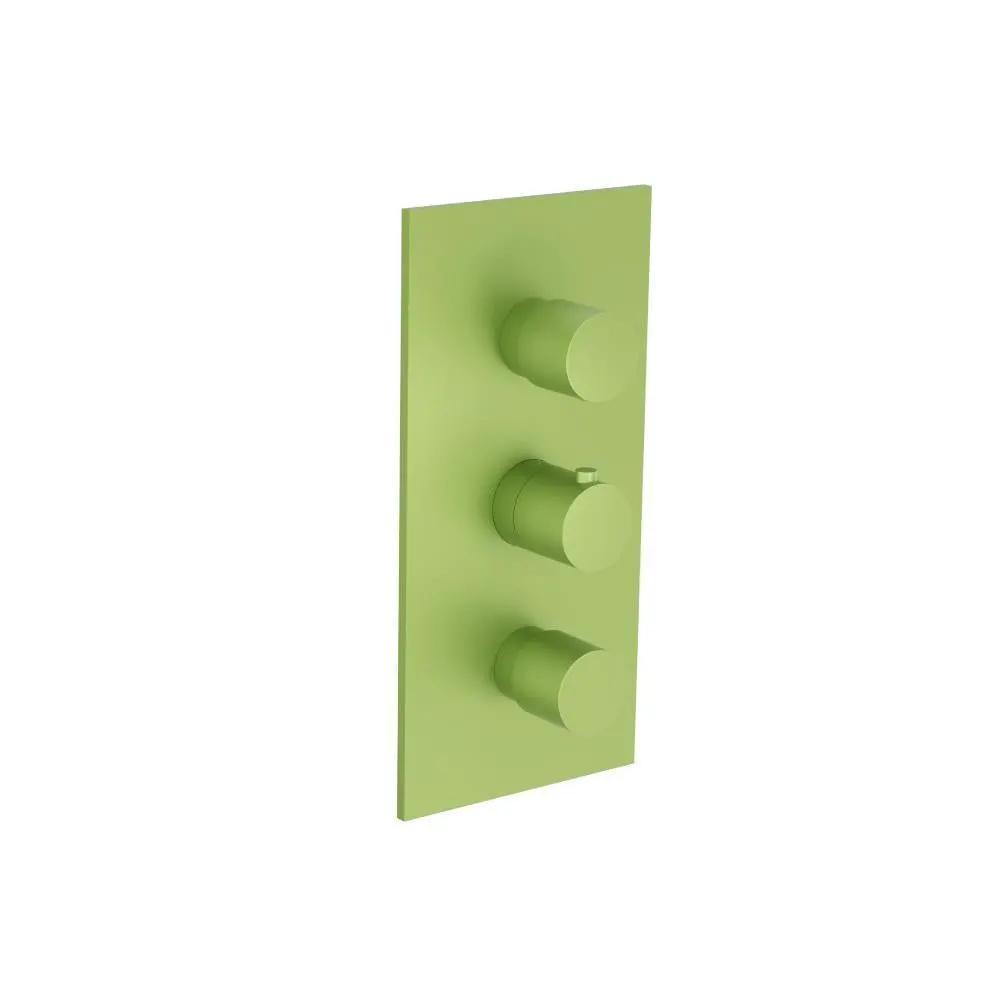

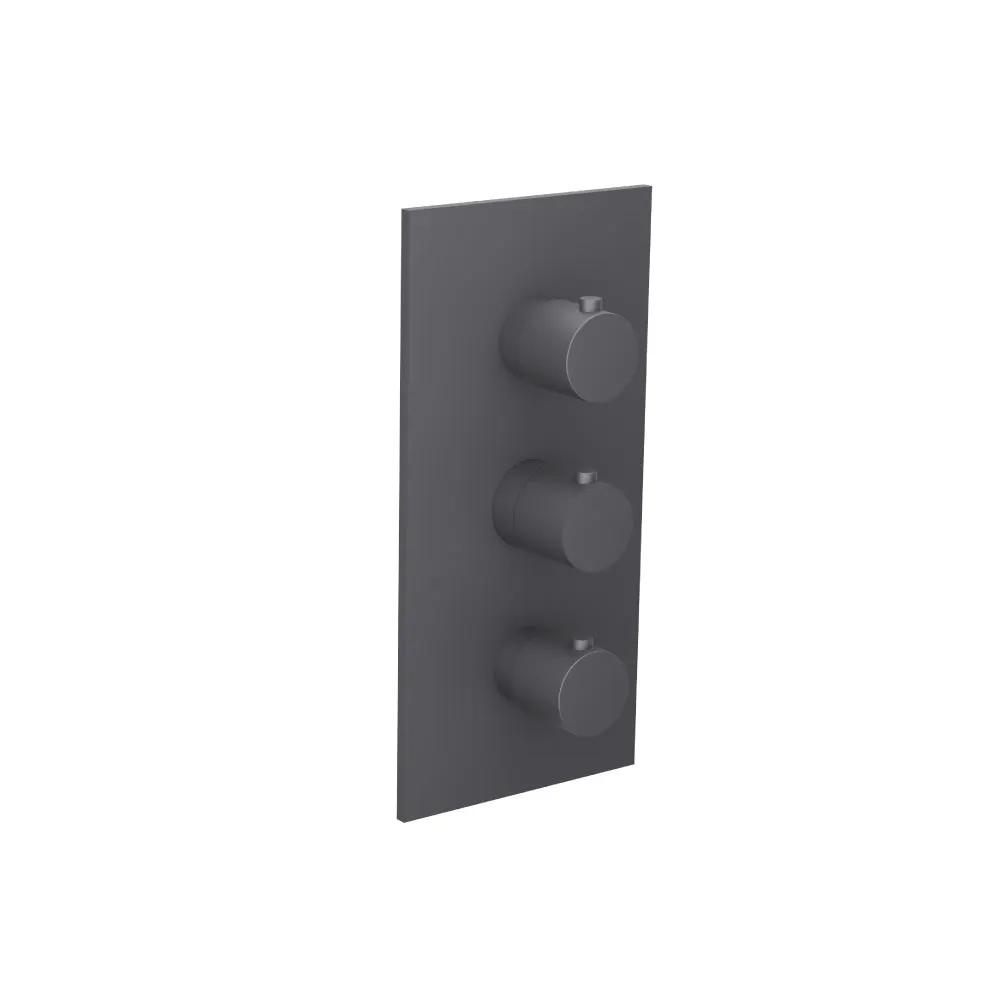

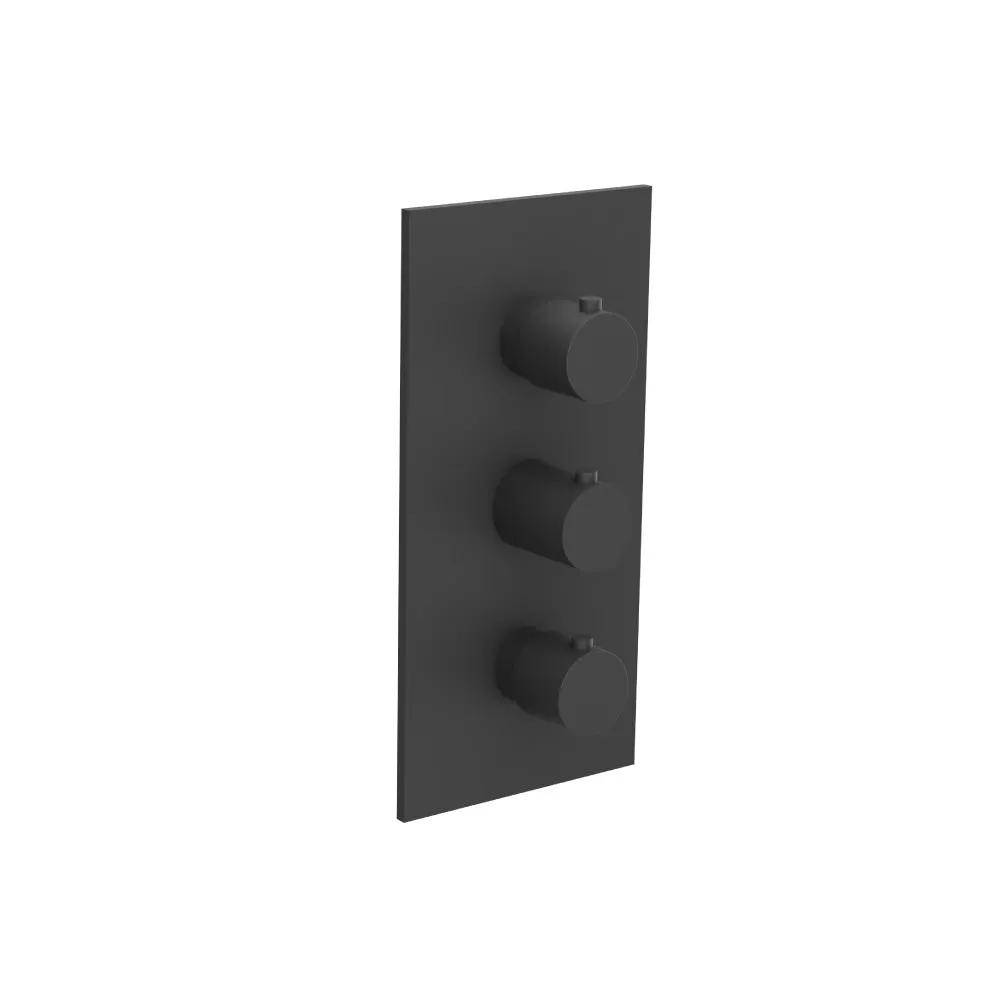

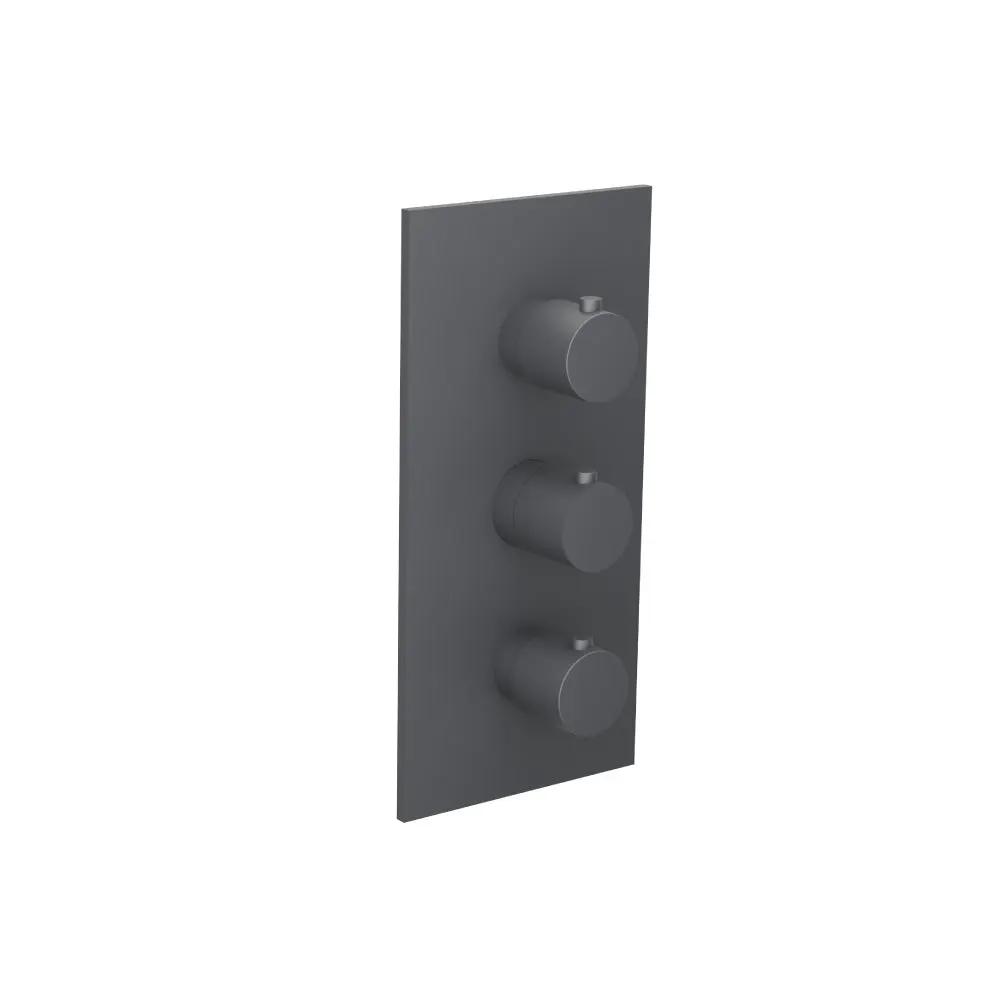

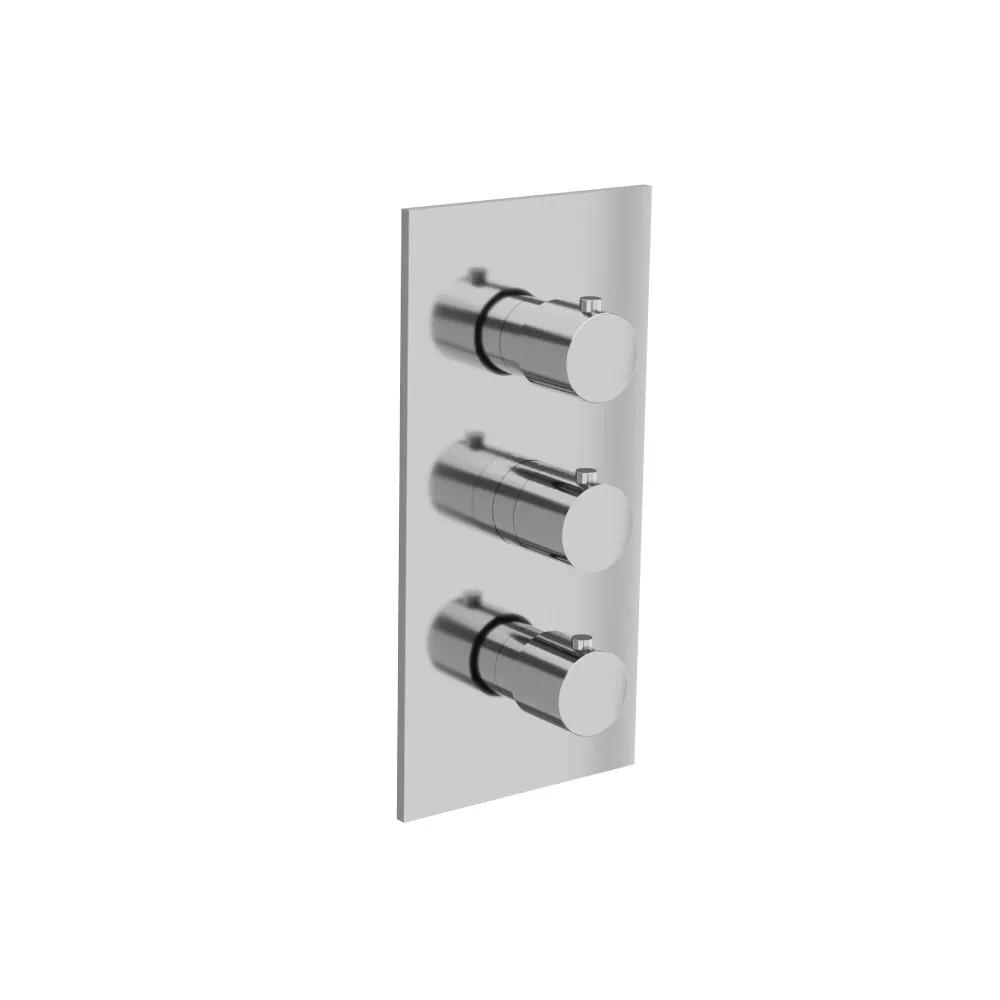

Experience precise temperature control with the Flusso Serie 100 3/4" Thermostatic Valve and Trim - 4 Output. This premium valve unites a 3/4" NPT thermostatic valve with four output ports, enabling versatile configurations with two outlets simultaneously or one at a time. Flusso's engineering delivers dependable, low-maintenance luxury for modern showers.
Flusso is renowned for luxury bathroom fixtures that blend precision thermostatic control with durable solid brass construction. As a trusted name in premium showers, Flusso delivers reliable performance, innovative safety features, and aesthetically refined trim systems that complement high-end interiors. Consumers trust Flusso for consistent temperature regulation and lasting value.
Features and Specifications
- Solid Brass Construction
- Includes Thermostatic Valve - TVH.4801
- Shared 4 Port Water Flow Extensions Available - TVH.4401E**
- The TVH.4801 Thermostatic valve features 3/4" NPT connections and has 4 water outputs [ports], two of which are operable simultaneously, i.e. both at the same time, or one at a time.
- SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
- HANDLE OPERATION – The middle handle sets the temperature. The top handle controls output port 1 and 2 and the bottom handle controls output port 3 and 4. Each port has full volume control capability and can be activated at the same time. Output ports 1 and 2 cannot operate simultaneously. Output ports 3 and 4 cannot operate simultaneously.
- ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
- VALVE INSTALLATION – As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77 and 3.44 inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
- CUT OUT DIMENSIONS – The cut out in wall should be 8.81 X 4.44 Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
- TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
Designed for luxury bathrooms, the Flusso Serie 100 thermostatic valve and trim offers precise temperature control, versatile output options, and enduring brass construction, reinforcing Flusso’s reputation for quality, reliability, and sophisticated, spa-grade shower experiences.
