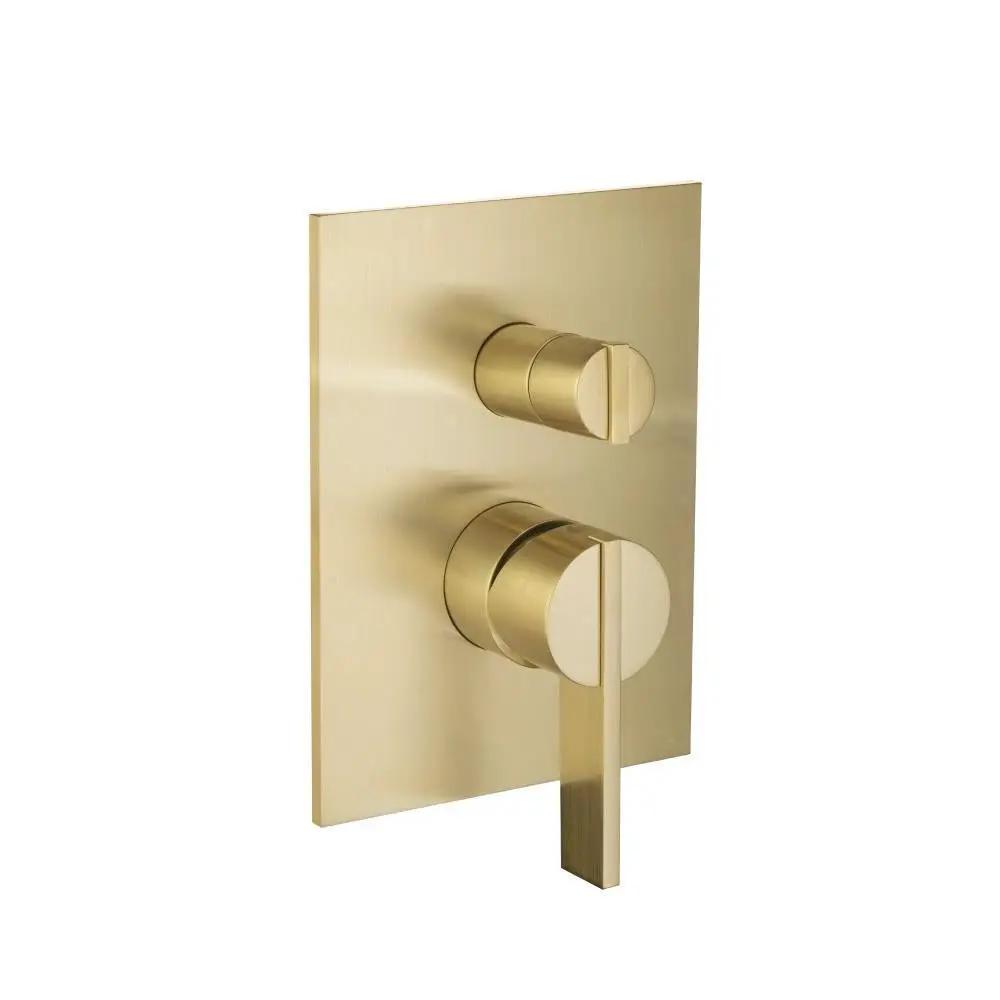

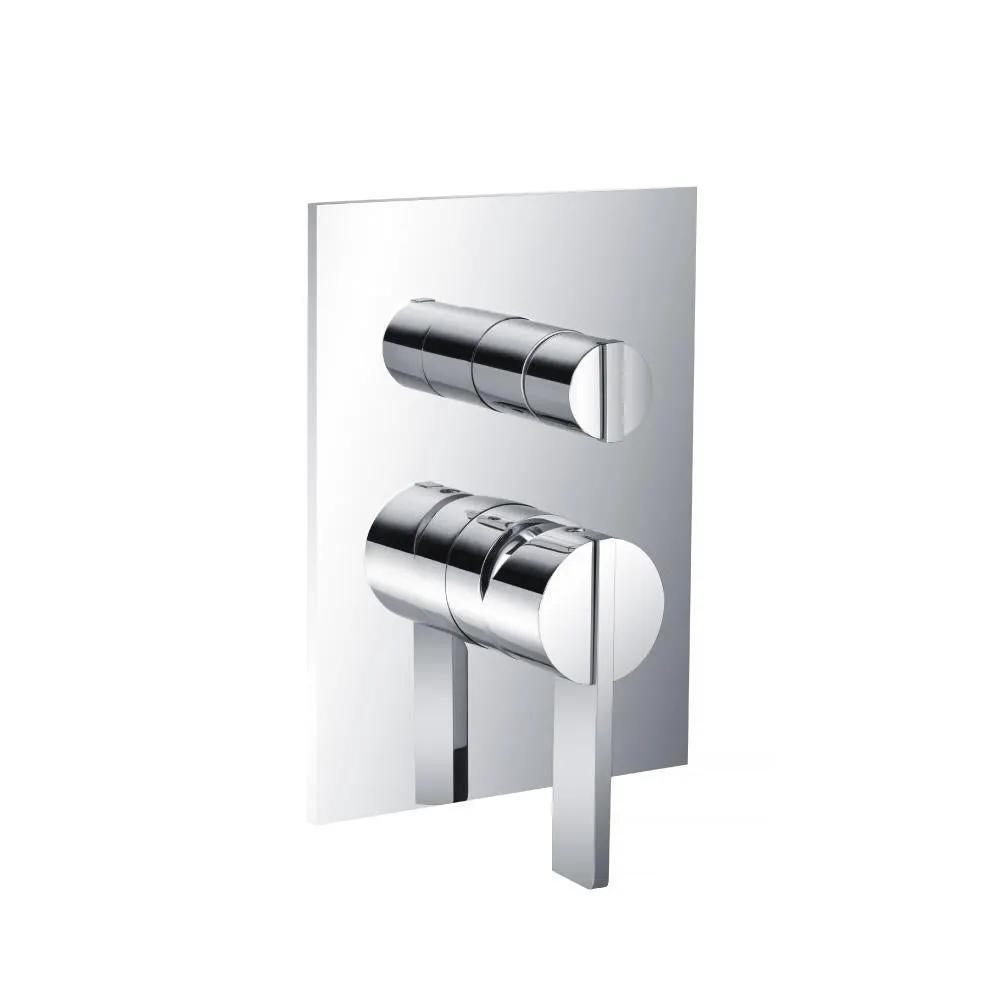

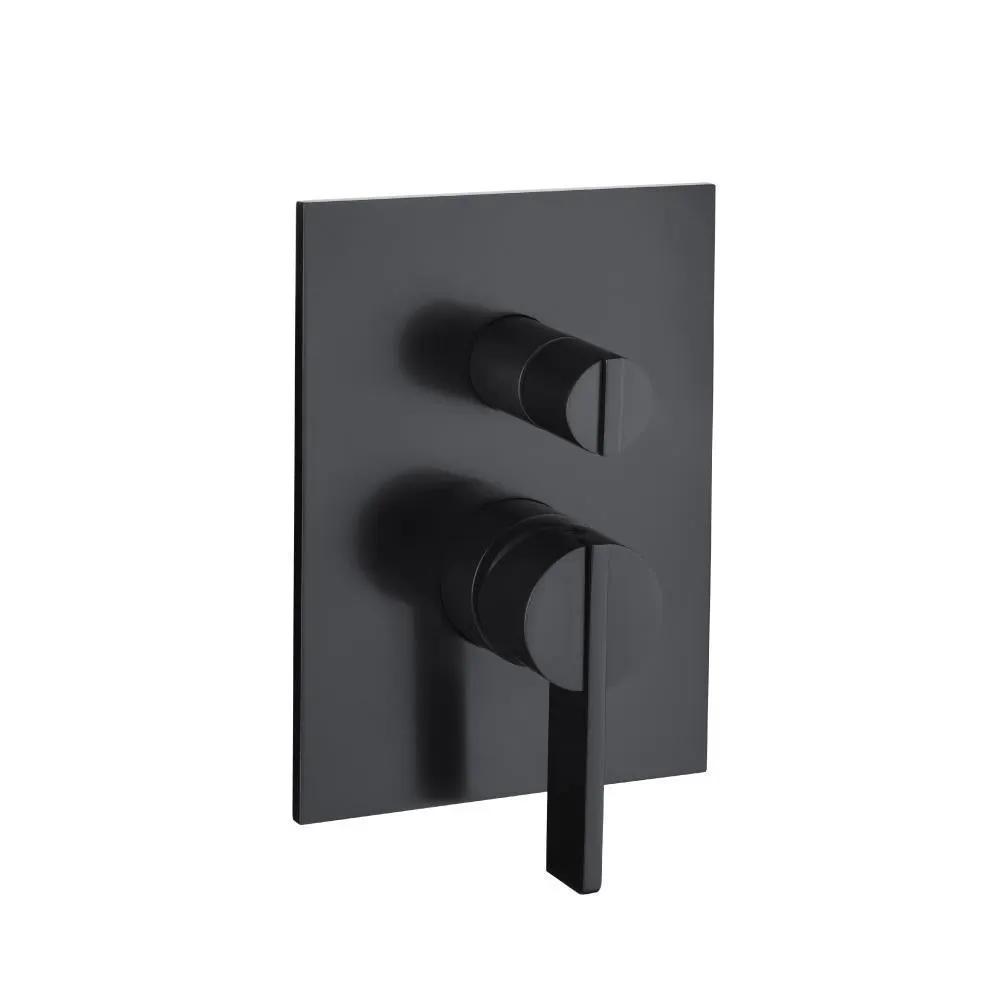

Flusso Serie 145 Tub / Shower Trim with Pressure Balance Valve - 2-Output
Product details
Focal Point Hardware is an authorized Flusso retailer!
Experience precise temperature control with the Flusso Serie 145 Tub / Shower Trim featuring a Pressure Balance Valve - 2-Output. The PBV1005A integrates a ½” NPT diverter with two hot/cold inputs and two outputs for flexible routing. With 5.5 GPM @ 60 PSI, solid brass construction, and a durable trim kit, it elevates any shower installation.
Flusso is renowned for premium bathroom hardware built to last, delivering precise flow control, dependable pressure balance, and easy installation. Known for solid brass construction, thoughtful engineering, and enduring aesthetics, Flusso products combine luxury performance with reliable function, making the Flusso Serie 145 a trusted choice for high-end showers and tub/shower configurations.
Features and Specifications
- PBV1005A – Pressure Balance valve with integrated 2-output diverter
- ½" NPT male connection with two inputs for hot/cold water and two output ports
- Flow rate: 5.5 GPM @ 60 PSI
- Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs
- Handle Operation - The volume and temperature of water is controlled by the lower handle. Lift the lower handle to control the volume and as the handle is moved between left and right, the temperature changes. Move it right for cold and left for hot water
- Diverter Handle - The diverter handle on the top helps in directing the flow from the two outputs of the valve. When diverter handle points left, the water flows through the lower output. When the diverter handle points right, the top output is activated for water flow
- Cut Out Dimensions - The cut out in wall should be 5.43” x 4.76” Inches which is properly covered by the trim plate
- Trims - The trim set for PBV1005A consists of a trim plate and handle knobs for both top and bottom cartridge
- Extension Available - PBV.2100E** extensions for the handles (extendable for proper fit)
- Extension Kits - Extension kits for both handles can be ordered separately in case the handles need to be extended for proper fit
- Compatibility - Any *2100 or *2101 series trim can be used with this valve
- Shower Model Variation - Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles
- Construction - Solid Brass Construction
Upgrade your shower with the Flusso Serie 145 Tub / Shower Trim featuring a precise pressure balance and flexible 2-output diverter. Flusso’s reliable brass construction and refined design deliver lasting luxury and dependable performance.
