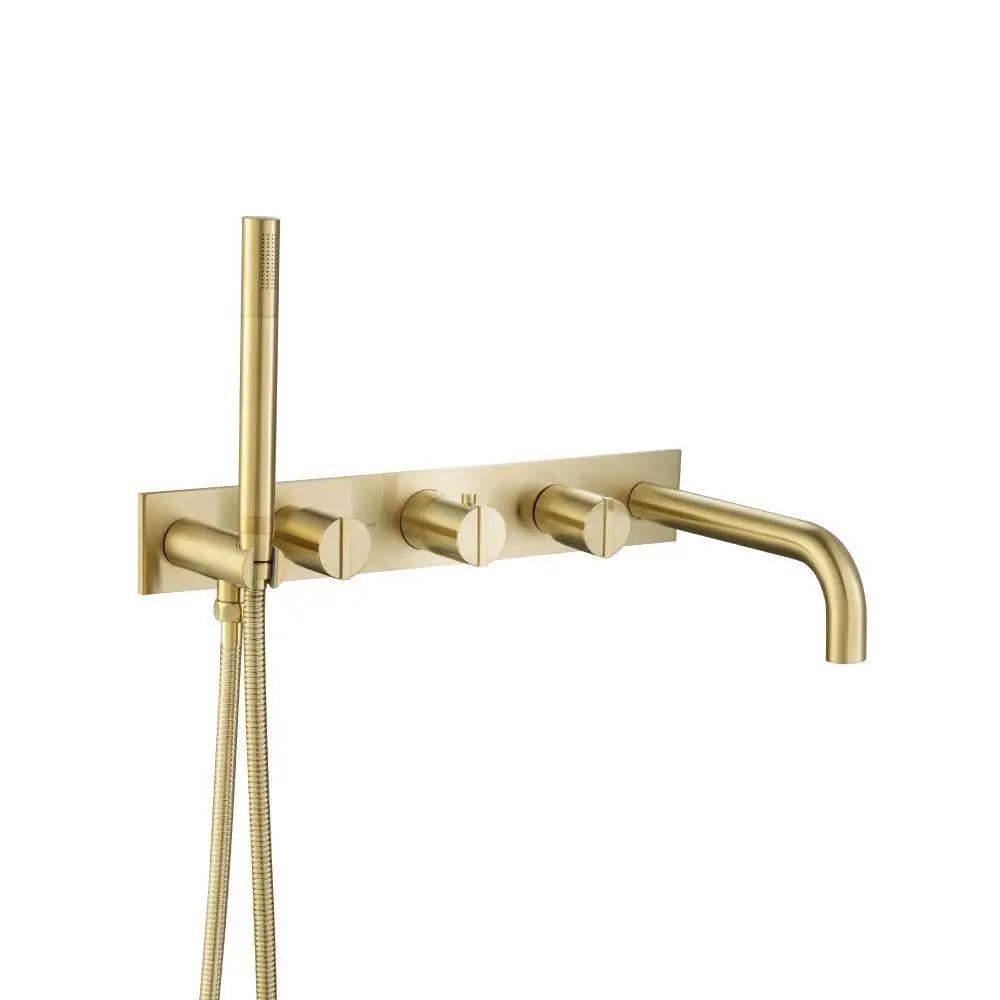

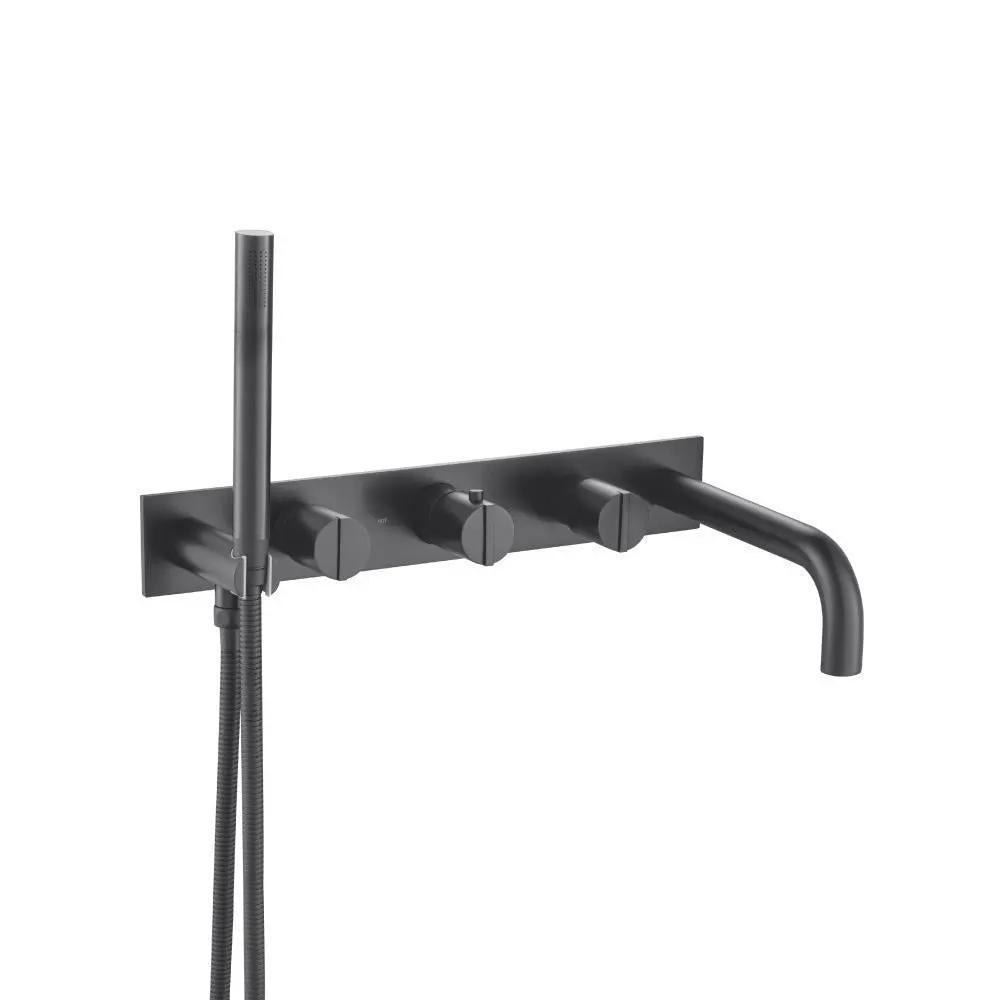

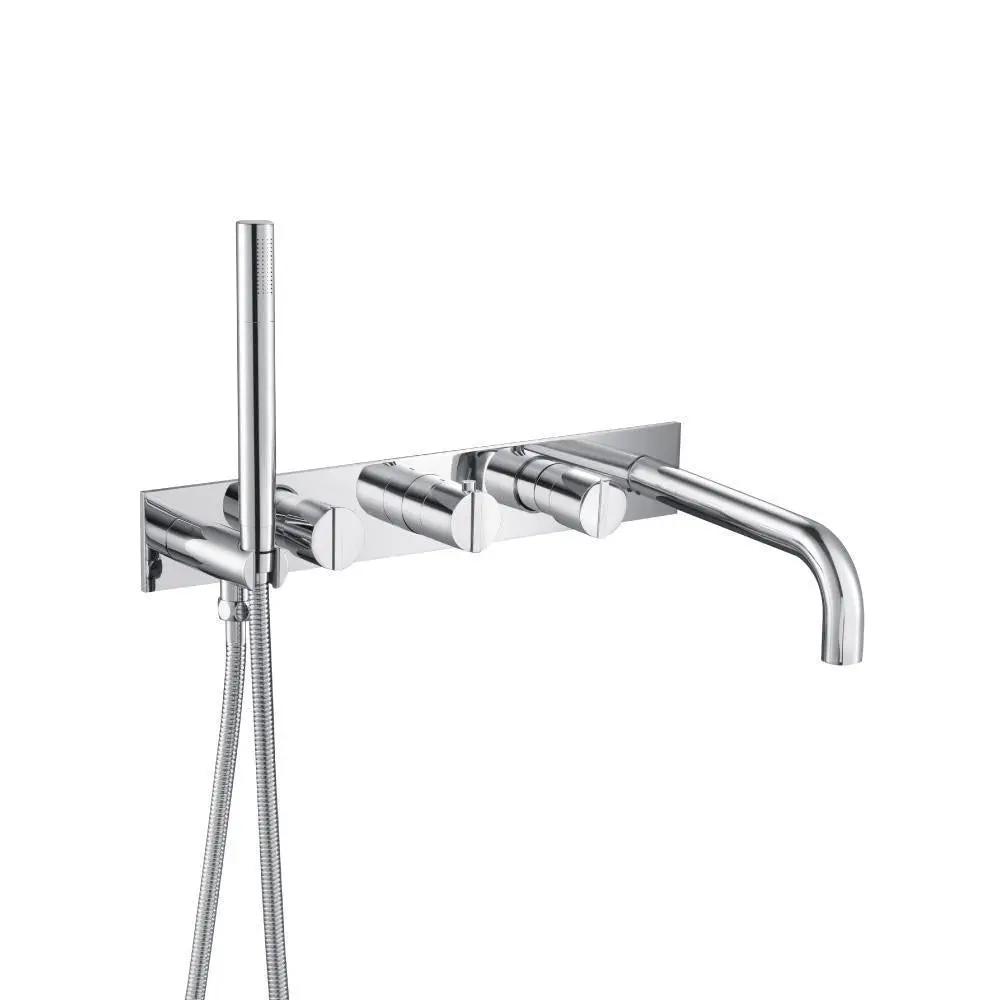

Experience the Flusso Serie 145 Trim for Wall Mount Tub Filler with Hand Shower, a dual-output fixture designed for seamless tub filling. Paired with the TVH.2691 valve, it delivers precise temperature control and flexible outlet management with two output ports. Crafted for reliability and luxury, this trim elevates any bath with modern Italian design.
Flusso is renowned for uncompromising craftsmanship and durable, brass construction that stands up to everyday use. The manufacturer emphasizes precise thermostatic control, long-lasting finishes, and thoughtful compatibility across trim and valve systems. With Flusso, you’re investing in elegant reliability and a premium, spa-quality experience in any modern bathroom worldwide today.
Features and Specifications
- Simultaneous operation between the spout and hand held and are used for tub fill application. This product is to be paired with the TVH.2691 valve.
- HANDLE OPERATION – The middle handle is used to control the temperature of water flowing through the outlet. The left handle controls the volume of water from full flow to a trickle for the output port 1. The right handle controls the volume of water from full flow to a trickle for the output port 2.
- ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. Covering this ring is the handle knob which has a push-button on the side. To adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full hot position, as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
- CUT OUT DIMENSIONS – The cut out in the wall should be 16.41” X 1.85” which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
- TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- Solid Brass Construction Valve Not Included - Trim Only
- 2 Output Ports
- Hand Shower Flow Rate Limited to 1.8 GPM
- Hand Shower & Tub Spout positions can be swapped
In sum, the Flusso Serie 145 Trim for Wall Mount Tub Filler with Hand Shower delivers precise dual-output control, anti-scald safety, and durable brass construction for a luxurious, reliable bath experience.
