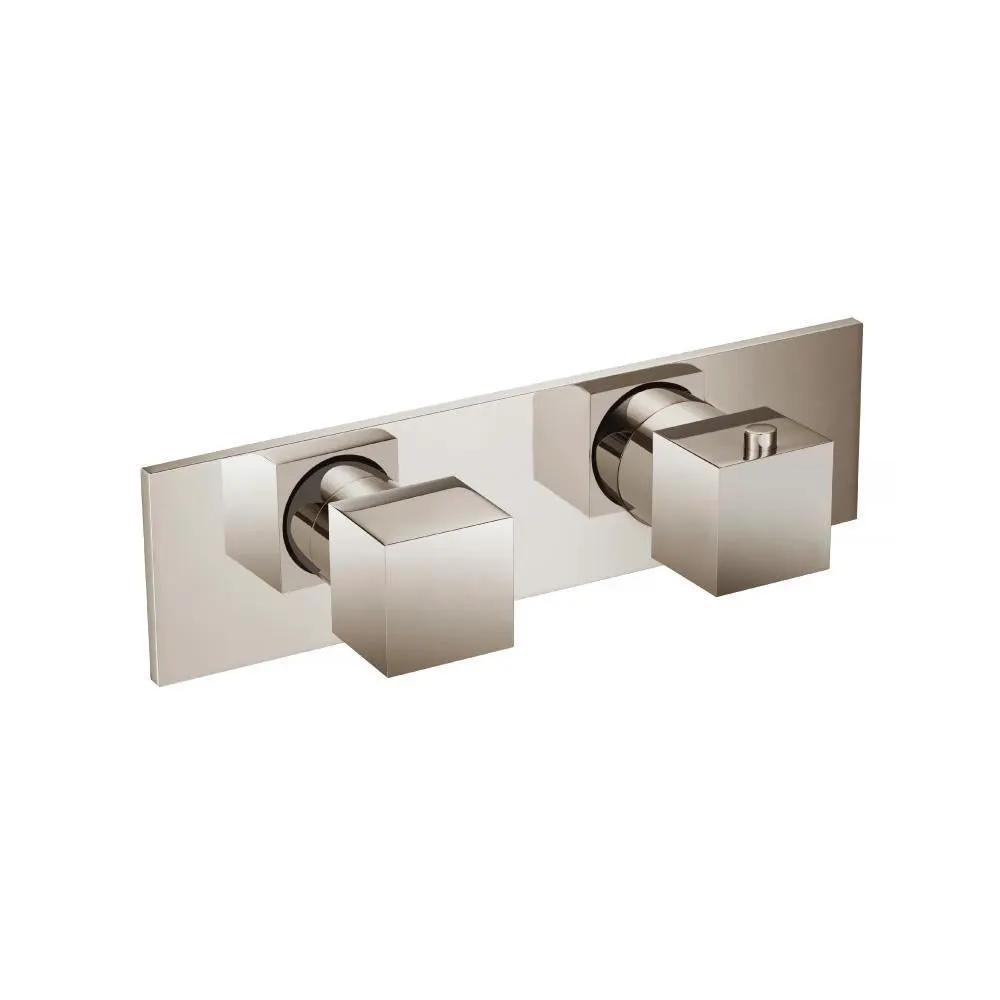

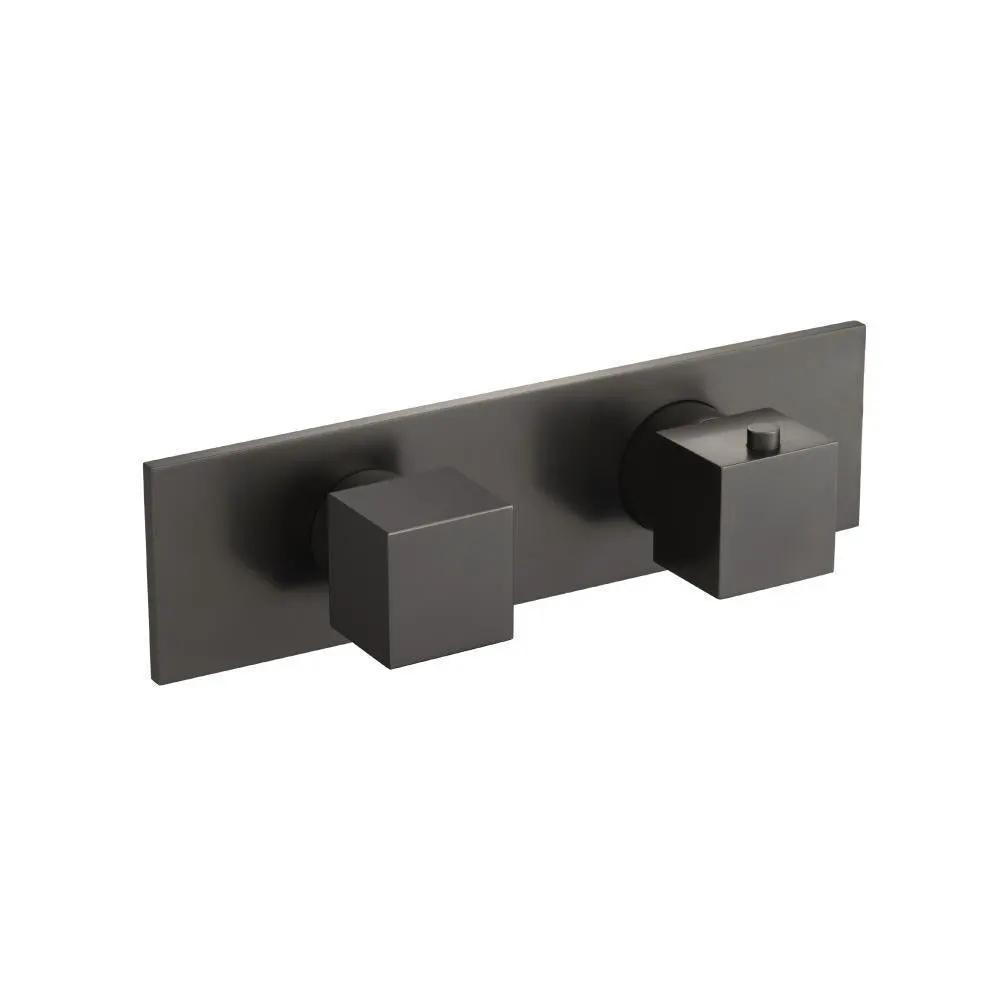

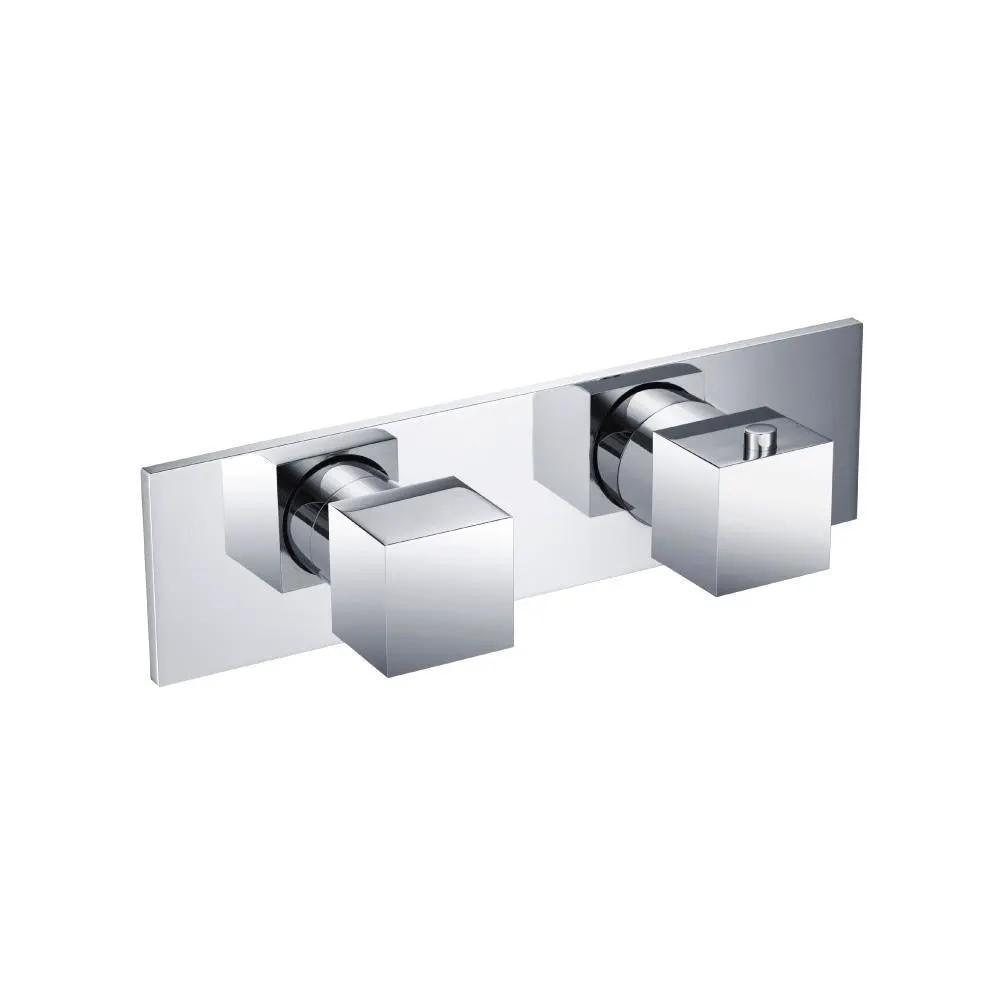

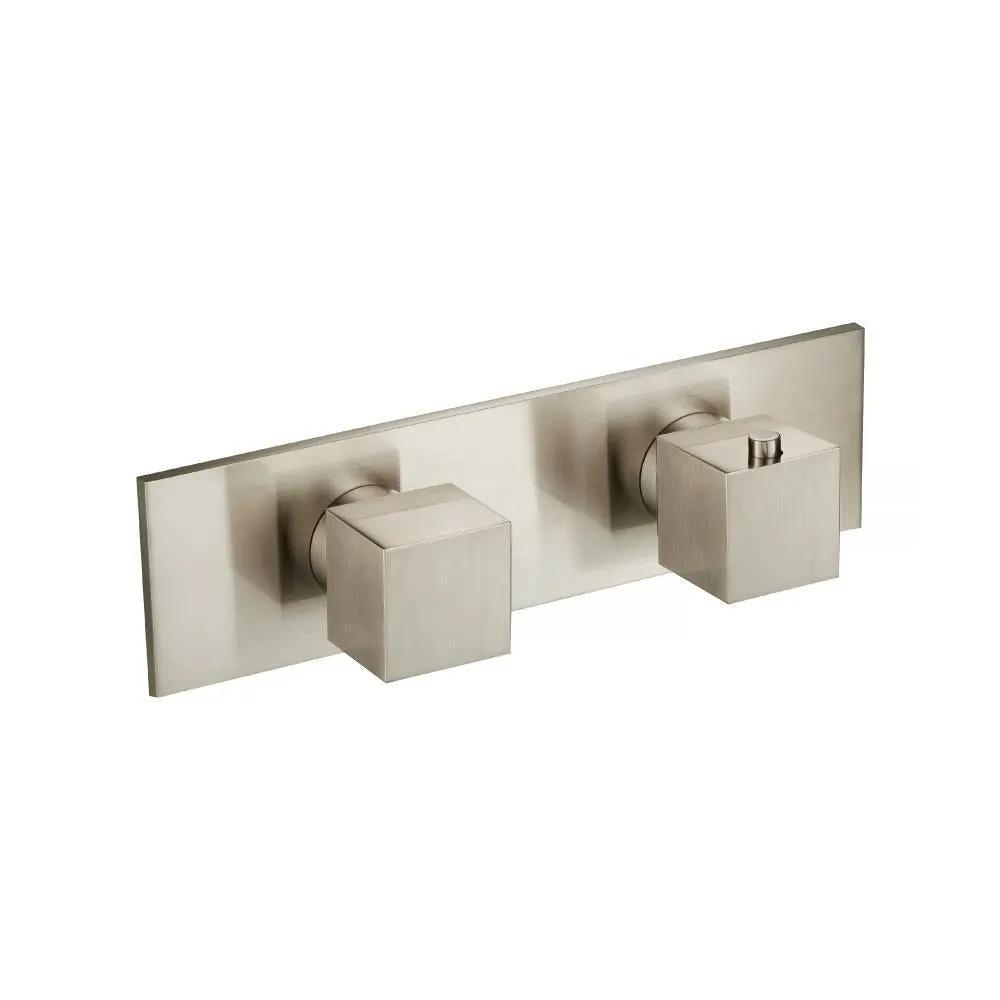

Flusso Serie 160 3/4" Horizontal Thermostatic Shower Valve and Trim - 3 Output

Focal Point Hardware is an authorized Flusso retailer!

Experience refined showering with the Flusso Serie 160 3/4" Horizontal Thermostatic Shower Valve and Trim - 3 Output. This precision thermostatic valve from Flusso delivers reliable CAL-Green performance, three independently operable output ports, and exact temperature control for a luxurious, customizable showering experience in any contemporary bathroom. Ideal for remodels and new builds alike, it pairs modern aesthetics with safety and efficiency.

Flusso is renowned for luxury-grade bathroom valves and trims that blend robust brass construction with precise engineering. The brand’s thermostatic technologies emphasize consistent delivery, safe shutoffs, and long-lasting reliability, making Flusso fixtures a trusted choice for designers and homeowners who demand performance, elegance, and CAL-Green compliance in every installation worldwide.

Features and Specifications

• 3/4" NPT connections
• 3 water outputs [ports] which are operable one at a time without shared port operation
• CAL-Green compliant
• The right handle sets the temperature
• The left handle diverts water between the 3 water output ports and is capable of controlling the volume of water from full flow to a trickle
• Horizontal or vertical installation
• SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs
• HANDLE OPERATION – The right handle is used to control the temperature of water flowing through the outlet ports
• ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value
• VALVE INSTALLATION - As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77? and 3.44? inches [Rough In Spec]
• CUT OUT DIMENSIONS – The cut out in wall should be 7.89? x 1.89? Inches which is properly covered by the trim plate
• TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles
• CARTRIDGE – The TVH.2705F valve can be used with two cartridges. The default cartridge that the valve comes with is the Model # 15100 cartridge which is a 3 output non-shared [CAL-Green Compliant] cartridge. A shared port operation cartridge [Model # 15200] can also be used to activate 2 out of 3 ports at the same time
• SOLID BRASS CONSTRUCTION – Includes Thermostatic Valve - TVH.2705F With Integral Service Stops
• Three Output Ports

The Flusso Serie 160 3/4" Horizontal Thermostatic Shower Valve and Trim - 3 Output offers precise control, reliable safety, and three independent outlets, backed by Flusso’s luxury-grade craftsmanship and commitment to enduring quality in every installation.
