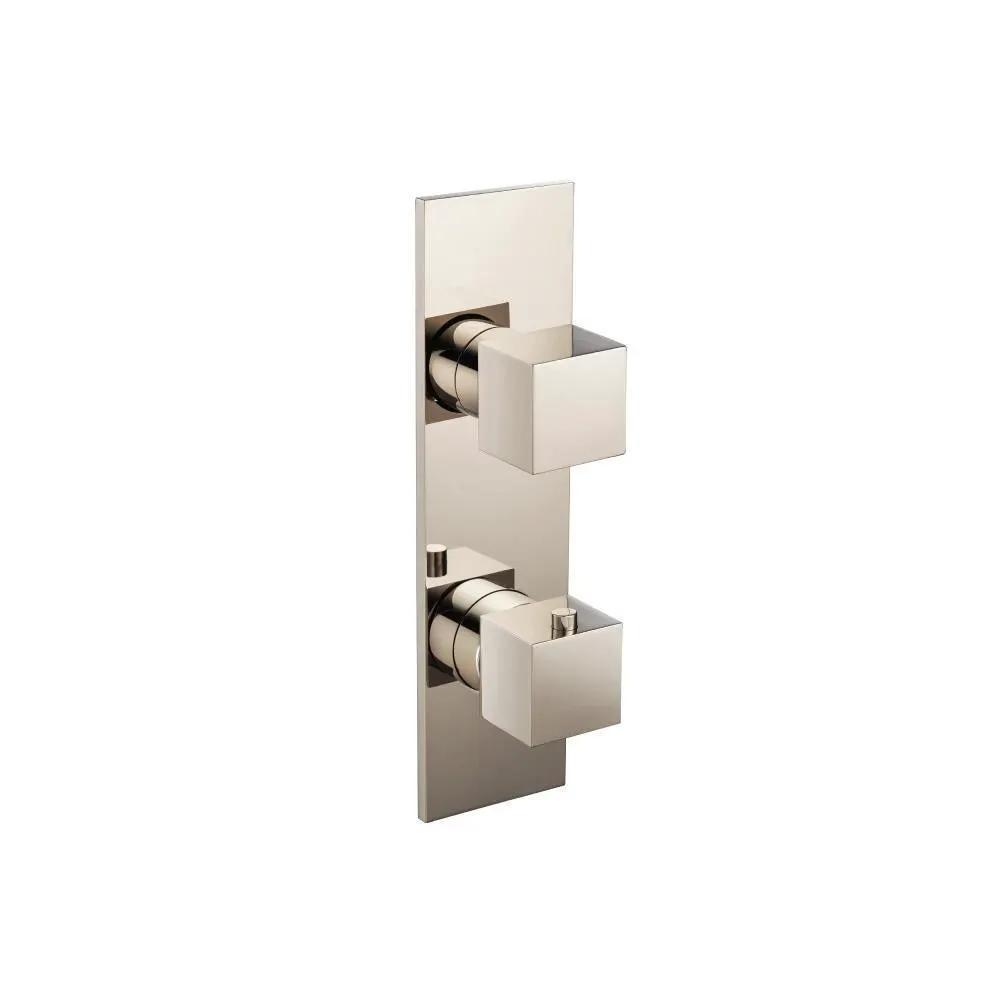

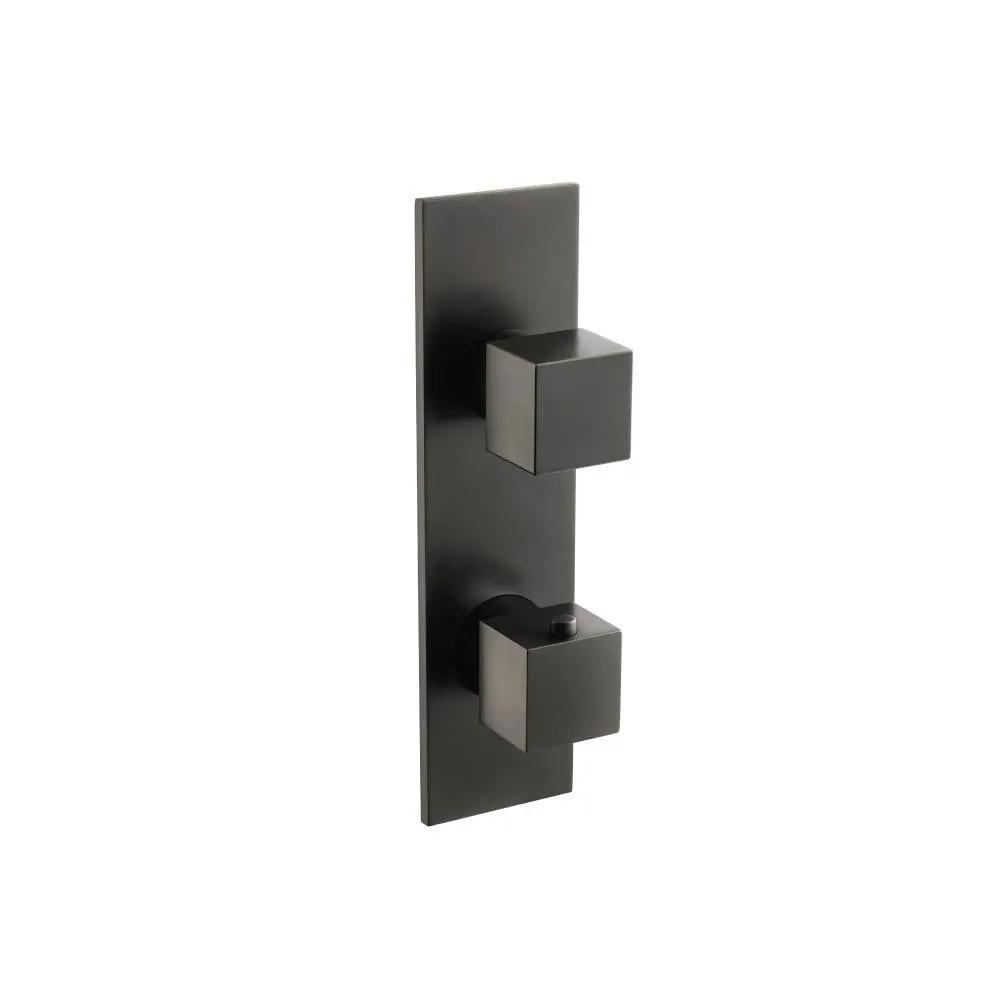

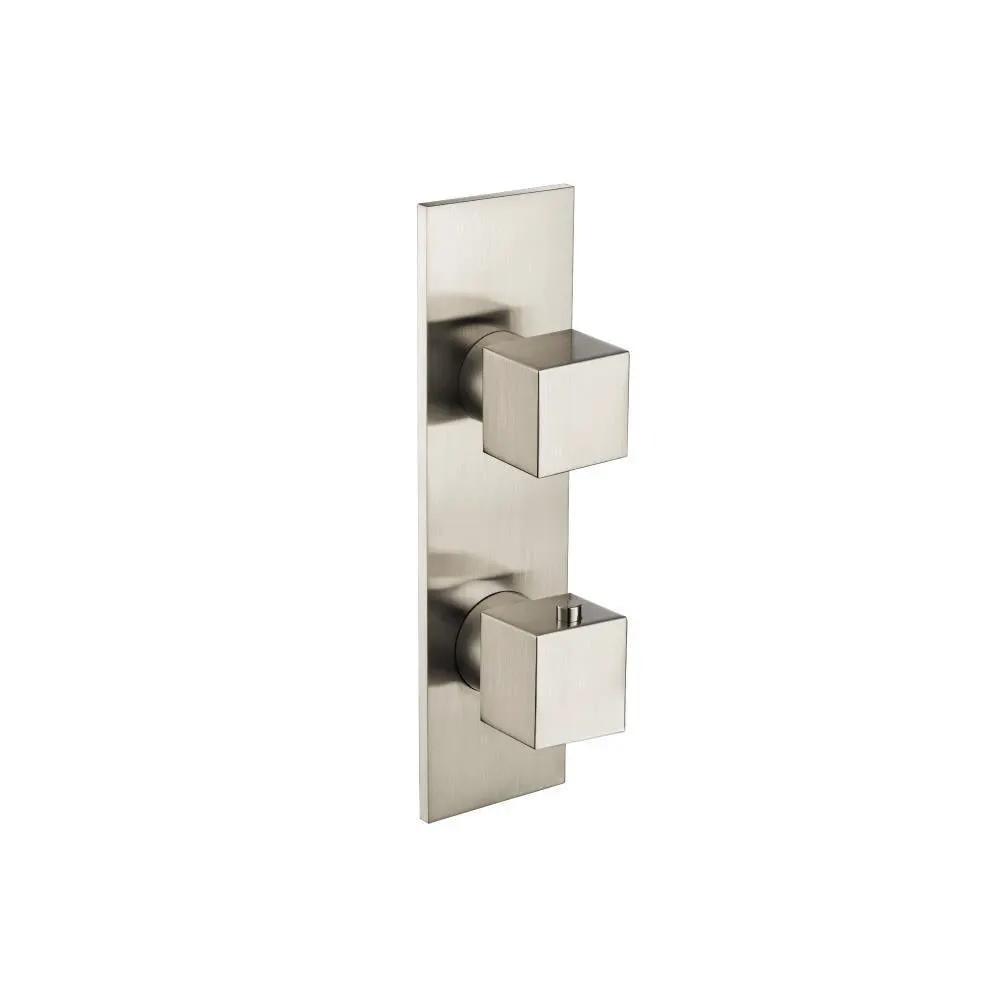

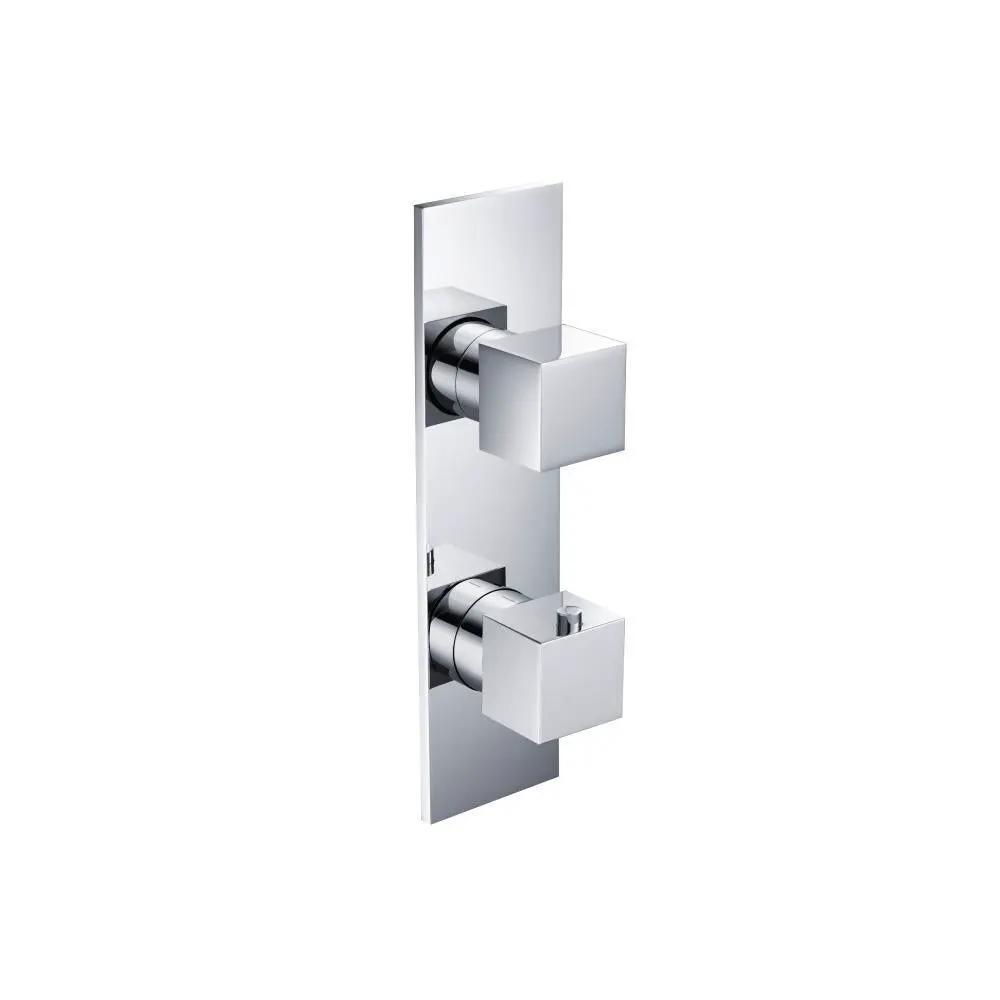

Flusso Serie 160 3/4" Horizontal Thermostatic Shower Valve and Trim - 1- Output

Focal Point Hardware is an authorized Flusso retailer!

Experience precise comfort with the Flusso Serie 160 3/4" Horizontal Thermostatic Shower Valve and Trim - 1- Output, a reliable Flusso solution that delivers consistent temperature control and minimalist style. The thermostatic TVH.2693 valve provides safe, even flow through a single output, with horizontal or vertical installation, integral service stops, and anti-scald protection for worry-free showers.

Flusso is renowned for precision-engineered shower valves and luxury bathroom hardware, delivering dependable temperature control, corrosion-resistant brass construction, and durable performance. The Flusso TVH.2693 thermostatic valve showcases the brand's commitment to safety, reliability, and sleek, modern design that blends seamlessly with premium trim options. With rigorous quality standards and easy installation, Flusso products are trusted by professionals and homeowners alike.

Features and Specifications

• The 2720 series of products from Flusso use the TVH.2693 Thermostatic valve which features 3/4" NPT connections and has one water output.
• The right handle sets the temperature.
• The left handle controls water volume.
• HORIZONTAL OR VERTICAL INSTALLATION – The TVH.2693 can be installed horizontally or vertically.
• SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
• HANDLE OPERATION – The right handle is used to control the temperature of water flowing through the outlet ports. The left handle is used to turn water on and off and can control the volume of water from full flow to a trickle.
• ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. Covering this ring is the handle knob which has a push-button on the side. To adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position – as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
• VALVE INSTALLATION -As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77? and 3.44? inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
• CUT OUT DIMENSIONS – The cut out in wall should be 7.89? x 1.89? Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
• TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
• Solid Brass Construction Includes Thermostatic Valve - TVH. 2693 With Integral Service Stops
• Single Output Port Extensions Available - TVH.4101E**

Flusso Serie 160 delivers precise thermostatic control, durable all-brass construction, and a refined trim kit crafted for lasting luxury. Trust Flusso for reliable temperature regulation and sophisticated design in your shower, backed by durable engineering and a reputation for quality.
