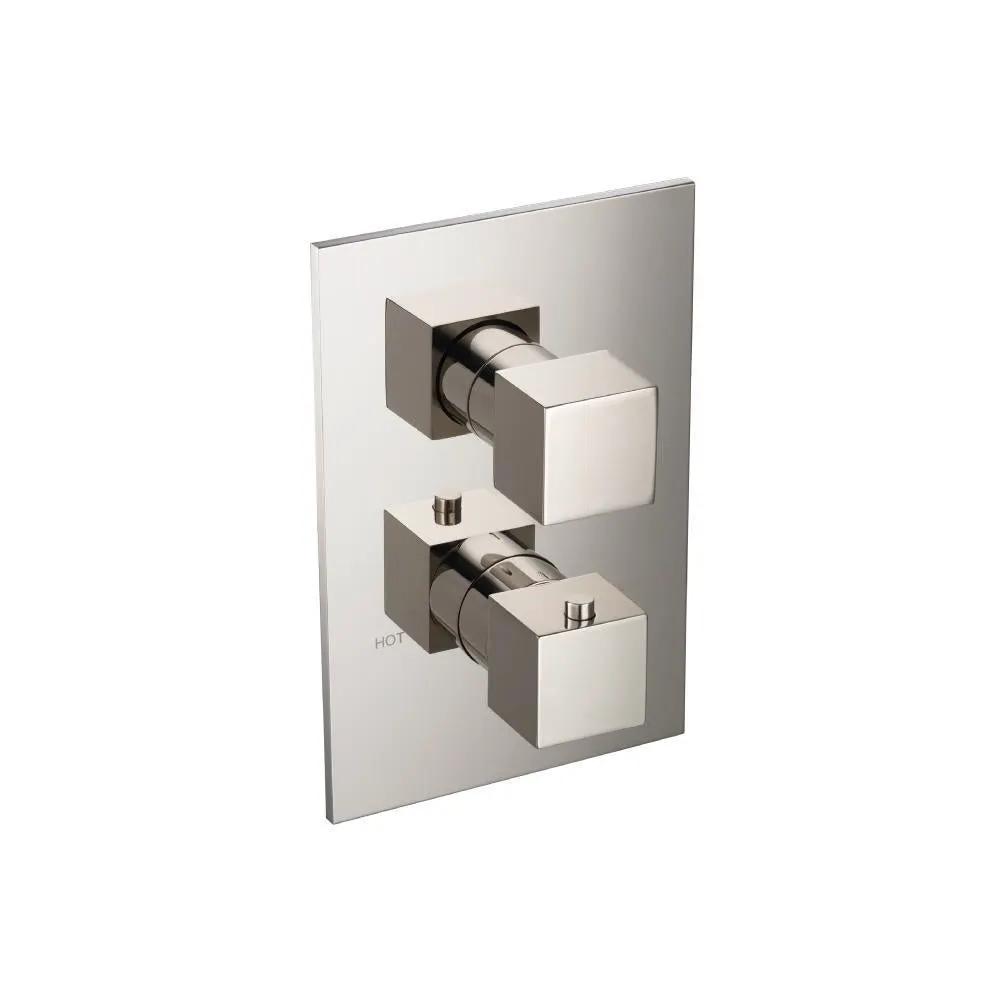

Flusso Serie 160 3/4" Thermostatic Valve and Trim - 3 Way Diverter - 3 Outputs
Product details
Focal Point Hardware is an authorized Flusso retailer!
Experience precise temperature control and versatile water distribution with the Flusso Serie 160 3/4" Thermostatic Valve and Trim - 3 Way Diverter - 3 Outputs. This premium thermostatic valve delivers reliable CAL-Green compliant performance, three independent outputs, and intuitive dual-handle operation for temperature and flow management, engineered by Flusso for luxury showers.
Flusso is renowned for premium bathroom fixtures that blend refined design with dependable performance. The brand is trusted for solid brass construction, precise thermostatic technology, and durable components that ensure long-lasting reliability. Flusso products emphasize safe operation, ease of use, and CAL-Green compliant solutions that elevate luxury showers and bathroom installs.
Features and Specifications
- TVH.4301F thermostatic valve with 3/4" female NPT connections and 3 water output ports
- Three output ports with a 3-way diverter for independent routing to each output
- CAL-Green compliant
- Solid brass construction
- Includes thermostatic valve TVH.4301F
- Cartridges: Model #15100 (default 3-output non-shared CAL-Green); Model #15200 (shared port to activate 2 out of 3 ports)
- Trims include a well-finished cover plate and handle knobs; anti-scald temperature stop ring over the temperature control knob
- Push-button side on the temperature handle knob to adjust water temperature; prevents full HOT rotation without pressing
- Anti-scald stop ring must be fitted tightly over the valve for proper function
- Trim shapes may vary (square to circular) depending on the shower model
- Supply Stops: two safety stops at each water inlet
- Cut Out Dimensions: 6.49 x 4.44 Inches
- Rough-In Spec: maintain back-to-finished-tile distance of 2.77" to 3.44"
- Extensions Available: TVH.4101E
- Installation guidance: valve should be installed straight and not at an angle or upside down; extension kits are available for deeper tiling or thicker walls
Experience a refined shower with Flusso Serie 160 3/4" Thermostatic Valve and Trim - 3 Way Diverter - 3 Outputs, built by Flusso for luxury, safety with anti-scald features, and CAL-Green compliant reliability that stands the test of time.
