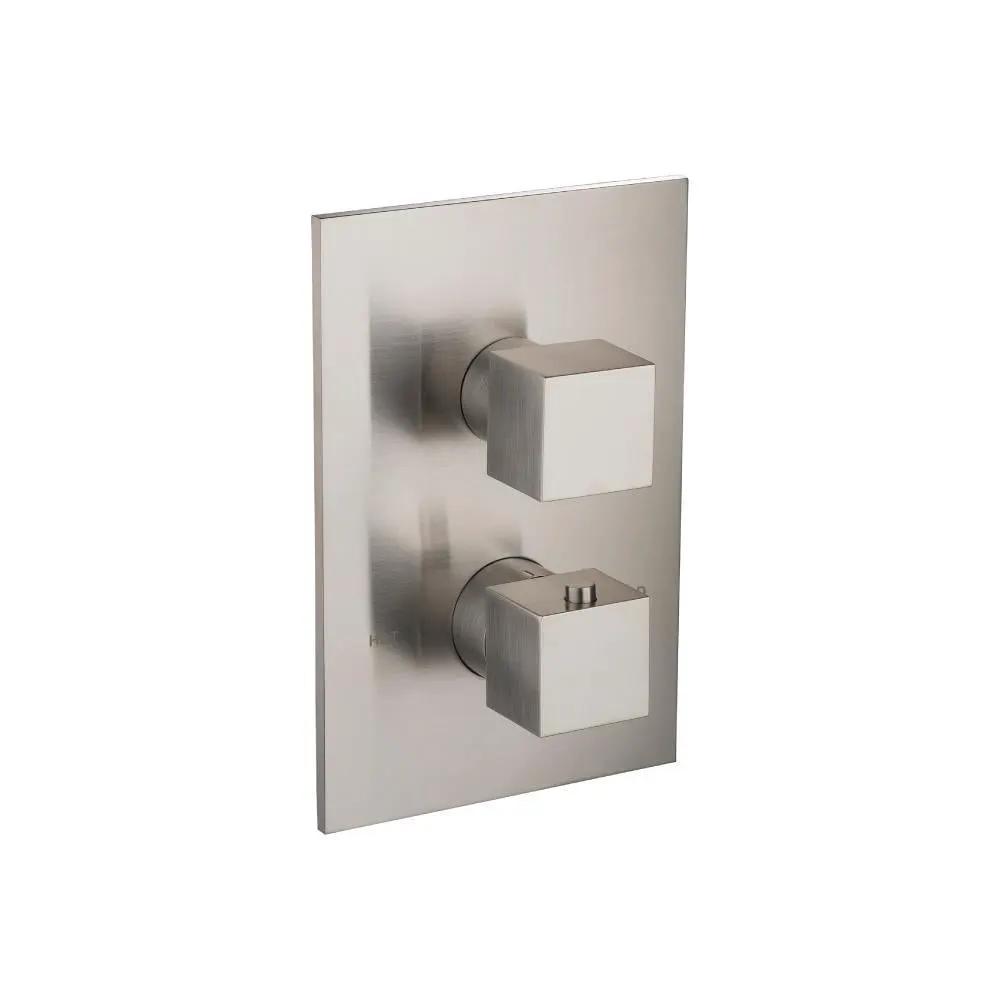

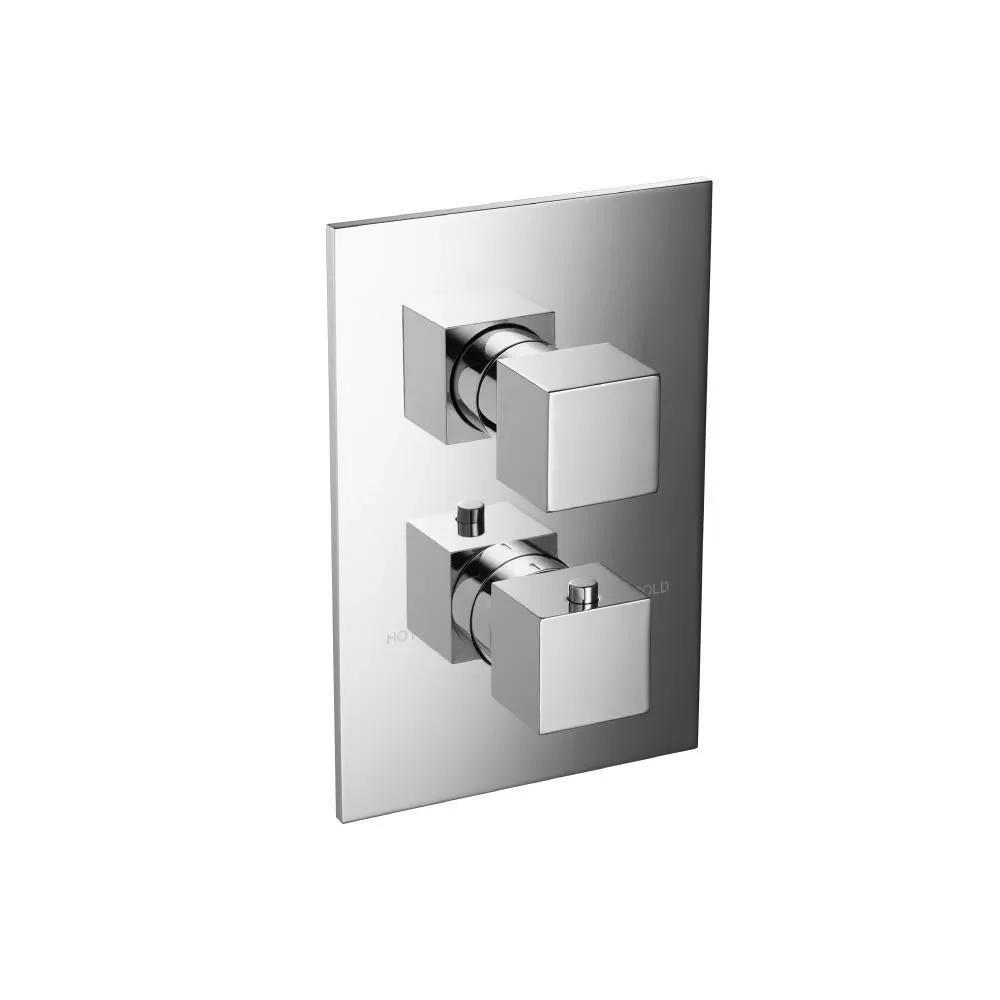

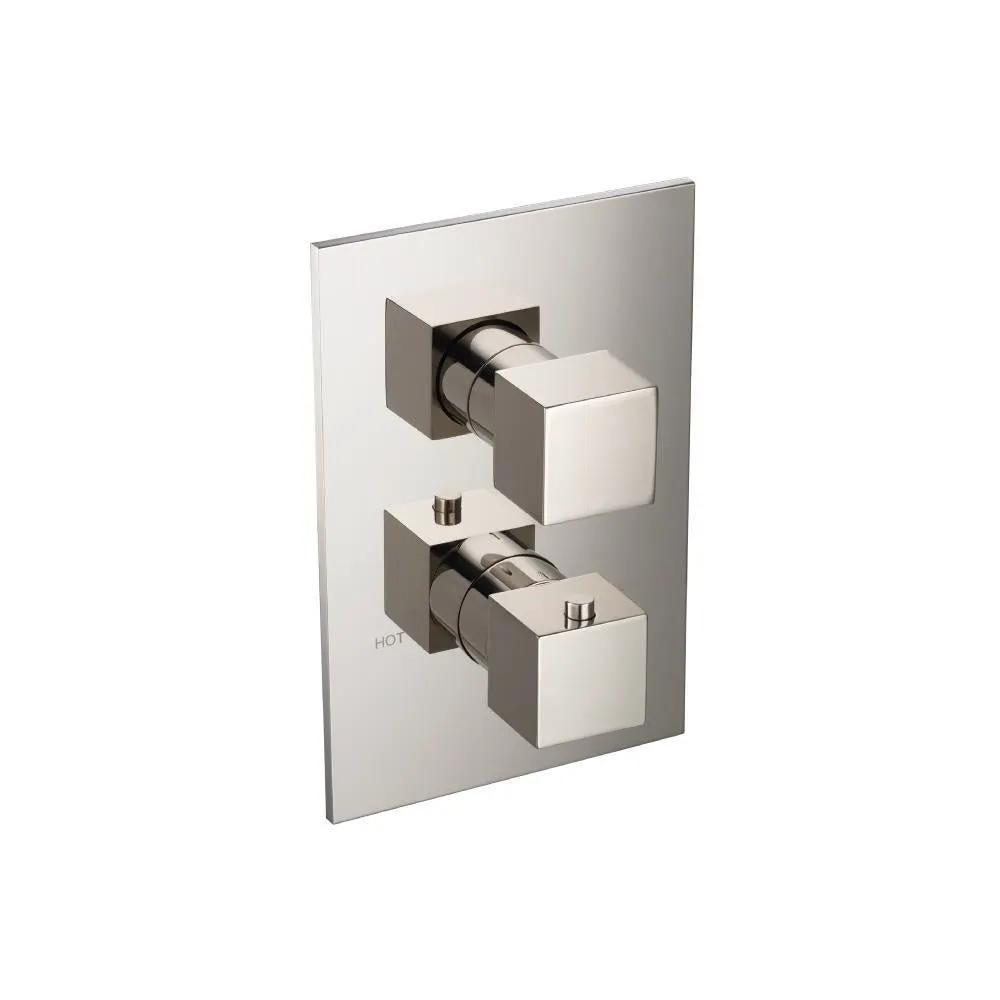

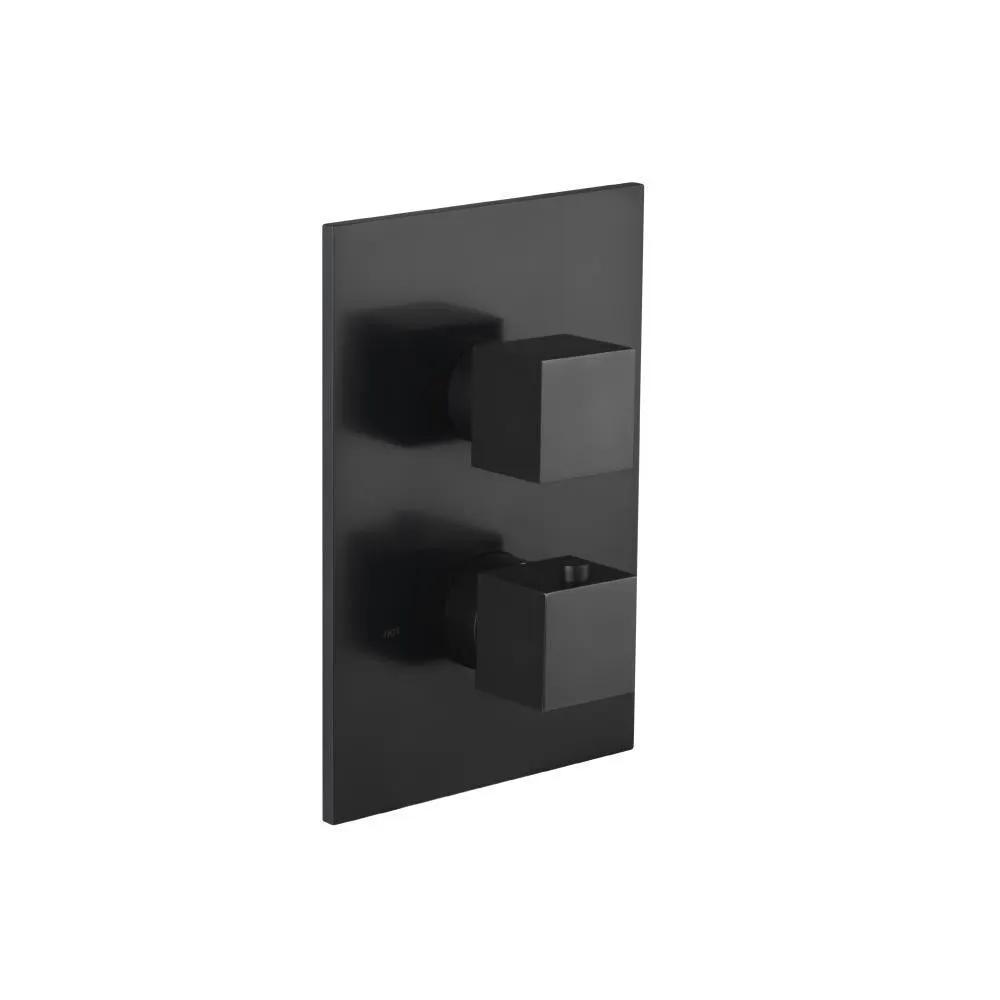

Flusso Serie 160 3/4 " Thermostatic Valve and Trim - with 2-Way Diverter - 2 Output

Focal Point Hardware is an authorized Flusso retailer!

Flusso is renowned for precision-engineered bathroom fixtures that blend luxury with dependable performance. The Flusso Serie 160 3/4" Thermostatic Valve and Trim - with 2-Way Diverter - 2 Output delivers precise temperature control, reliable two-output flow, and CAL-Green compliance, making it a sophisticated, long-lasting choice for modern showers in contemporary homes.

Features and Specifications

• 3/4" female NPT connections
• 2 water output ports
• CAL-Green Compliant
• Solid brass construction
• TVH.4420F thermostatic valve with integral service stops
• Includes two output ports
• Trims comprise a well finished cover plate and handle knobs with an anti-scald temperature stop ring
• Anti-scald temperature stop ring is a safety feature in this thermostatic valve; to adjust water temperature, press the side button and move the temperature knob toward hot or cold
• The bottom handle sets the temperature; the top handle diverts water flow between the two output ports
• Supply Stops — two safety stops at each water inlet to stop water flow during installation or repairs
• Cut-out dimensions: 6.49 x 4.44 Inches
• Rough In Spec — distance from back of valve to finished tile should be between 2.77” and 3.44”
• Valve must be installed straight and not at an angle or upside down; extension kits are available for elongating both handles
• Cartridge options: Default Model # 15109 cartridge (2 output non-shared, CAL-Green Compliant)
• Shared port operation cartridge Model # 15103 can activate 2 ports at the same time
• Extensions Available — TVH.4101E

Flusso's commitment to quality, reliability, and luxury shines through in the Serie 160 thermostatic valve and trim, delivering consistent temperatures, versatile two-output control, and CAL-Green compliance for a premium shower experience.
