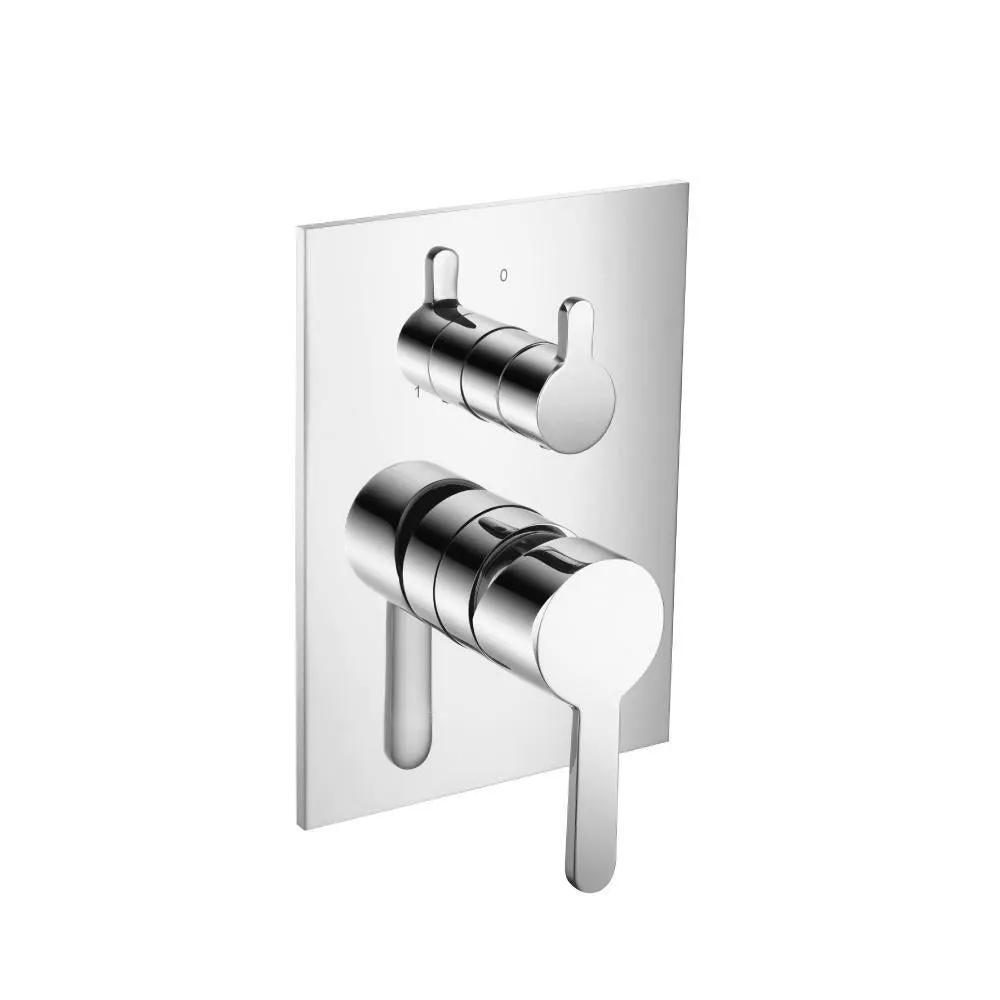

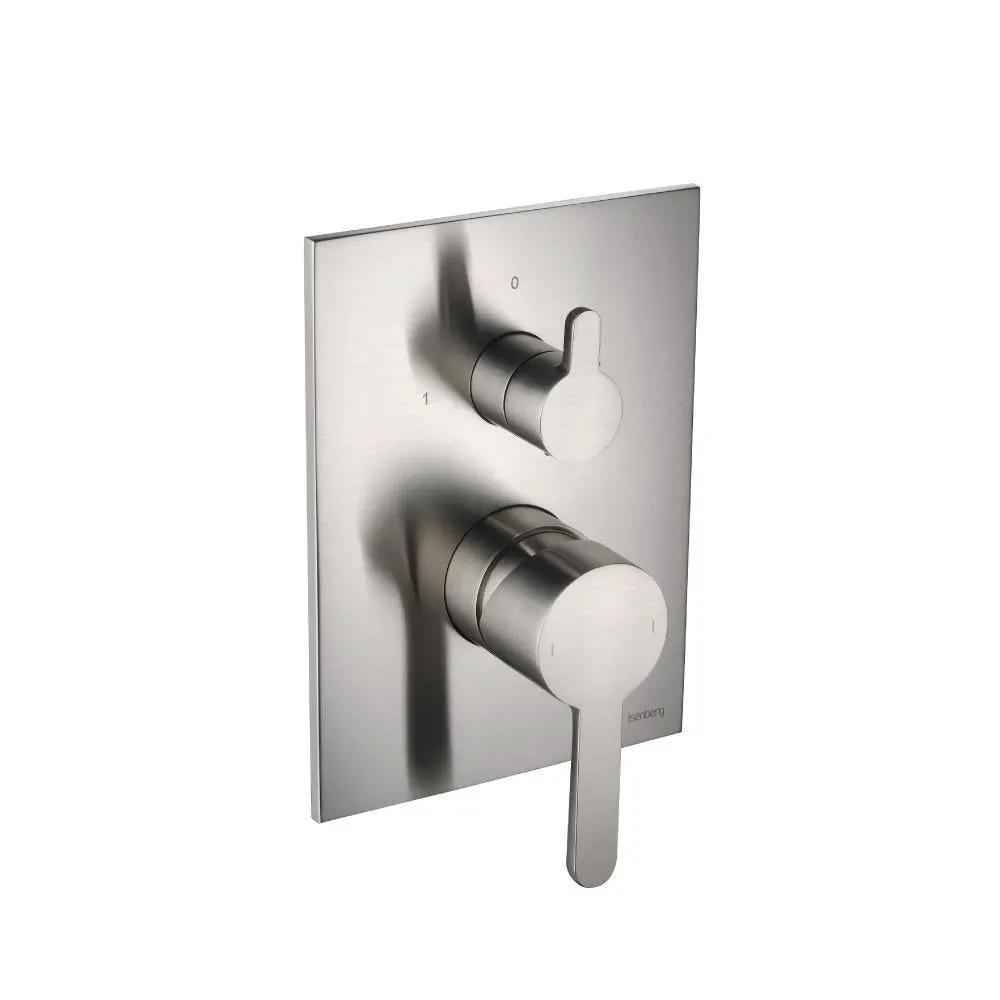

Flusso Serie 180 Tub / Shower Trim with Pressure Balance Valve - 2-Output
Product details
Focal Point Hardware is an authorized Flusso retailer!
Experience precise temperature control and luxurious reliability with the Flusso Serie 180 Tub / Shower Trim with Pressure Balance Valve - 2-Output. Flusso’s PBV1005A valve combines safety, multi-output versatility, and durable brass construction for modern showers. This Trim set elevates bath design with intuitive volume and temperature control, and a built-in diverter for two dedicated outputs.
Flusso is renowned for thoughtful engineering, luxury-grade fixtures, and reliable performance in premium baths. As a reputable manufacturer, Flusso delivers solid brass construction, precise manufacturing tolerances, and durable components designed for long-term use and easy maintenance, making the Flusso Serie 180 a trusted choice for discerning homeowners and professional installers alike.
Features and Specifications
- PBV1005A – Pressure Balance valve with integrated 2-output diverter
- ½” NPT male connection
- two inputs for hot/cold water
- two output ports
- flow rate of 5.5 GPM @ 60 PSI
- Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs
- Handle Operation - The volume and temperature of water is controlled by the lower handle. Lift the lower handle to control the volume and as the handle is moved between left and right, the temperature changes. Move it right for cold and left for hot water
- The diverter handle on the top helps in directing the flow from the two outputs of the valve. When diverter handle points left, the water flows through the lower output. When the diverter handle points right, the top output is activated for water flow
- Cut Out Dimensions - The cut out in wall should be 5.43” x 4.76” Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall
- Trims - The trim set for PBV1005A consists of a trim plate and handle knobs for both top and bottom cartridge. The trim plate has markings for hot/cold
- Extension kits for both handles can be ordered separately in case the handles need to be extended for proper fit. Extension Available - PBV.2100E**
- Any *2100 or *2101 series trim can be used with this valve. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles
- Solid Brass Construction
- Includes Pressure Balance Valve w/ Service Stops
- Lift Handle to control Volume. Turn left for Hot. Right for Cold
- Extension Available - PBV.2100E
With the Flusso Serie 180 Tub / Shower Trim with Pressure Balance Valve - 2-Output, enjoy precise temperature control, dual-output versatility, and premium durability that Flusso is known for, making every shower a refined, dependable experience.
