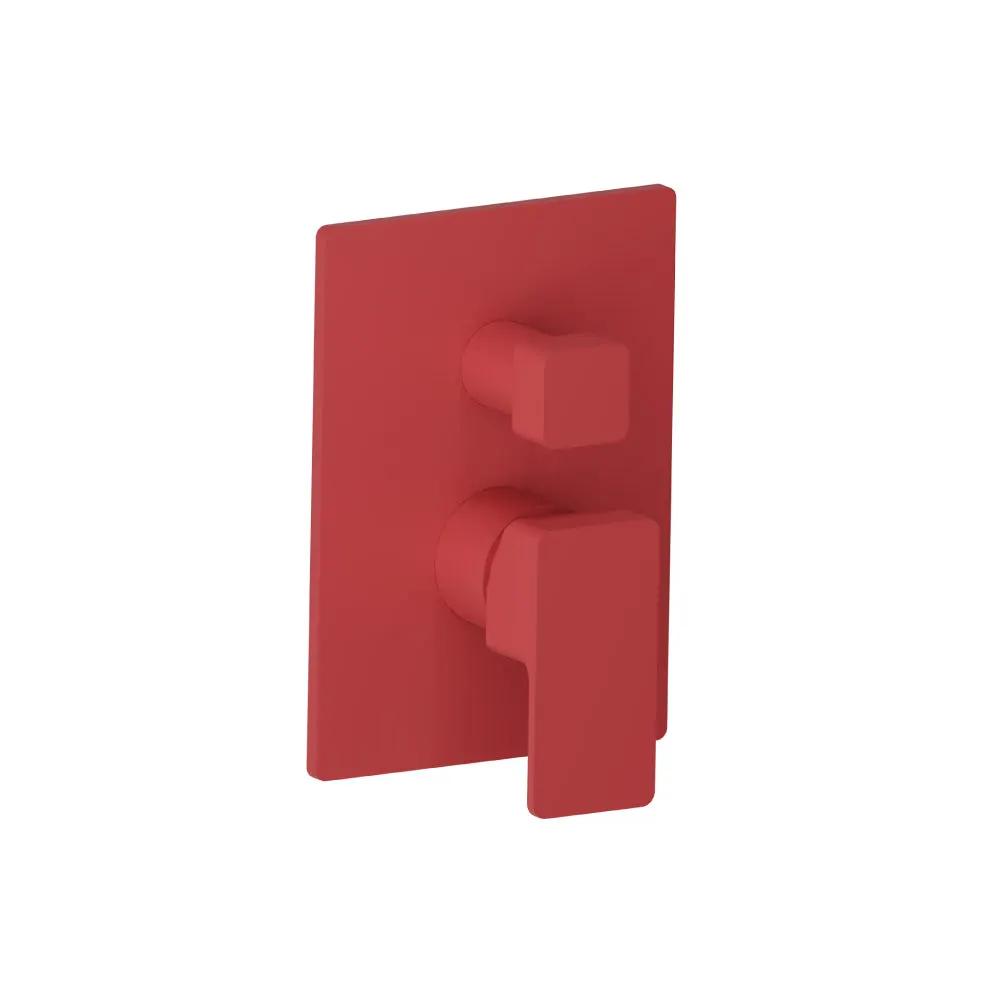

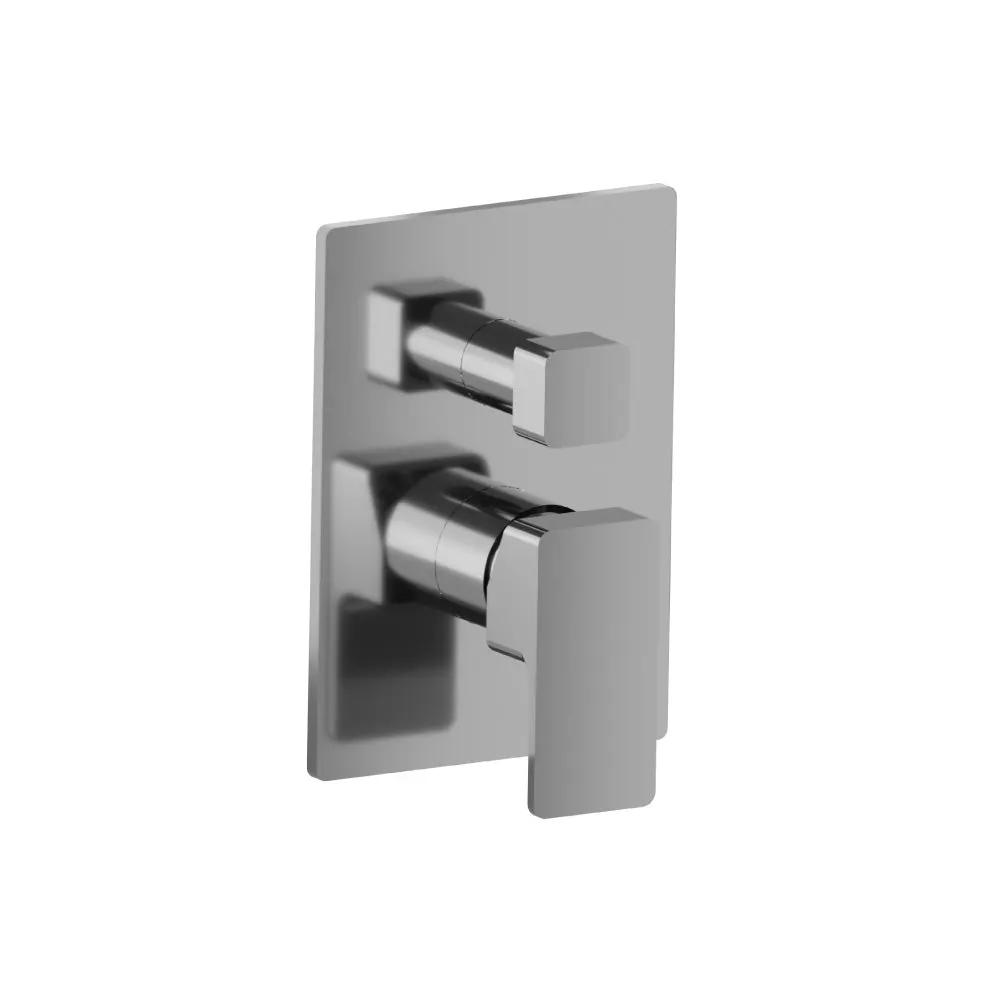

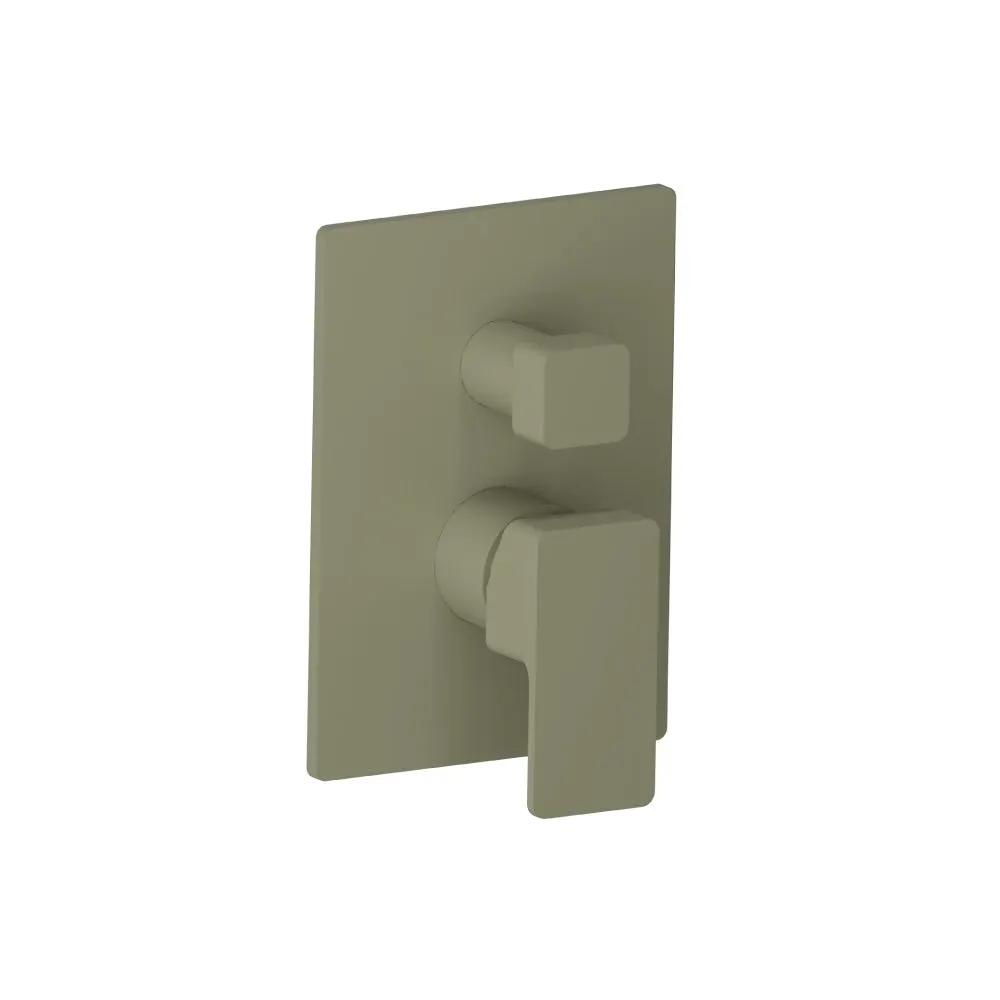

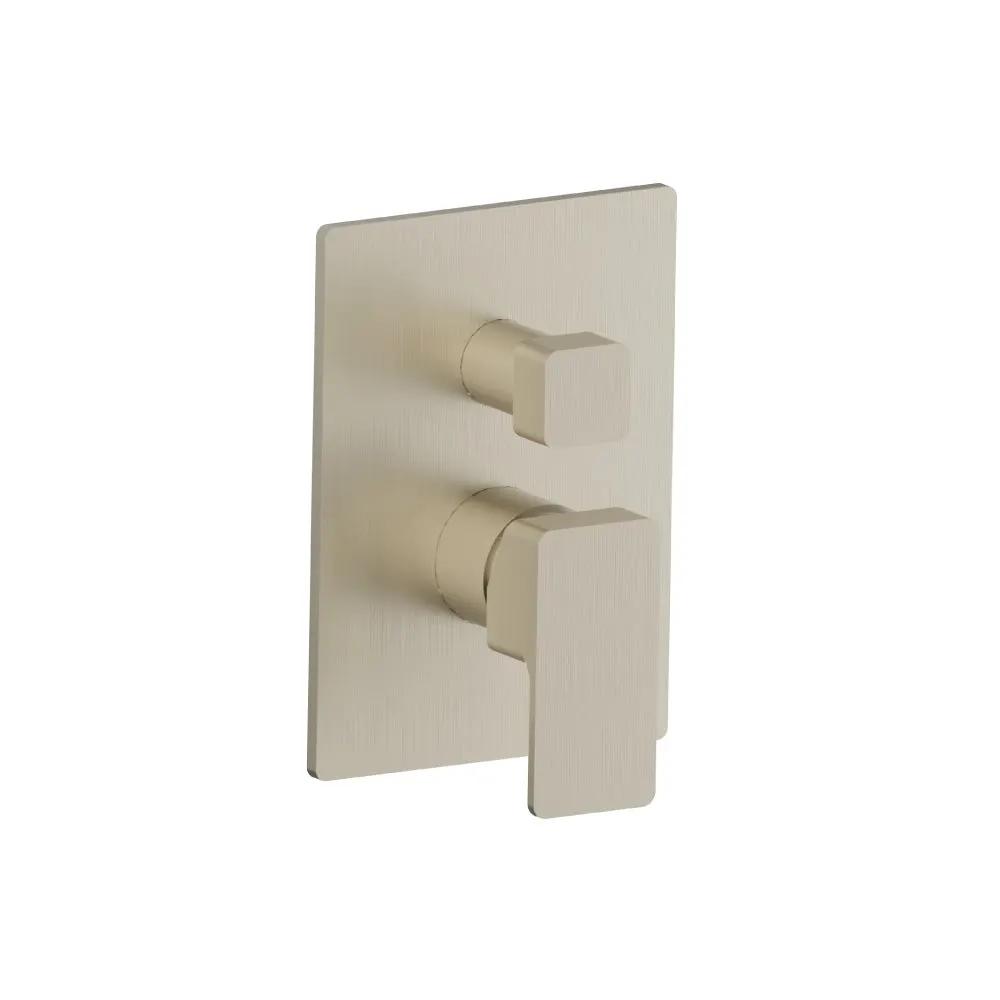

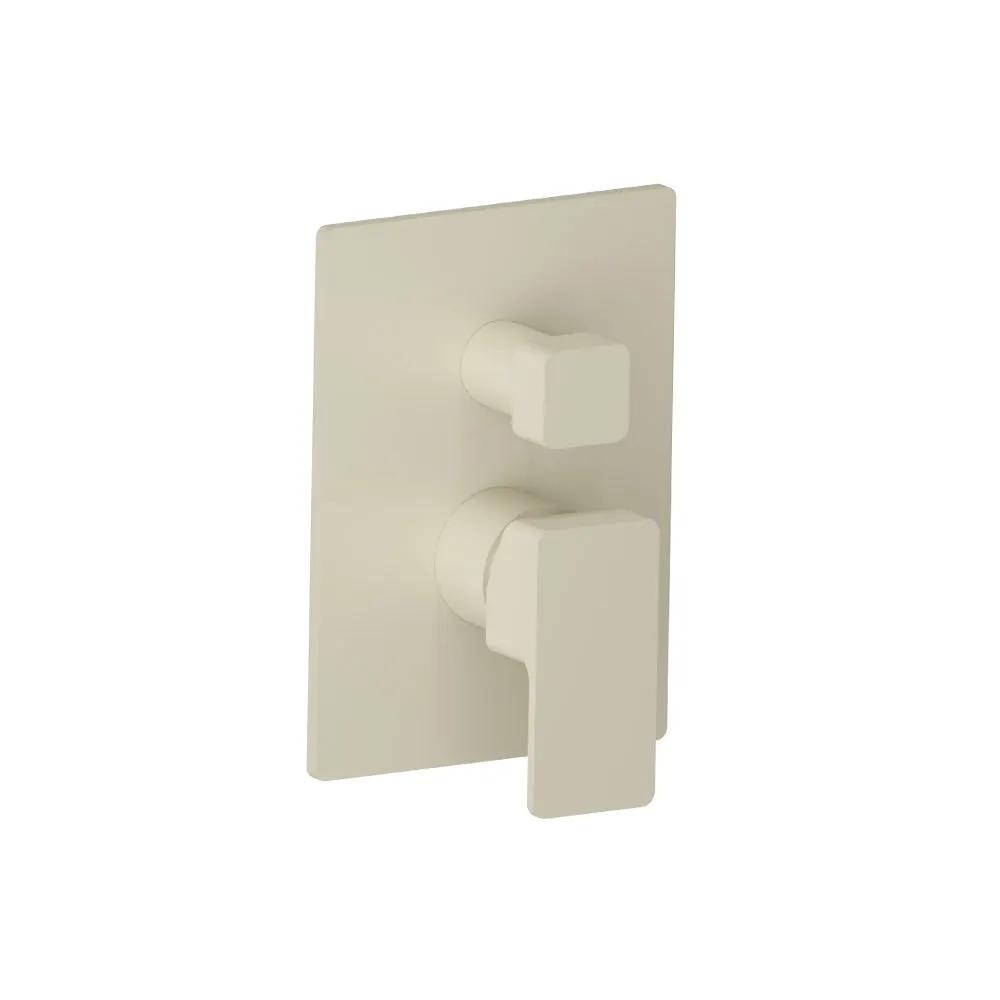

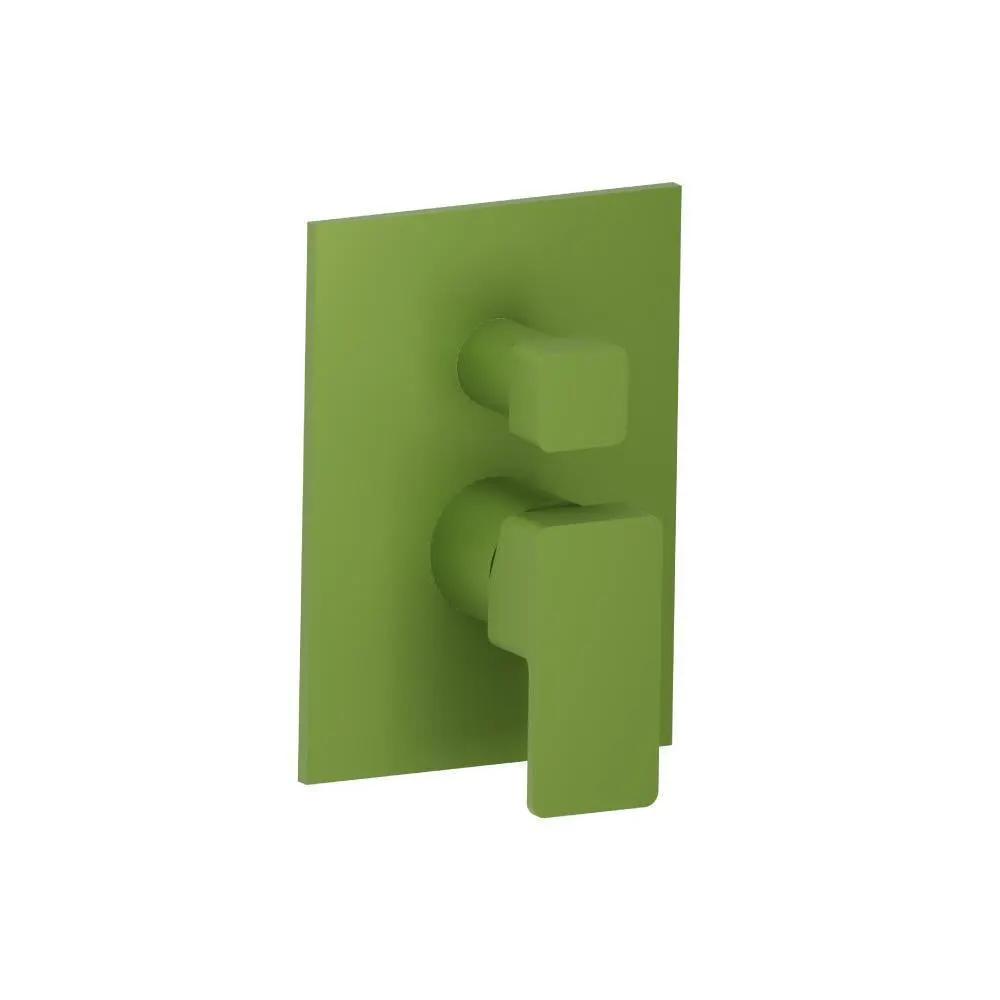

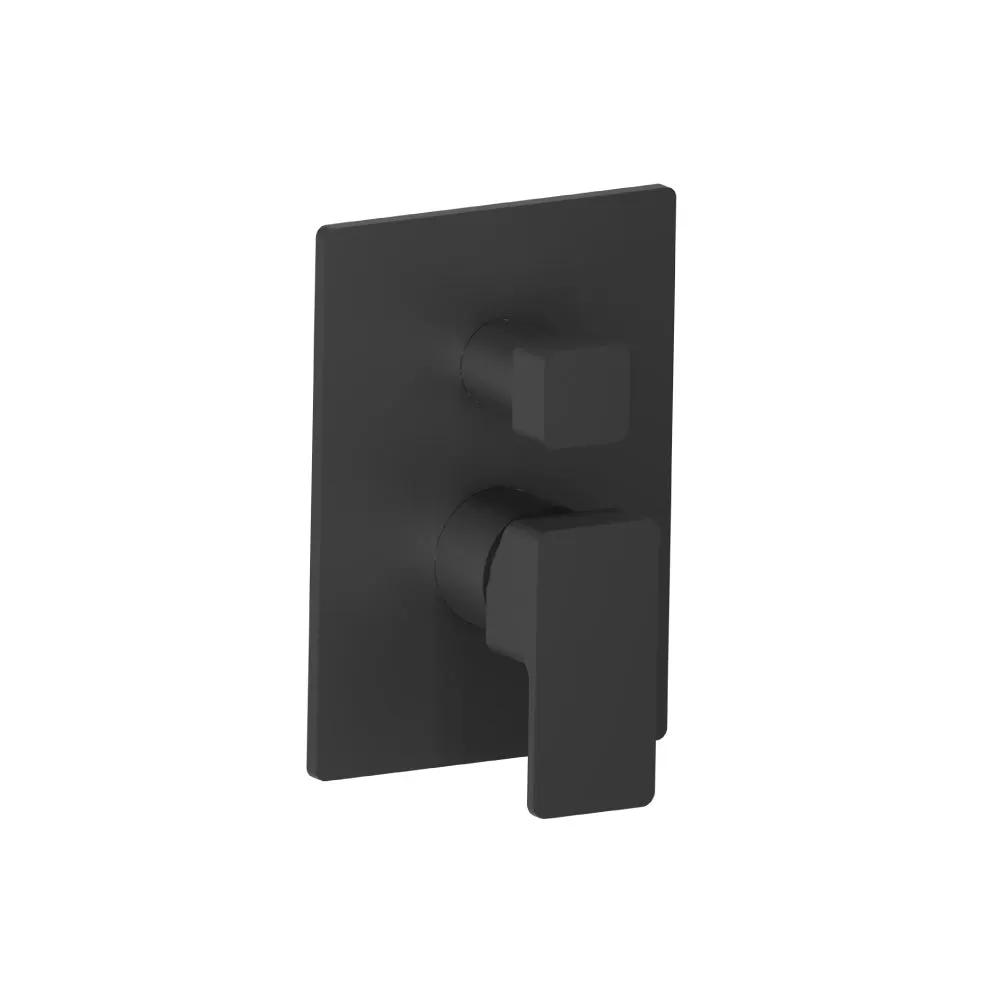

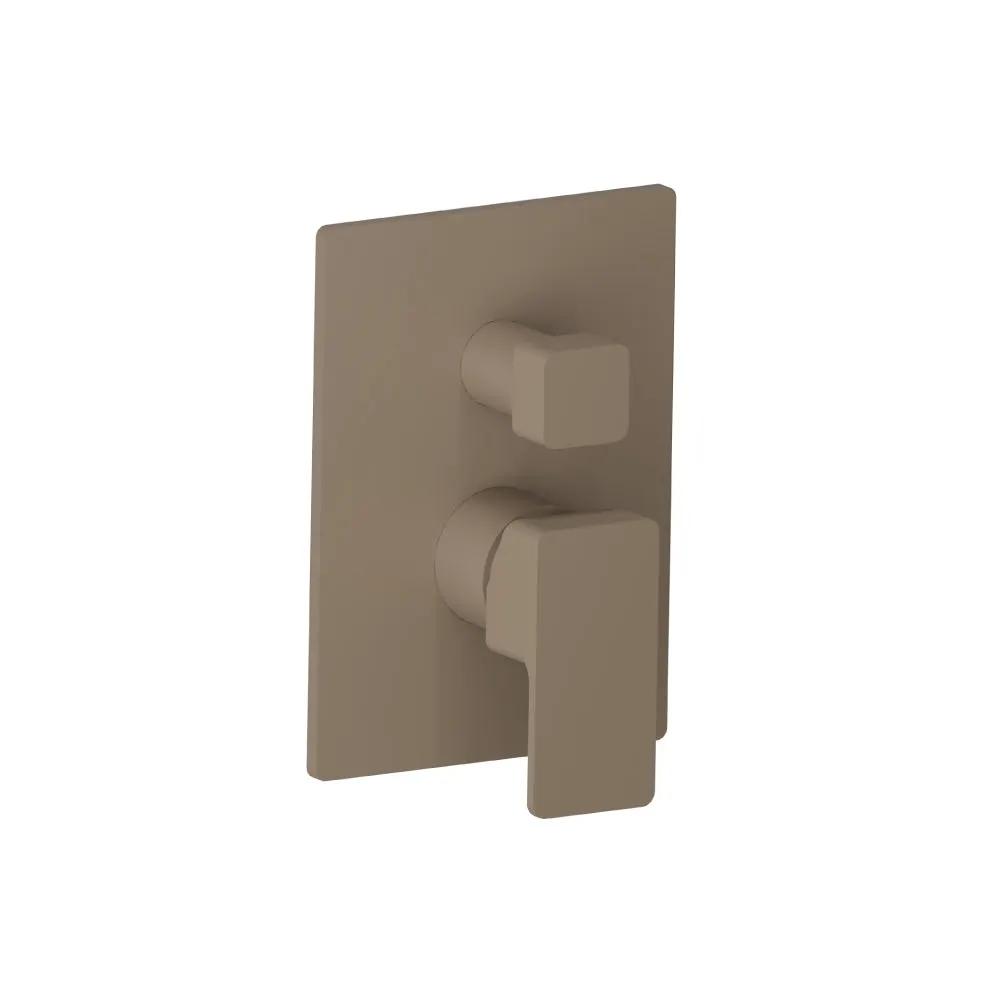

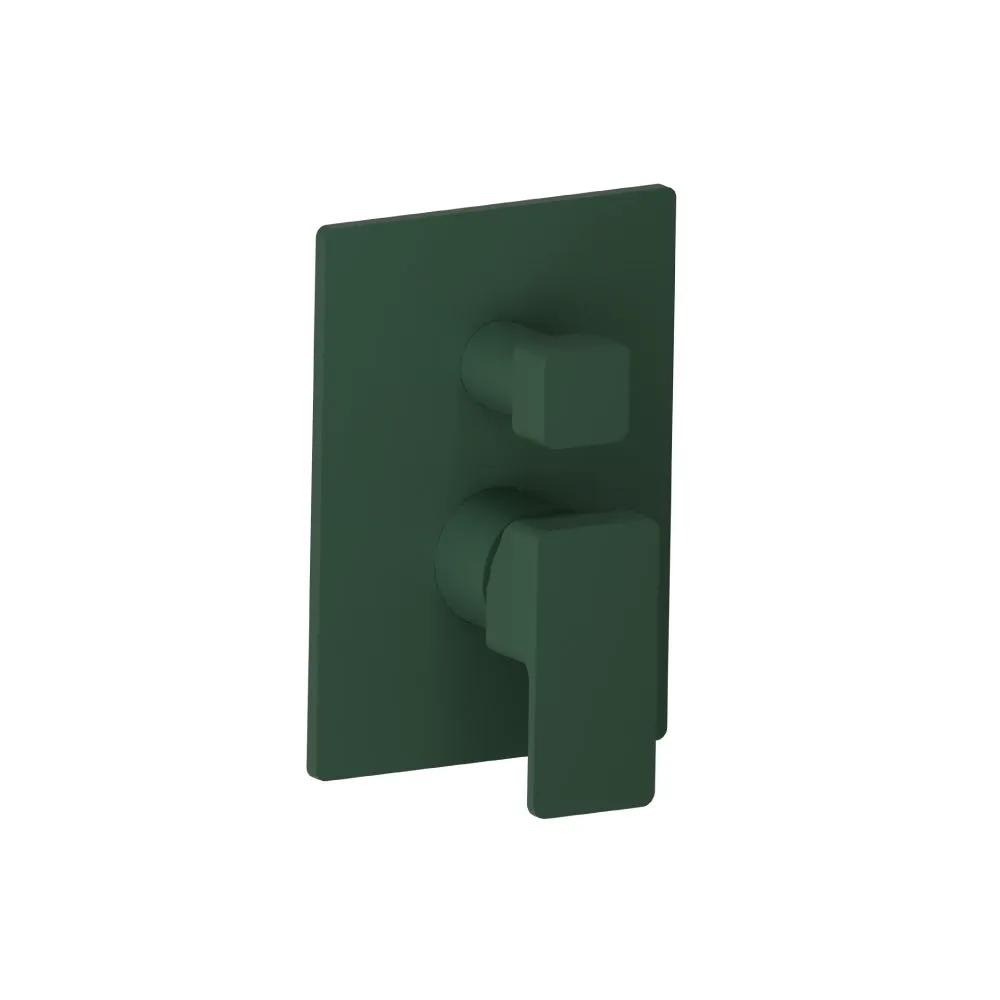

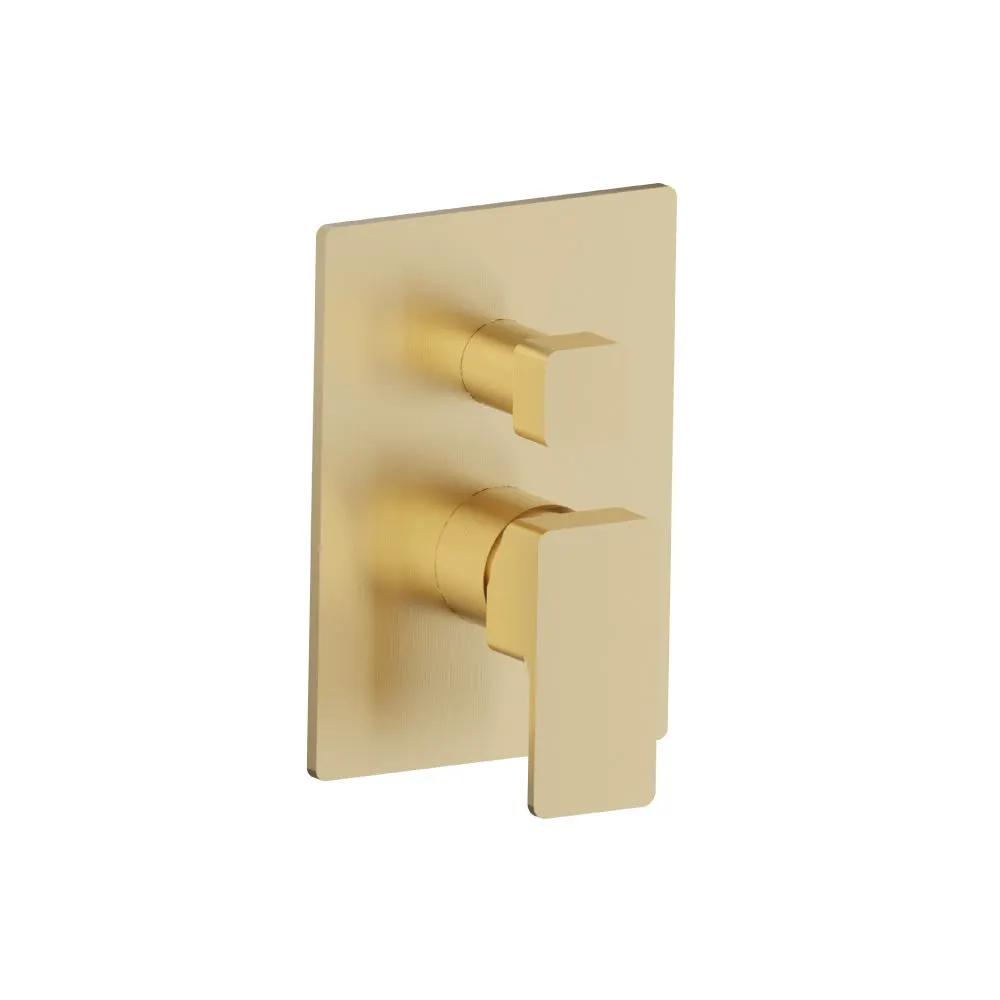

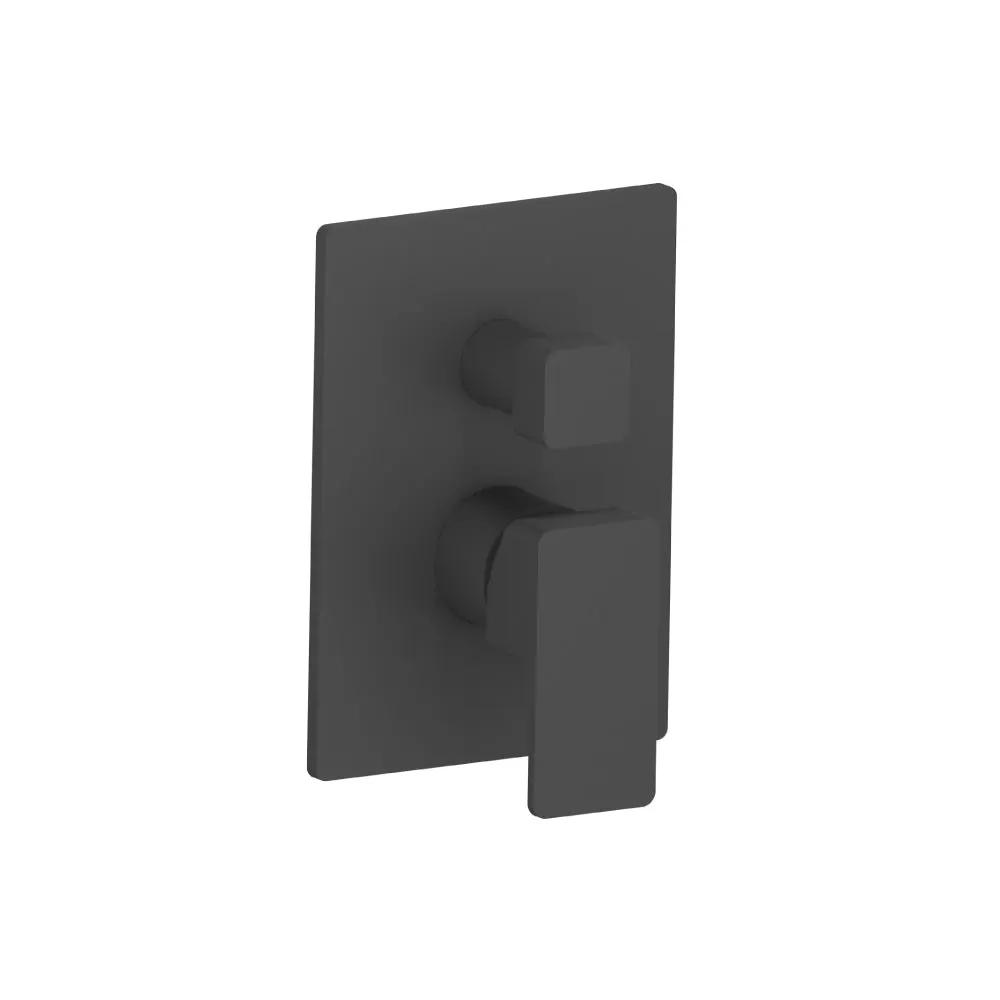

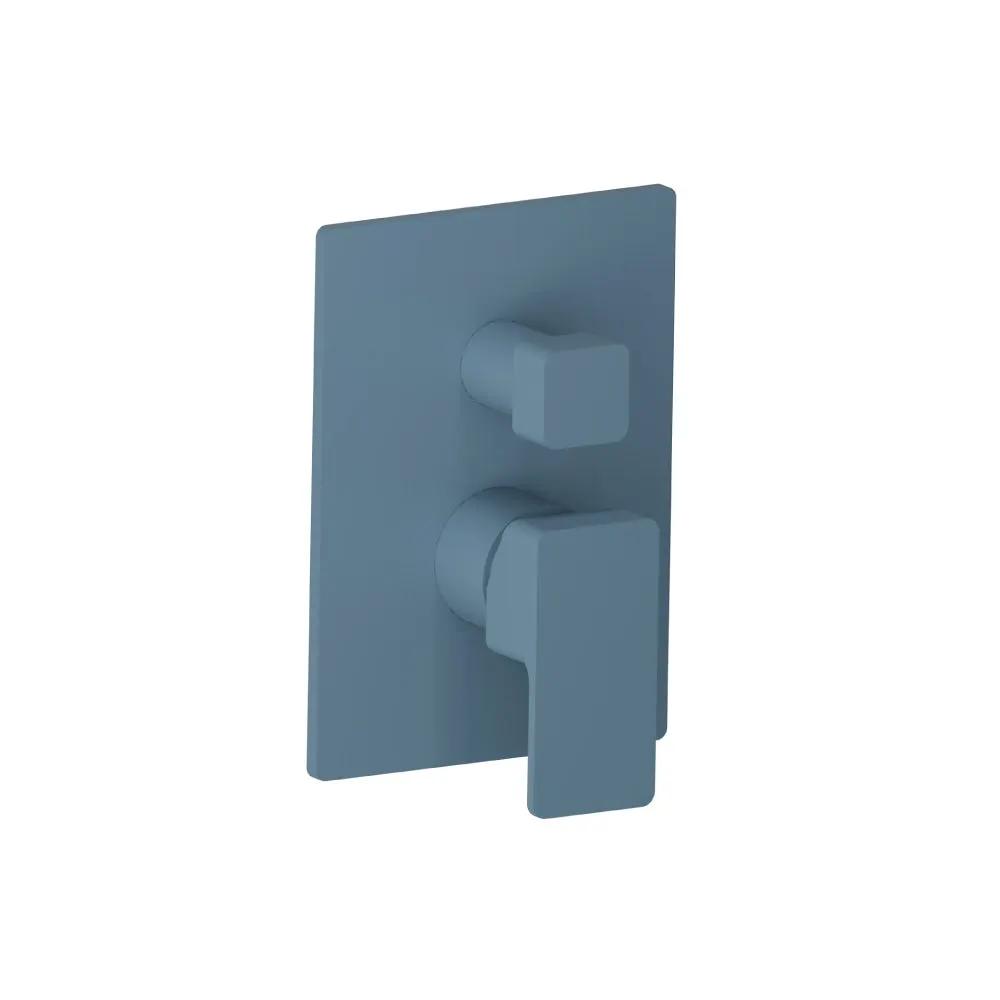

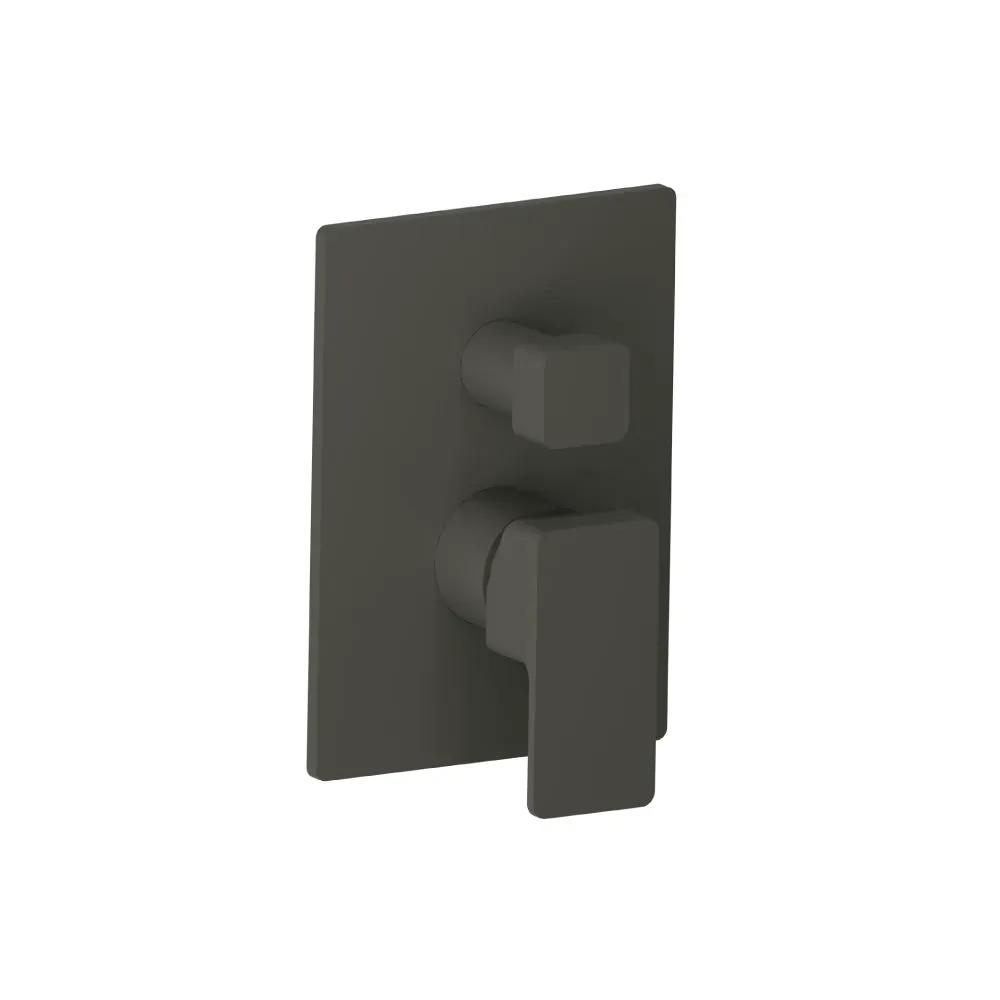

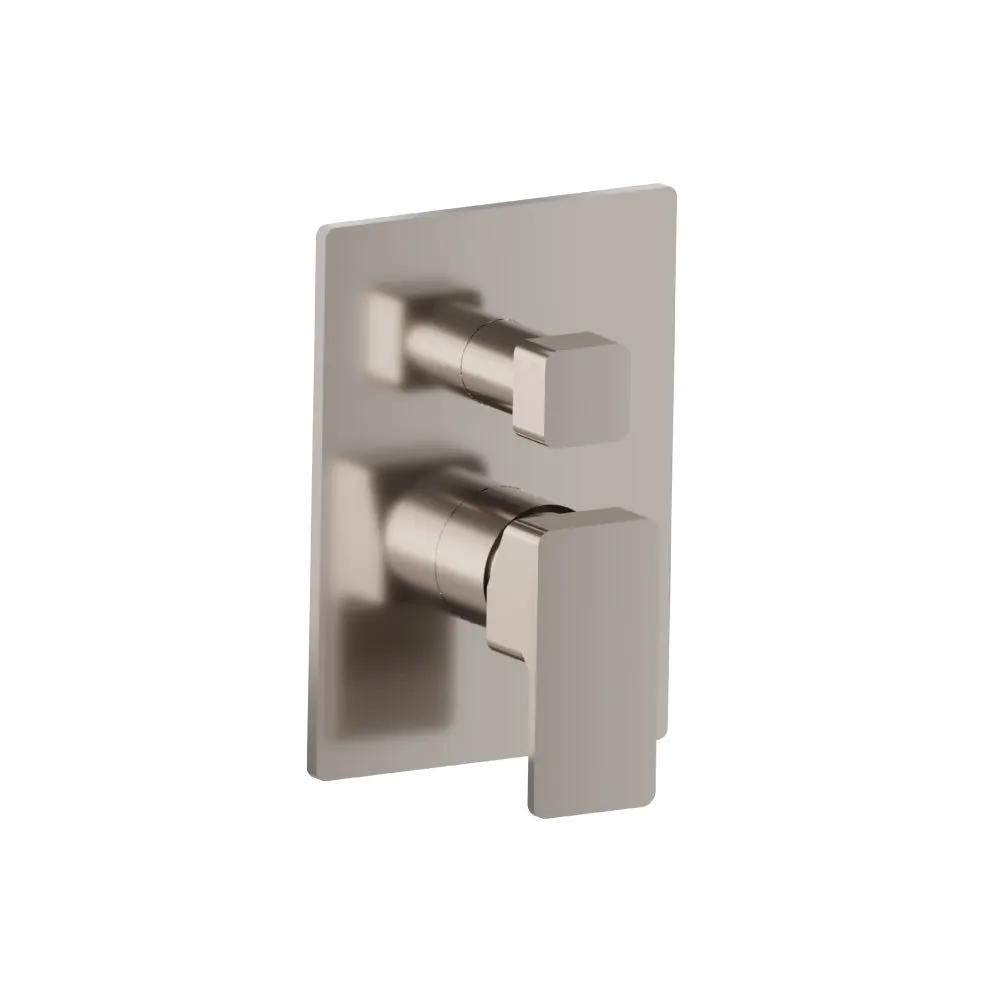

Flusso Serie 196 Tub / Shower Trim with Pressure Balance Valve - 2-Output

Focal Point Hardware is an authorized Flusso retailer!

Discover the Flusso Serie 196 Tub / Shower Trim with Pressure Balance Valve - 2-Output, a precise, luxury-grade trim system that blends reliable performance with elegant design. This 2-output diverter offers balanced water across two outputs, with a 5.5 GPM flow at 60 PSI, and a ½" NPT connection. Ideal for modern baths.

Flusso is known for high‑end bath fixtures that combine robust engineering with timeless styling. As a trusted manufacturer of pressure balance valves and multi-output diverters, Flusso delivers dependable performance, precise temperature control, corrosion resistance, and durable solid brass construction that stands up to daily use in luxury bathrooms and showers.

Features and Specifications

• PBV1005A – Pressure Balance valve with integrated 2-output diverter
• ½” NPT male connection with two inputs for hot/cold water and two output ports.
• Flow rate: 5.5 GPM @ 60 PSI
• Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
• Handle Operation - The volume and temperature of water is controlled by the lower handle. Lift the lower handle to control the volume and as the handle is moved between left and right, the temperature changes. Move it right for cold and left for hot water.
• The diverter handle on the top helps in directing the flow from the two outputs of the valve. When diverter handle points left, the water flows through the lower output. When diverter handle points right, the top output is activated for water flow.
• Cut Out Dimensions - The cut out in wall should be 5.43” x 4.76” Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
• Trims - The trim set for PBV1005A consists of a trim plate and handle knobs for both top and bottom cartridge. The trim plate has markings for hot/cold. Extension kits for both handles can be ordered separately in case the handles need to be extended for proper fit.
• Any *2100 or *2101 series trim can be used with this valve. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
• Solid Brass Construction Includes Pressure Balance Valve w/ Service Stops Lift Handle to control Volume. Turn left for Hot. Right for Cold. Extension Available - PBV.2100E

The Flusso Serie 196 Tub / Shower Trim with Pressure Balance Valve - 2-Output delivers precise temperature control and durable brass construction, reflecting Flusso's commitment to luxury, reliability, and enduring performance in high-end bathrooms.
