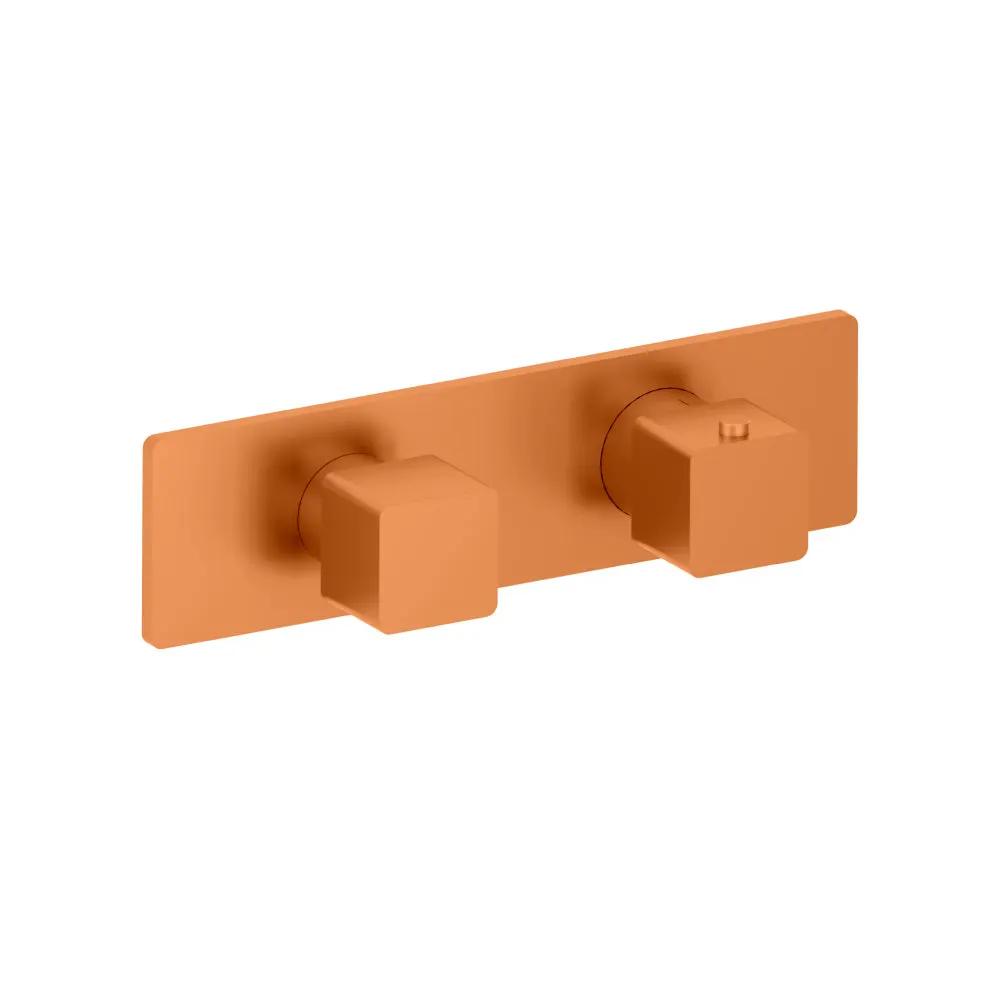

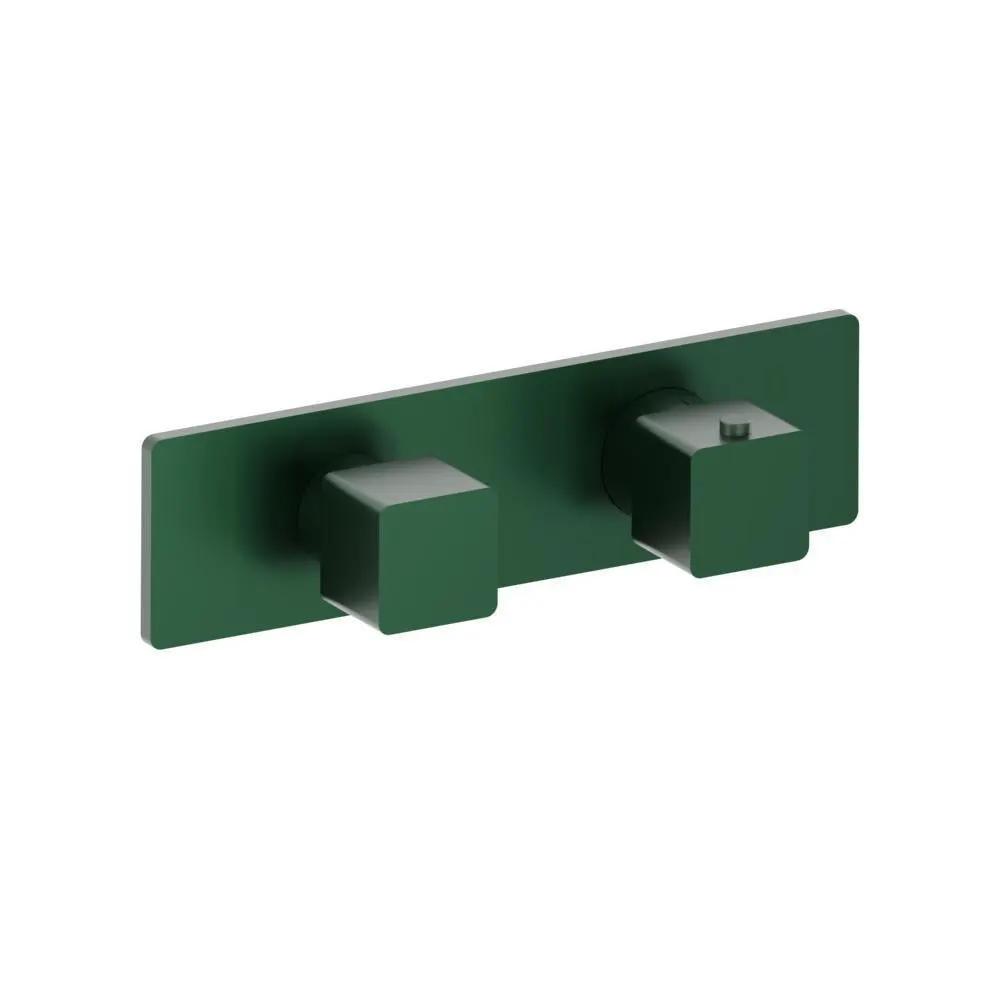

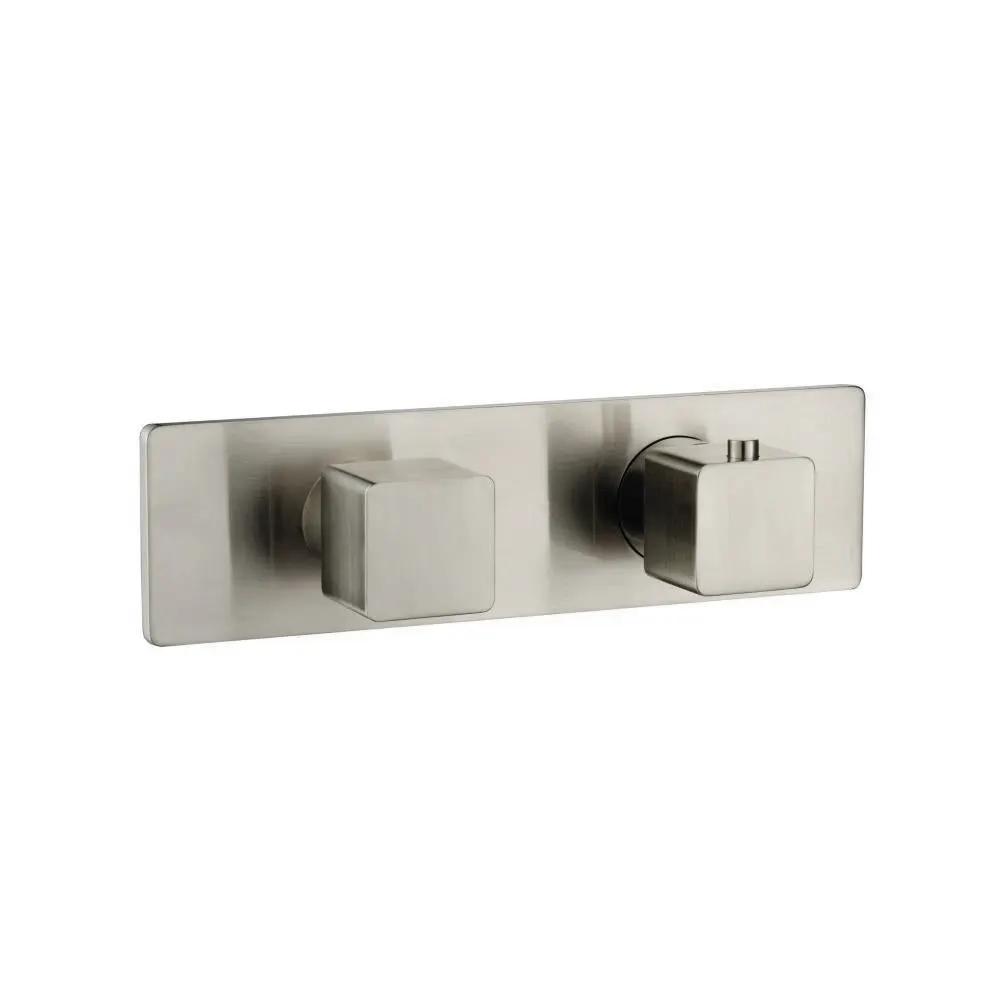

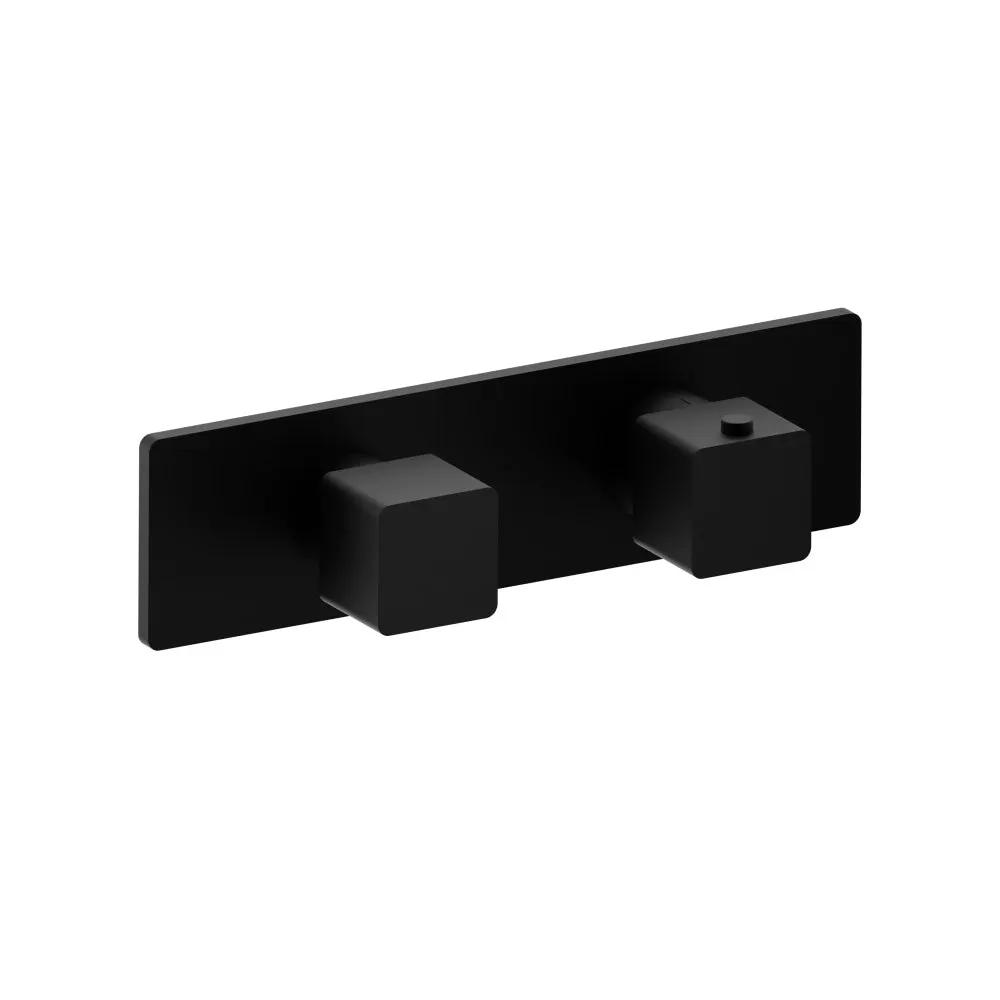

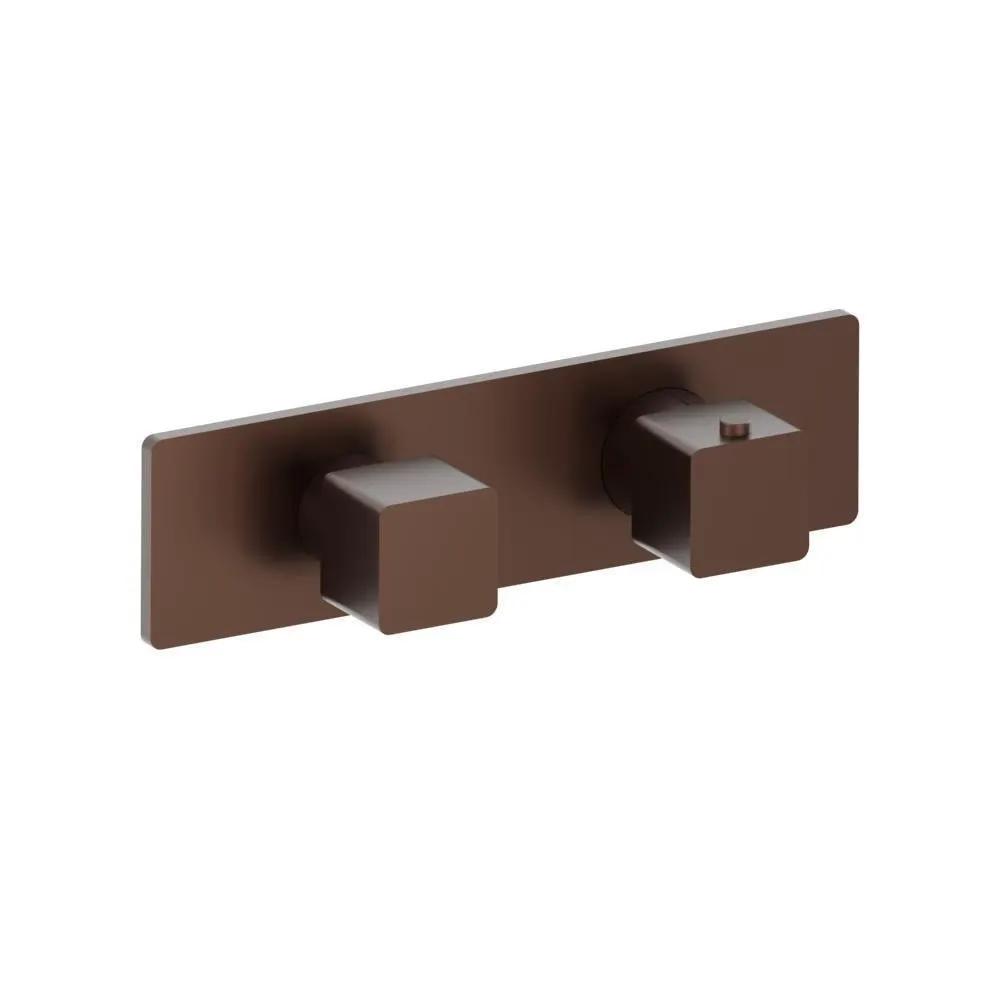

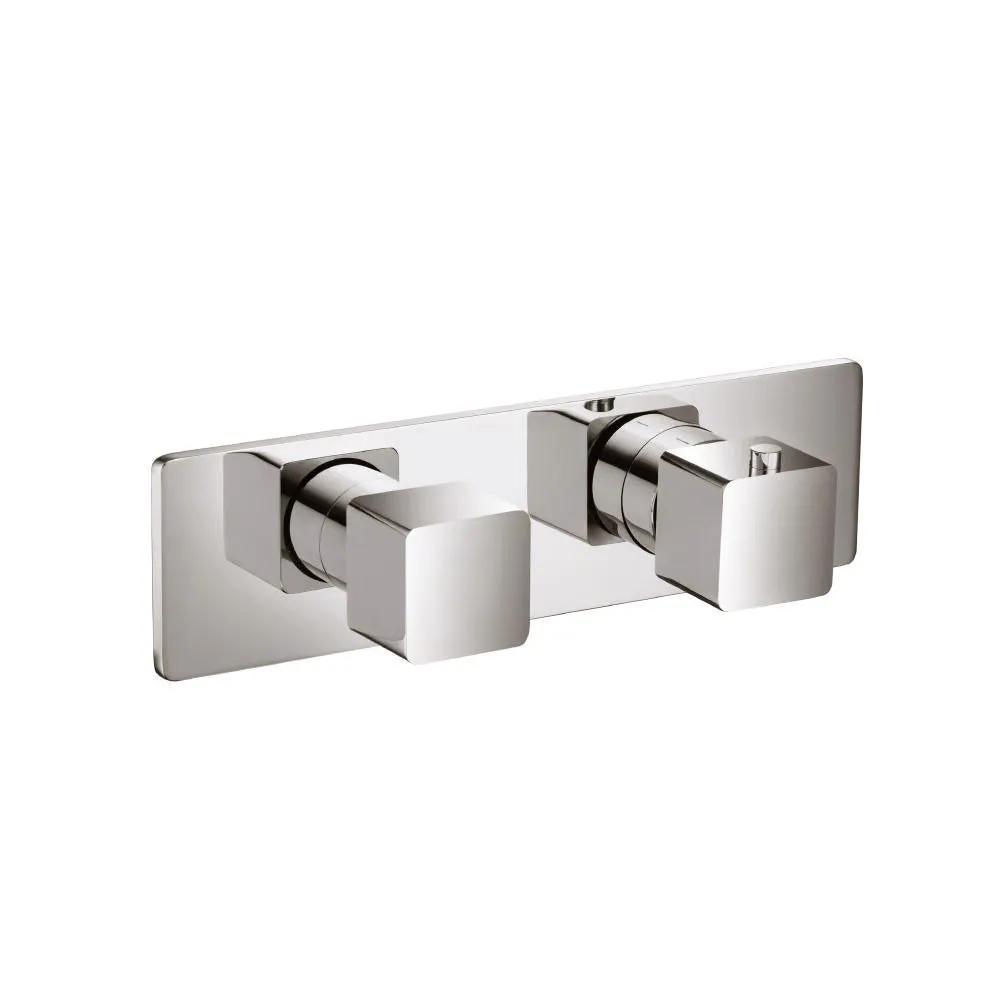

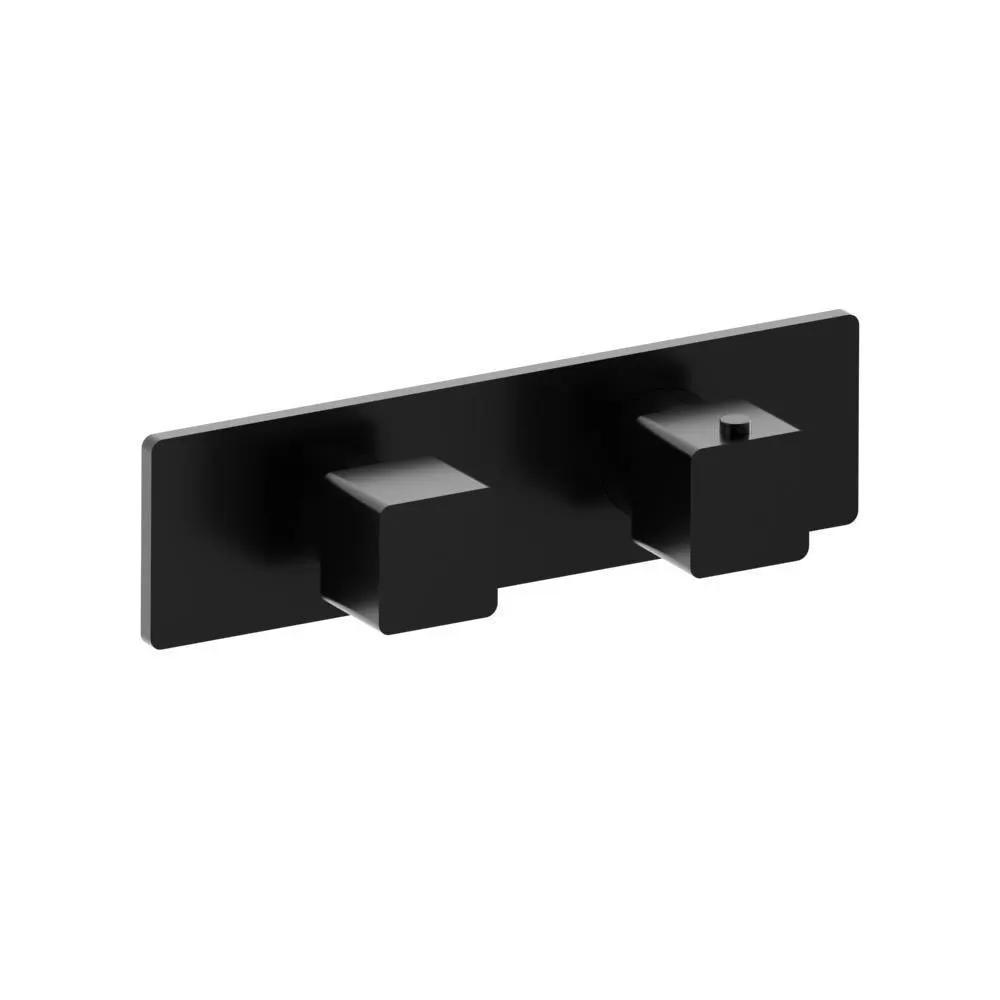

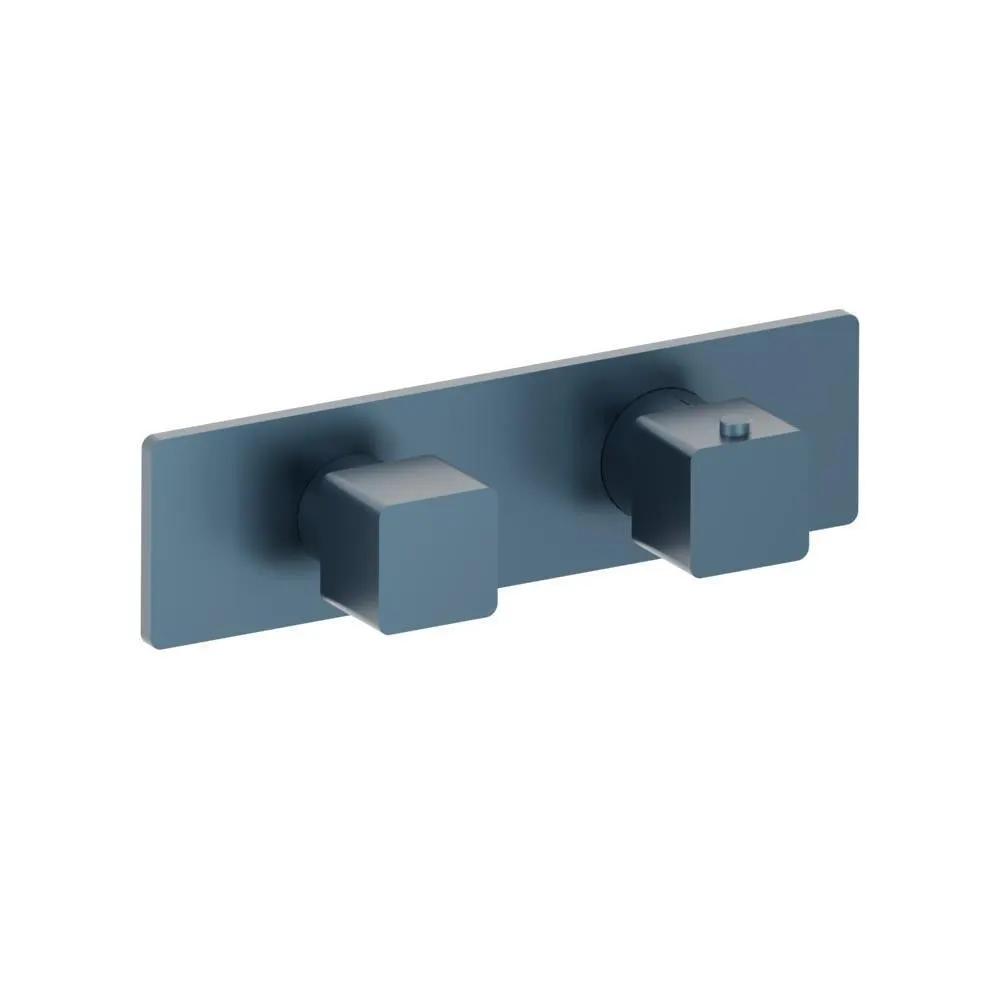

Flusso Serie 196 3/4" Horizontal Thermostatic Shower Valve / Trim - 1 Ouptut
Product details
Focal Point Hardware is an authorized Flusso retailer!
Introducing the Flusso Serie 196 3/4" Horizontal Thermostatic Shower Valve / Trim - 1 Ouptut, a precision-engineered fixture that blends safety with modern luxury. This thermostatic valve features 3/4? NPT connections and has one water output, while the right handle sets temperature and the left controls volume. Horizontal or vertical installation expands compatibility across showers.
Flusso is renowned for precision-engineered shower valves and premium brass fixtures that blend durability with timeless luxury. The manufacturer emphasizes safety, reliable temperature control, and innovative installation options, making the Flusso Serie 196 line a trusted choice for discerning homeowners and professional installers seeking lasting performance and refined, world-class design.
Features and Specifications
- 3/4? NPT connections
- one water output
- The right handle sets the temperature.
- The left handle controls water volume.
- HORIZONTAL OR VERTICAL INSTALLATION – The TVH.2693 can be installed horizontally or vertically.
- SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
- HANDLE OPERATION – The right handle is used to control the temperature of water flowing through the outlet ports. The left handle is used to turn water on and off and can control the volume of water from full flow to a trickle.
- ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
- VALVE INSTALLATION -As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77? and 3.44? inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
- CUT OUT DIMENSIONS – The cut out in wall should be 7.89? x 1.89? Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
- TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- Solid Brass Construction
- Includes Thermostatic Valve - TVH.2693 With Integral Service Stops
- Single Output Port Extensions Available - TVH.4101E**
Flusso, renowned for quality, reliability, and luxury, delivers the Flusso Serie 196 3/4" Horizontal Thermostatic Shower Valve / Trim - 1 Ouptut with precise temperature control and durable brass construction. A trusted choice for elevated, long-lasting shower installations.
