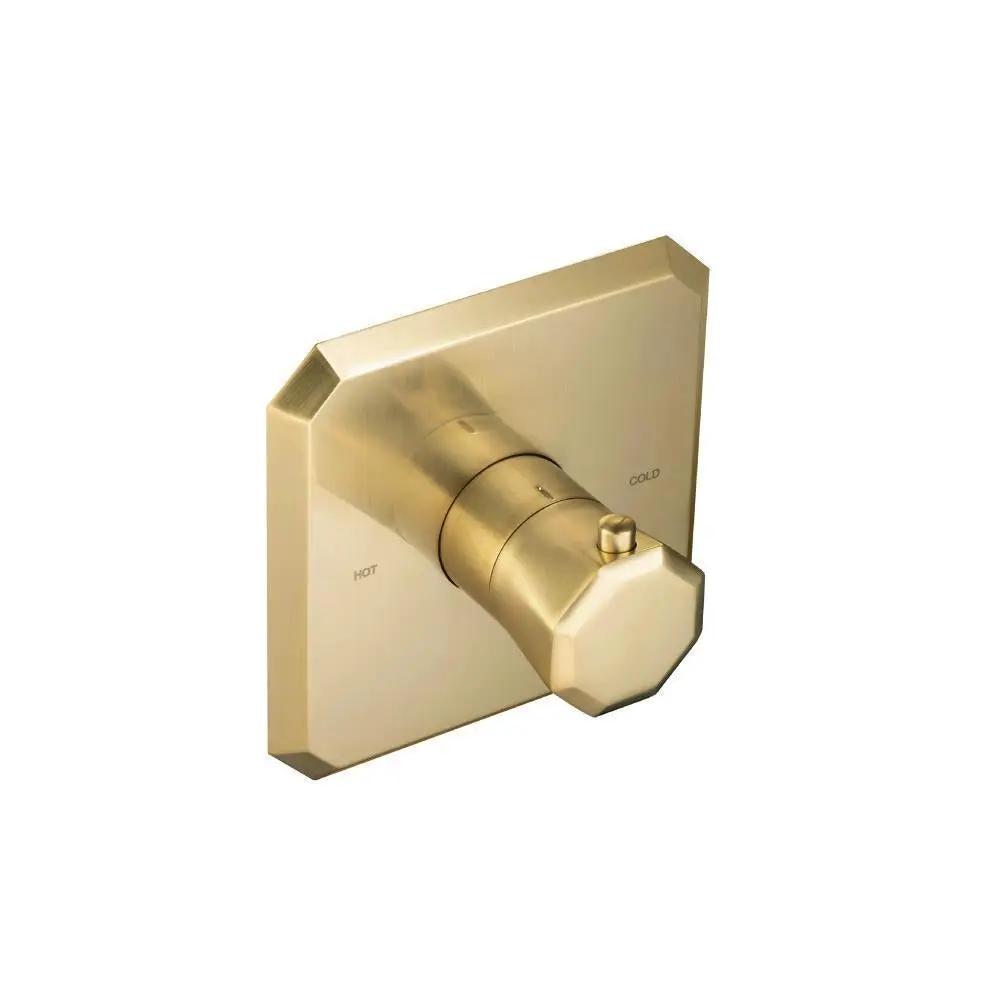

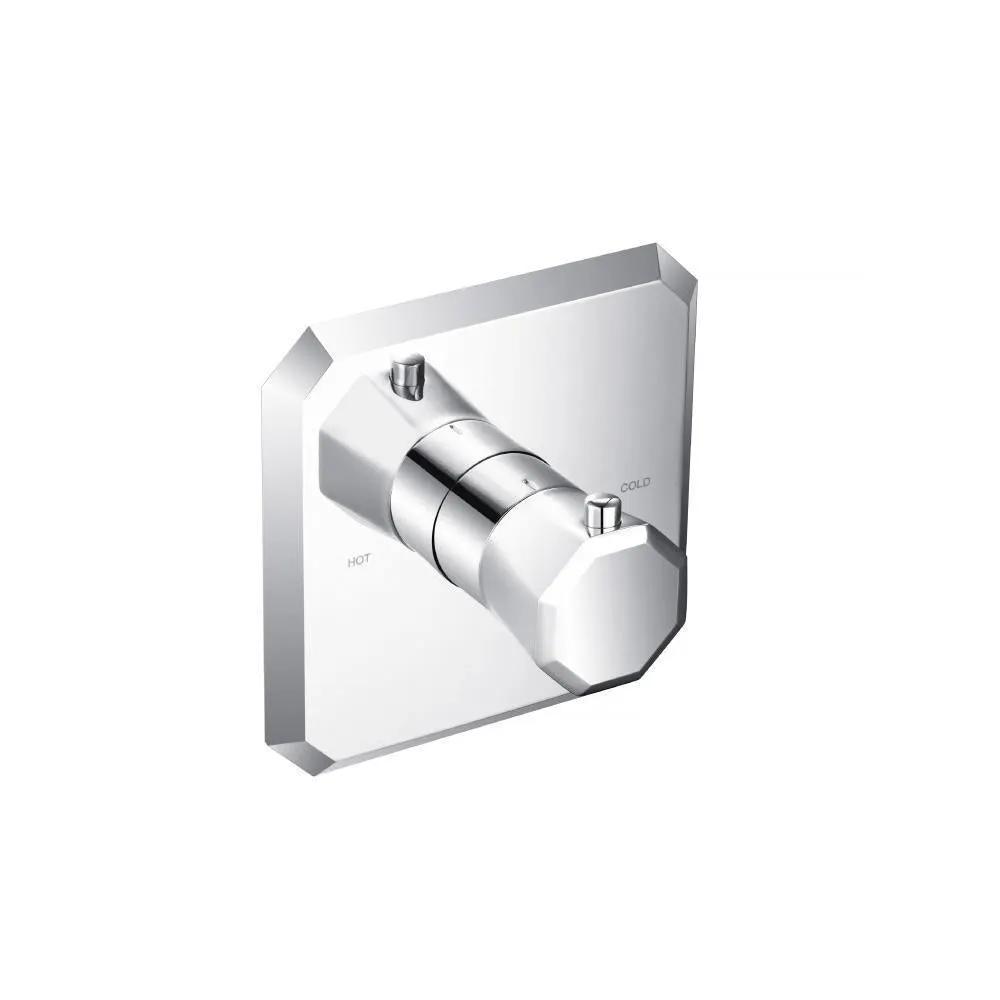

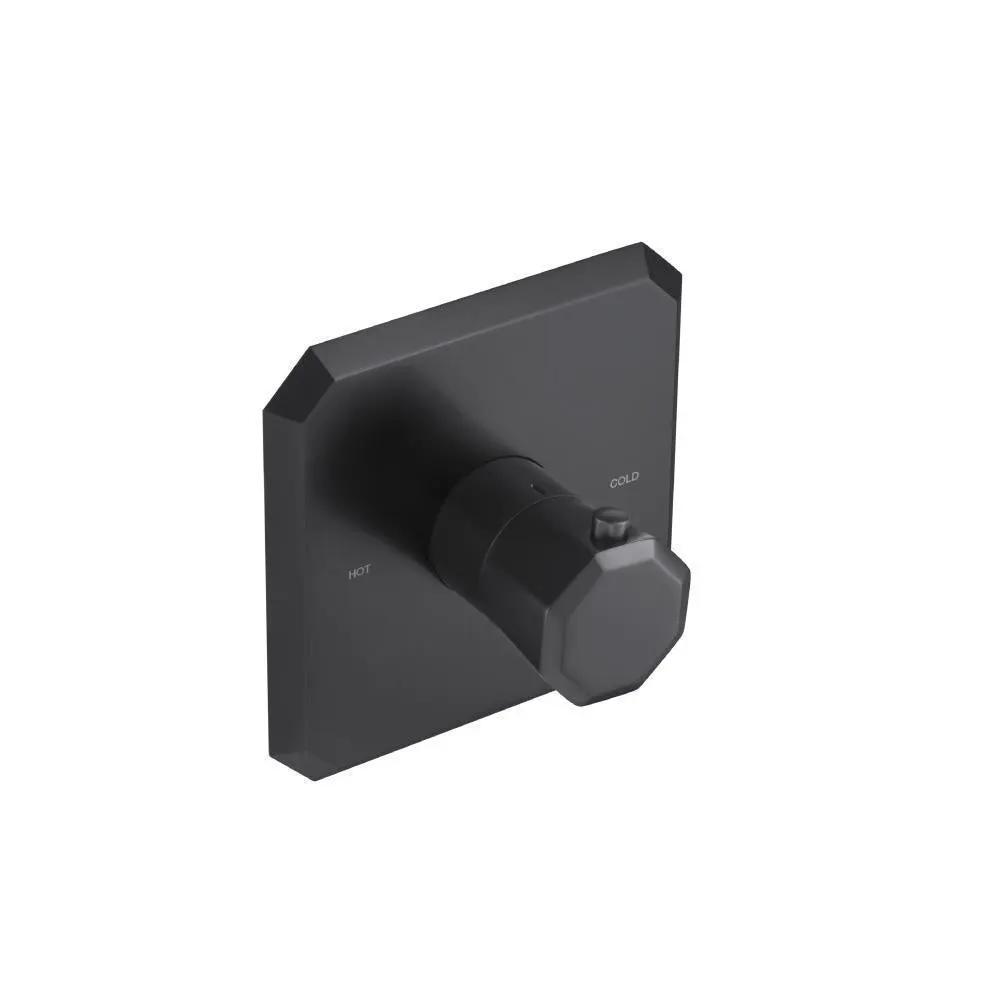

Flusso Serie 230 3/4" Thermostatic Valve with Trim delivers precise temperature control and a sleek, durable brass valve and trim kit for premium showers. With dual inlets, integrated safety stops, and anti-scald features, this 3/4-inch thermostatic valve delivers reliable comfort, easy temperature adjustment, and a compatible trim plate for a clean, modern look from Flusso.
Flusso is renowned for precision-engineered thermostatic valves that combine rugged brass construction with elegant trim systems, delivering reliable temperature control and long-lasting performance. The Flusso Serie 230 family emphasizes durable materials, exact calibration, and broad trim compatibility to provide luxurious showers that perform consistently under everyday use and varying water pressures.
Features and Specifications
- TVH.4201 is a ¾” Thermostatic valve with NPT female connections.
- It has two inlets with integral stop kits and single output.
- The valve has a flow rate of 13.0 GPM @ 60 PSI.
- The TVH.4201 does not have water turn off capability and thus must be used with a volume control or diverter valve.
- Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
- Handle Operation - The handle is used to control temperature of water flowing through the outlet. This handle does not control the volume of water flowing through the valve.
- As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the surface of finished tile which should be between 2.77” and 3.44”.
- Also, the valve must be installed vertical and not at an angle.
- In case, the tile is thicker, or wall is deep, extensions are used for elongating both handles of the valve to ensure proper setting of the trim (length of extensions for TVH.4201 valve is 1.40”).
- Extension kits comprises of thermostatic handle extension, which can be ordered separately in chrome, brushed nickel, or other special finishes.
- Cut Out Dimensions - The cut out in wall should be 2.67” X 4.44” which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
- Trims - The trims comprise of well finished trim plate and handle. The trim plate is used to cover the wall and has markings for HOT/COLD for temperature control handle.
- Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, temperature of the water is regulated.
- Covering this ring is the handle knob which has a push button on the side. To adjust the water temperature, one needs to press this button and move the handle to hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position – as an anti-scald prevention mechanism.
- The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required during installation) for it to function properly.
- Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- Solid Brass Valve & Trim Includes Thermostatic Valve - TVH.4201 3/4" NPT Female Connections
- Extensions Available - TVH.E185**
Combining solid brass construction with precise thermostatic control, the Flusso TVH.4201 with trim delivers reliable comfort and a luxurious shower experience, reflecting Flusso's reputation for quality, reliability, and refined engineering.
