Product details
Focal Point Hardware is an authorized Flusso retailer!

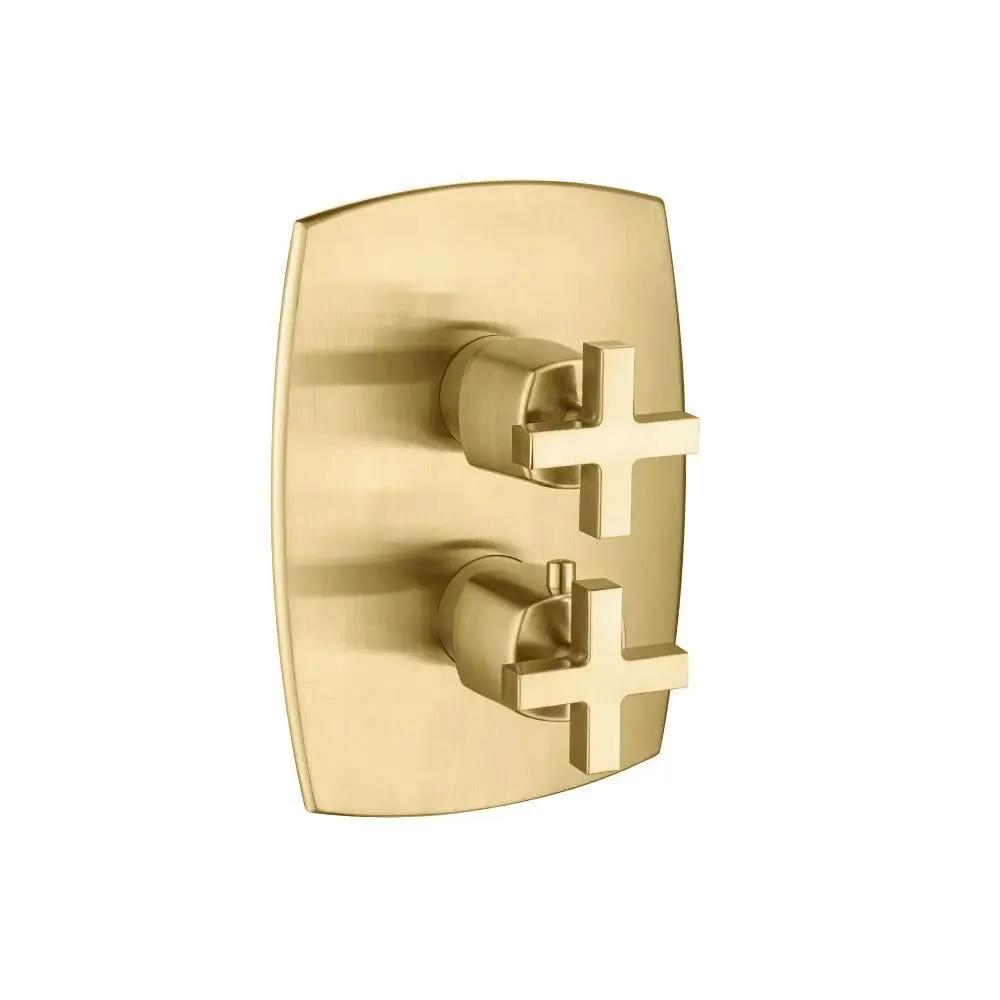

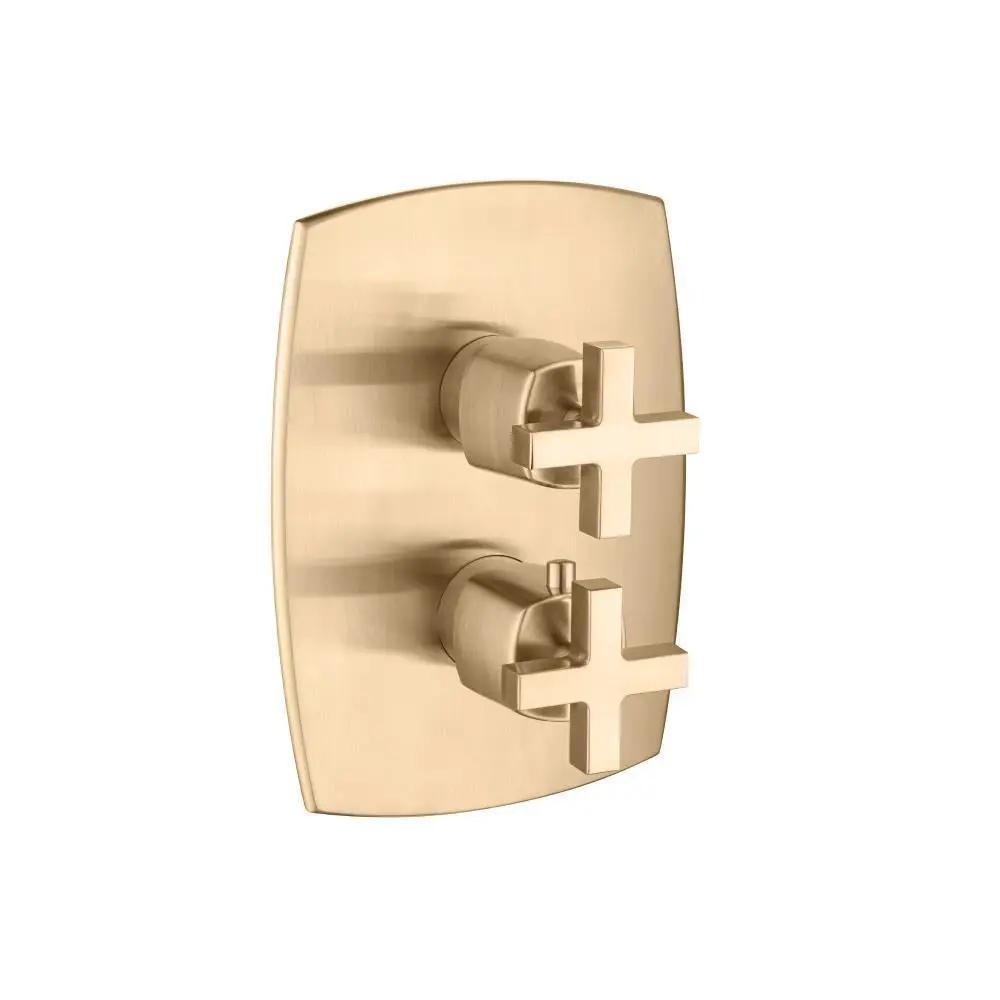

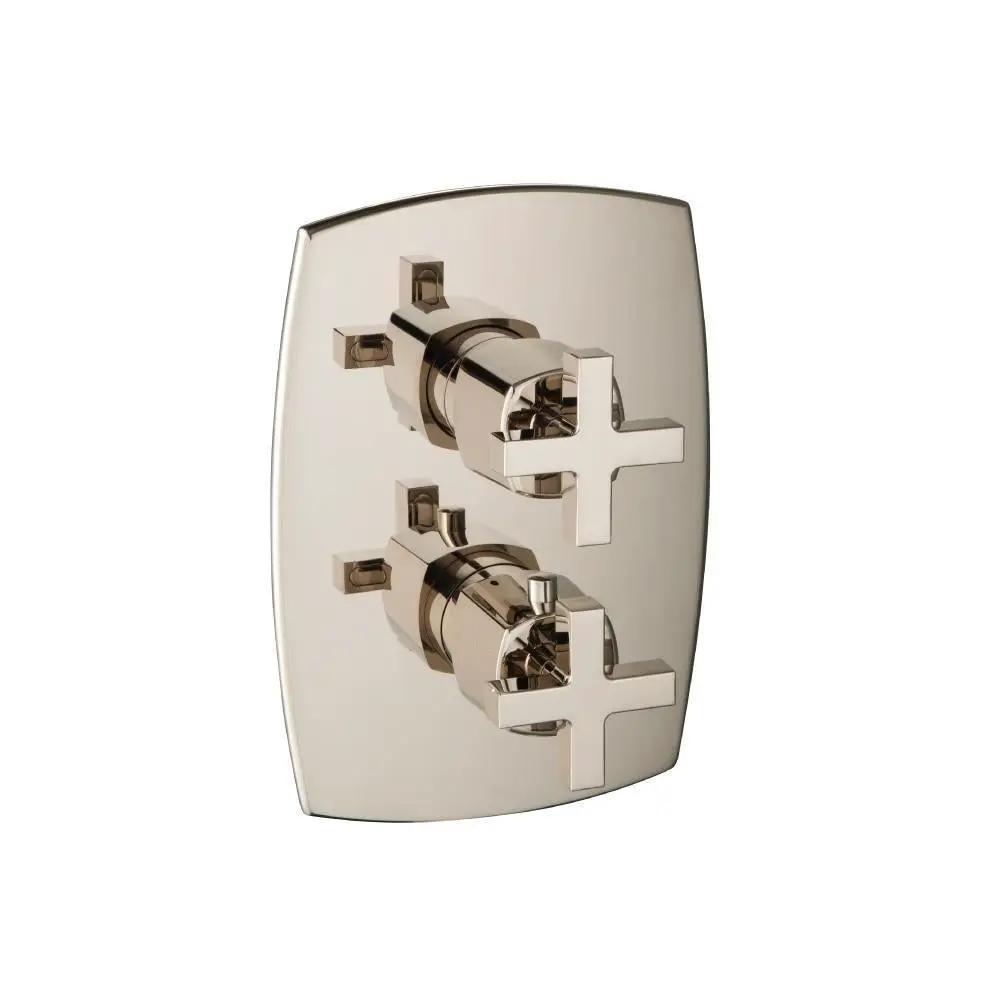

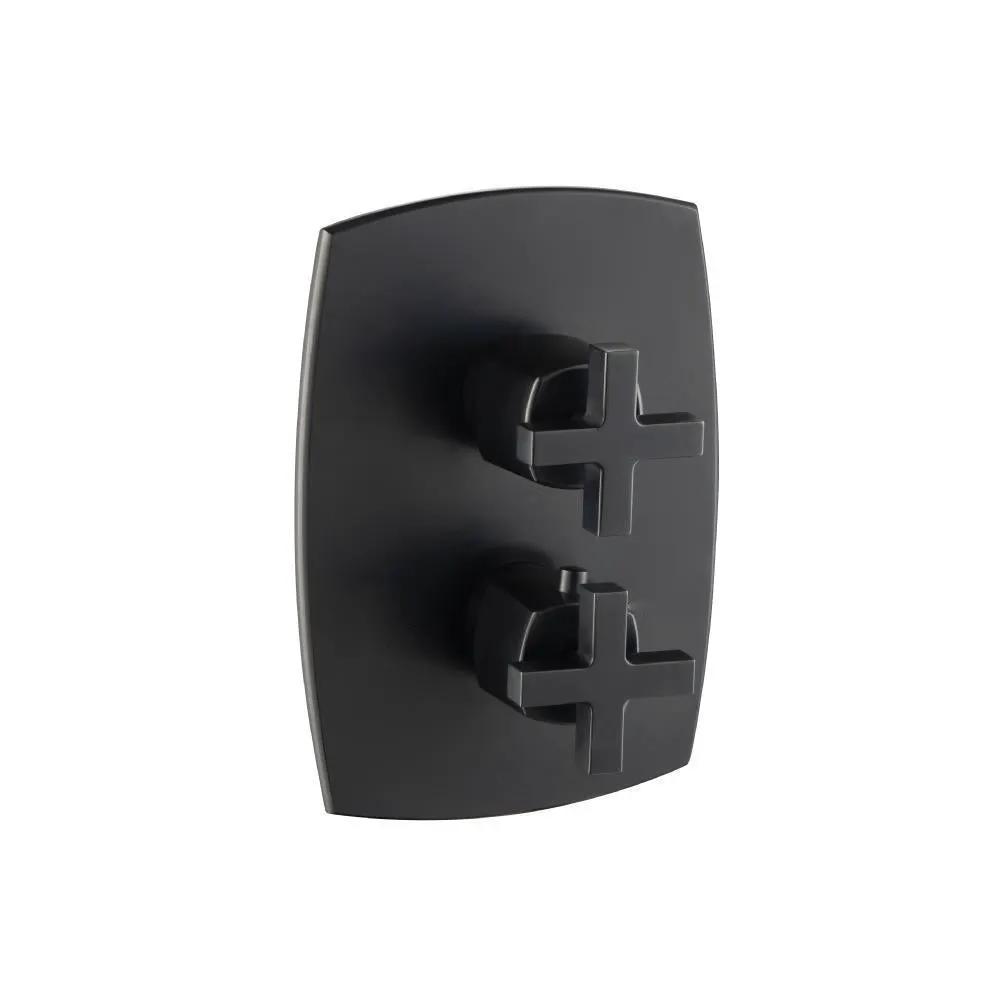

Discover the Flusso Serie 240 3/4" Thermostatic Shower Valve and Trim - 1 Output, a precision-engineered centerpiece for luxury bathrooms. This thermostatic valve delivers precise 3/4" NPT connections and a single output for dependable, balanced showers, with anti-scald protection, independent temperature and volume controls, and installation flexibility for seamless, spa-grade performance.
Flusso is renowned for precision German-engineered bath valves and durable brass construction, delivering reliable temperature control and luxurious performance. With a focus on safety and longevity, Flusso products fuse innovative thermostatic technology with timeless design, ensuring consistent shower temps, robust materials, and easy installation across modern bathrooms. This reputation underpins confidence in install-and-forget reliability for homeowners and professionals alike.
Features and Specifications
- TVH.4101 Thermostatic valve features 3/4? NPT connections and has 1 output port.
- The bottom handle sets the temperature, and the top handle controls the water volume.
- SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
- HANDLE OPERATION – The bottom handle is used to control the temperature of water flowing through the outlet. The top handle can control the volume of water from full flow to a trickle.
- ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a ruSBer mallet might be required) for it to function properly. Covering this ring is the handle knob which has a push-button on the side. To adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position, as an anti-scald prevention mechanism.
- VALVE INSTALLATION - As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77 and 3.44 inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
- CUT OUT DIMENSIONS – The cut out in wall should be 6.49 x 4.44 Inches which are properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
- TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- Solid Brass Construction Includes Thermostatic Valve - TVH.4101 With Integral Service Stops
- Single Output Port
- Extensions Available - TVH.4101E**
Experience spa-worthy showers with the Flusso Serie 240 3/4" Thermostatic Shower Valve and Trim - 1 Output, built by Flusso for lasting performance, precise temperature control, and elegant brass trim—backed by Flusso's commitment to quality, reliability, and luxury.
