Product details
Focal Point Hardware is an authorized Flusso retailer!

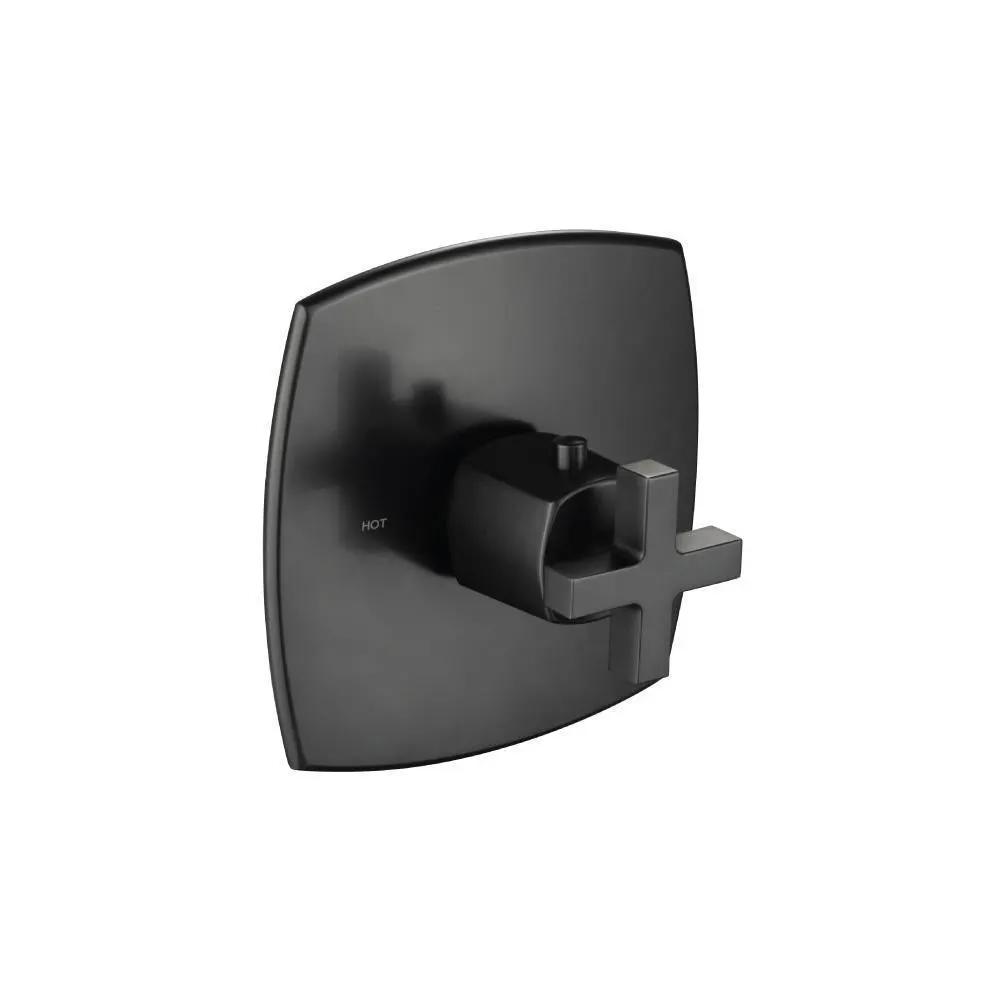

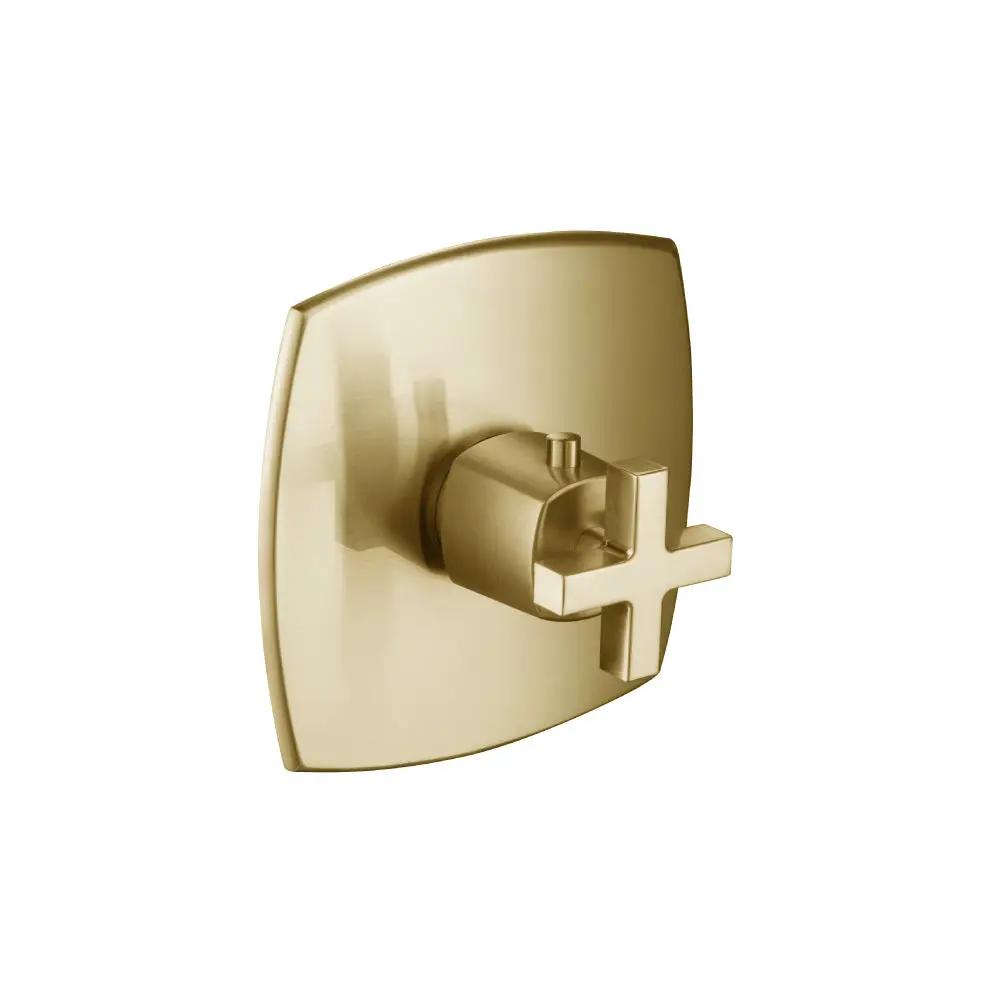

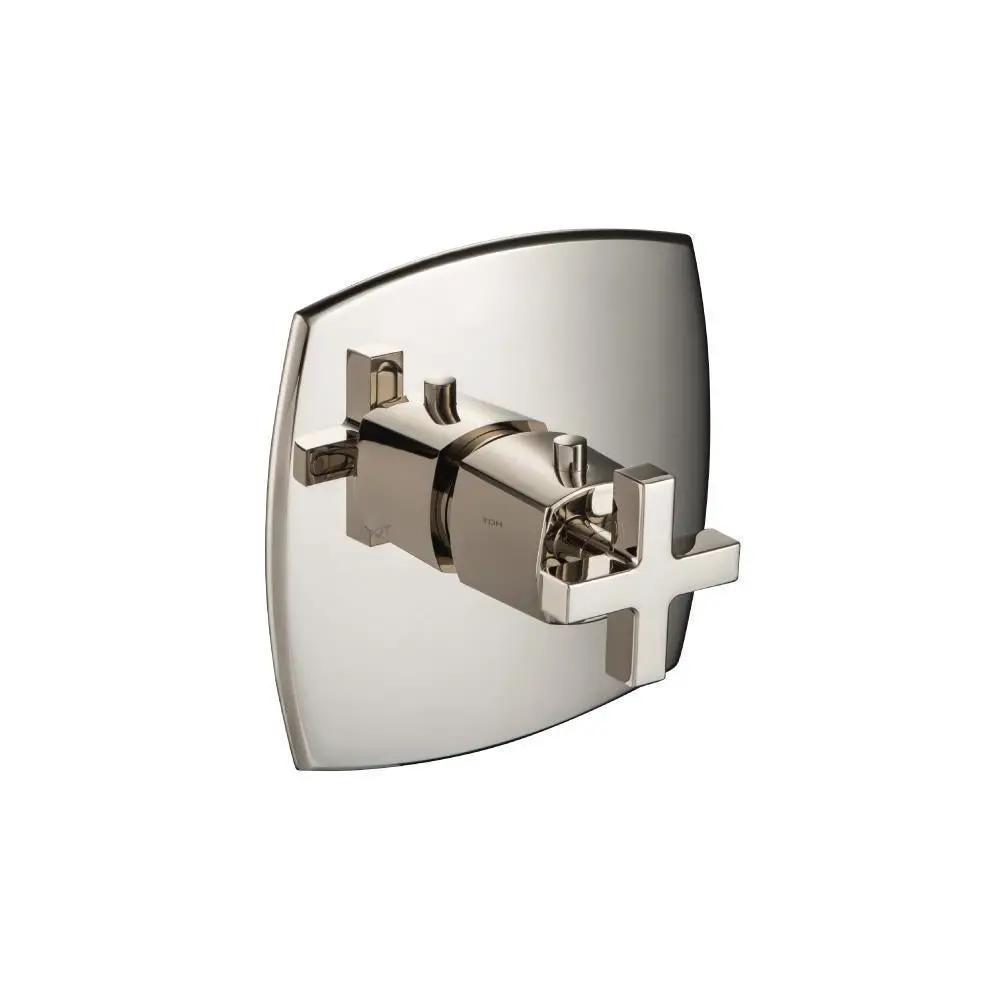

Experience precise shower control with the Flusso Serie 240 3/4" Thermostatic Valve with Trim. This valve delivers reliable temperature management, 13.0 GPM @ 60 PSI flow, two inlets with integral stop kits, and a single output for seamless installation with a volume control or diverter valve. Flusso’s Serie 240 pairs durability with stylish trim for luxury baths.
Flusso is renowned for craftsmanship in luxury bathroom fixtures, delivering precision thermostatic control and durable brass construction. The manufacturer emphasizes reliable temperature regulation, corrosion resistance, and easy installation in modern showers. With thoughtful design and rigorous manufacturing standards, Flusso products balance performance with refined aesthetics that inspire confident long-term use.
Features and Specifications
- TVH.4201 thermostatic valve with ¾" NPT female connections, two inlets with integral stop kits, and a single output
- Flow rate: 13.0 GPM @ 60 PSI
- Does not have water turn off capability and must be used with a volume control or diverter valve
- Supply stops: two safety stops at each water inlet to prevent water flow during installation and repairs
- Handle operation: handle controls water temperature; does not control water volume
- Installation distance: distance from back of valve to finished tile should be between 2.77" and 3.44"
- Orientation: valve must be installed vertical and not at an angle
- Extensions: length of extensions for TVH.4201 valve is 1.40"
- Extension kits: comprising thermostatic handle extension; can be ordered separately in chrome, brushed nickel, or other finishes (TVH.E185**)
- Cut-out dimensions: wall cut-out should be 2.67" x 4.44" and is properly covered by the trim plate
- Trims: trim plate covers the wall and has HOT/COLD markings for temperature control; anti-scald temperature stop ring sits above the control knob
- Anti-scald feature: temperature stop ring should be fitted tightly over the valve (tapping with a rubber mallet might be required)
- Temperature adjustment: press the side button and move the handle to HOT or COLD; without pressing, full HOT rotation is restricted
- Trims shape: depending upon the shower model, trims can be square or circular in shape
- Material: Solid Brass Valve & Trim
- Includes TVH.4201 3/4" NPT Female Connections; Extensions Available - TVH.E185**
Flusso Serie 240 3/4" Thermostatic Valve with Trim combines precise thermostatic control with luxurious brass construction and refined trim, delivering dependable comfort, precise temperature control, and enduring style for any premium bathroom spaces.
