Flusso Serie 240 3/4" Thermostatic Valve and Trim - 3 Way Diverter - 3 Outputs

Focal Point Hardware is an authorized Flusso retailer!

Discover the Flusso Serie 240 3/4" Thermostatic Valve and Trim - 3 Way Diverter - 3 Outputs, a premium solution for precise bath and shower control. The TVH.4301F delivers reliable thermostatic performance with three dedicated outputs, CAL-Green compliance, and a sleek trim kit that blends safety, comfort, and luxury in one elegant valve system designed for modern showers.

Flusso is renowned for innovative, precision-engineered plumbing fixtures that combine reliability with luxury aesthetics. As a trusted manufacturer, Flusso offers durable brass construction, precise thermostatic control, CAL-Green compliance, and compatibility with multiple cartridges to tailor performance. The Flusso Serie 240 line emphasizes contemporary design, durability, and install-friendly features for professional remodels.

Features and Specifications

• 3/4" female NPT connections
• 3 water output ports
• CAL-Green Compliance
• Solid brass construction
• Supply stops with two safety stops at each water inlet to stop water flow during installation and repairs
• Bottom handle controls water temperature; top handle diverts water flow between the three output ports
• Rough-in distance from the back of the valve to the finished tile should be between 2.77" and 3.44"
• Cut-out dimensions in wall should be 6.49" x 4.44"

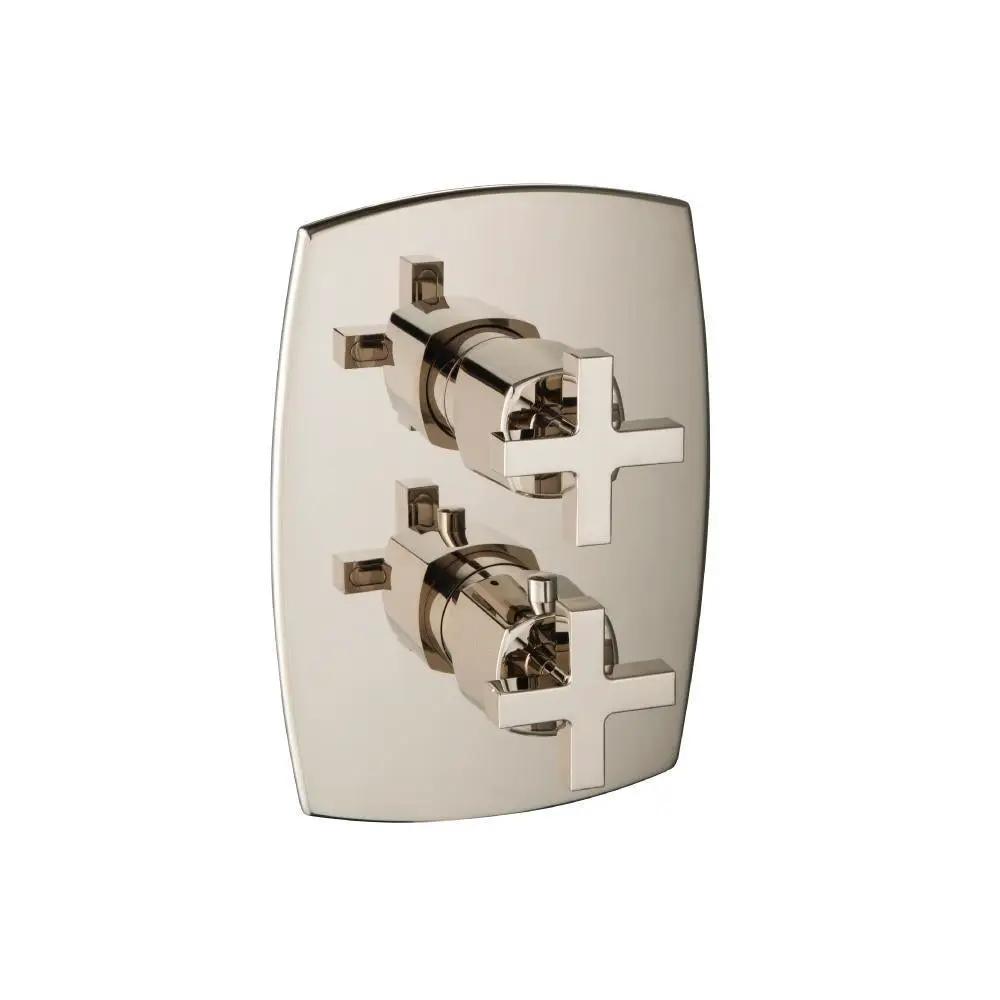

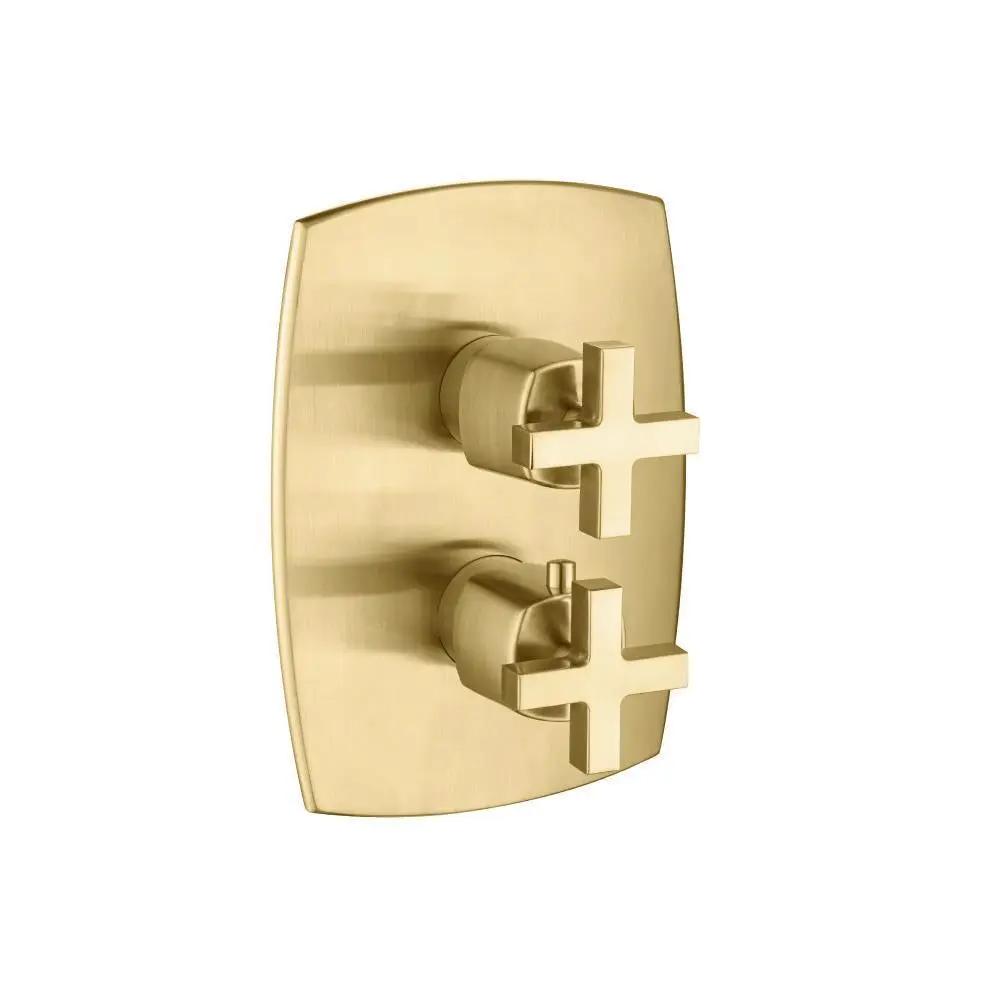

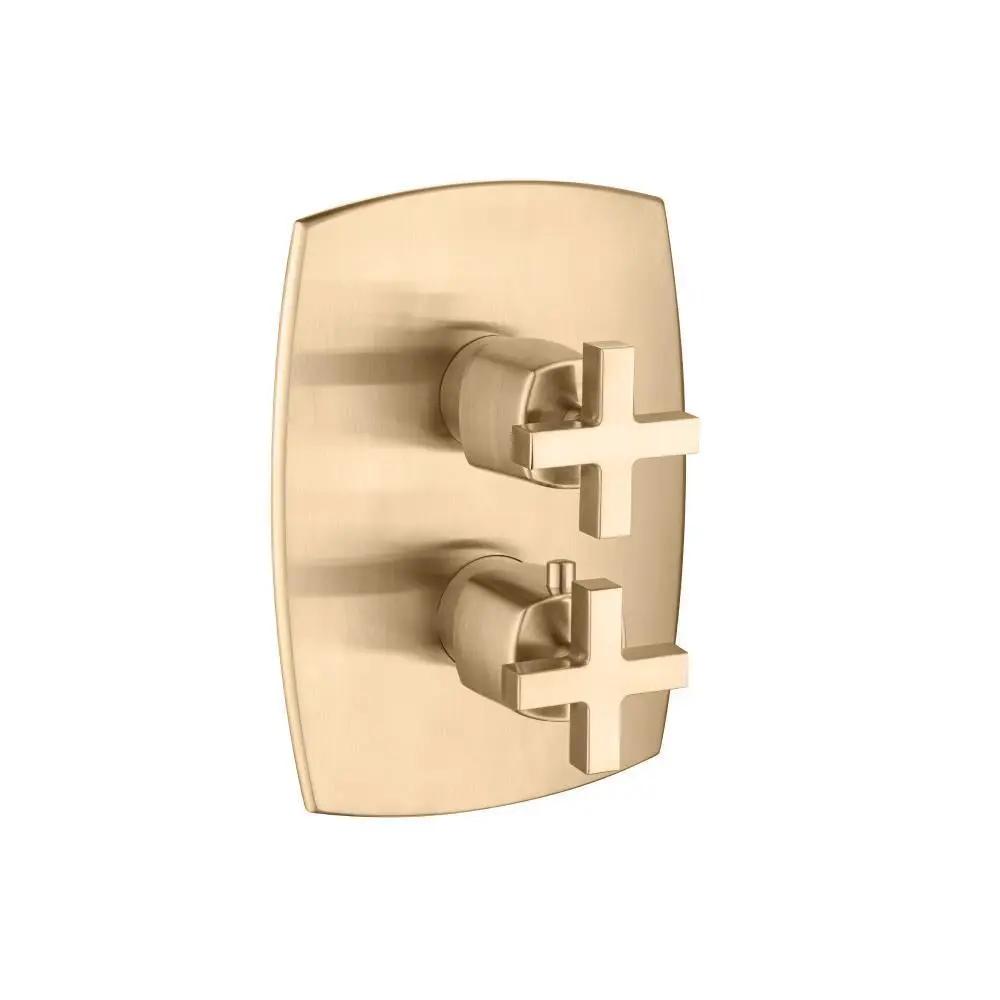

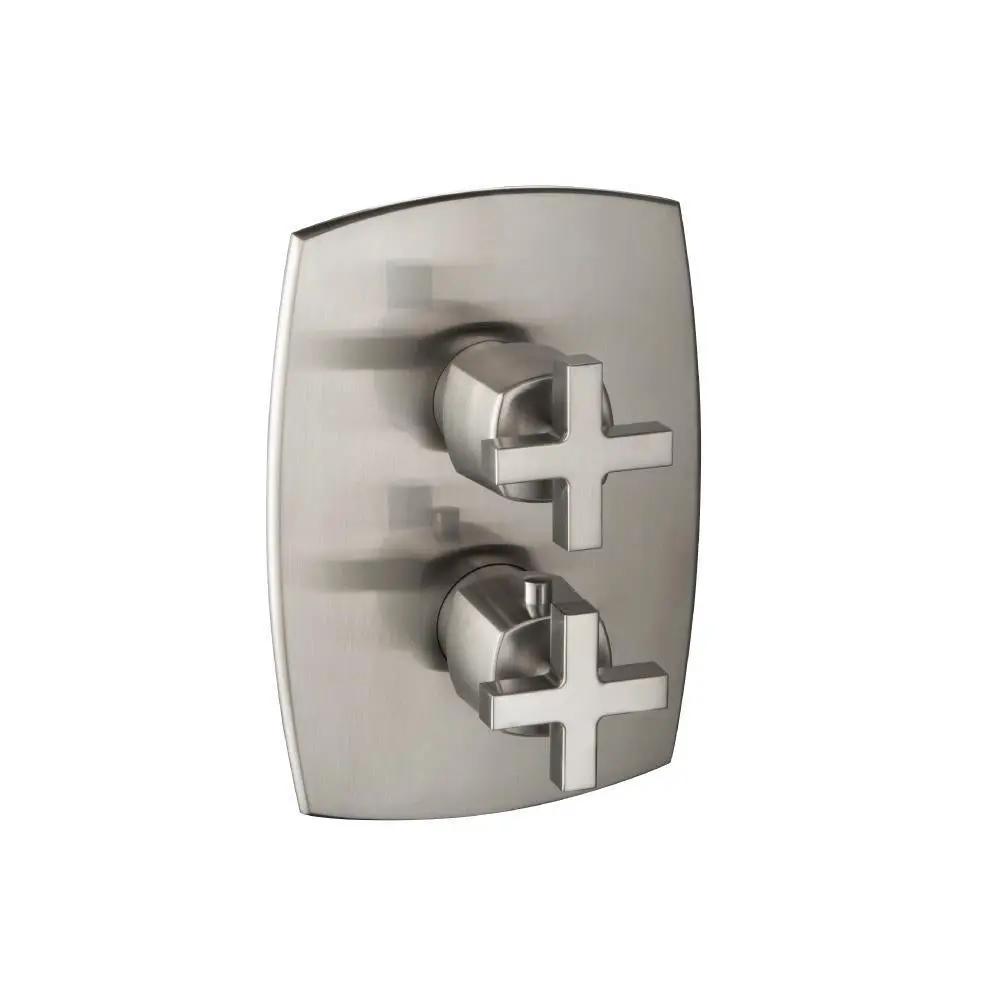

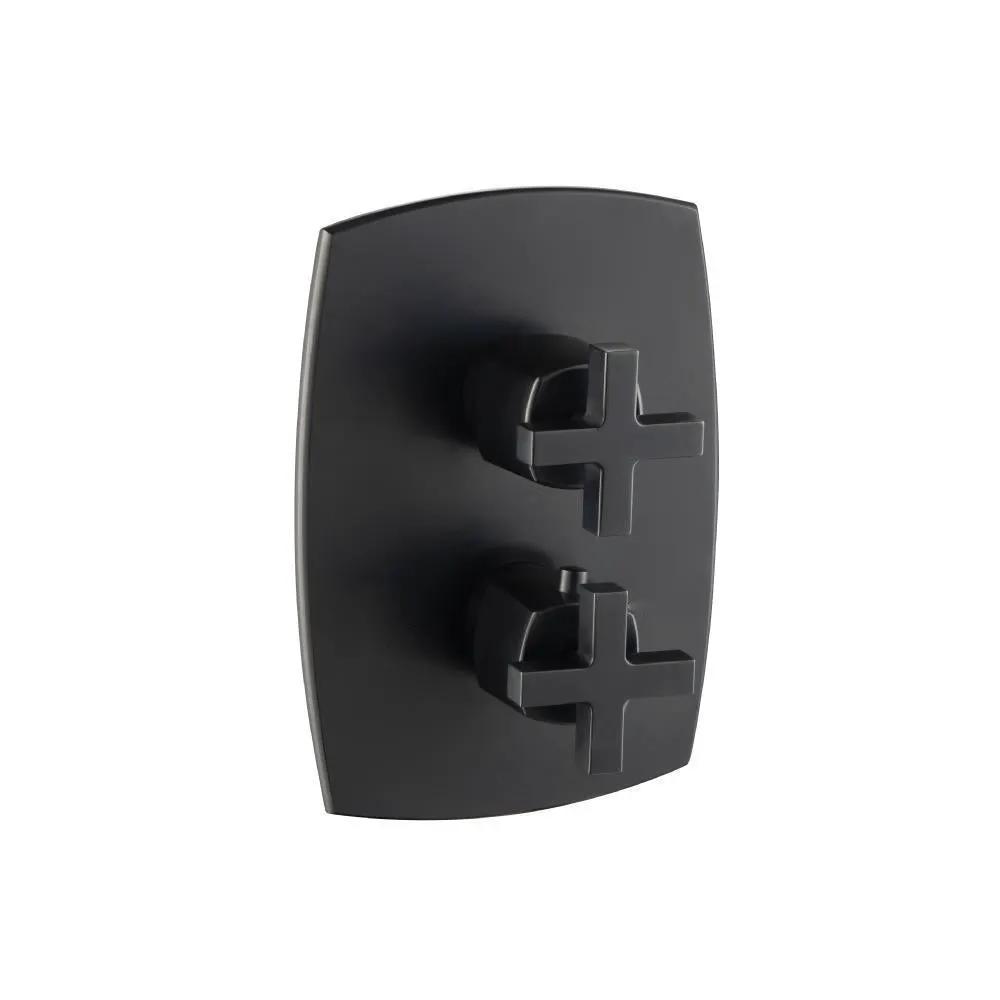

• Trims include a well-finished cover plate and handle knobs; anti-scald temperature stop ring mounted over the control knob
• To adjust temperature, press the side button and move the handle toward hot or cold; the anti-scald stop ring prevents full HOT rotation unless pressed
• Anti-scald temperature stop ring must be fitted tightly over the valve (a rubber mallet may be required)
• Trim shapes vary from square to circular, depending on the shower model
• Cartridge compatibility: TVH.4301F can use Model #15100 (3-output non-shared, CAL-Green Compliant) or Model #15200 (shared port to activate 2 of 3 ports)
• Extensions available: TVH.4101E

Designed for dependable performance and refined aesthetics, this Flusso valve and trim deliver precise thermostatic control and durable brass construction, backed by Flusso's reputation for quality, reliability, and luxury in premium shower systems.
