Product details
Focal Point Hardware is an authorized Flusso retailer!

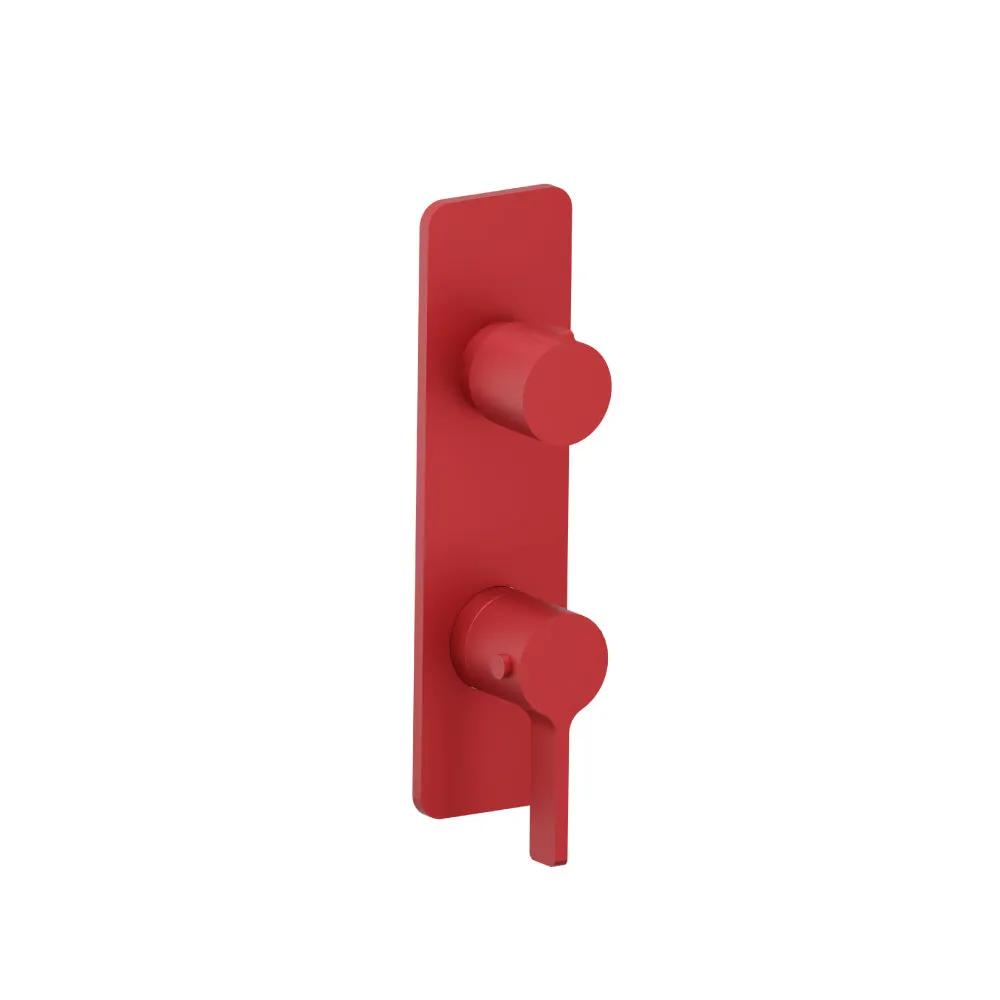

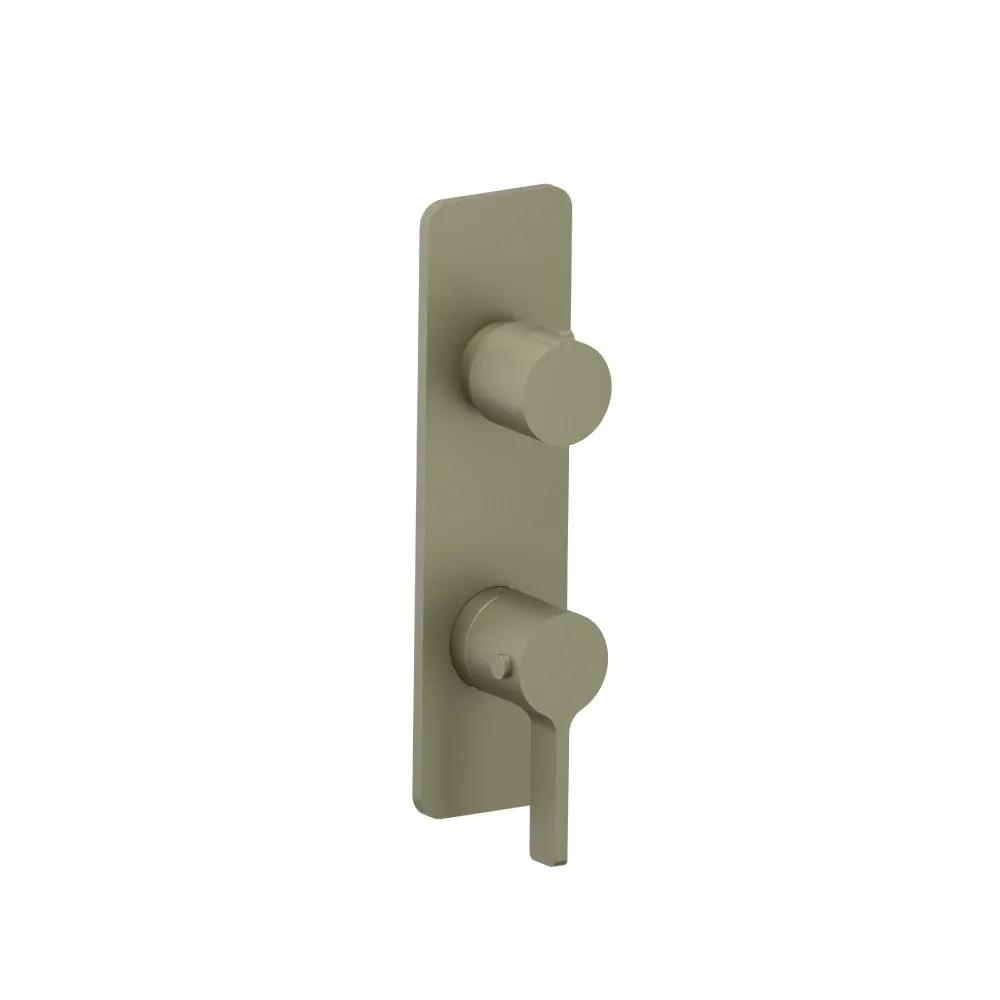

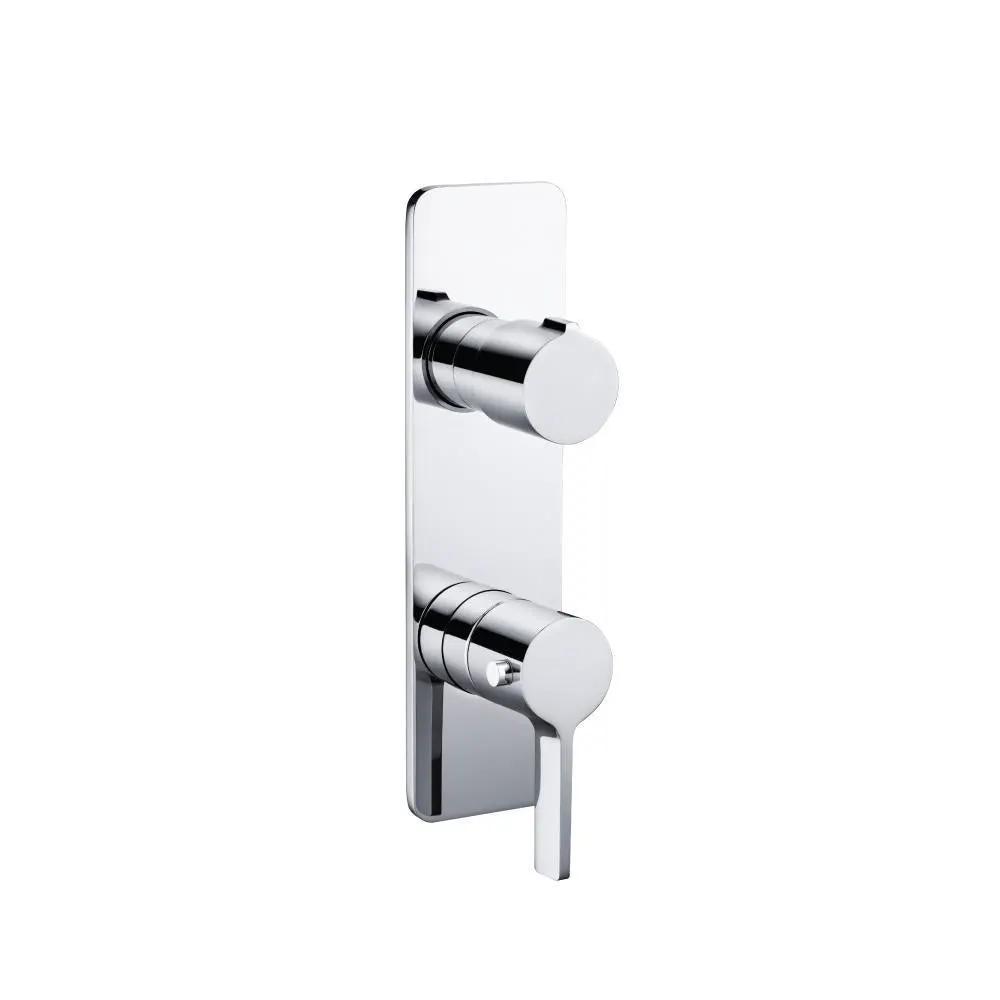

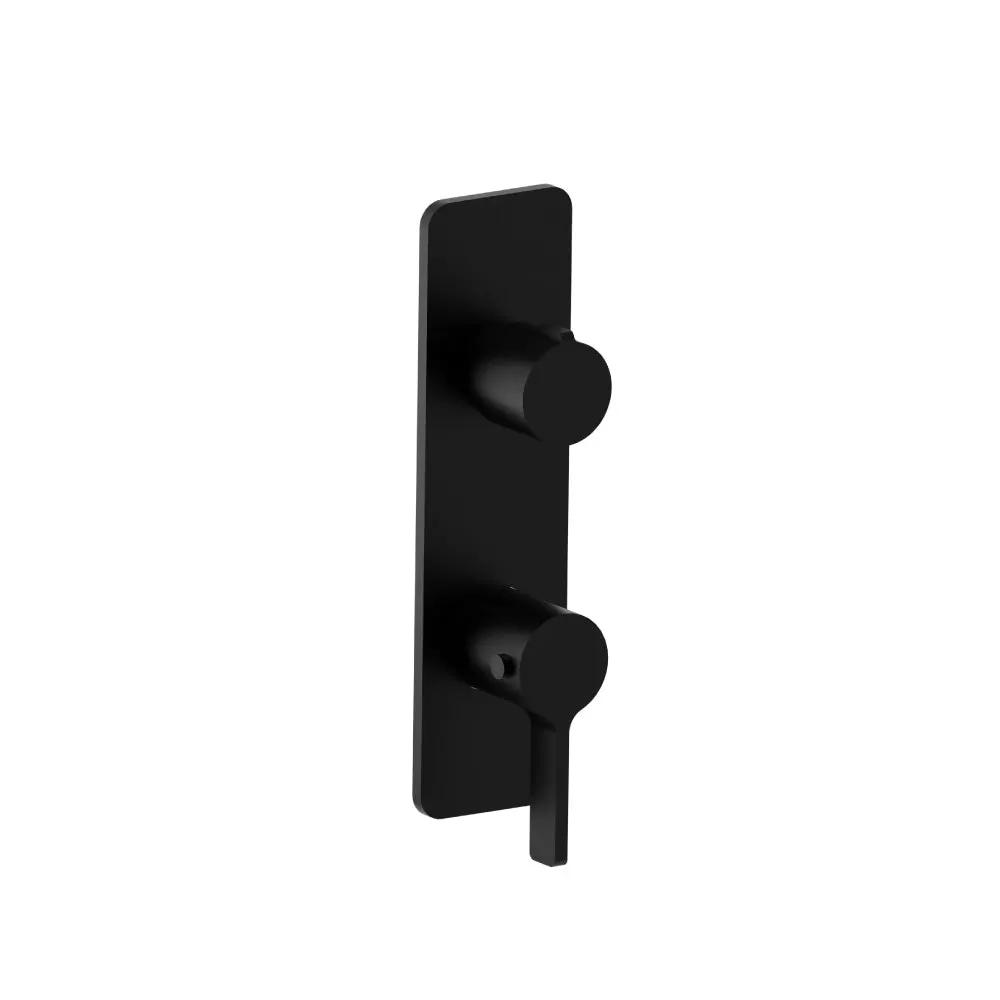

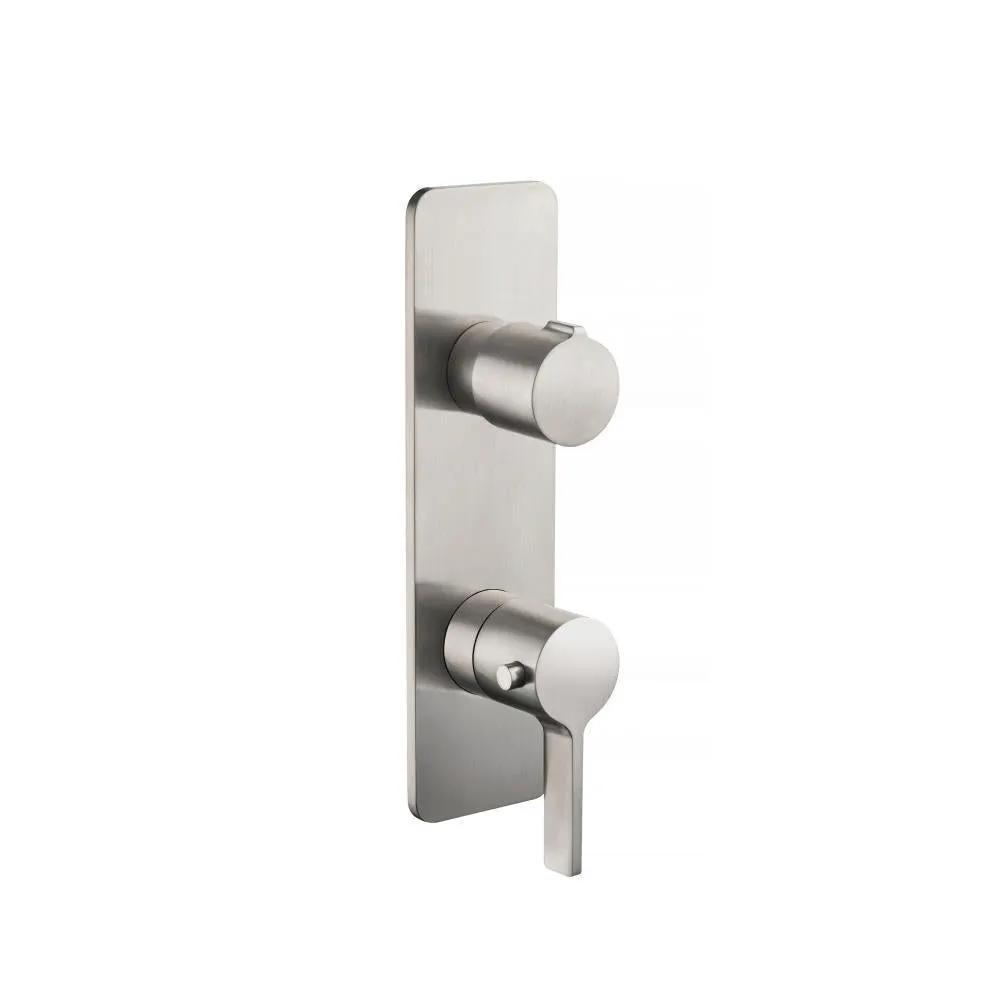

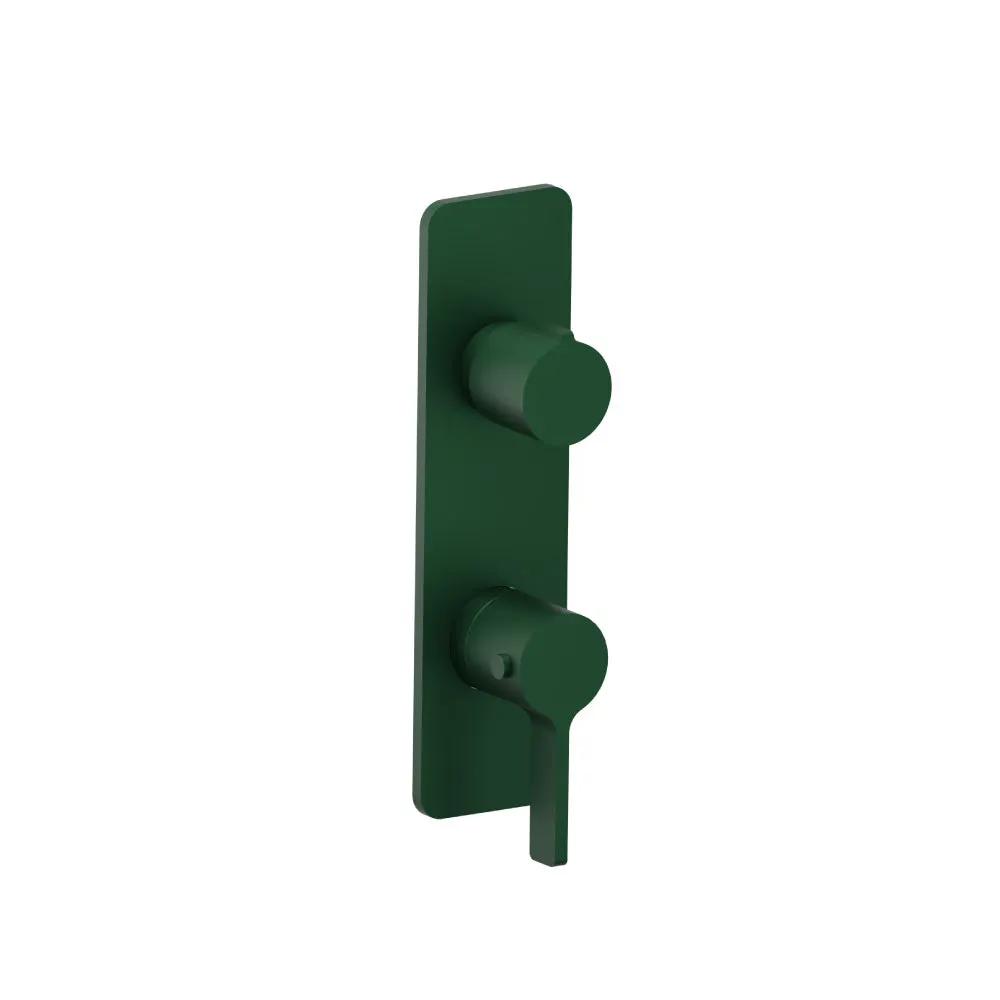

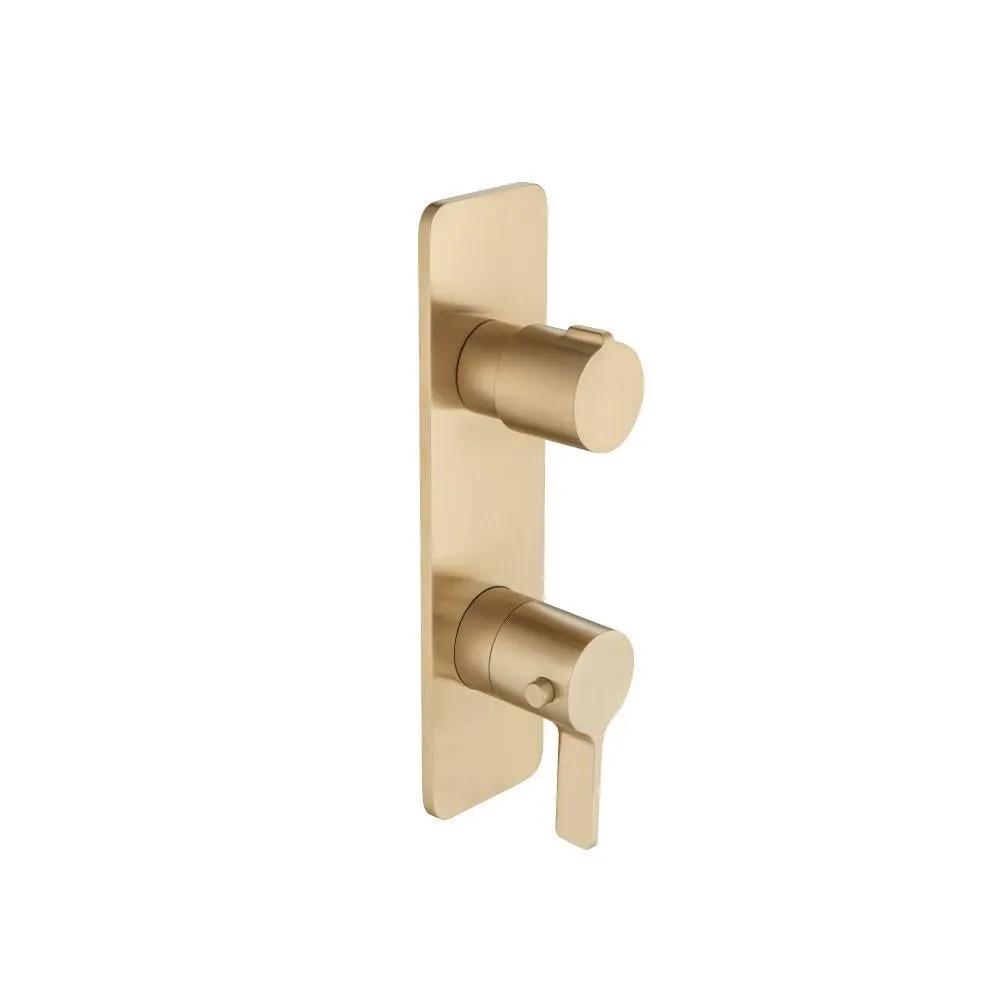

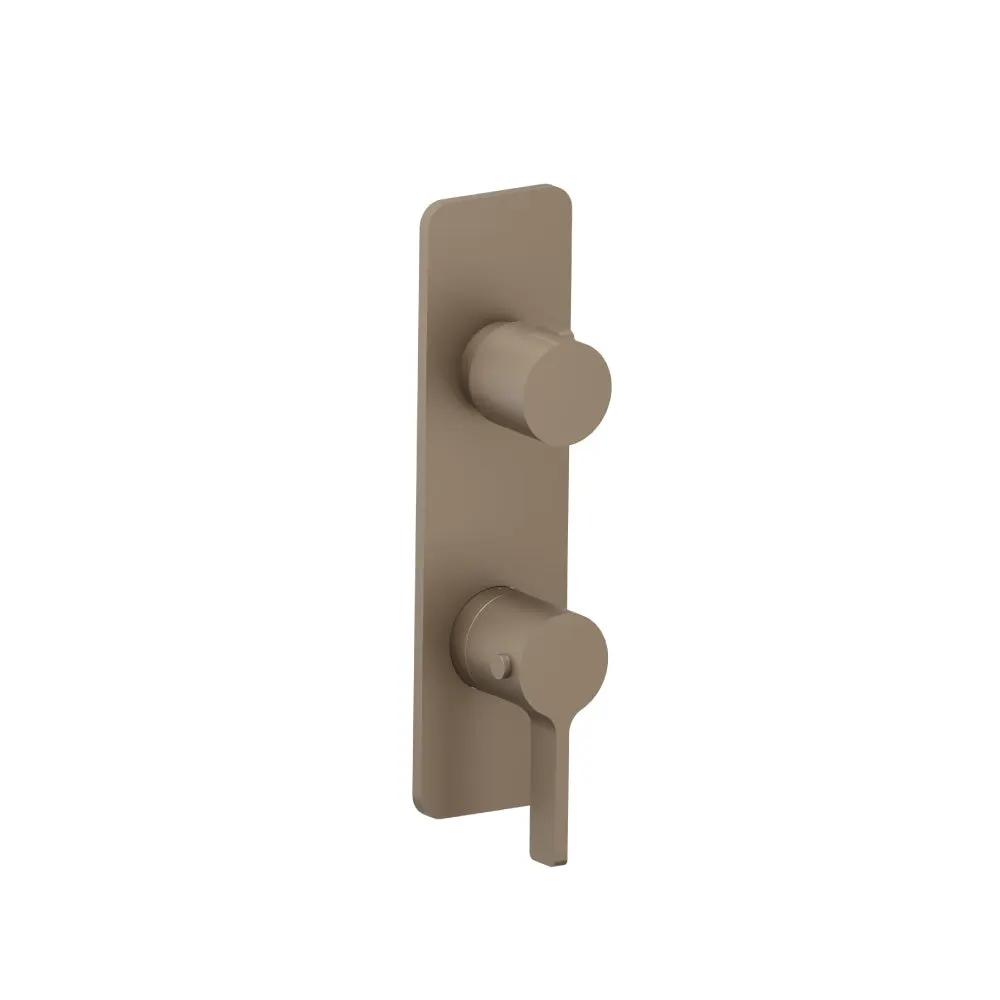

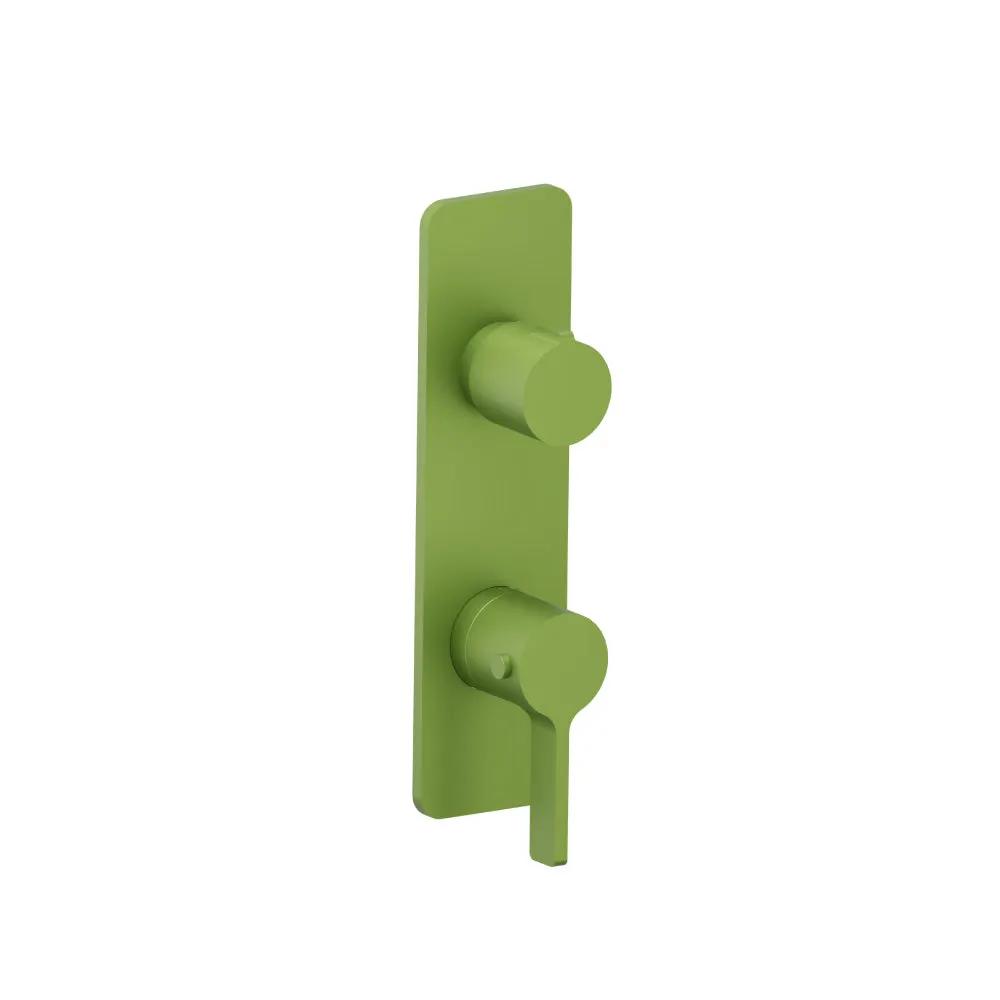

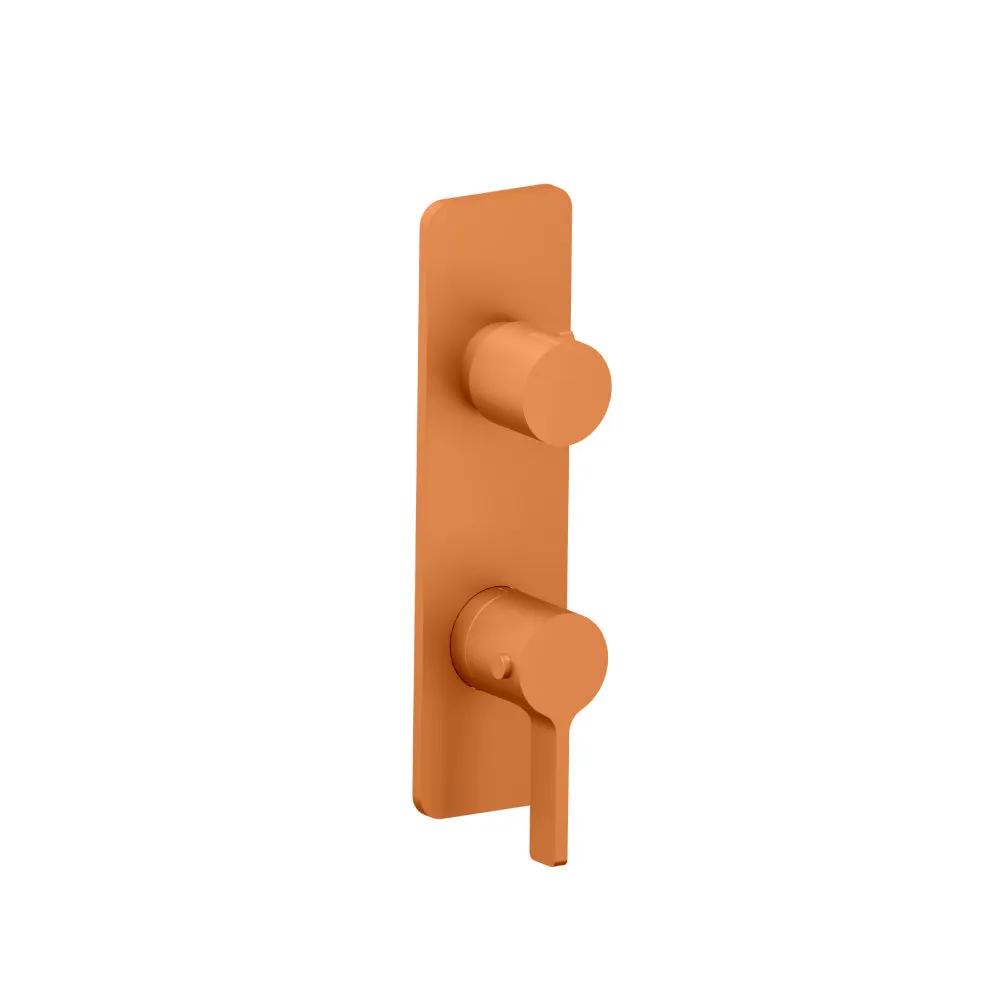

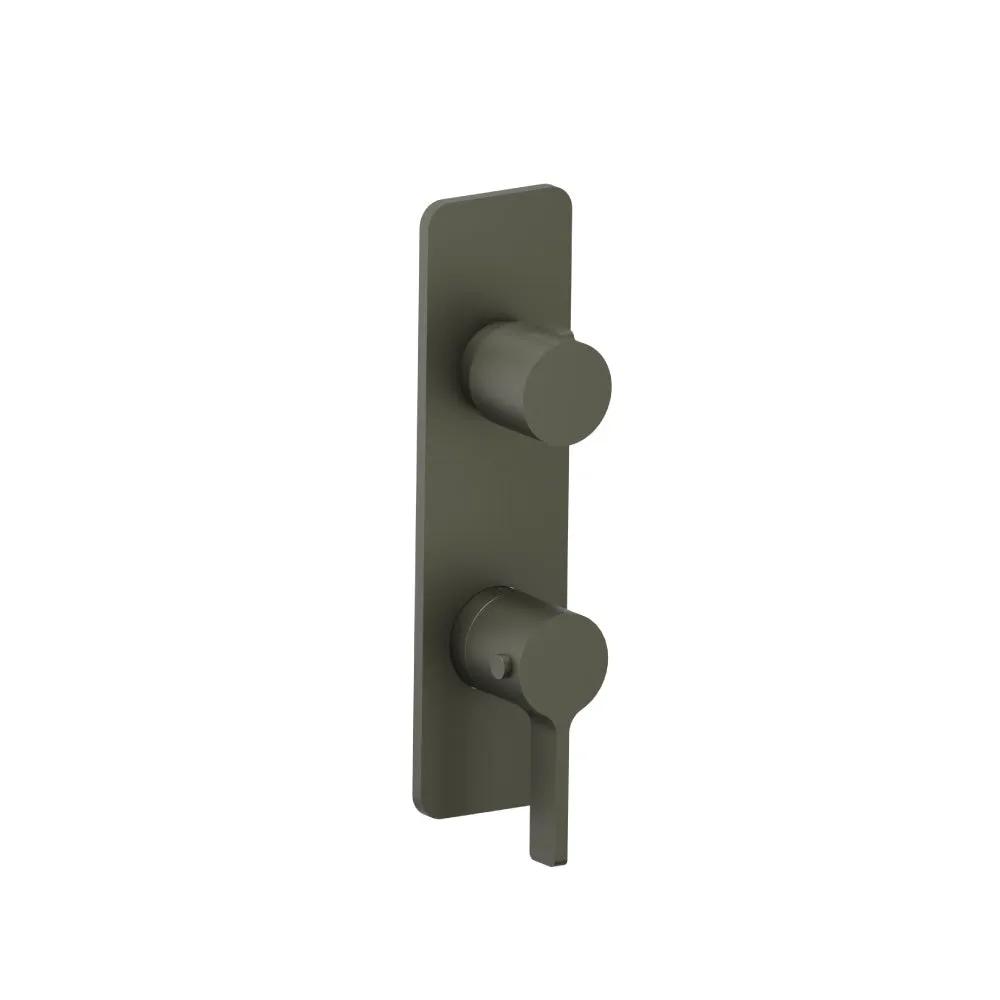

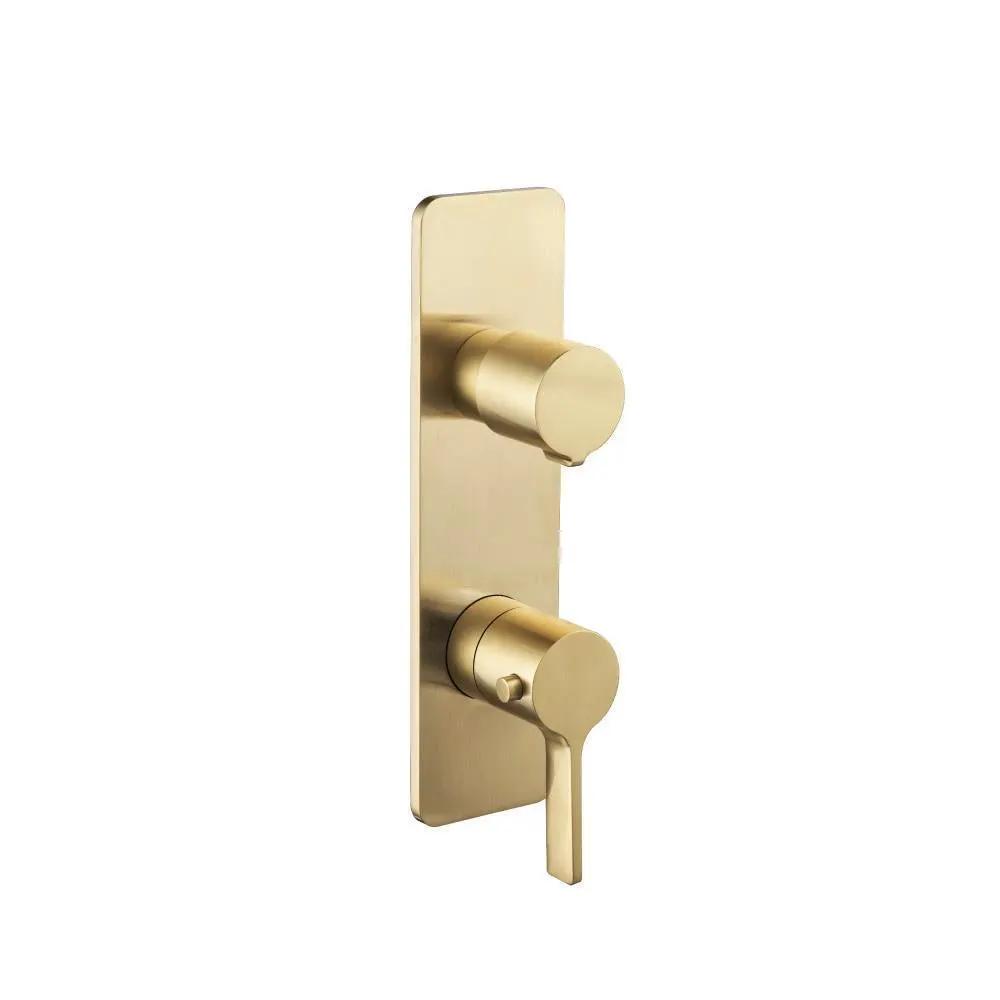

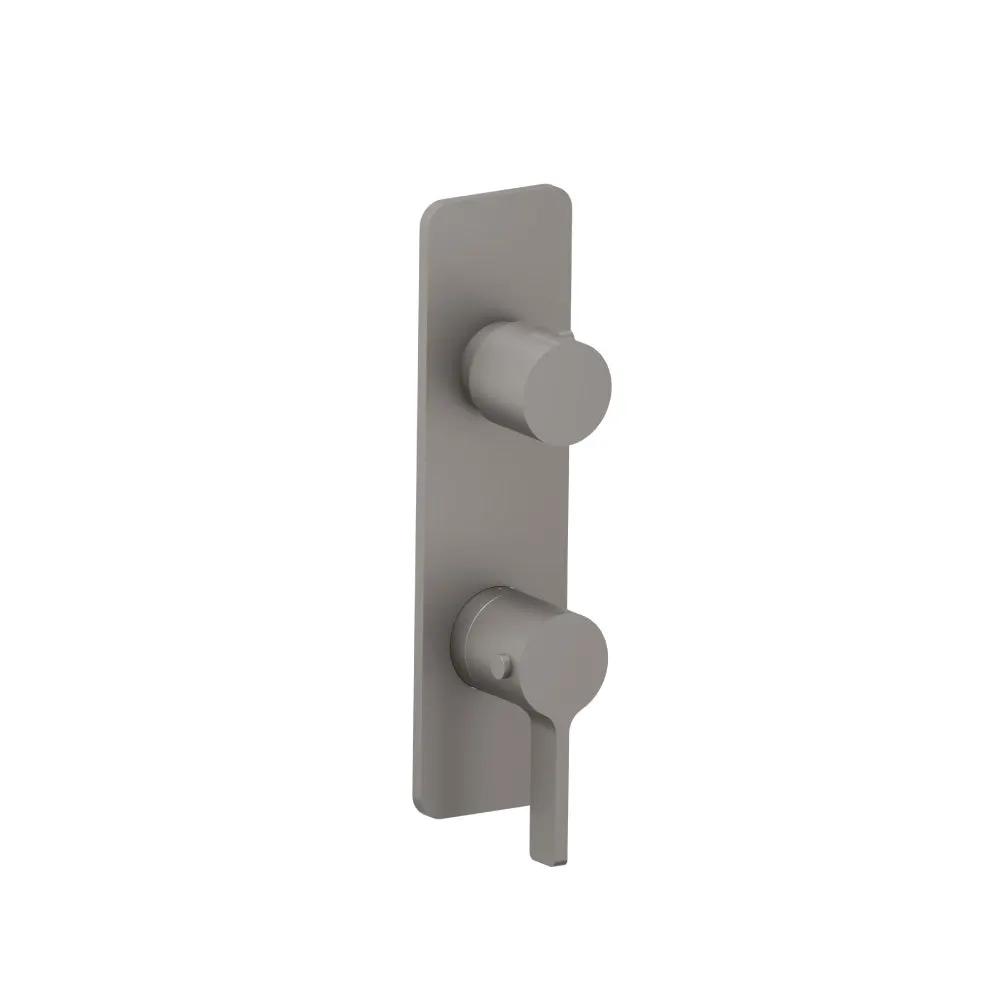

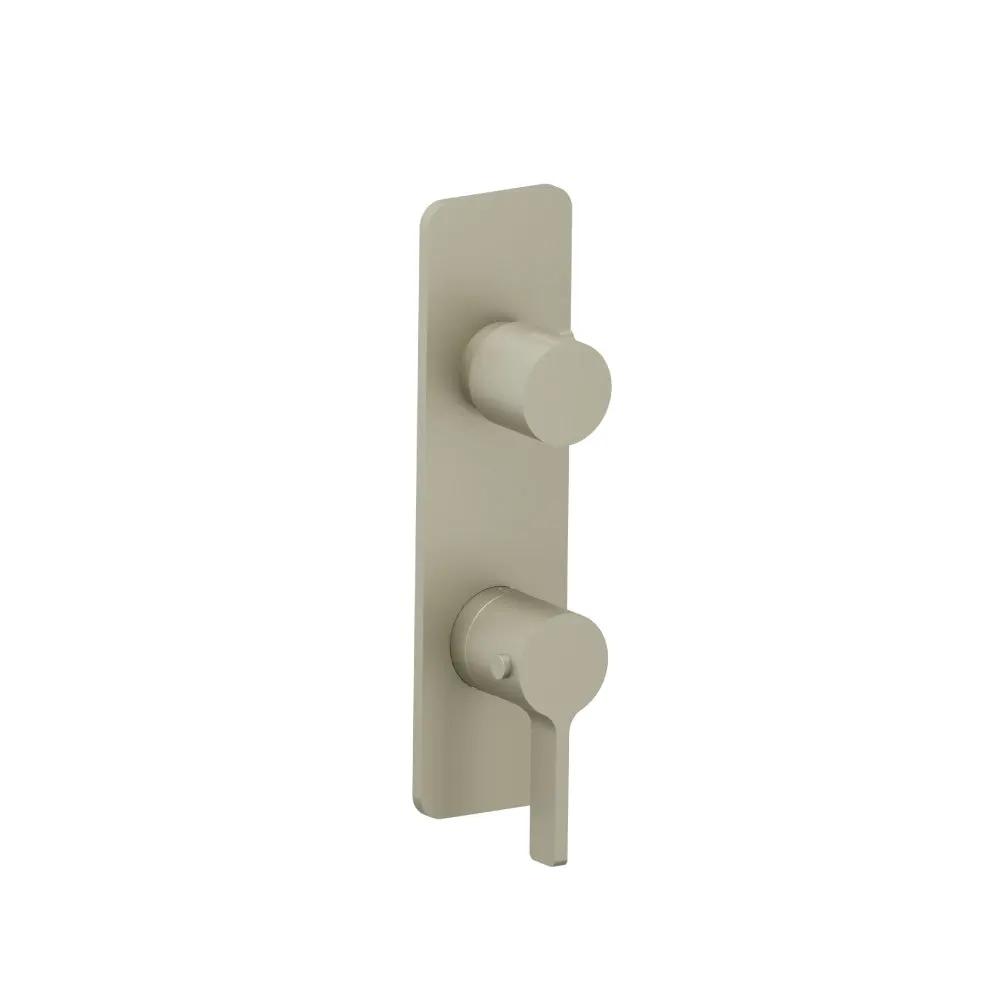

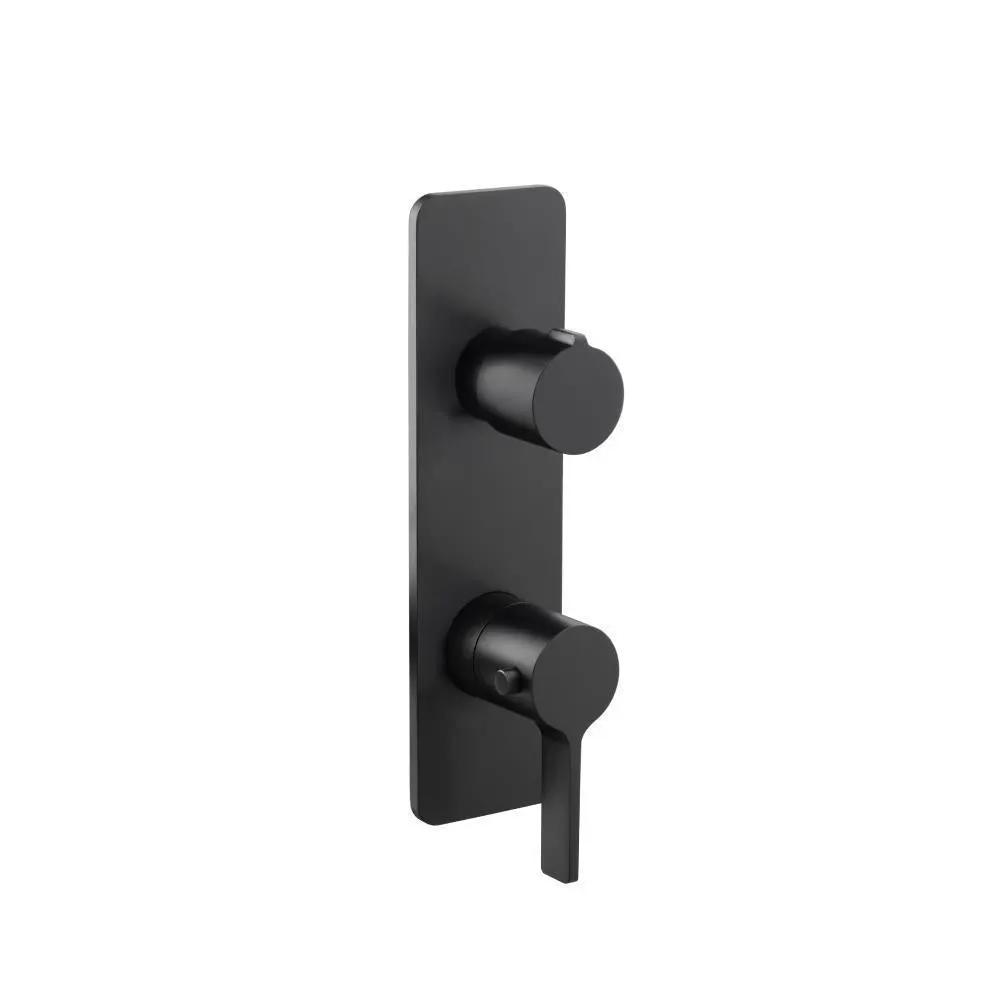

Experience precise, multi-outlet water control with the Flusso Serie 260 3/4" Thermostatic Shower Valve and Trim - 3-Output. This Flusso system delivers dependable thermostatic performance, 3 independent outputs, and CAL-Green compliance for responsible luxury showers. Ideal for custom installations, it combines durability, precise temperature management, and versatile flow distribution in a sleek brass valve and trim.
Flusso is renowned for precision-engineered bath and shower fixtures that blend Italian-inspired design with durable brass construction and reliable thermostatic performance. The Serie 260 line emphasizes CAL-Green compliance, precise temperature control, and easy installation in both horizontal and vertical layouts, reflecting Flusso's commitment to luxury, longevity, and consistent, safe water delivery.
Features and Specifications
- TVH.2705F thermostatic valve with 3/4" NPT connections
- 3 water outputs [ports], operable one at a time without shared port operation
- CAL-Green compliant
- Bottom handle sets the temperature
- Top handle controls water diversion between the 3 water output ports
- Each port has full volume control capability
- Horizontal or vertical installation
- SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
- HANDLE OPERATION – The right handle is used to control the temperature of water flowing through the outlet ports. The left handle is used to divert the water between each output port and is= capable of controlling the volume of water from full flow to a trickle.
- ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
- VALVE INSTALLATION -As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77? and 3.44? inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
- CUT OUT DIMENSIONS – The cut out in wall should be 7.89? x 1.89? Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
- TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- CARTRIDGE – The TVH.2705F valve can be used with two cartridges. The default cartridge that the valve comes with is the Model # 15100 cartridge which is a 3 output non-shared [CAL-Green Compliant] cartridge. A shared port operation cartridge [Model # 15200] can also be used to activate 2 out of 3 ports at the same time.
- Solid Brass Construction
- Includes Thermostatic Valve - TVH.2705F With Int
Equip your shower with the Flusso Serie 260 3/4" Thermostatic Shower Valve and Trim - 3-Output for precise temperature control, elegant design, and dependable performance. Flusso's known craftsmanship ensures luxury, longevity, and reliable CAL-Green compliance.
