Product details
Focal Point Hardware is an authorized Flusso retailer!

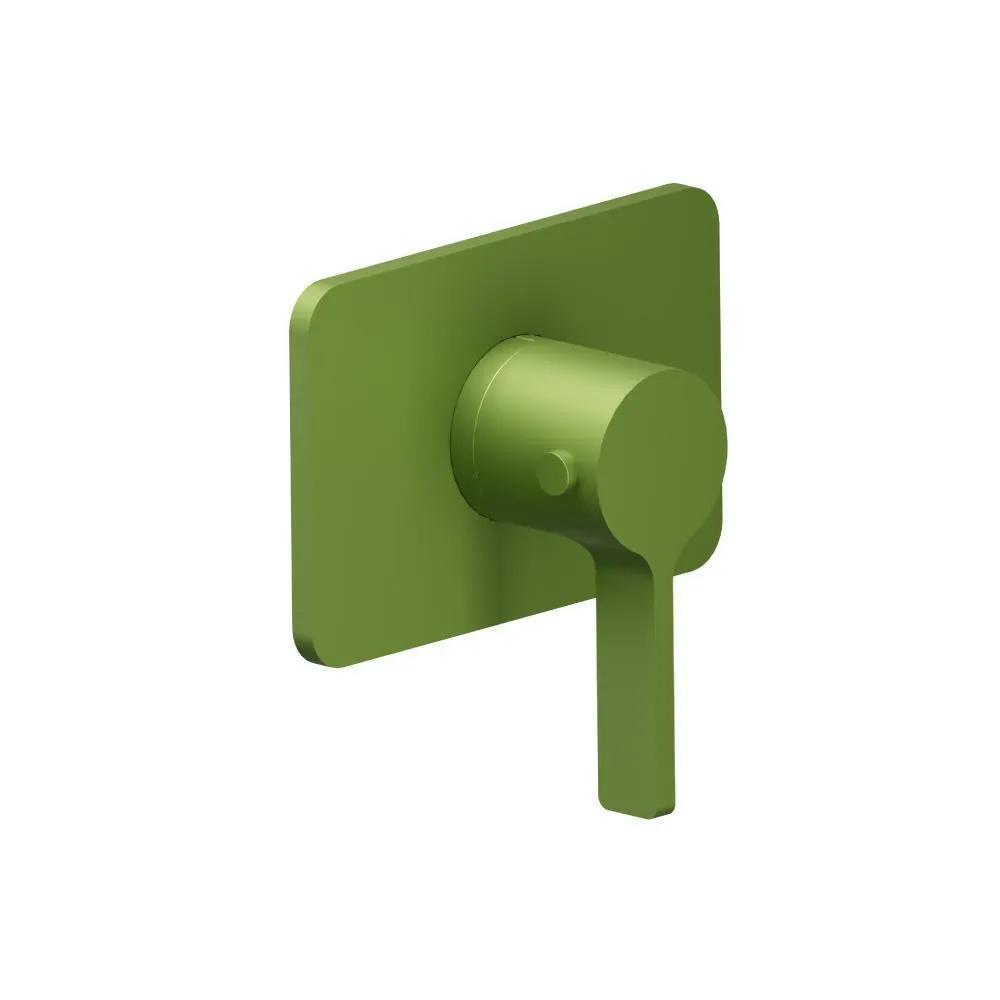

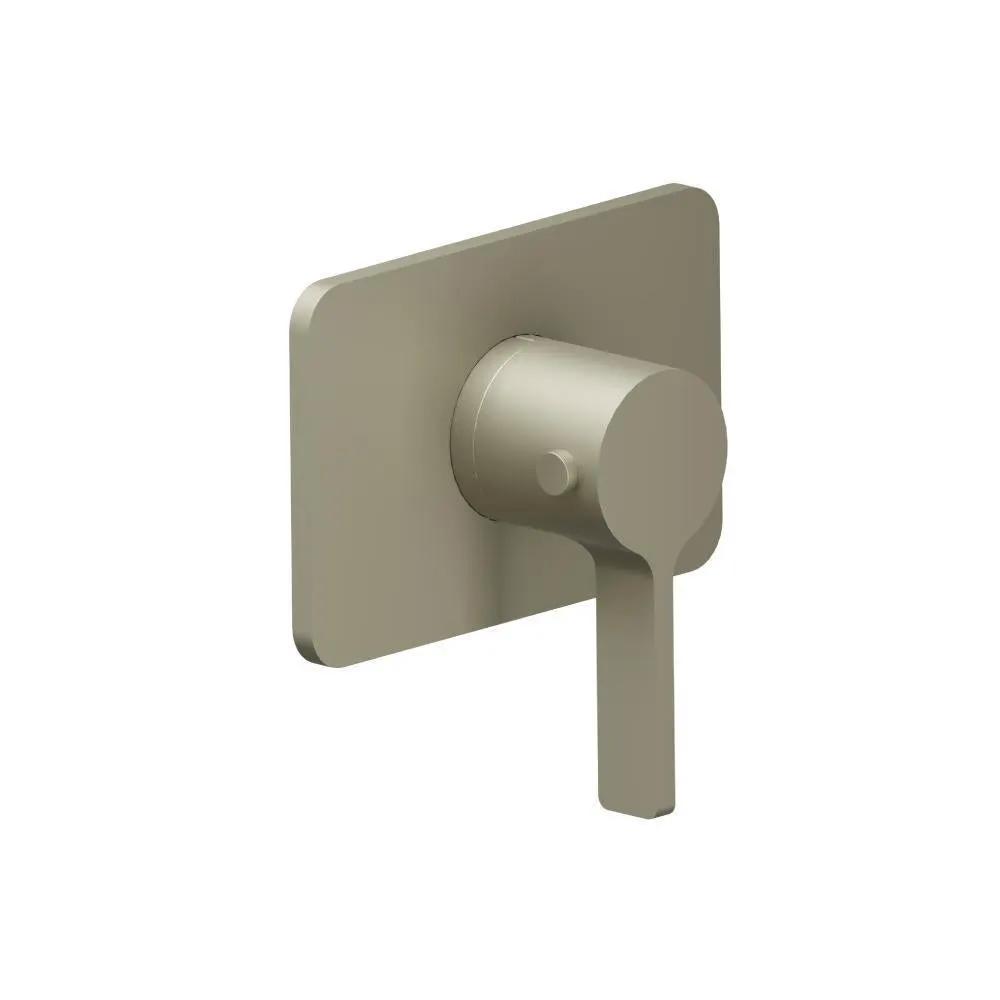

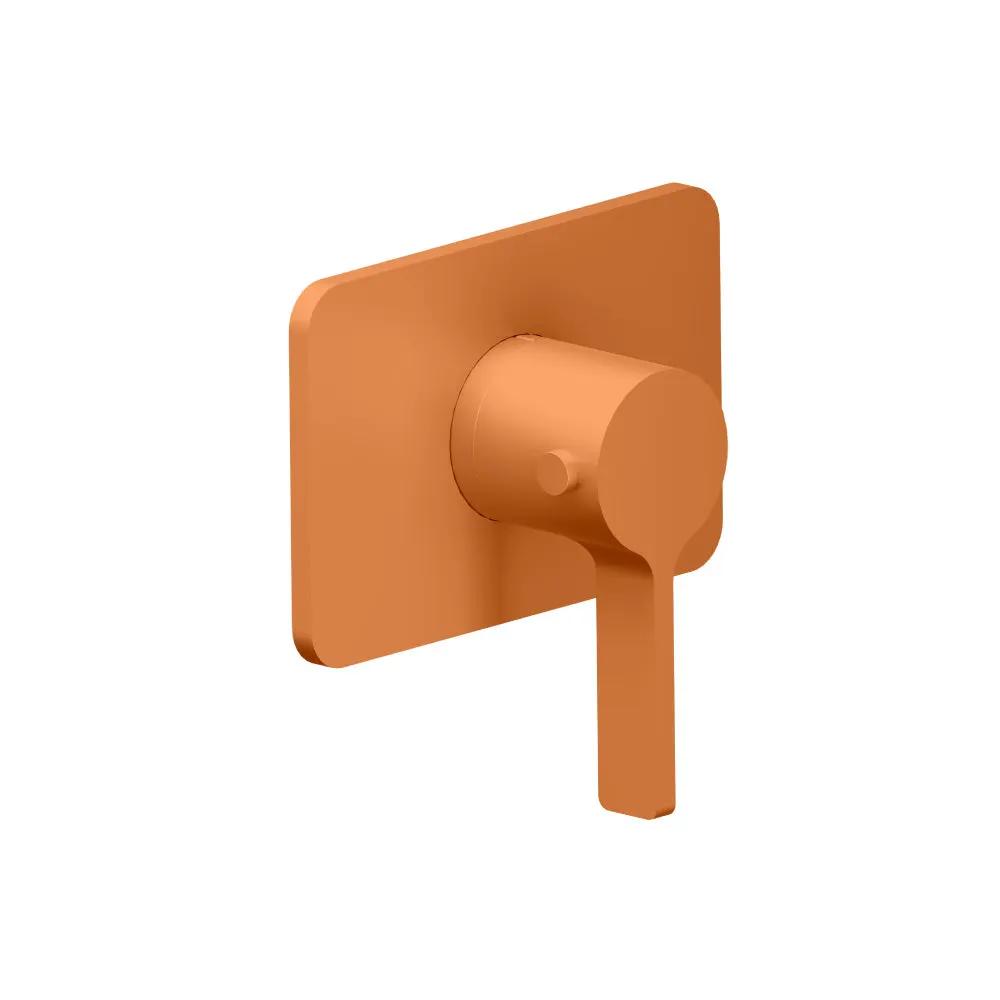

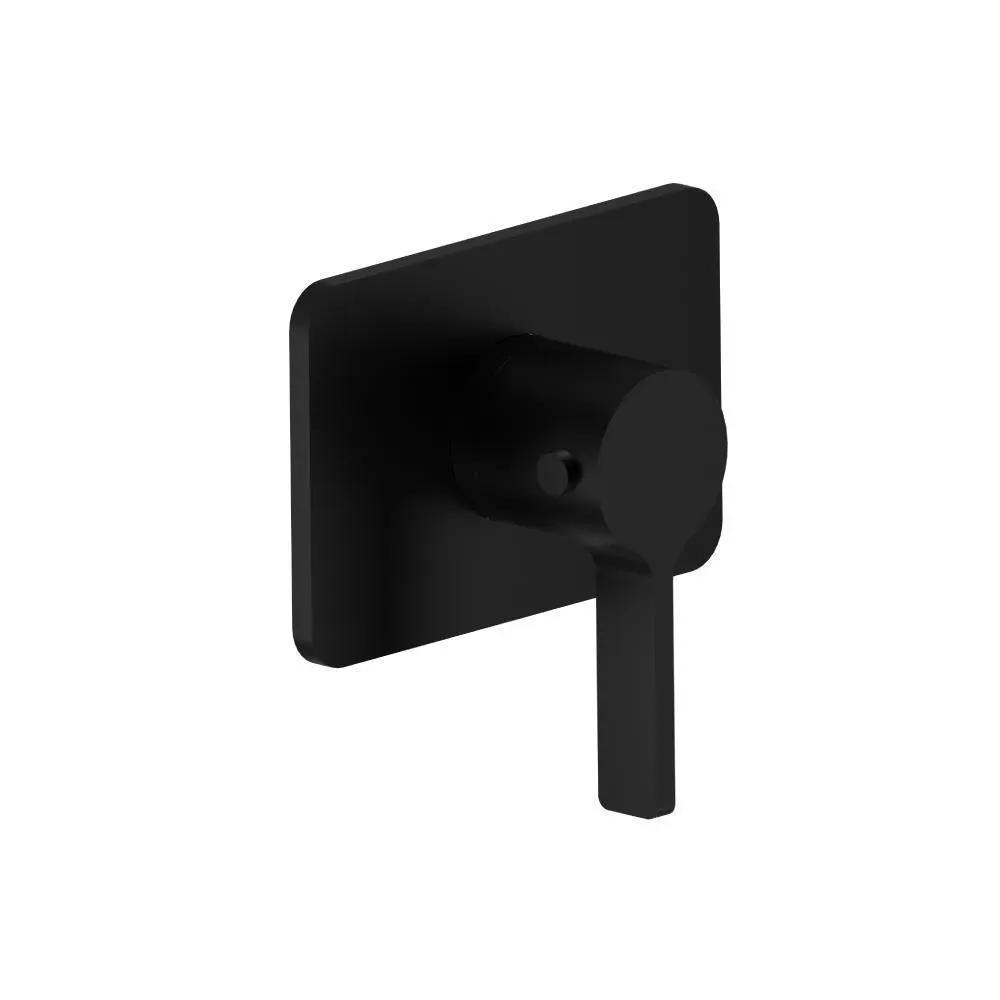

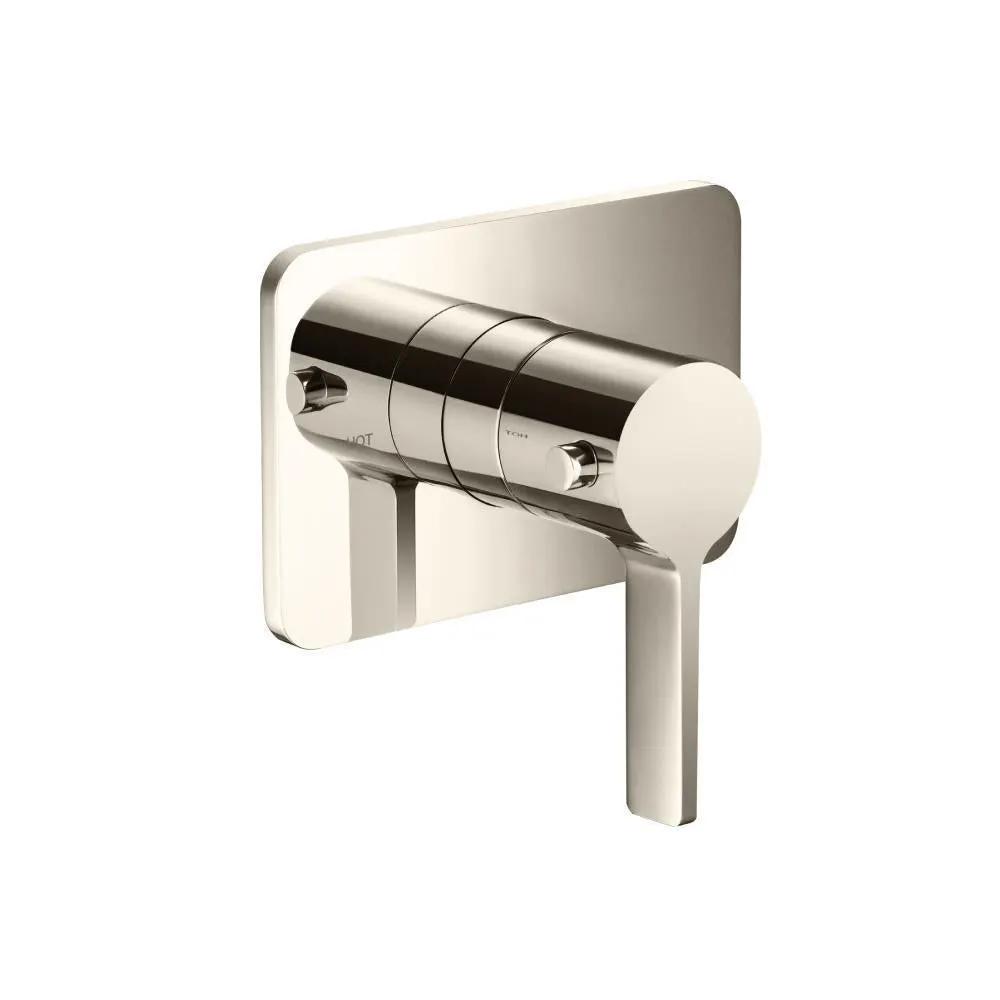

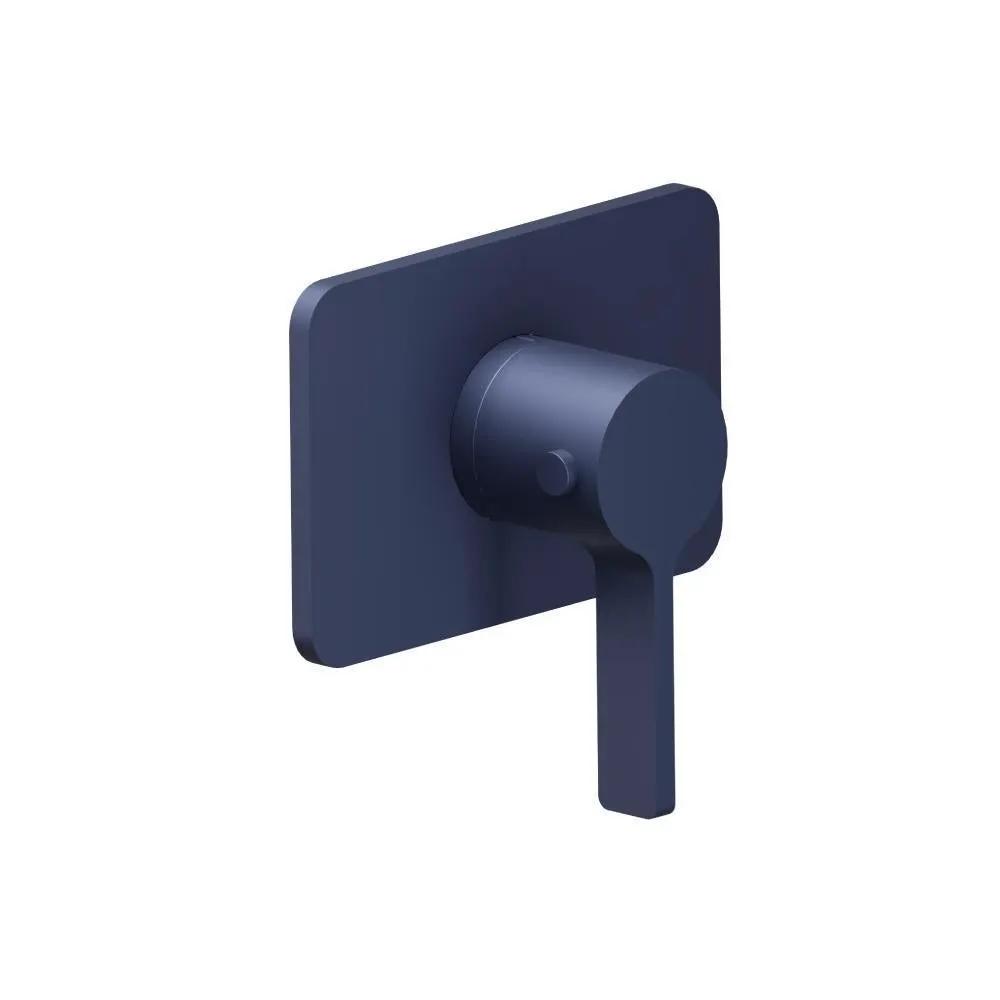

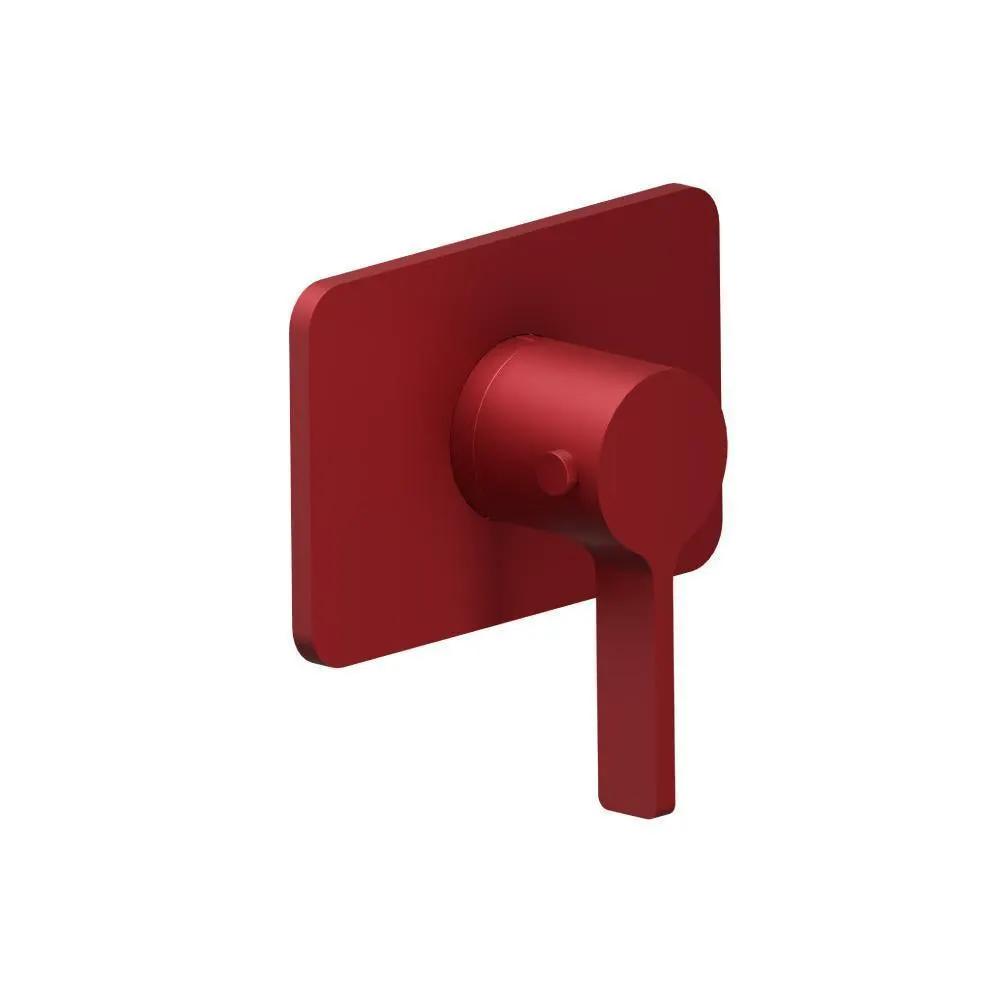

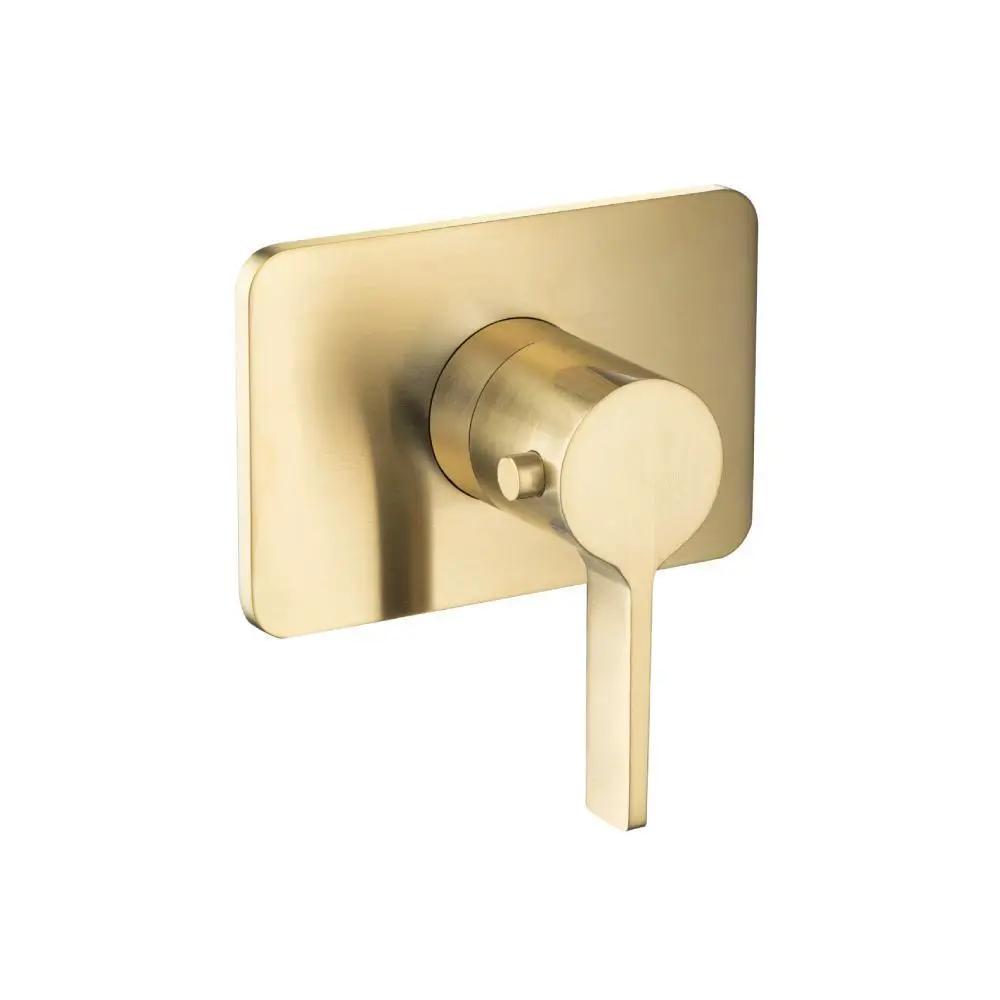

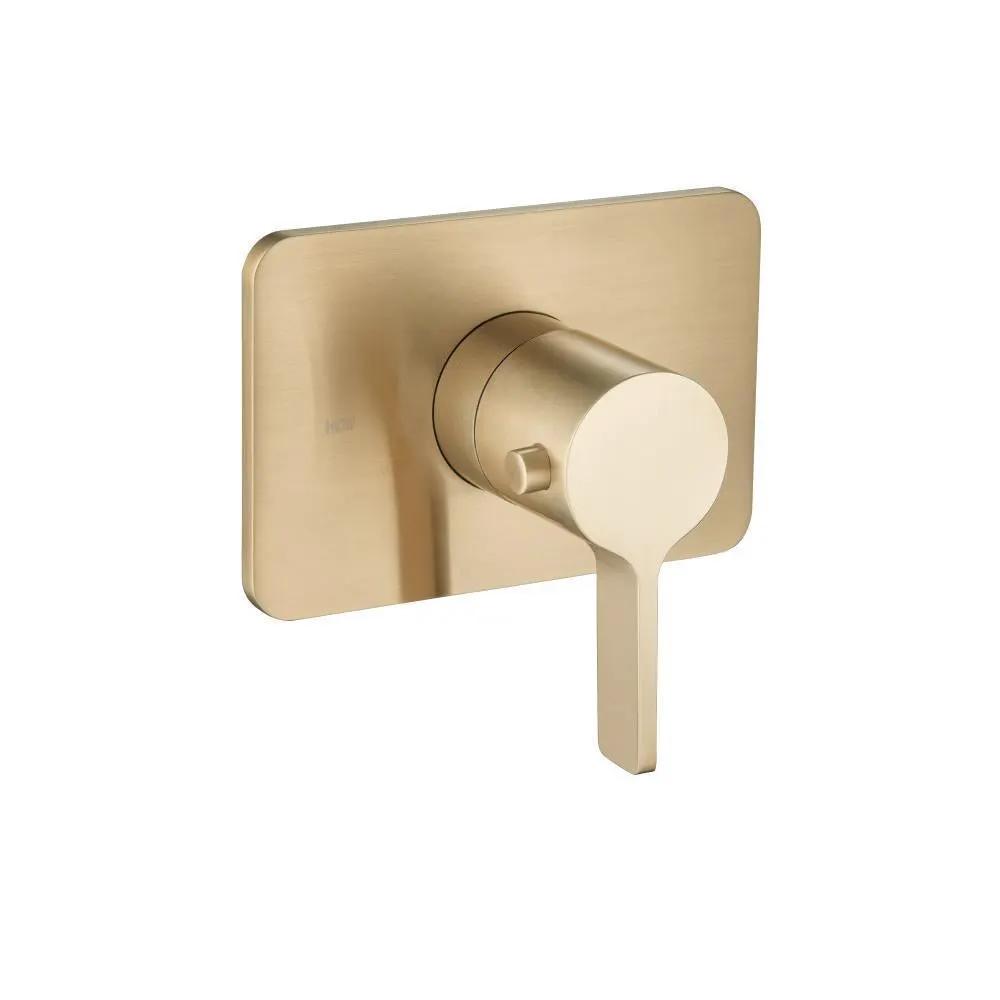

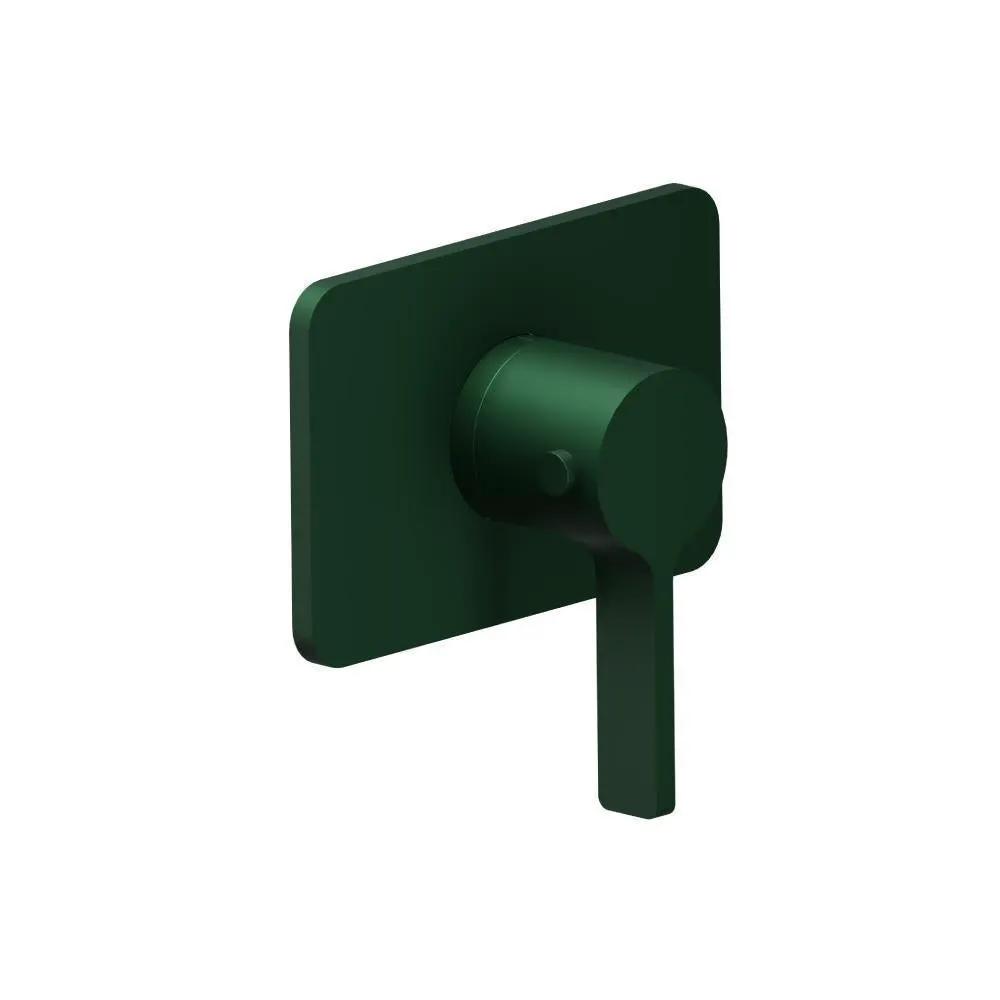

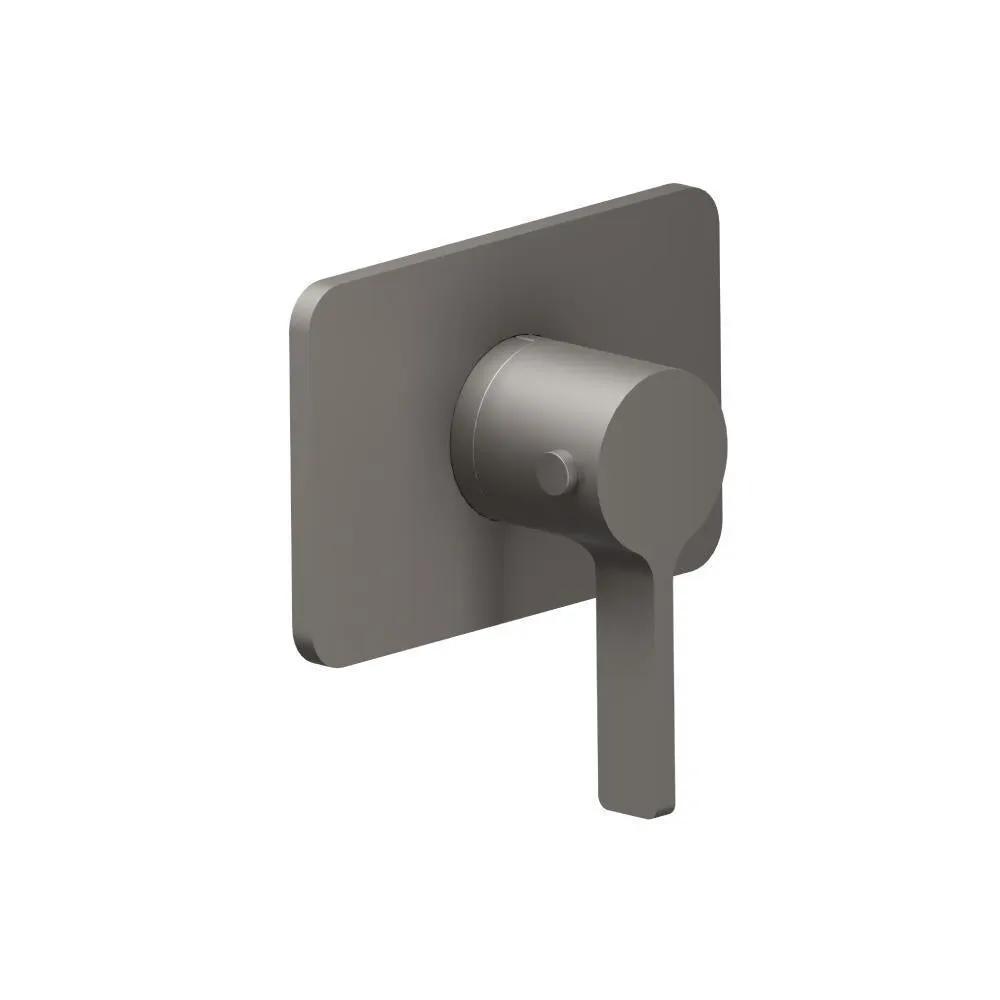

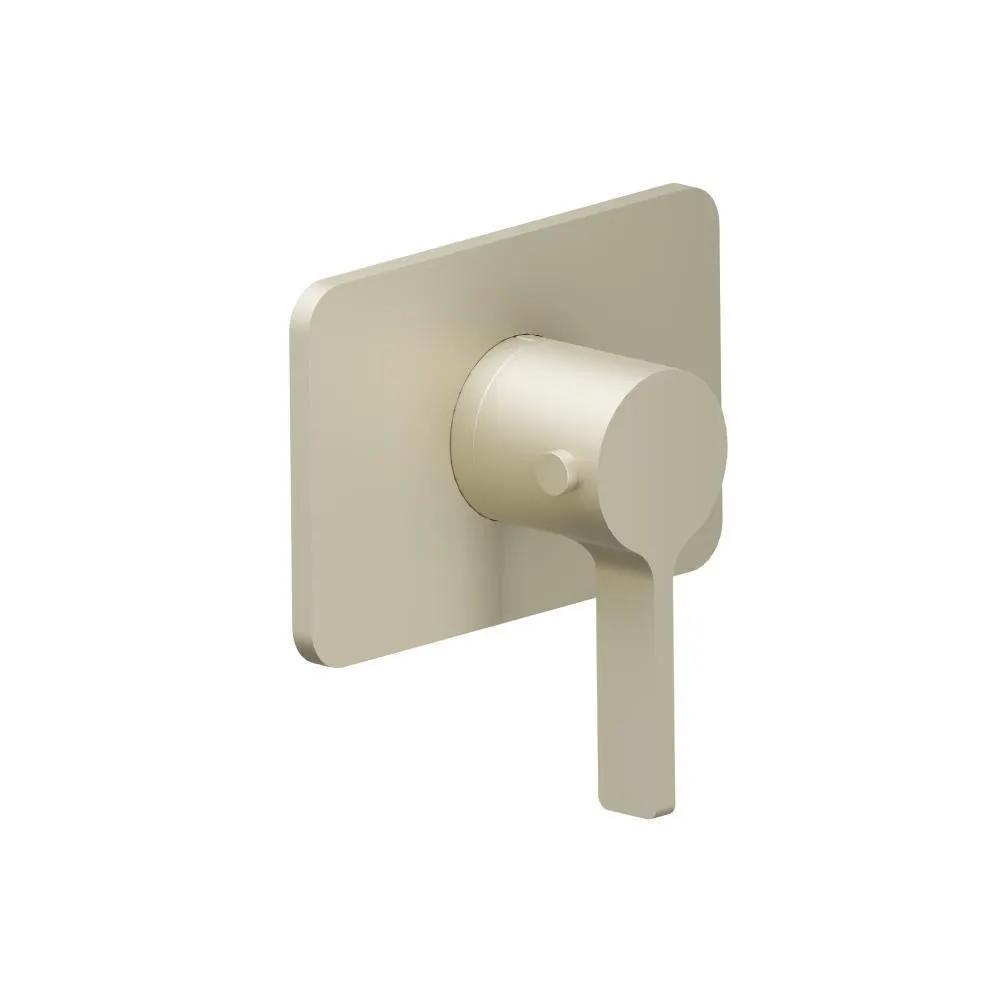

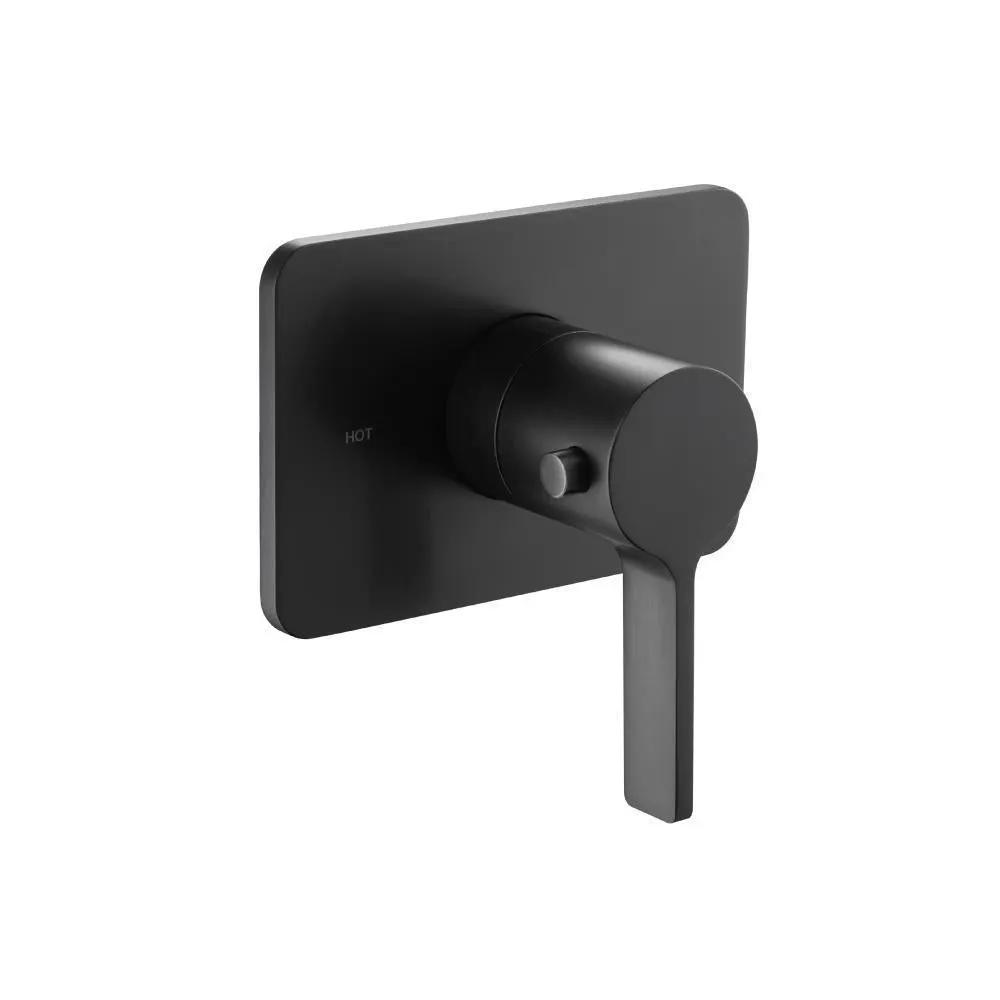

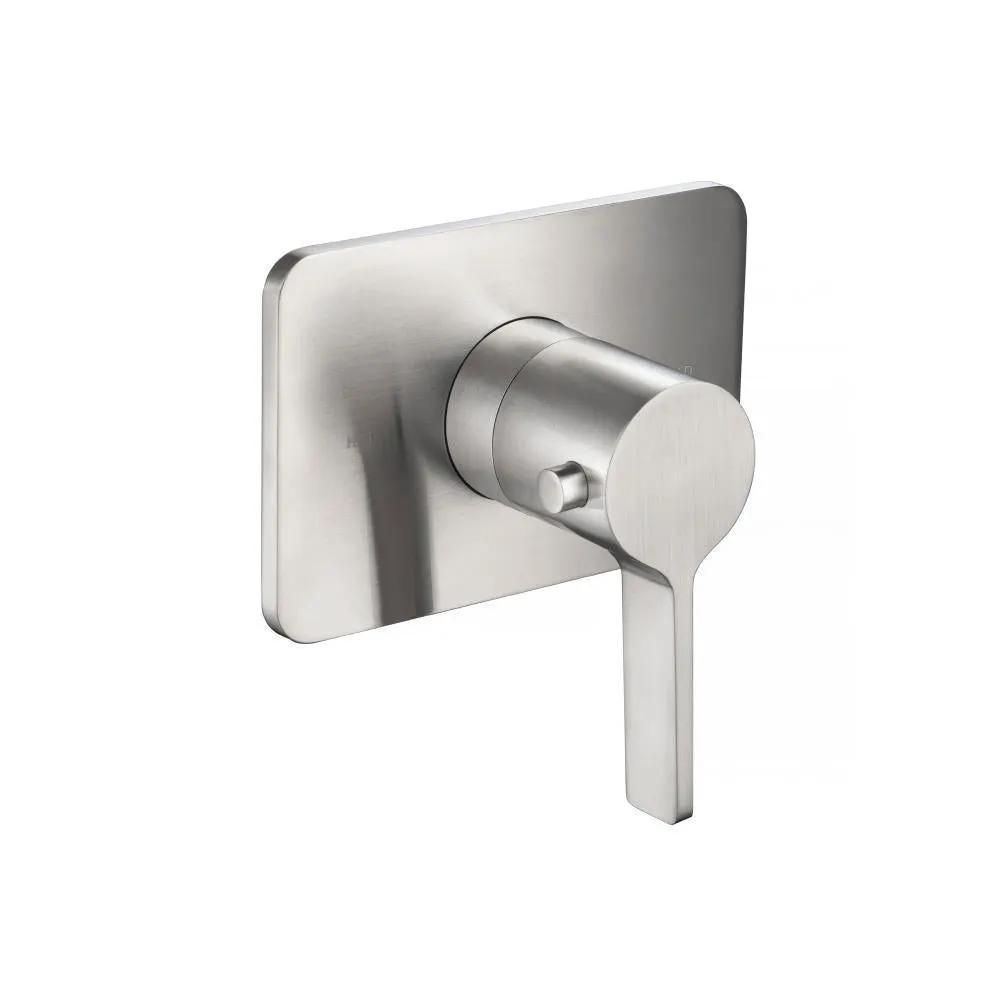

Flusso Serie 260 3/4" Thermostatic Valve with Trim delivers precise comfort with a robust brass body, dual inlets with integral stop kits, and a single output. The TVH.4201 supports steady temperature control at up to 13.0 GPM @ 60 PSI, and pairs with a volume control or diverter valve for versatile showering luxury.
Flusso is renowned for premium, precision-engineered plumbing fixtures that blend luxury styling with dependable performance. The TVH.4201 thermostatic valve exemplifies durable solid brass construction, anti-scald temperature regulation, and a refined trim system. Flusso's commitment to finish quality, reliability, and thoughtful installation features makes it a trusted choice for premium showers.
Features and Specifications
- TVH.4201 is a ¾” Thermostatic valve with NPT female connections.
- Two inlets with integral stop kits and single output.
- Flow rate: 13.0 GPM @ 60 PSI.
- Does not have water turn off capability and thus must be used with a volume control or diverter valve.
- Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
- Handle Operation - The handle is used to control temperature of water flowing through the outlet. This handle does not control the volume of water flowing through the valve.
- As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the surface of finished tile which should be between 2.77” and 3.44”.
- Also, the valve must be installed vertical and not at an angle.
- In case, the tile is thicker, or wall is deep, extensions are used for elongating both handles of the valve to ensure proper setting of the trim (length of extensions for TVH.4201 valve is 1.40”).
- Extension kits comprises of thermostatic handle extension, which can be ordered separately in chrome, brushed nickel, or other special finishes.
- Cut Out Dimensions - The cut out in wall should be 2.67” X 4.44” which is properly covered by the trim plate.
- Trims - The trims comprise of well finished trim plate and handle. The trim plate is used to cover the wall and has markings for HOT/COLD for temperature control handle.
- Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value.
- With the help of this ring, temperature of the water is regulated.
- The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required during installation) for it to function properly.
- Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- Solid Brass Valve & Trim Includes Thermostatic Valve - TVH.4201 3/4" NPT Female Connections Extensions Available - TVH.E185**
Flusso Serie 260 3/4" Thermostatic Valve with Trim combines precise temperature control with durable brass construction and a refined trim kit, backed by Flusso's reputation for reliable, luxury fixtures that elevate any shower space.
