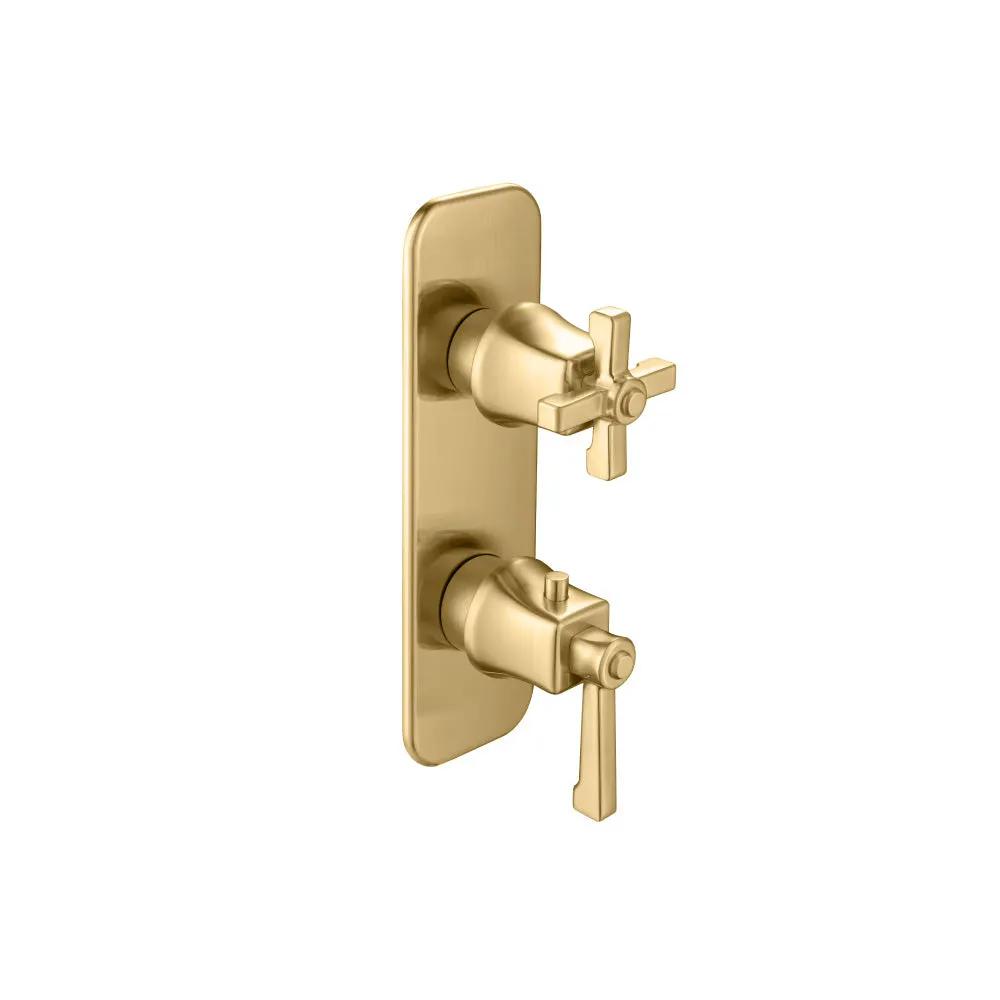

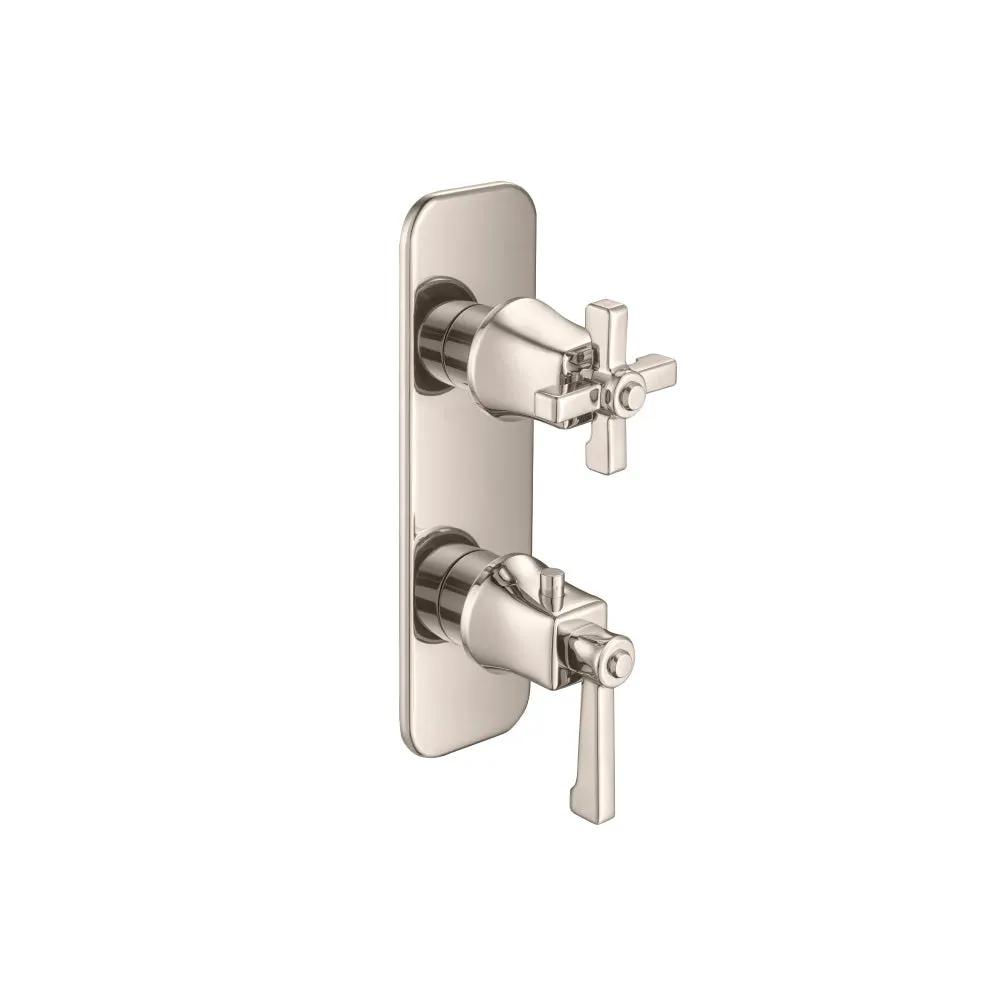

Discover the Flusso Serie 270 3/4" Thermostatic Shower Valve and Trim - 2-Output, a precise, CAL-Green compliant solution that delivers reliable temperature control and effortless water distribution. Flusso's reputation for precision engineering and luxury bath fittings shines in this valve and trim, offering dual outputs, safe anti-scald features, and flexible installation for modern showers.
Flusso, renowned for premium, reliable shower controls and timeless Italian-inspired design, builds durable brass fixtures with precise thermostatic performance. Flusso blends innovative engineering with elegant finishes, delivering consistent temperature stability, easy maintenance, and CAL-Green compliance across its thermostatic valves, trims, and cartridges. This heritage reflects meticulous craft, long-lasting performance, and a commitment to luxury bathroom spaces.
Features and Specifications
- TVH.2717F thermostatic valve with 3/4" NPT connections and 2 water outputs [ports] operable one at a time without shared port operation.
- CAL-Green compliant.
- Right handle sets the temperature.
- Left handle controls water diversion between the 2 water output ports.
- Each port has full volume control capability.
- HORIZONTAL OR VERTICAL INSTALLATION – The TVH.2717F can be installed horizontally or vertically.
- SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
- HANDLE OPERATION – The bottom handle is used to control the temperature of water flowing through the outlet ports. The top handle is used to divert the water between each output port and is capable of controlling the volume of water from full flow to a trickle.
- ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. Covering this ring is the handle knob which has a push-button on the side. In order to adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position – as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
- VALVE INSTALLATION - As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77? and 3.44? inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
- CUT OUT DIMENSIONS – The cut out in wall should be 7.89? x 1.89? Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
- TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
- CARTRIDGE – The TVH.2717F valve can be used with two cartridges. The default cartridge that the valve comes with is the Model # 15109 cartridge which is a 2 output non-shared [CAL-Green Compliant] cartridge. A shared port operation cartridge [Model # 15103] can also be used to activate 2 ports at the same time.
- Solid Brass Construction Includes Thermostatic Valve - TVH.2717F
Elevate your shower with Flusso Serie 270's precise thermostatic control and dual-output versatility, backed by Flusso’s reputation for quality, reliability, and luxury, making it a standout choice for contemporary bathrooms that demand performance and style.
