Jaclo Contempo Hub Base Lever with Square Escutcheon Trim for Exacto Volume Controls and Diverters
Add to cart for final price!
Choose a rough valve or part
An additional plumbing item is needed to complete the set or installation of this item.
An additional plumbing item is needed to complete the set or installation of this item.
+ $111.00
Jaclo 1/2" Exacto Volume Control Valve
More info+ $111.00
Liquid error (snippets/upsell-product-card line 264): invalid url input
Jaclo 1/2" Exacto Volume Control Valve
Model Number: J-VC12
$111.00
Focal Point is an Authorized Jaclo Retailer!
About the Jaclo 1/2" Exacto Volume Control Valve
About the Jaclo 1/2" Exacto Volume Control Valve
- 1/4 turn ceramic volume control. Turns water on and off and controls volume of water
- JACLO Exacto® design facilitates lever adjustment, which can be made after installation, ensuring levers are always straight in the off position
- Flow rates: J-VC34 22 GPM @ 60 PSI , J-VC12 13 GPM @ 60 PSI
- Use with JACLO thermostatic valve J-TH34 or J-TH12 or any device that requires a volume control
- WORKS WELL WITH LOW WATER PRESSURE
- 5" Long stem and escutcheon nipple for deep wall installation can be cut to length
+ $126.75
Jaclo 3/4" Exacto Volume Control Valve
More info+ $126.75
Liquid error (snippets/upsell-product-card line 264): invalid url input
Jaclo 3/4" Exacto Volume Control Valve
Model Number: J-VC34
$126.75
Focal Point is an Authorized Jaclo Retailer!
About the Jaclo 3/4" Exacto Volume Control Valve
About the Jaclo 3/4" Exacto Volume Control Valve
- For more information, see J-VC34, J-VC12, J-20682, J-20686, J-20688, J-20687, J-20689
- For replacement cartridges see J-VC34-CART / J-VC12-CART / 15150-CART-RGH / 15128-CART-RGH / 15129-CART-RGH / 15214-CART-RGH / 15215-CART-RGH
+ $213.75
Jaclo 2-Way Diverter Valve Volume Control with Shared Function and Shut Off
More info+ $213.75
Liquid error (snippets/upsell-product-card line 264): invalid url input
Jaclo 2-Way Diverter Valve Volume Control with Shared Function and Shut Off
Model Number: J-20687
$213.75
Focal Point is an Authorized Jaclo Retailer!
About the Jaclo 2-Way Diverter Valve Volume Control with Shared Function and Shut Off
About the Jaclo 2-Way Diverter Valve Volume Control with Shared Function and Shut Off
- J-20687 two way diverter consists of inlet for water and two outlets. Valve has shared output capabilities. For example shower and handshower operating at the same time. See table for operations.
- Valve has built-in volume control to turn water on and off
- 1/2" NPT male fittings
- Ceramic cartridge
- 5" long stem and escutcheon nipple for deep wall installations can be cut to length
- 12 GPM flow @ 60 PSI
+ $213.75
Jaclo 2-Way Diverter Valve/Volume Control with Shut Off
More info+ $213.75
Liquid error (snippets/upsell-product-card line 264): invalid url input
Jaclo 2-Way Diverter Valve/Volume Control with Shut Off
Model Number: J-20686
$213.75
Focal Point is an Authorized Jaclo Retailer!
About the Jaclo 2-Way Diverter Valve/Volume Control with Shut Off
About the Jaclo 2-Way Diverter Valve/Volume Control with Shut Off
- J-20686 way diverter consists of inlet for mixed water and two outlets.
- Valve has integral volume control. For example, shower and handshower has independent control, shower and body spray has independent control.
- Two-way valve operation is single output only flow to "C" port lever in left position, "Off" lever centered flow to "B" port lever in right position
- ½" NPT male fittings
- Ceramic cartridge
- 5" long stem and escutcheon nipple for deep wall installations can be cut to length
- 12 GPM flow @ 60 PSI
+ $213.75
Jaclo 3-Way Diverter Valve Volume Control with Shared Function and Shut Off
More info+ $213.75
Liquid error (snippets/upsell-product-card line 264): invalid url input
Jaclo 3-Way Diverter Valve Volume Control with Shared Function and Shut Off
Model Number: J-20689
$213.75
Focal Point is an Authorized Jaclo Retailer!
About the Jaclo 3-Way Diverter Valve Volume Control with Shared Function and Shut Off
About the Jaclo 3-Way Diverter Valve Volume Control with Shared Function and Shut Off
- J-20689 three way diverter consists of inlet for water and three outlets. Valve has shared output capabilities. For example shower and handshower operating at the same time. See table for operations.
- Valve has built-in volume control to turn water on and off
- 1/2" NPT male fittings
- Ceramic cartridge
- 5" long stem and escutcheon nipple for deep wall installations can be cut to length
- 12 GPM flow @ 60 PSI
+ $213.75
Jaclo 3-Way Diverter Valve/Volume Control with Shut Off
More info+ $213.75
Liquid error (snippets/upsell-product-card line 264): invalid url input
Jaclo 3-Way Diverter Valve/Volume Control with Shut Off
Model Number: J-20688
$213.75
Focal Point is an Authorized Jaclo Retailer!
About the Jaclo 3-Way Diverter Valve/Volume Control with Shut Off
About the Jaclo 3-Way Diverter Valve/Volume Control with Shut Off
- J-20688 three way diverter consists of inlet for mixed water and three outlets. Valve has integral volume control. For example shower, handshower, body spray has independent control, multiple shower and body spray has independent control.
- Three-way valve operation is single control. Three operating positions: output flow to "C" port lever in left position, "Off" lever centered and 10 o'clock and 2 o'clock position, flow to "B" port lever in right position.
- ½" NPT male fittings
- Ceramic cartridge
- 5" long stem and escutcheon nipple for deep wall installations can be cut to length
- 12 GPM flow @ 60 PSI

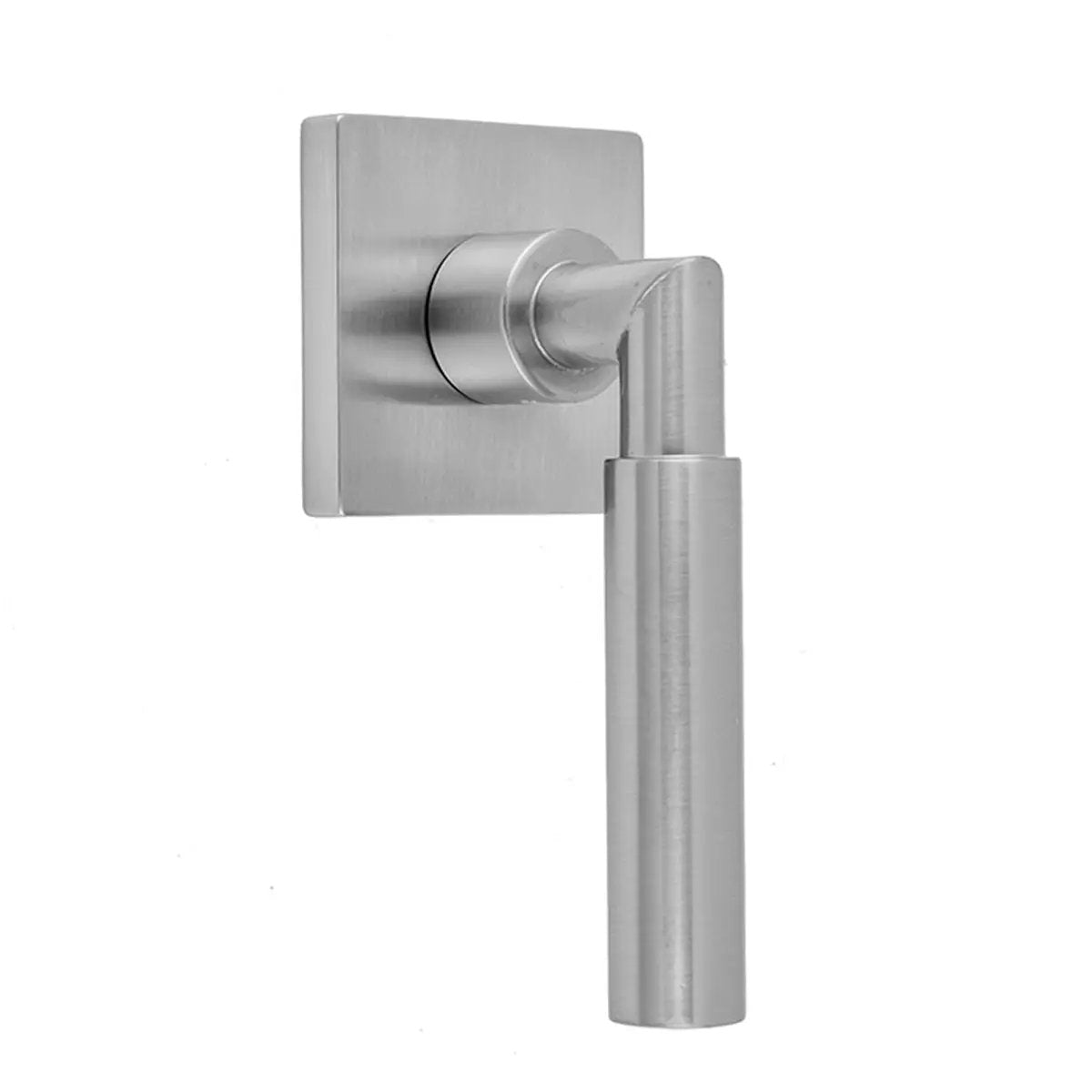

Jaclo Contempo Hub Base Lever with Square Escutcheon Trim for Exacto Volume Controls and Diverters
Sale price$243.75
Regular price$325.00 (/)
Product details
Focal Point is an Authorized Jaclo Retailer!
About the Jaclo Contempo Hub Base Lever with Square Escutcheon Trim for Exacto Volume Controls and Diverters
About the Jaclo Contempo Hub Base Lever with Square Escutcheon Trim for Exacto Volume Controls and Diverters
- All brass construction
- When used with Valve J-20686, J-20687, J-20688, or J-20689: Turning the handle turns the water on and off, controls the volume of the water, and diverts the water
- When used with Valve J-20682: Turning the handle controls the volume of the water and diverts the water
- When used with Valve J-VC12 or J-VC34: Turning the handle controls the volume of the water
- Requires rough valves J-VC34, J-VC12, J-20682, J-20686, J-20688, J-20687, or J-20689
- Lever trim is ADA compliant
