Zip Water HydroTap Boiling, Chilled, Sparkling Kit with Elite Plus Tap

Focal Point Hardware is an authorized Zip Water retailer!

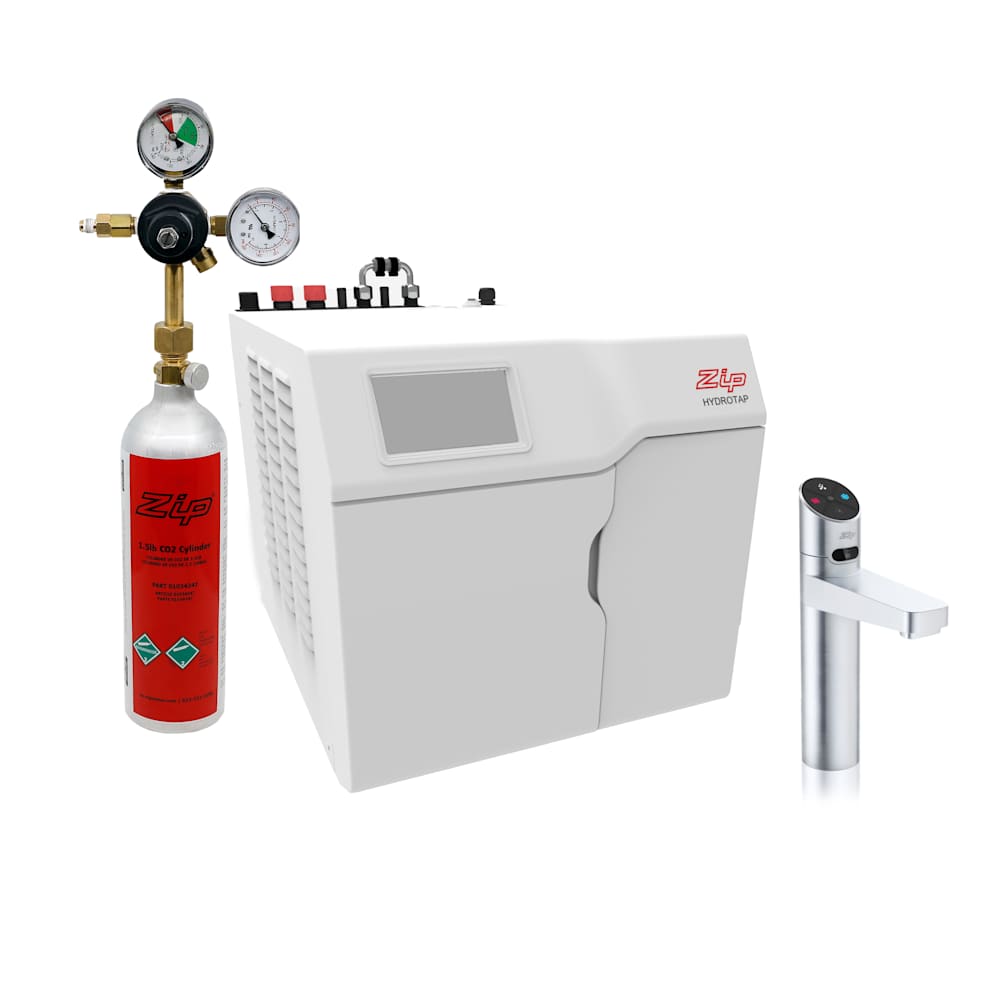

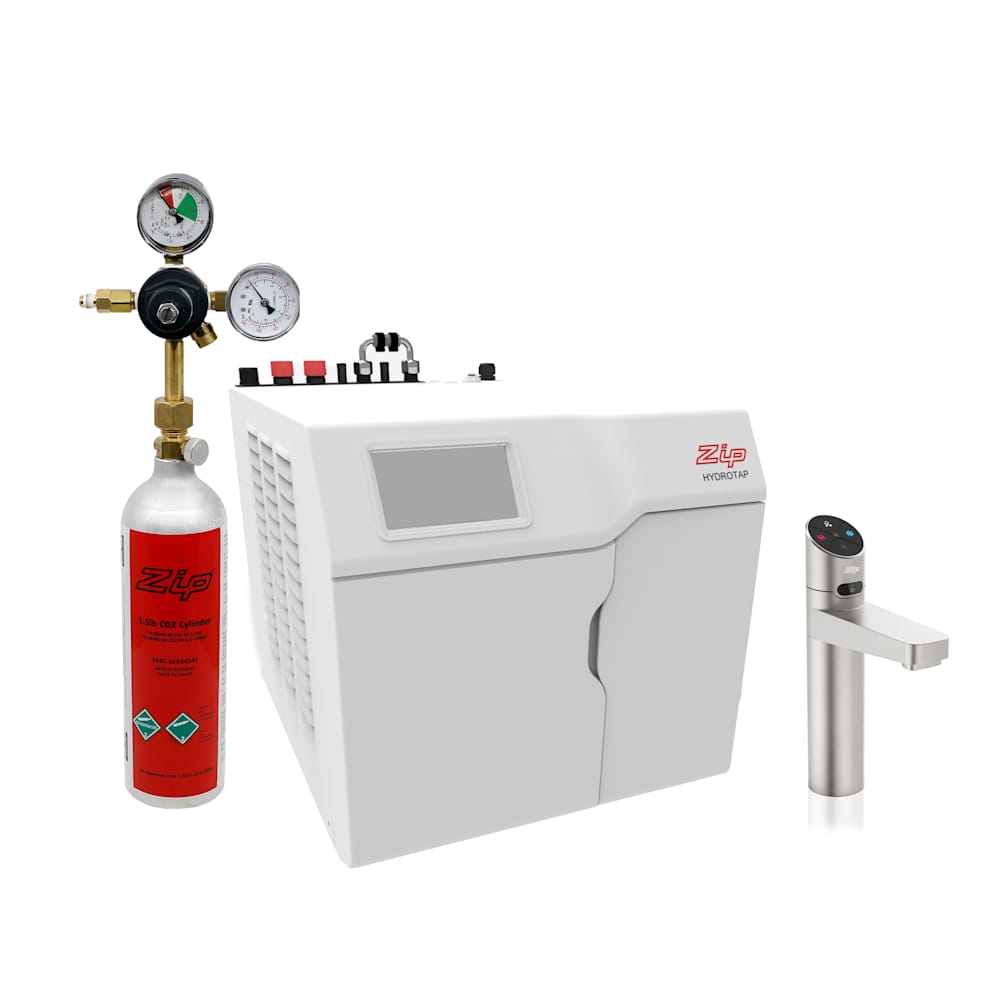

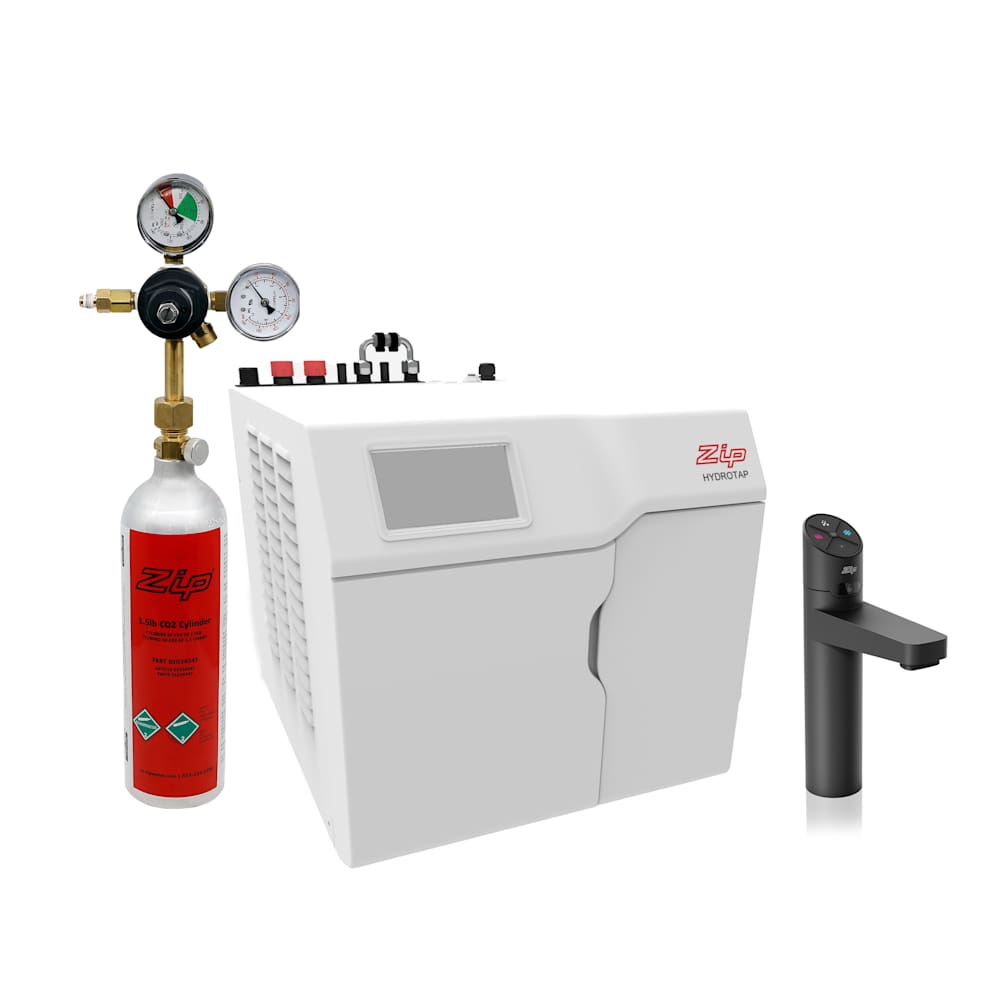

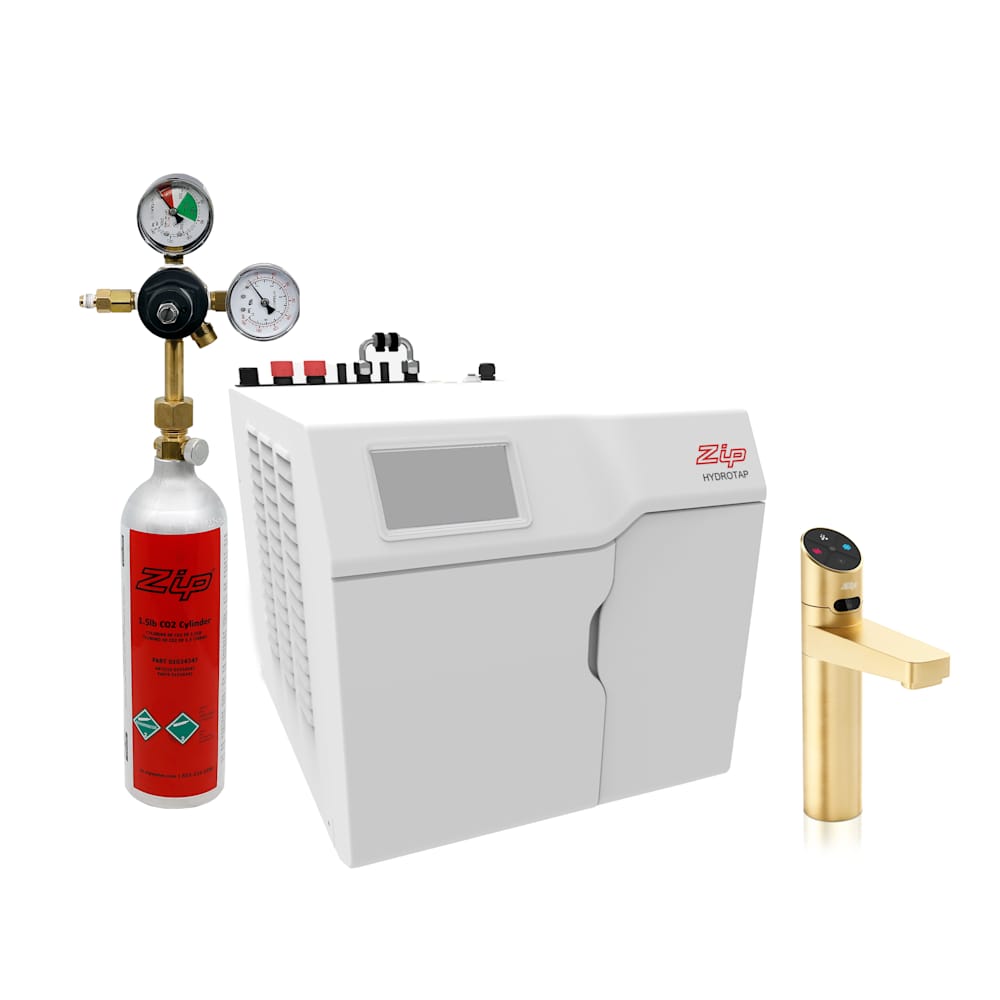

Introducing the Zip Water HydroTap Boiling, Chilled, Sparkling Kit with Elite Plus Tap—the ultimate on-demand hydration system for modern homes. The HydroTap Elite Plus delivers boiling, chilled, and sparkling water at the flick of a tap, with a max flow of 1.8 GPM for rapid hot beverages, cold quenchers, or sparkling refreshments. Its sleek, minimalist design and clean lines fit seamlessly under the sink or on a stylish font, while child safety lock adds peace of mind. Included are the HydroTap 120V BSC G5 Command Center, two beverage-grade CO2 cylinders, and a regulator, so you’re ready to enjoy premium water from day one. Zip Water is known for advanced filtration, smart technology, and durable hardware that elevates daily hydration.

Built for reliability, the Zip Water HydroTap Boiling, Chilled, Sparkling Kit with Elite Plus Tap delivers boiling, sparkling, and chilled water from a single elegantly designed system. It runs on 110-120V, uses a 0.2 micron integral filter that should be replaced every 1,100 gallons or 12 months, and is fed by a potable water supply with a ½" BSP connection. A dual check valve and a 50 psi pressure limiting valve guard against backflow and overpressure across a 37-100 psi range. With dimensions of 13.3" W x 18.2" D x 13.1" H and a dry weight of 75 lbs, the system can be installed over the sink or on an optional font/drip tray for homes or small offices up to 10 people.

features and specifications

• HydroTap 120V BSC G5 Command Center
• Two (2) 1.5lb CO2 Beverage-Grade Cylinders
• CO2 Regulator
• HydroTap Elite Plus 1.8 GPM boiled, chilled, and sparkling water dispenser
• Style: HydroTap Elite Plus – includes child safety lock
• Hole Size: 1-3/8"
• Installation: Over sink as a secondary tap or on optional font/drip tray
• Flow Rate Max: Max 1.8 gpm/6.81 lpm
• Sparkling Water Flow Rate: 0.4 gpm/1.51 lpm
• Water Pressure: Min 37psi – Max 100psi (2.60 – 7.03kg/cm2) with a minimum flow rate of 1 gpm (3.79lpm)
• Water Connection: ½” BSP – isolation valve is required within 3’ of the installation
• Integral Water Valves: All HydroTap systems are fitted with a Dual Check Valve and a 50psi (3.52kg/cm2) Pressure Limiting Valve
• Water Supply Requirements: Potable drinking water supply
• Optimal Range of Total Dissolved Solids (TDS): TDS Min 50ppm – Max 150ppm
• Integral Water Filter: 0.2 micron, 1 size – Replace every 1,100 gallons or 12 months
• Power Rating: 1 x 110-120V, 50-60Hz, 15 amp power supply with a NEMA 5-15 outlet
• Dimensions (WxDxH): 13.3” x 18.2” x 13.1”/339mm x 462mm x 333mm
• Minimum Air Gap: Clearances are required – 2" Left side, 2" Right side, 8" above
• Dry Weight: 75lbs/34kg
• Product Approvals: IAPMO – NSF/ANSI 372, 42, 53, CSA B438.1, ASSE 1023, ASSE 1087; cUL; CEC
• CO2 Cylinder: 2 x 1.5lb Beverage Grade Carbon Dioxide Cylinder
• CO2 Capacity: Approximately 950 8oz cups per 2 cylinders
• CO2 Operating Pressure: Min 39psi – Max 43psi
• Elevate your drinking water with a HydroTap Elite Plus BCS and get on demand boiling, chilled and sparkling water at home or at work*
• The HydroTap Elite BCS will complement every lifestyle, with on demand sparkling water, advanced smart technology, beautiful design and high filtration for healthier living.
• Unbottle the future. Choose sustainable hydration instead with HydroTap by Zip Water – the world’s most advanced drinking water system.
• For home or small office (maximum office size = 10 people)

In sum, the Zip Water HydroTap Boiling, Chilled, Sparkling Kit with Elite Plus Tap is a versatile hydration solution for home or small office use, combining Zip Water's renowned filtration and engineering with on-demand boiling, chilling, and sparkling water. With easy installation, CO2 supply, and a compact footprint, this HydroTap Elite Plus system simplifies hydration and reduces single-use bottles for healthier living.
